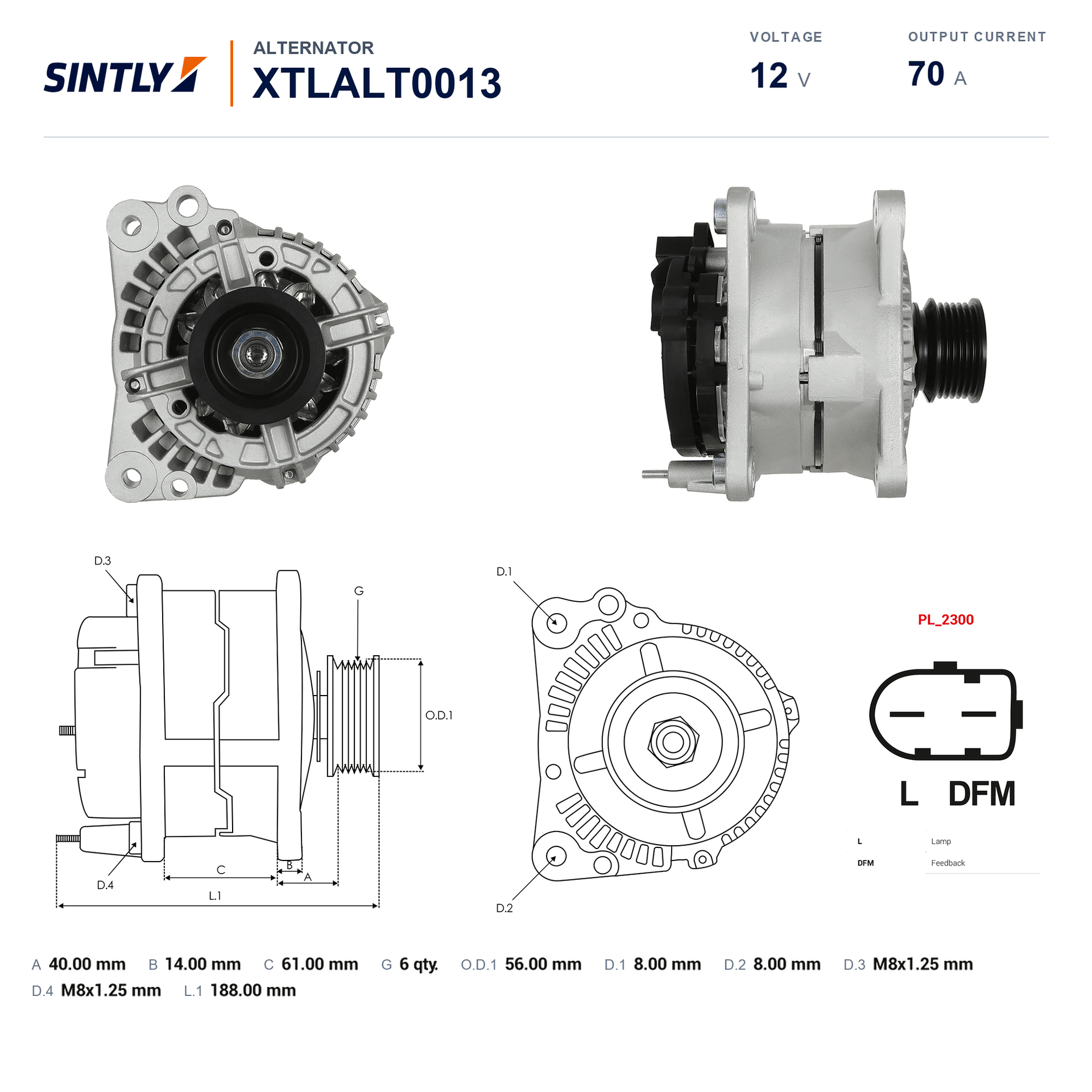

Alternator XTLALT0013

O.D.1 [ mm ]: 56 mm
Plug: PL_2300
D.3 [ mm ]: M8x1.25 mm
D.4 [ mm ]: M8x1.25 mm
L.1 [ mm ]: 188 mm
Size A [ mm ]: 40 mm
Size B [ mm ]: 14 mm
Size C [ mm ]: 61 mm
D.1 [ mm ]: 8.00 mm
D.2 [ mm ]: 8.00 mm

Voltage: 12 V
Amp: 70 A
Pulley: AP
G [ qty. ]: 6 qty

Alternator XTLALT0013

Descargar PDF

O.D.1 [ mm ]: 56 mm
Plug: PL_2300
D.3 [ mm ]: M8x1.25 mm
D.4 [ mm ]: M8x1.25 mm
L.1 [ mm ]: 188 mm
Size A [ mm ]: 40 mm
Size B [ mm ]: 14 mm
Size C [ mm ]: 61 mm
D.1 [ mm ]: 8.00 mm
D.2 [ mm ]: 8.00 mm
Voltage: 12 V
Amp: 70 A
Pulley: AP
G [ qty. ]: 6 qty

Aplicaciones

Marca	Vehículo	Tipos de modelo	Desde	Hasta
SKODA	FABIA I (6Y2) 1.2	AWY	07/2001	04/2007
SKODA	FABIA I Combi (6Y5) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Saloon (6Y3) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Saloon (6Y3) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I Combi (6Y5) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I (6Y2) 1.2	AZQ	01/2003	03/2008
SKODA	FABIA I Saloon (6Y3) 1.2	BMD	07/2001	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	BMD	07/2001	12/2007

Código original

0124315003
021903025H
0986041510
13850

Código equivalente (Fabricante del vehículo)

021903025H (VW)
028903028C (VW)
028903028CX (VW)
030903023H (VW)
030903023HX (VW)
030903023L (VW)
030903023LX (VW)
037903025E (VW)
037903025EX (VW)
038903018 (VW)
038903018X (VW)
038903023 (VW)
038903025 (VW)
06A903026B (VW)
06A903026C (VW)
06A903026CX (VW)
06B903018RX (VW)
06B903018SX (VW)
28903028C (VW)
30903023H (VW)
30903023HX (VW)
38903018 (VW)
38903018X (VW)
38903023 (VW)
6A903026C (VW)
6B903018RX (VW)
6B903018SX (VW)
063533489010 (MAGNETI MARELLI)
943355062010 (MAGNETI MARELLI)
944390415100 (MAGNETI MARELLI)
MAN2811 (MAGNETI MARELLI)
MAR5562 (MAGNETI MARELLI)
MRA41510 (MAGNETI MARELLI)
11.203.310 (ISKRA / LETRIKA)
AAK5541 (ISKRA / LETRIKA)
IA1144 (ISKRA / LETRIKA)
13850N (WAI / TRANSPO)
13850R (WAI / TRANSPO)
20110486 (PRESTOLITE)
A1017R (PRESTOLITE)
2015282 (SANDO)
20179282OE (REAL)
210823 (ERA)
28-3601 (ELSTOCK)
301436RI (KUHNER)
305.517.070 (PSH)
305.517.070.462 (PSH)
A132.261 (PSH)
A148.058 (PSH)
310816 (RHIAG)
437315 (VALEO)
439310 (VALEO)
SG8B011 (VALEO)
4968 (CEVAM)
56844 (EAI)
89213753 (POWERMAX)
9213753 (POWERMAX)
8EL012428-101 (HELLA)
8EL737626-001 (HELLA)
A0427 (AS-PL)
UD11338A (AS-PL)
AEA4285 (AUTOELECTRO)
NEA4285 (AUTOELECTRO)
ALT172820 (SIOM)
ALT3260 (SIOM)
ALT4002 (3EFFE)
ALTS608 (3EFFE)
PRAS608 (3EFFE)
CA1436IR (HC PARTS)
CAL15282 (CASCO)
CAL15282AS (CASCO)
CAL15282ES (CASCO)
CAL15282GS (CASCO)
CAL15282OS (CASCO)
CAL15282RS (CASCO)
CGB-83601 (AINDE)
DB2620 (DELCO)
DB2620N (DELCO)
DRB1510 (DELCO)
DRB1510N (DELCO)
LRB00485 (LUCAS)
LRB485 (LUCAS)
MG 295 (MAHLE)
ALT00882 (ELECTROLOG)
ALT1317 (ELECTROLOG)
ALT79317 (ELECTROLOG)
A12BH0398A2 (SIDAT)
ANM43730X (ANDEL)
STX100180 (STARDAX)
STX100180R (STARDAX)
STX100191 (STARDAX)
STX100191R (STARDAX)
STX100192 (STARDAX)
STX100192R (STARDAX)
STX100304 (STARDAX)
STX100304R (STARDAX)
STX101753 (STARDAX)

Aplicaciones

Marca	Vehículo	Tipos de modelo	Desde	Hasta
SKODA	FABIA I (6Y2) 1.2	AWY	07/2001	04/2007
SKODA	FABIA I Combi (6Y5) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Saloon (6Y3) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	AWY	07/2001	12/2007
SKODA	FABIA I Saloon (6Y3) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I Combi (6Y5) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	AZQ	01/2003	12/2007
SKODA	FABIA I (6Y2) 1.2	AZQ	01/2003	03/2008
SKODA	FABIA I Saloon (6Y3) 1.2	BMD	07/2001	12/2007
SKODA	FABIA I Praktik (6Y5) 1.2	BMD	07/2001	12/2007
