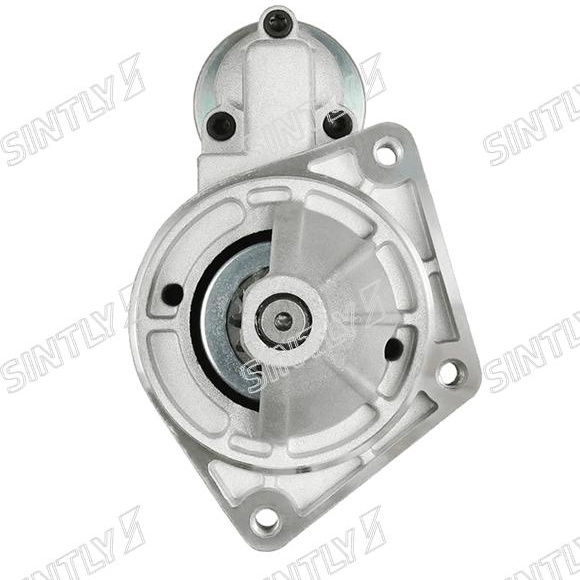

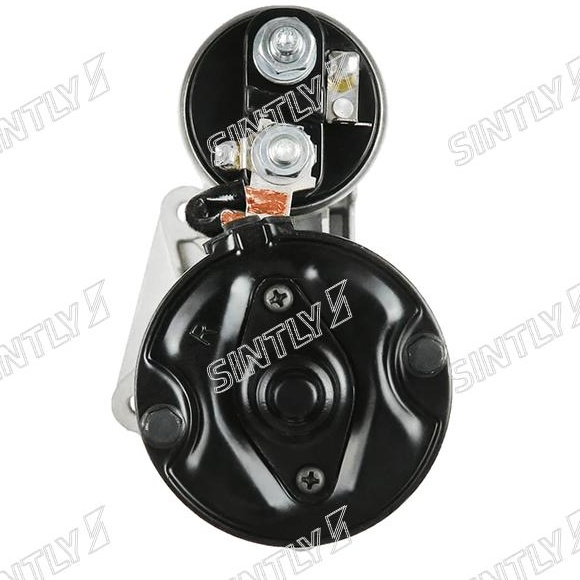

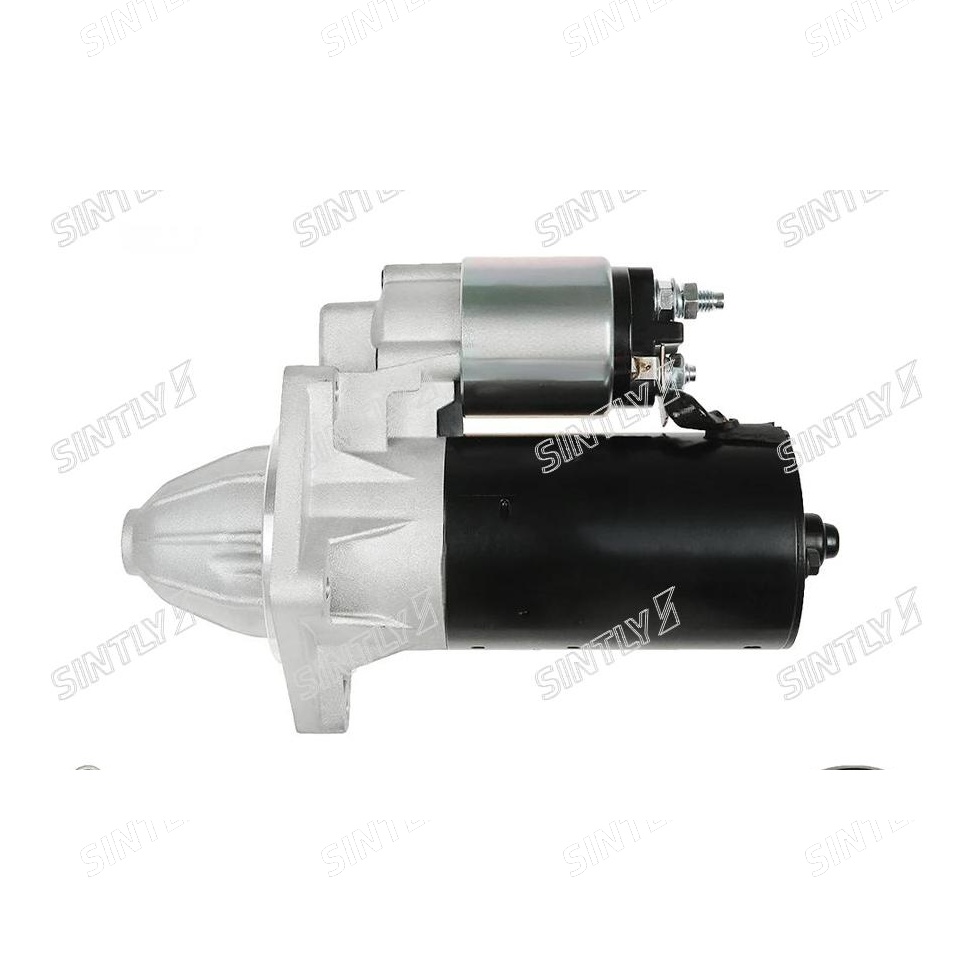

Starter XTLSTR0061

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 66 mm
No./mount. holes with thread [ qty. ]: 3 qty
L.1 [ mm ]: 245 mm
Rotation: CW
Size A [ mm ]: 82.5 mm
Size B [ mm ]: 23.5 mm
No./teeth: 11 qty
No./teeth (fits into) [ qty. ]: 11 qty
Power: 1.3 kW

O.3 [ mm ]: 111 mm
O.2 [ mm ]: 67 mm
C.1 [ mm ]: M8x1.25 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: M8x1.25 mm

Starter XTLSTR0061

Descargar PDF

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 66 mm
No./mount. holes with thread [ qty. ]: 3 qty
L.1 [ mm ]: 245 mm
Rotation: CW
Size A [ mm ]: 82.5 mm
Size B [ mm ]: 23.5 mm
No./teeth: 11 qty
No./teeth (fits into) [ qty. ]: 11 qty
Power: 1.3 kW
O.3 [ mm ]: 111 mm
O.2 [ mm ]: 67 mm
C.1 [ mm ]: M8x1.25 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: M8x1.25 mm

Aplicaciones

Marca	Vehículo	Tipos de modelo	Desde	Hasta
LADA	1200-1600 1.3 2106	BA32105	04/1976	12/2005
LADA	TOSCANA (2107) 1.7	B032123	03/1991	10/2001
LADA	NADESCHDA (2120) 1.7 i	21214-27	12/1997	12/2006
LADA	NIVA Closed Off-Road Vehicle (2121, 2131) 1.7 LPG	21214	09/2002	12/2015
LADA	1200-1500 Estate 1200 (2102)	2101	09/1973	08/1984
LADA	NOVA (2105) 1200 Junior/L (2105)	2101	09/1981	04/2012
LADA	1200-1600 1200 L/S (2101)	2101	01/1970	06/1986
LADA	TOSCANA (2107) 1300	BA32105	12/1985	05/2012
LADA	NOVA Estate (2104) 1300	BA32105	09/1985	12/1994
LADA	1200-1500 Estate 1300 (VAZ-21021)	BA32105	01/1981	12/1982

Aplicaciones

Código original (Fabricante del vehículo)

S0128
STRS180
AC-CBS0139
CGB-21910
10440095
ANM14130X
AES2186
SMM138A
0001208218
0001208218 (BOSCH)
0986011910
0986011910 (BOSCH)
0986011911

Código equivalente (Fabricante del vehículo)

S0128 (AS-PL)
STRS180 (3EFFE)
AC-CBS0139 (ACAUTO)
CGB-21910 (AINDE)
10440095 (ALANKO)
ANM14130X (ANDEL)
AES2186 (AUTOELECTRO)
SMM138A (AUTOTEAM)
110352 (CARGO)
F032110352 (CARGO)
BREF032110352 (CARWOOD GROUP)
CST30138AS (CASCO)
CST30138RS (CASCO)
3453 (CEVAM)
CMA-621162 (COMLINE)
DRS1910 (DELCO)
11221 (EAI)
11251 (EAI)
STR1591 (ELECTROLOG)
STR1591i (ELECTROLOG)
E100L-1.5/12 (ELMOT)
R100.03 (ELMOT)
25-0079 (ELSTOCK)
MTD12-14 (ELSTOCK)
220079 (ERA)
4421708 (FIAT)
4474746 (FIAT)
4474747 (FIAT)
4474750 (FIAT)
77218430 (FIAT)
8011911 (FRIESEN)
CS139 (HC PARTS)
8EA012526-391 (HELLA)
8EA725989-001 (HELLA)
10030138AV (ITAB AUTOMOTIVE)
10139 (KUHNER)
1.3R3103 (LADA)
2100-3708000 (LADA)
2101-3708000 (LADA)
2101-3708000-02 (LADA)
2101-3708010 (LADA)
2105-3708010 (LADA)
21070-3708010-01 (LADA)
2110-3708010-01 (LADA)
21213-3708010 (LADA)
221-3708000 (LADA)
3101-3708000 (LADA)
35.3708-01 (LADA)
35.3708-12B (LADA)
3708000 (LADA)
4233708 (LADA)
4253708 (LADA)
5722 (LADA)
5722.3708 (LADA)
CT221128 (LADA)
CT22112B (LADA)
CT2211B (LADA)
CT2213708000 (LADA)
KAT3K35.3708 (LADA)
KAT3KCT221126 (LADA)
KAT3KCT22112B (LADA)
Z11M2.116 (LADA)
Z11M2.116/1.814 (LADA)
22.0139 (LAUBER)
22.0139M (LAUBER)
LES0093 (LE PART)
LRS00286 (LUCAS)
LRS286 (LUCAS)
63222408 (MAGNETI MARELLI)
63222438 (MAGNETI MARELLI)
63222506 (MAGNETI MARELLI)
63291401 (MAGNETI MARELLI)
E100-1.3/12V8 (MAGNETI MARELLI)
9141382 (MAGNETON)
8212613 (POWERMAX)
88212613 (POWERMAX)
S1023B (PRESTOLITE)
S1024B (PRESTOLITE)
850.001.113.010 (PSH)
850.001.113.463 (PSH)
S135.628 (PSH)
20404831BN (REAL)
20404831RC (REAL)
011-001-000397R (REMANTE)
RNL1191 (RNL)
6030138.0 (SANDO)
6030138.2 (SANDO)
S12BH0757A2 (SIDAT)
MAV1050 (SIOM)
MAV1050A (SIOM)
MAV1050R (SIOM)
STX200090R (STARDAX)
TT15336 (TESLA TECHNICS)
TT15336PRO (TESLA TECHNICS)
433279 (VALEO)
VS169 (VALEO)
30286N (WAI / TRANSPO)
STRL021 (WOODAUTO)
WOOSTRL021 (WOODAUTO)

Aplicaciones

Marca	Vehículo	Tipos de modelo	Desde	Hasta
LADA	1200-1600 1.3 2106	BA32105	04/1976	12/2005
LADA	TOSCANA (2107) 1.7	B032123	03/1991	10/2001
LADA	NADESCHDA (2120) 1.7 i	21214-27	12/1997	12/2006
LADA	NIVA Closed Off-Road Vehicle (2121, 2131) 1.7 LPG	21214	09/2002	12/2015
LADA	1200-1500 Estate 1200 (2102)	2101	09/1973	08/1984
LADA	NOVA (2105) 1200 Junior/L (2105)	2101	09/1981	04/2012
LADA	1200-1600 1200 L/S (2101)	2101	01/1970	06/1986
LADA	TOSCANA (2107) 1300	BA32105	12/1985	05/2012
LADA	NOVA Estate (2104) 1300	BA32105	09/1985	12/1994
LADA	1200-1500 Estate 1300 (VAZ-21021)	BA32105	01/1981	12/1982
