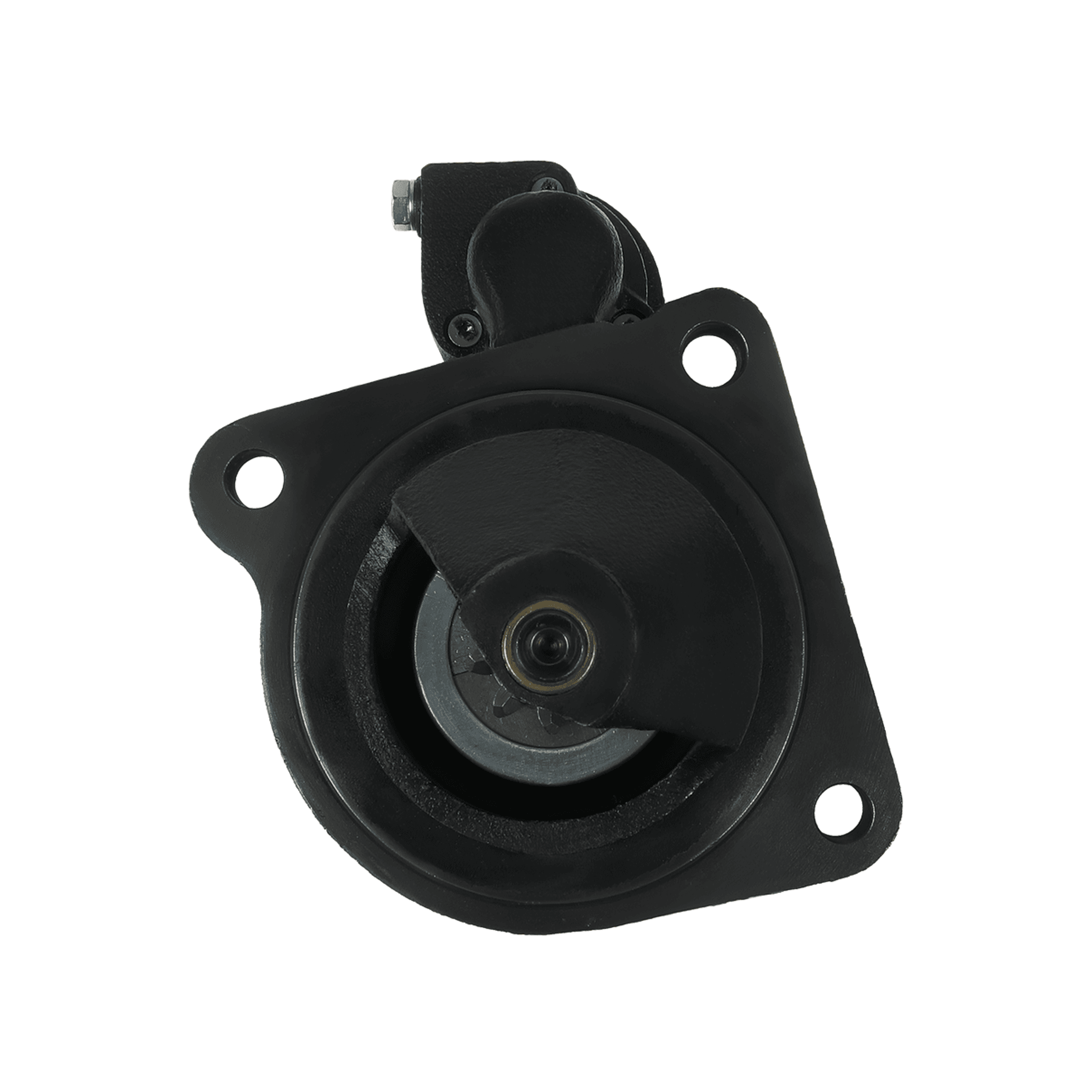

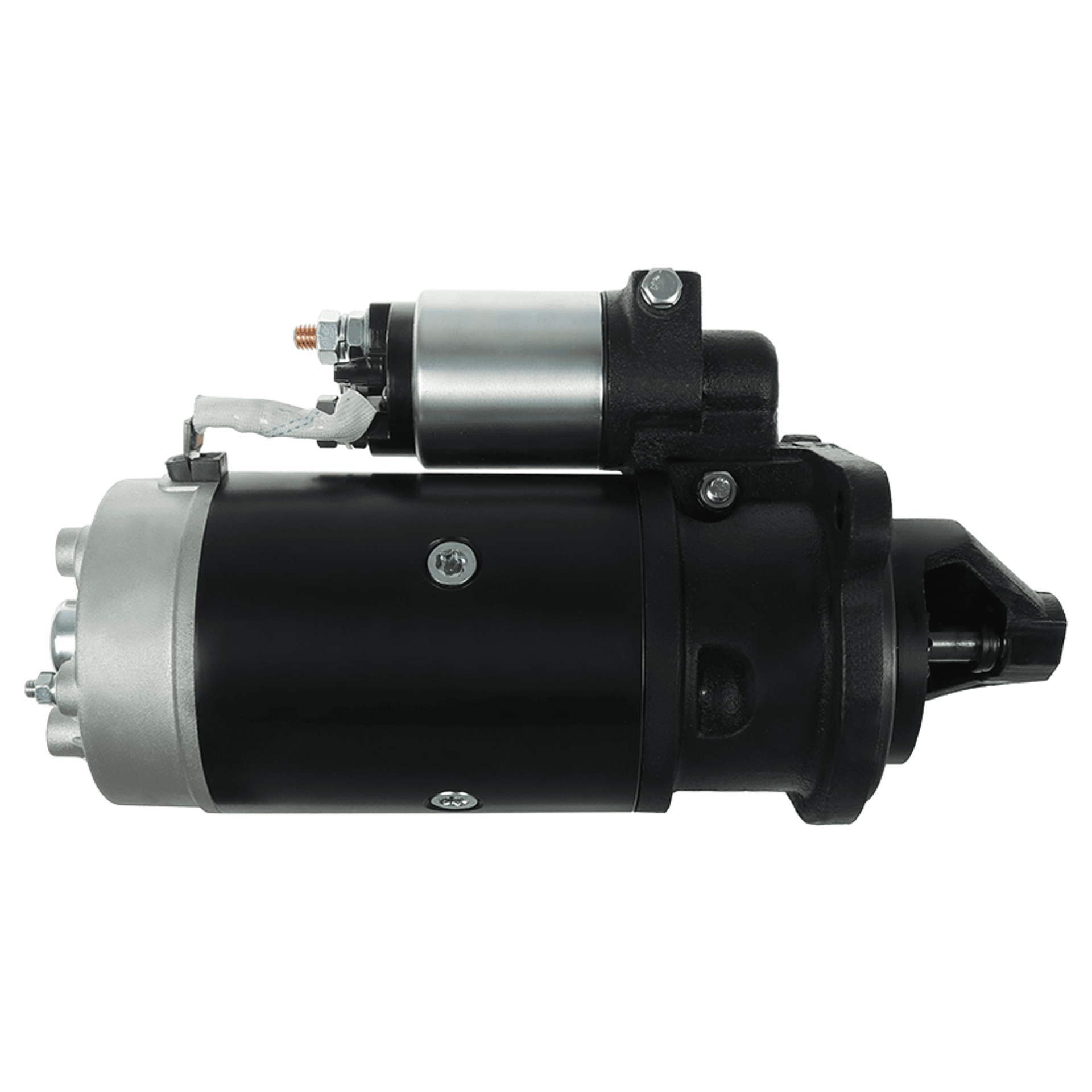

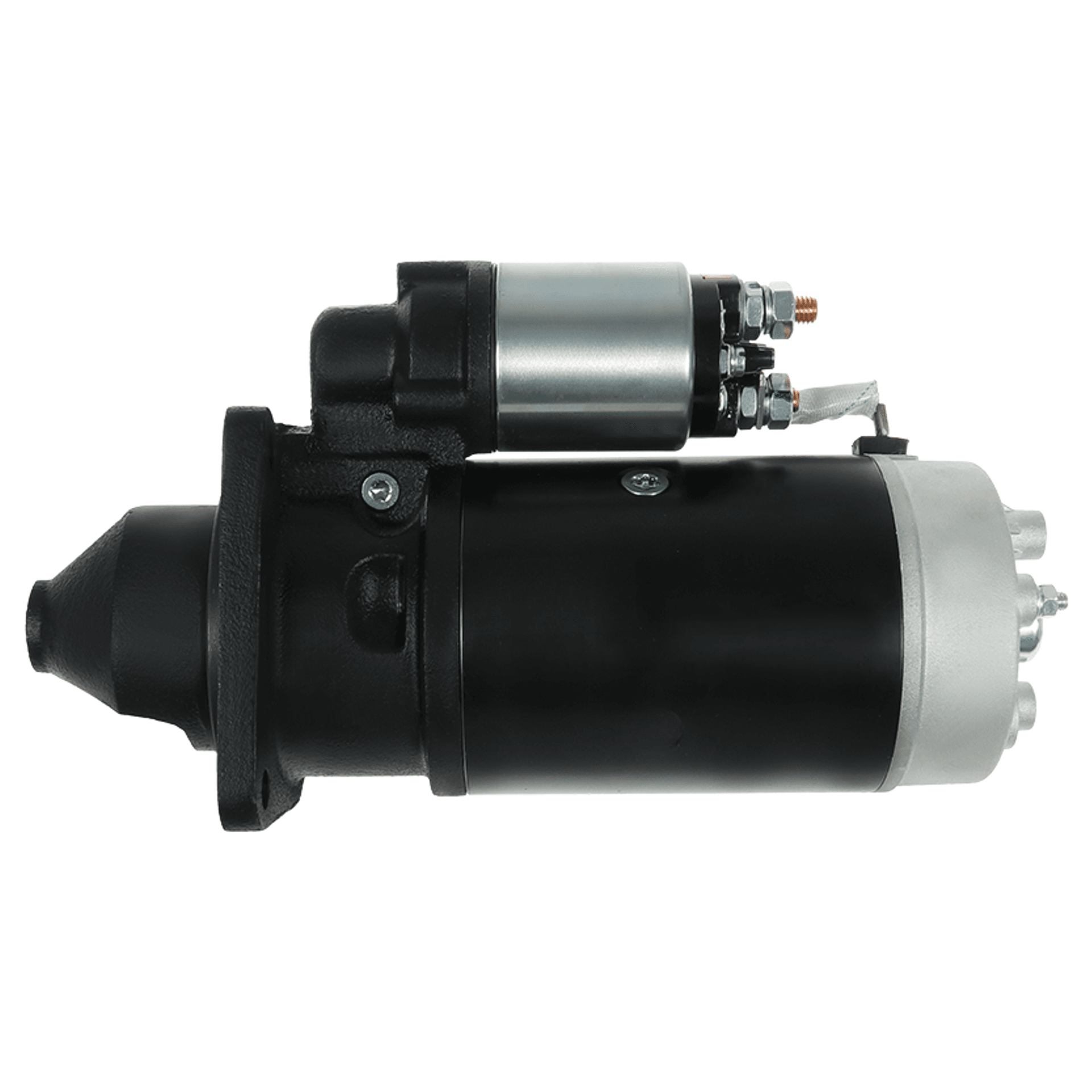

Starter XTLSTR1034
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
104 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
341 mm
Rotation
CW
Size A [ mm ]
110 mm
Size B [ mm ]
27 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
O.3 [ mm ]
146 mm
O.2 [ mm ]
104 mm
C.1 [ mm ]
12.00 mm
Voltage
24 V
C.3 [ mm ]
12.00 mm
C.2 [ mm ]
12.00 mm
Ver más
Starter XTLSTR1034
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
104 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
341 mm
Rotation
CW
Size A [ mm ]
110 mm
Size B [ mm ]
27 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
O.3 [ mm ]
146 mm
O.2 [ mm ]
104 mm
C.1 [ mm ]
12.00 mm
Voltage
24 V
C.3 [ mm ]
12.00 mm
C.2 [ mm ]
12.00 mm
Inicio
Starter
Starter XTLSTR1034
Código original
0001360063
0001368020
18033
42498145
Código equivalente (Fabricante del vehículo)
10394 (KUHNER)
10394M (KUHNER)
11.130.124 (ISKRA / LETRIKA)
11.130.490 (ISKRA / LETRIKA)
AZJ3131 (ISKRA / LETRIKA)
AZJ3515 (ISKRA / LETRIKA)
IS0490 (ISKRA / LETRIKA)
110518 (CARGO)
F032110518 (CARGO)
11430 (EFEL)
18033N (WAI / TRANSPO)
20401437BN (REAL)
20404206OE (REAL)
22.0394 (LAUBER)
28.0394M (LAUBER)
33353 (EAI)
42498145 (IVECO)
611466612 (IVECO)
611466632 (IVECO)
42498212 (FIAT)
4706008 (FIAT)
4716026 (FIAT)
4716062 (FIAT)
4737756 (FIAT)
4755111 (FIAT)
4807379 (FIAT)
77050262 (FIAT)
77050562 (FIAT)
45-0228 (ELSTOCK)
455518 (VALEO)
501.002.093 (PSH)
S132.644 (PSH)
S143.938 (PSH)
6010734 (SANDO)
6030602 (SANDO)
63216703 (MAGNETI MARELLI)
63216740 (MAGNETI MARELLI)
MT67C (MAGNETI MARELLI)
MT67CA (MAGNETI MARELLI)
77711817 (CQ)
858320 (PRESTOLITE)
860817 (PRESTOLITE)
8665 (CEVAM)
8811330 (FRIESEN)
8EA726142-001 (HELLA)
AES8141 (AUTOELECTRO)
CGB-21330 (AINDE)
CS394 (HC PARTS)
CST10734AS (CASCO)
CST30602GS (CASCO)
CST30602OS (CASCO)
DRS1330 (DELCO)
GS216741M-R (GPARTS)
GS368020-A (GPARTS)
LRS00841 (LUCAS)
LRS841 (LUCAS)
MAV2050 (SIOM)
MAV2060 (SIOM)
MS 186 (MAHLE)
S0092 (AS-PL)
UD03445S (AS-PL)
STR22010 (WOODAUTO)
STRL034 (3EFFE)
220267 (ERA)
S24BH0036A2 (SIDAT)
ANM13550X (ANDEL)
331920 (LOGISTIK)
5110012 (MEAT & DORIA)
STR10079 (ELECTROLOG)
STR79016 (ELECTROLOG)
1516760R (DAF)
Aplicaciones
Aplicaciones
ALL
IVECO
Marca
IVECO
