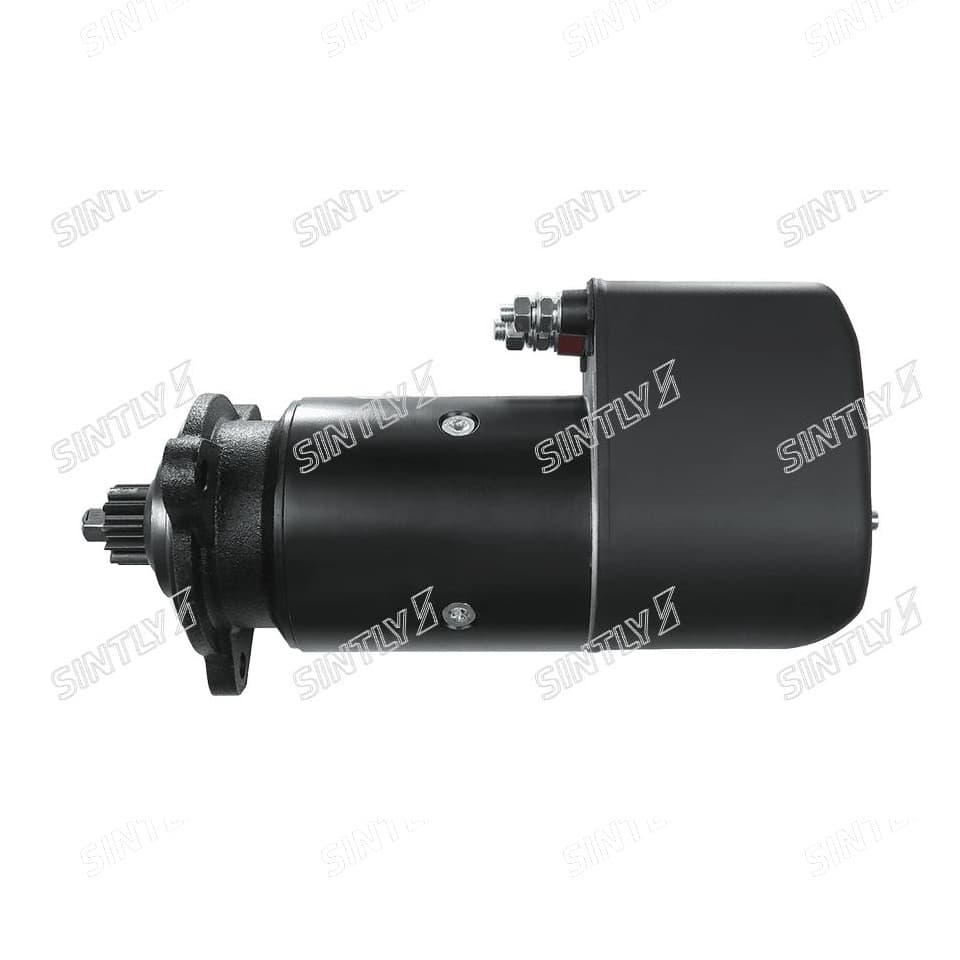

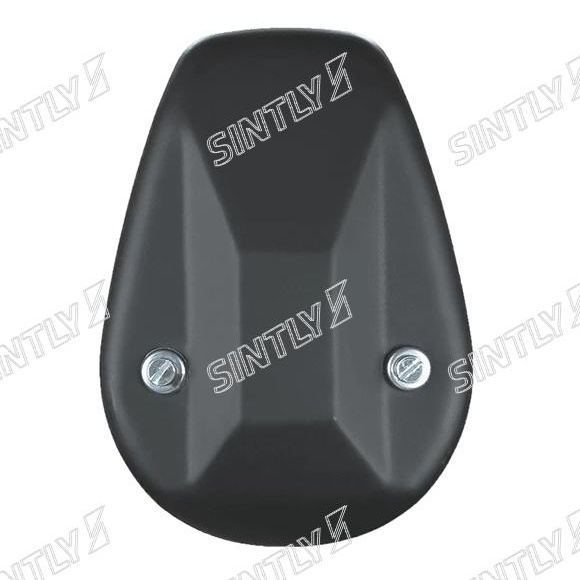

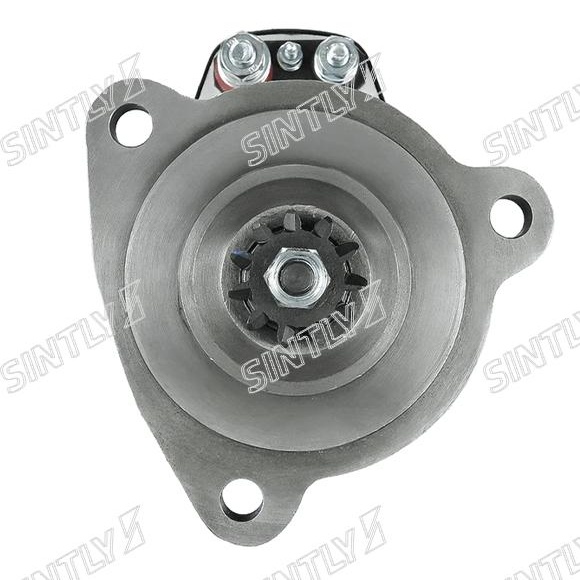

Starter XTLSTR1040
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
110 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.4 kW
O.3 [ mm ]
127 mm
Oil sealed
Yes
O.2 [ mm ]
127 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
Ver más
Starter XTLSTR1040
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
110 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.4 kW
O.3 [ mm ]
127 mm
Oil sealed
Yes
O.2 [ mm ]
127 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
Inicio
Starter
Starter XTLSTR1040
Código original
0001416062
0090690
2-3185-2W
30087
Código equivalente (Fabricante del vehículo)
10617 (KUHNER)
11.139.025 (ISKRA / LETRIKA)
AZK5184 (ISKRA / LETRIKA)
IS9025 (ISKRA / LETRIKA)
110981 (CARGO)
F032110981 (CARGO)
19024049 (DELCO)
DRS4560 (DELCO)
20401736BN (REAL)
20401736EL (REAL)
28.0617 (LAUBER)
30087N (WAI / TRANSPO)
33533 (EAI)
0090690 (DAF)
0365211R (DAF)
090671 (DAF)
090690 (DAF)
365211 (DAF)
45-1297 (ELSTOCK)
455542 (VALEO)
81366062 (MONARK)
81466062 (MONARK)
860509 (PRESTOLITE)
860509GB (PRESTOLITE)
8744 (CEVAM)
8814560 (FRIESEN)
8EA730187-001 (HELLA)
CGB-11562 (AINDE)
CS617 (HC PARTS)
CST10637AS (CASCO)
CST10637ES (CASCO)
IM562 (AVF)
LRS00766 (LUCAS)
LRS766 (LUCAS)
MAV126370 (SIOM)
72741796 (MAHLE)
MS497 (MAHLE)
STR22033 (WOODAUTO)
PRSS710 (3EFFE)
STRS710 (3EFFE)
220289 (ERA)
ANM16780X (ANDEL)
330769 (LOGISTIK)
6010637.0 (SANDO)
6010637.3 (SANDO)
STR1460 (ELECTROLOG)
STR79463 (ELECTROLOG)
STM1246 (ROLLCO)
Aplicaciones
Aplicaciones
ALL
DAF
Marca
DAF
