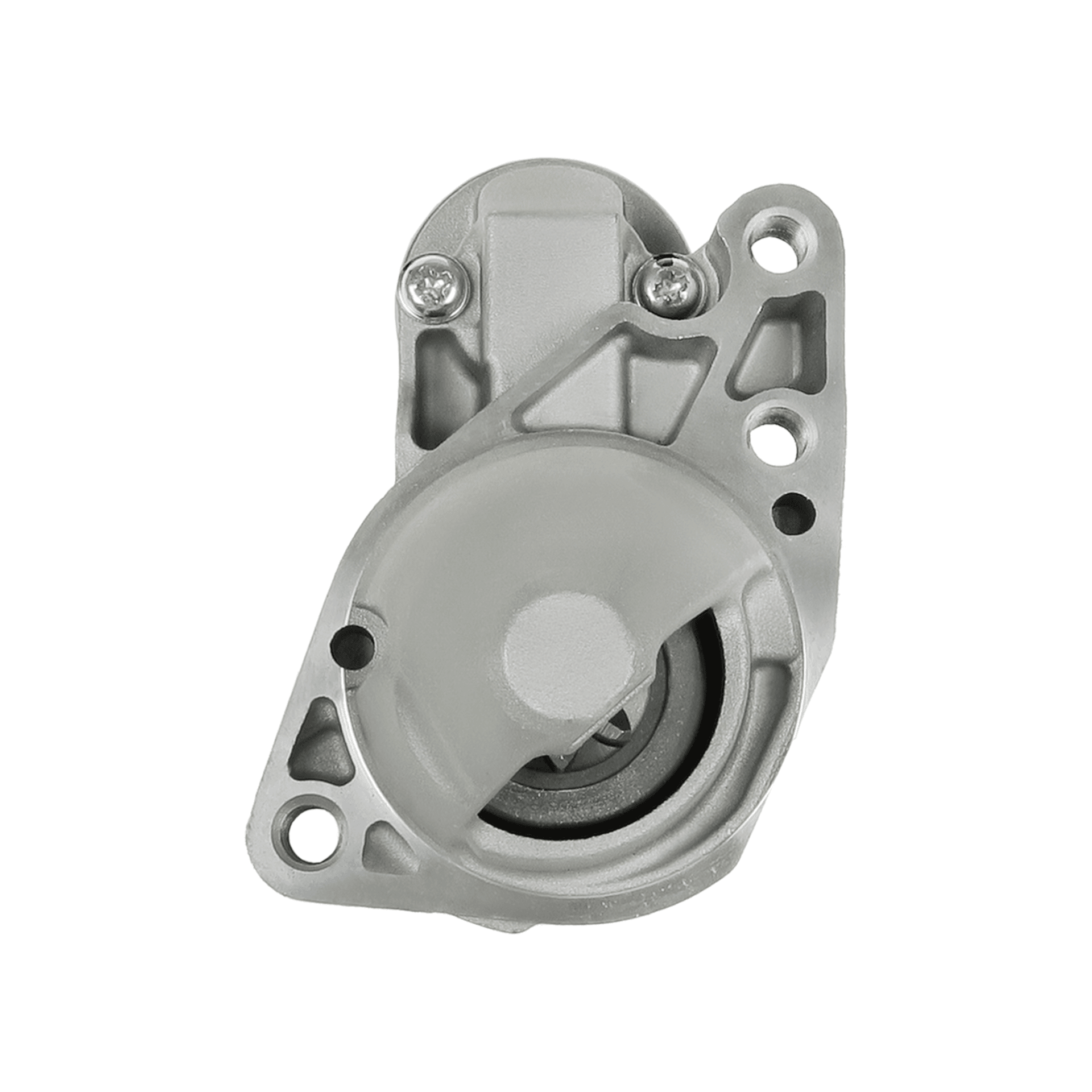

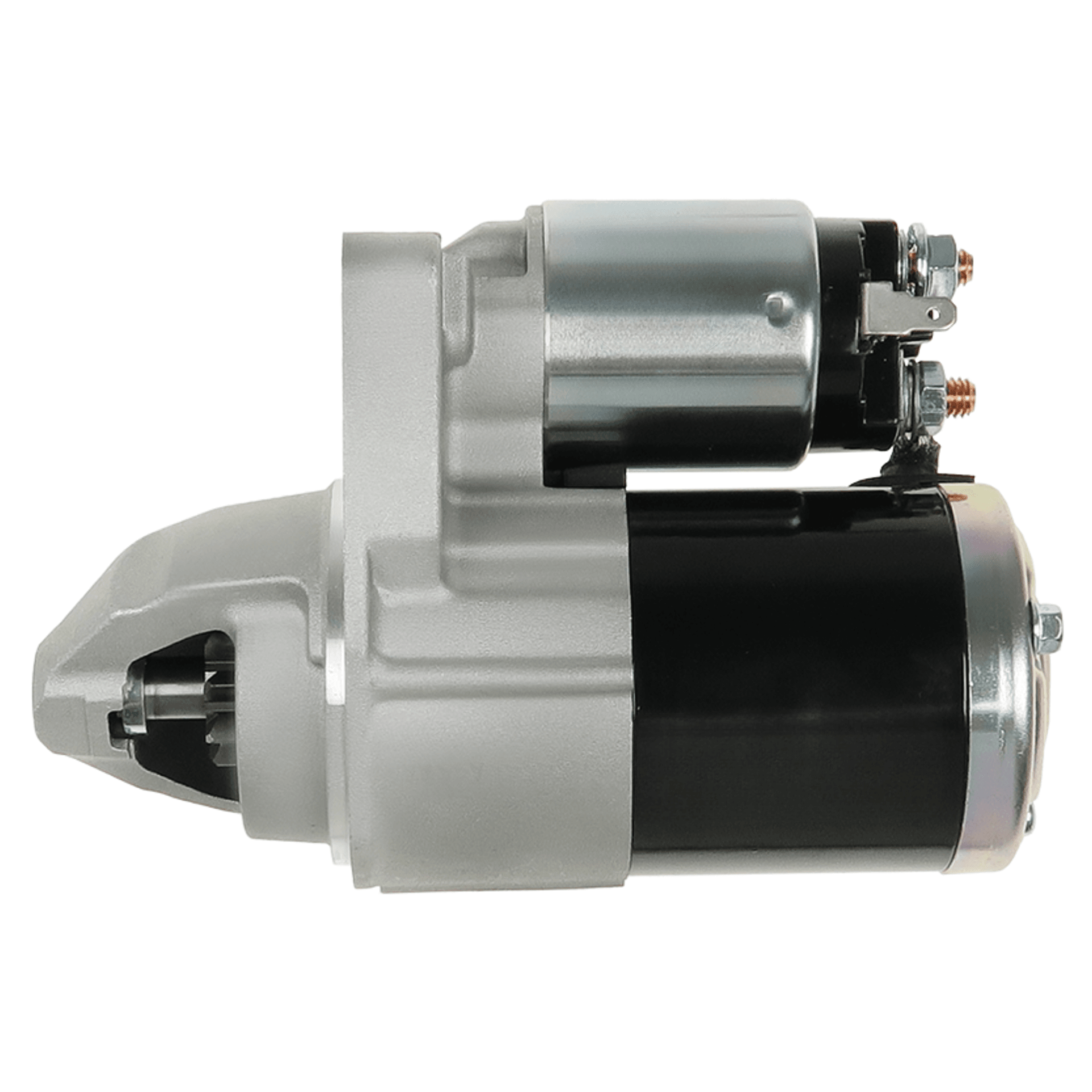

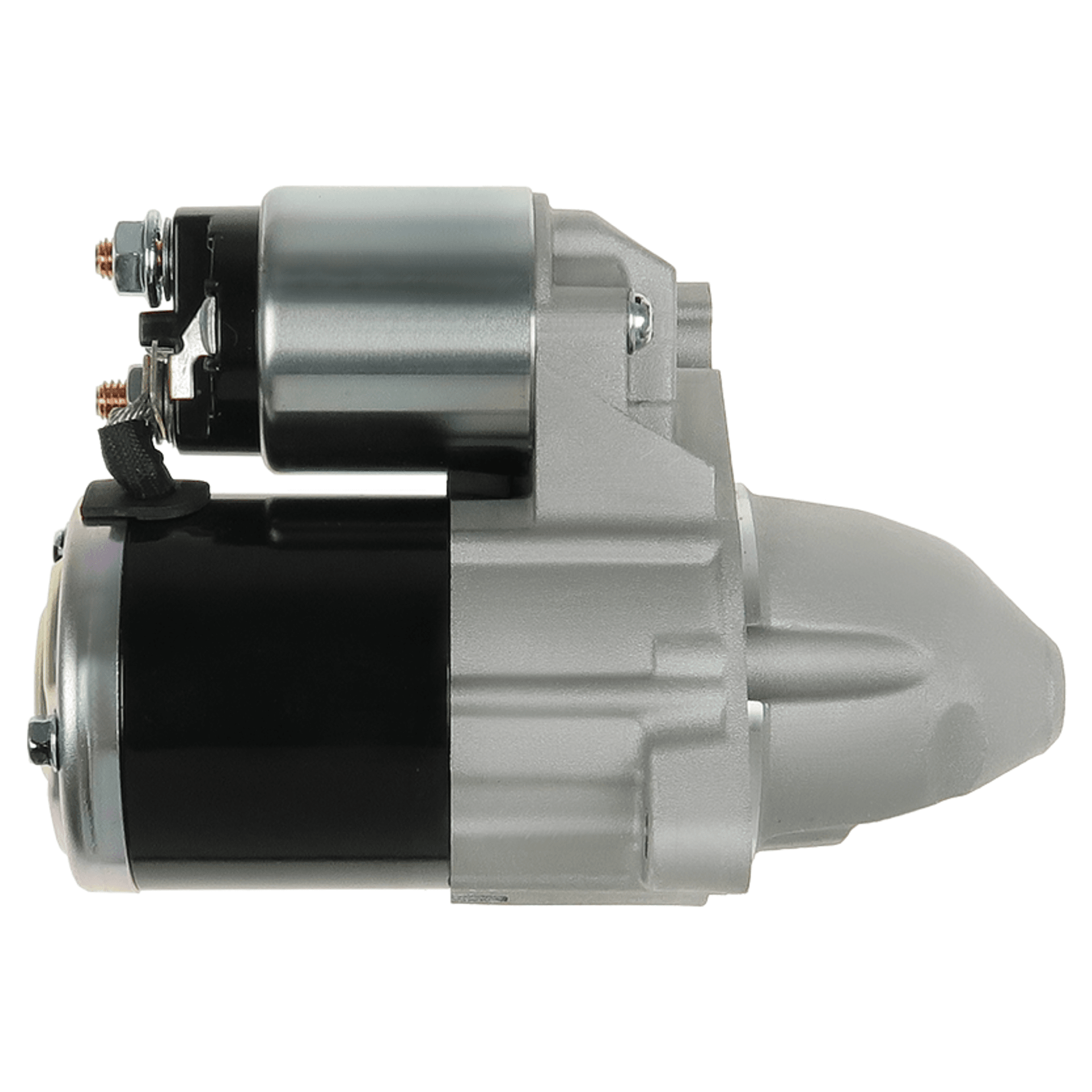

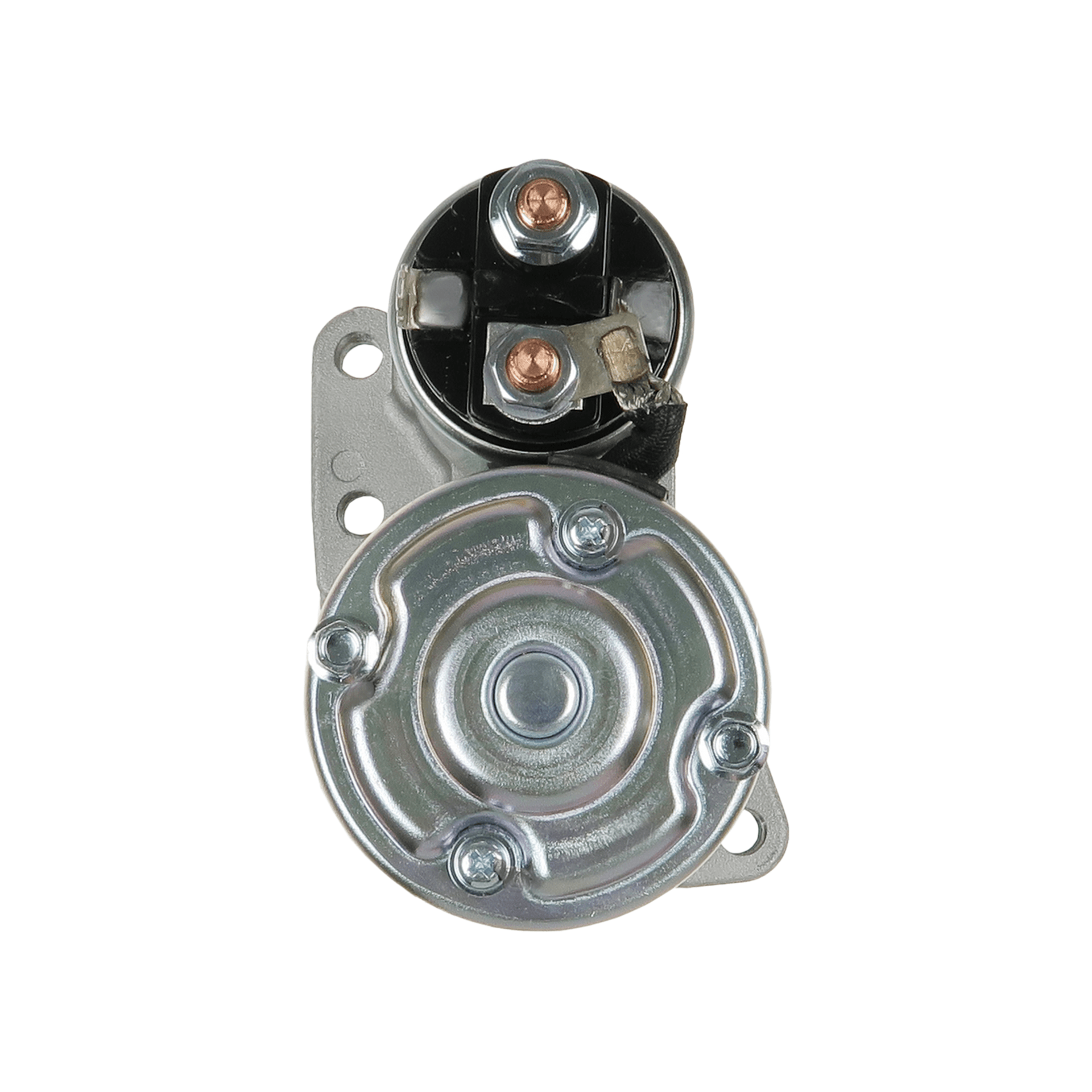

Starter XTLSTR3040
Descargar PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
31 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
183 mm
Rotation
CW
Size A [ mm ]
70 mm
Size B [ mm ]
28 mm
No./teeth
8 qty
Power
1.2 kW
O.3 [ mm ]
116 mm
O.2 [ mm ]
94 mm
C.1 [ mm ]
M10x1.5 mm
Voltage
12 V
C.3 [ mm ]
M10x1.5 mm
C.2 [ mm ]
M10x1.5 mm
Ver más
Starter XTLSTR3040
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
31 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
183 mm
Rotation
CW
Size A [ mm ]
70 mm
Size B [ mm ]
28 mm
No./teeth
8 qty
Power
1.2 kW
O.3 [ mm ]
116 mm
O.2 [ mm ]
94 mm
C.1 [ mm ]
M10x1.5 mm
Voltage
12 V
C.3 [ mm ]
M10x1.5 mm
C.2 [ mm ]
M10x1.5 mm
Aplicaciones
Código original
19141
56029584AA
M000T34071
MOT34071
Código equivalente (Fabricante del vehículo)
19141N (WAI / TRANSPO)
256106 (KUHNER)
56029584AA (CHRYSLER)
RL029584AA (CHRYSLER)
91-27-3490 (WILSON)
S-80530 (DIXIE)
UD13789S (AS-PL)
STR5414 (ELECTROLOG)
