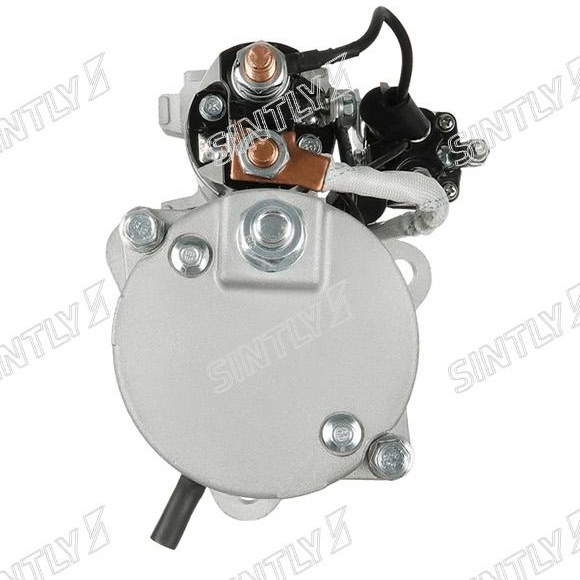

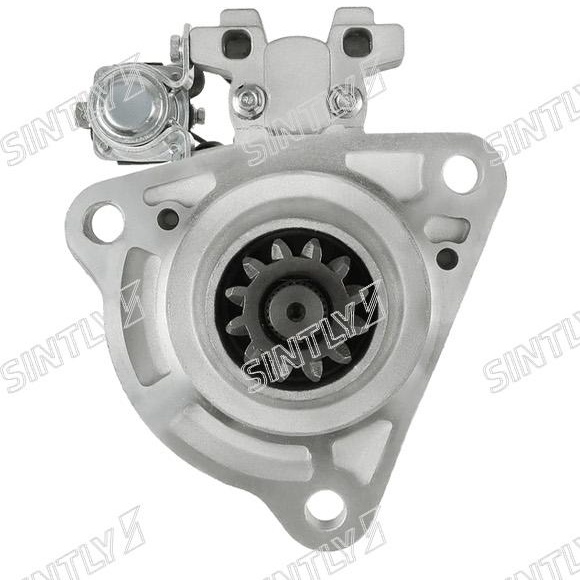

Starter XTLSTR3546
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
361 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
5.5 kW
O.3 [ mm ]
126 mm
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
Ver más
Starter XTLSTR3546
Descargar PDF
Enviar consulta
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
361 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
48 mm
No./teeth
12 qty
Power
5.5 kW
O.3 [ mm ]
126 mm
O.2 [ mm ]
126 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
Inicio
Starter
Starter XTLSTR3546
Código original
19538
2-3163-2W
5001866293
M9T61171
Código equivalente (Fabricante del vehículo)
0001261049 (BOSCH)
0986025450 (BOSCH)
F042001199 (BOSCH)
F042001203 (BOSCH)
101388M (KUHNER)
101388P (KUHNER)
101388V (KUHNER)
255259M (KUHNER)
255259P (KUHNER)
11.139.624 (ISKRA / LETRIKA)
AZE4697 (ISKRA / LETRIKA)
IS9476 (ISKRA / LETRIKA)
113830 (CARGO)
114872 (CARGO)
115875 (CARGO)
F032113830 (CARGO)
F032114872 (CARGO)
F032115875 (CARGO)
130-90120 (ROBERT'S)
19081000 (DELCO)
19081901 (DELCO)
19081911 (DELCO)
35050VL (DELCO)
DRS0109 (DELCO)
DS1219 (DELCO)
19538N (WAI / TRANSPO)
20430564 (VOLVO)
20430565 (VOLVO)
20431073 (VOLVO)
20572417 (VOLVO)
20714203 (VOLVO)
20891242 (VOLVO)
21632125 (VOLVO)
21632127 (VOLVO)
22602940 (VOLVO)
22804728 (VOLVO)
7485020794 (VOLVO)
85000087 (VOLVO)
85000677 (VOLVO)
85000746 (VOLVO)
85013089 (VOLVO)
85020793 (VOLVO)
20437816BN (REAL)
20437816OE (REAL)
220558 (ERA)
220563 (ERA)
243-55205 (DIXIE)
S-80173 (DIXIE)
S-80473 (DIXIE)
45-3445 (ELSTOCK)
45-4127 (ELSTOCK)
6035618 (SANDO)
6035669 (SANDO)
811.502.123 (PSH)
811.520.123 (PSH)
S135.089 (PSH)
S135.439 (PSH)
S144.902 (PSH)
S145.607 (PSH)
8122 (CEVAM)
8178 (CEVAM)
8EA012586-051 (HELLA)
8EA738258-381 (HELLA)
91-27-3470 (WILSON)
943213881010 (MAGNETI MARELLI)
MSRC1388 (MAGNETI MARELLI)
BOS0001261049 (WOODAUTO)
MITM9T61171 (WOODAUTO)
STR71067 (WOODAUTO)
CGB-91171 (AINDE)
CS1388 (HC PARTS)
CS1472 (HC PARTS)
CST35618 (CASCO)
CST35618AS (CASCO)
CST35618ES (CASCO)
CST35618GS (CASCO)
CST35618OS (CASCO)
CST35618RS (CASCO)
CST35669 (CASCO)
CST35669AS (CASCO)
CST35669ES (CASCO)
CST35669GS (CASCO)
CST35669OS (CASCO)
CST35669RS (CASCO)
LRS02274 (LUCAS)
LRS02455 (LUCAS)
LRS2274 (LUCAS)
LRS2455 (LUCAS)
M90R3547SE (PRESTOLITE)
M90R3557SE (PRESTOLITE)
M90R3558SE (PRESTOLITE)
MAV127140 (SIOM)
MAV376180 (SIOM)
MS778 (MAHLE)
S5028 (AS-PL)
SG0344 (GHIBAUDI)
STM1388 (KRAUF)
STM4388 (KRAUF)
STM6388 (KRAUF)
STM8388 (KRAUF)
STRL902 (3EFFE)
STRS045 (3EFFE)
S24MH0026A2 (SIDAT)
S24MH0109 (SIDAT)
S24MH0109A2 (SIDAT)
ANM12329X (ANDEL)
336347 (LOGISTIK)
336349 (LOGISTIK)
5135131 (MEAT & DORIA)
STR5044 (ELECTROLOG)
STR5365 (ELECTROLOG)
STR79711 (ELECTROLOG)
STM658 (ROLLCO)
5001866293 (RENAULT)
7420714203 (RENAULT)
7421632125 (RENAULT)
7422602941 (RENAULT)
7485013211 (RENAULT)
PTC-4056 (POWER TRUCK)
PTC-4109 (POWER TRUCK)
Aplicaciones
Aplicaciones
ALL
RENAULT
Marca
Vehículo
RENAULT
TRUCKS
