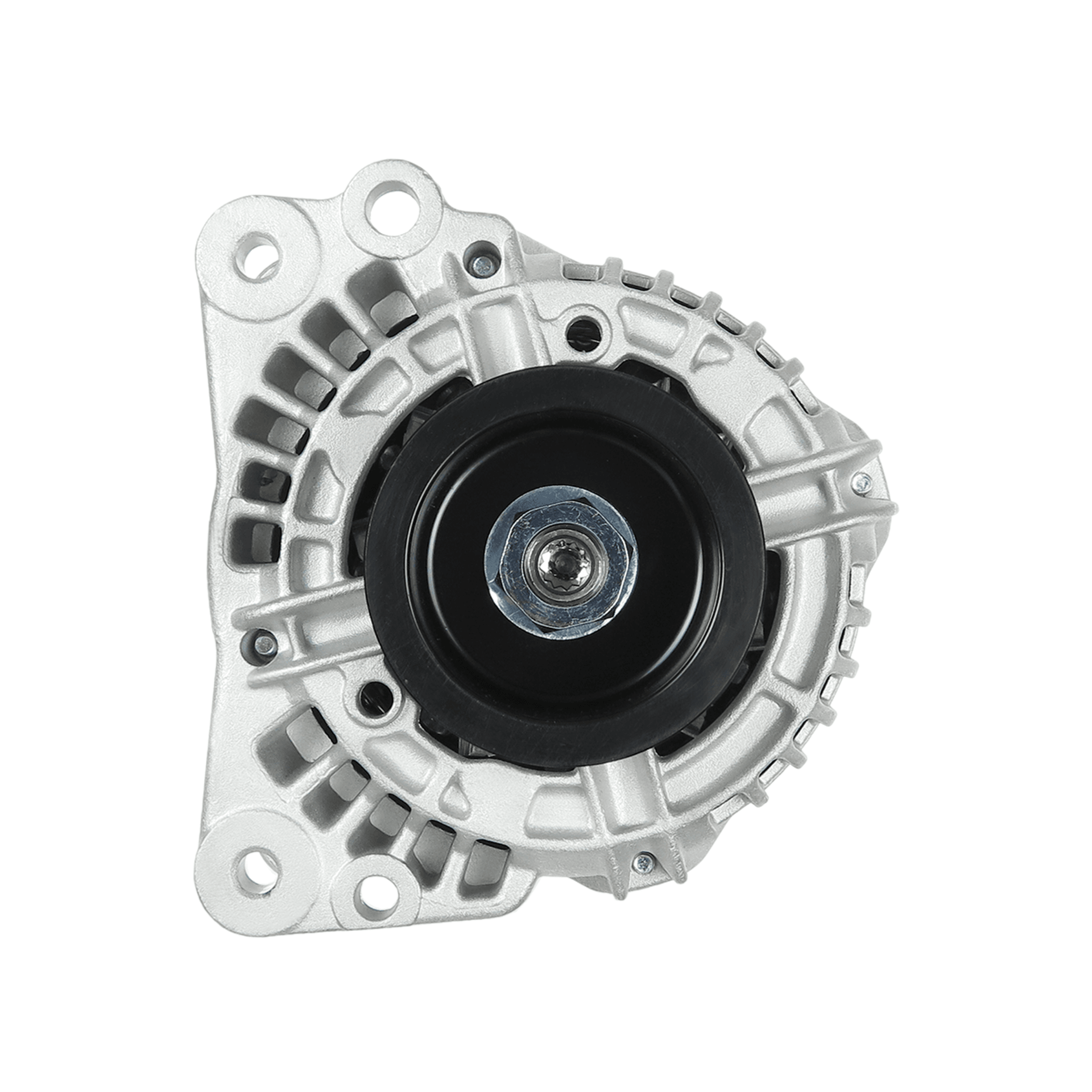

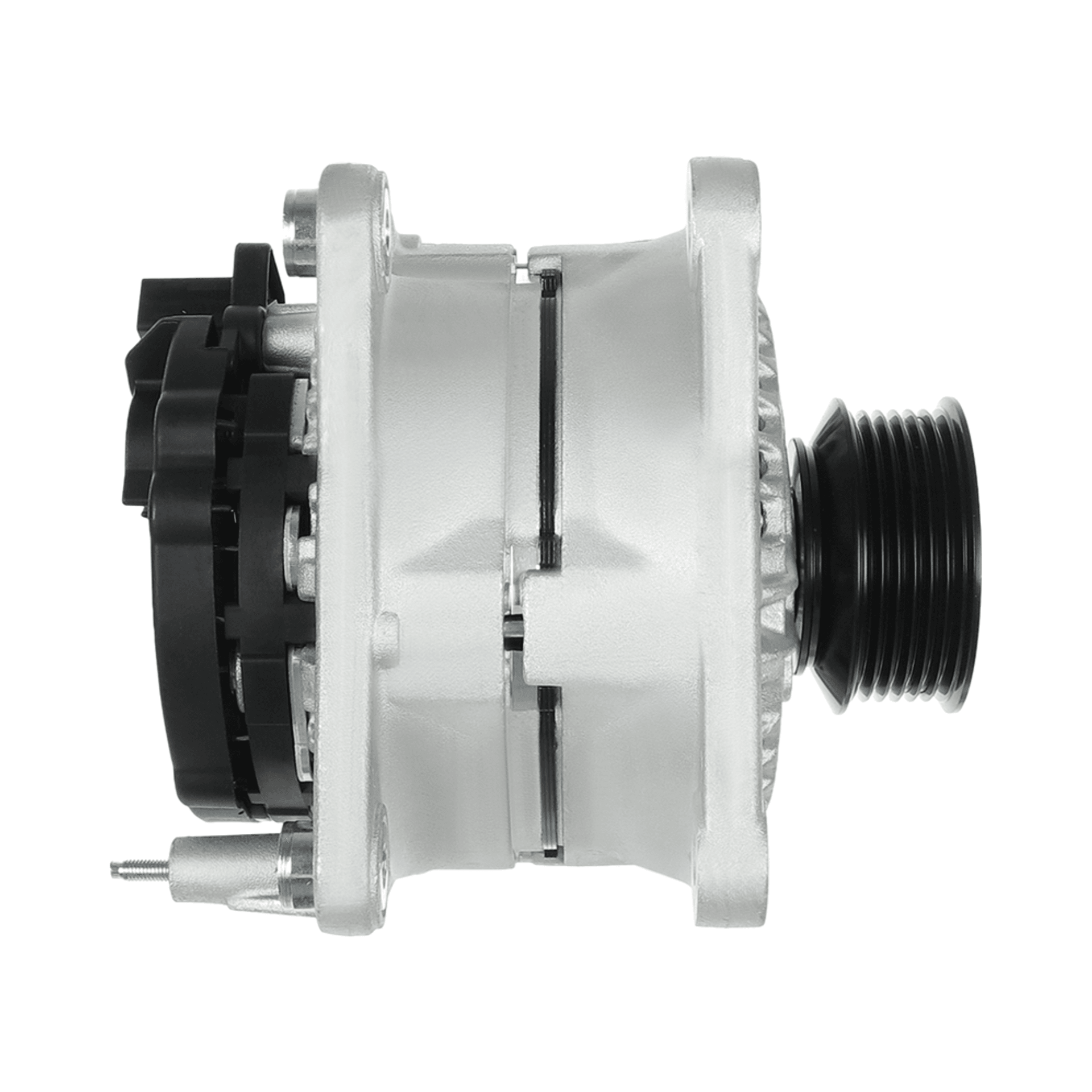

Alternator XTLALT0029 | SINTLY- O.D.1 [ mm ]
- 68 mm
- Plug
- PL_2300
- D.3 [ mm ]
- M8x1.25 mm
- D.4 [ mm ]
- M8x1.25 mm
- L.1 [ mm ]
- 184 mm
- Size A [ mm ]
- 40 mm
- Size B [ mm ]
- 13.5 mm
- Size C [ mm ]
- 61 mm
- D.1 [ mm ]
- 8.50 mm
- D.2 [ mm ]
- 8.50 mm
- O.D.1 [ mm ]
- 68 mm
- Plug
- PL_2300
- D.3 [ mm ]
- M8x1.25 mm
- D.4 [ mm ]
- M8x1.25 mm
- L.1 [ mm ]
- 184 mm
- Size A [ mm ]
- 40 mm
- Size B [ mm ]
- 13.5 mm
- Size C [ mm ]
- 61 mm
- D.1 [ mm ]
- 8.50 mm
- D.2 [ mm ]
- 8.50 mm
- Voltage
- 12 V
- Amp
- 90 A
- Pulley
- AP
- G [ qty. ]
- 6 qty
Original Code
- 0124325004
- 074903025K
- 0986041230
- 1-3156-25W
- 22710
Equivalent Code (Vehicle Manufacturer)
- A0040 (AS-PL)
- ALTS593 (3EFFE)
- AZMT-49-035-1095 (A.Z. MEISTERTEILE)
- AZMT-49-035-1377 (A.Z. MEISTERTEILE)
- AC-CBA1402 (ACAUTO)
- 20-1473 (AIRSTAL)
Applications
| Make | Vehicle | Model Types | From | To |
|---|
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.4 D Syncro | AAB | 10/1992 | 09/1998 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro | AAB | 10/1992 | 09/1998 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro | AAB | 10/1992 | 09/1998 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 | AAF | 11/1990 | 04/2003 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | AAF | 09/1990 | 06/2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 | AAF | 11/1990 | 04/2003 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | ACU | 09/1990 | 06/2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 | ACU | 11/1990 | 04/2003 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 | ACU | 11/1990 | 04/2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 | AEN | 11/1990 | 04/2003 |
