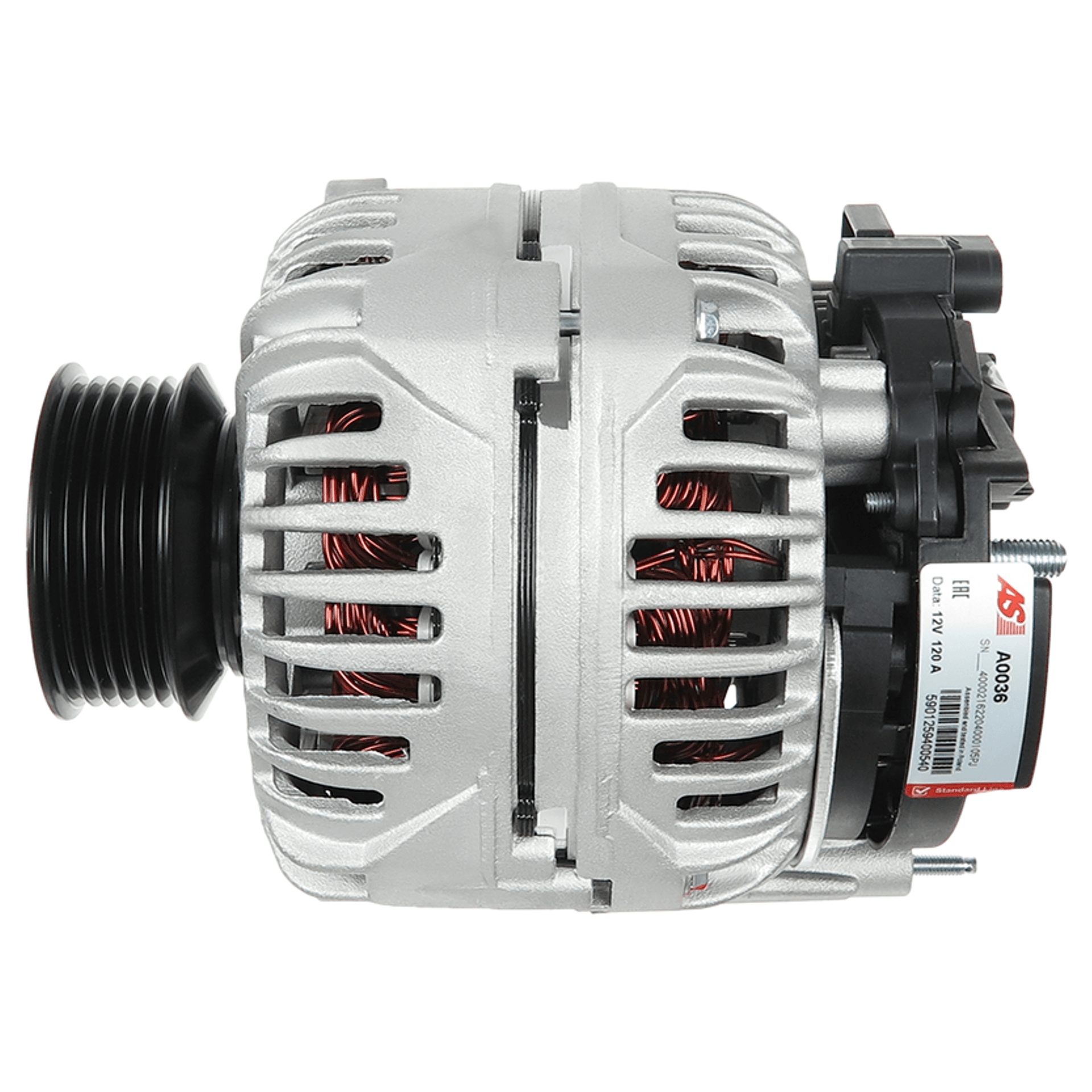

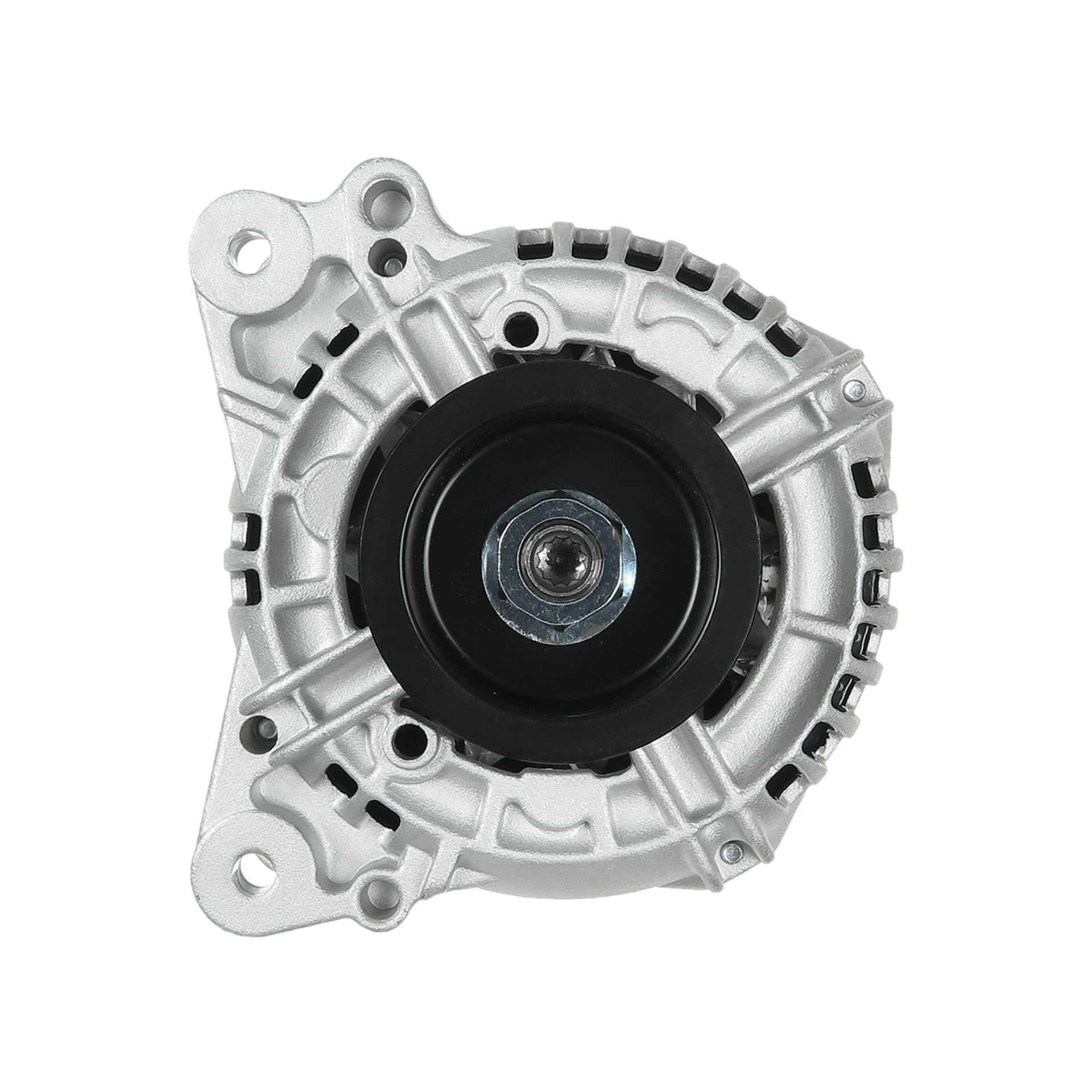

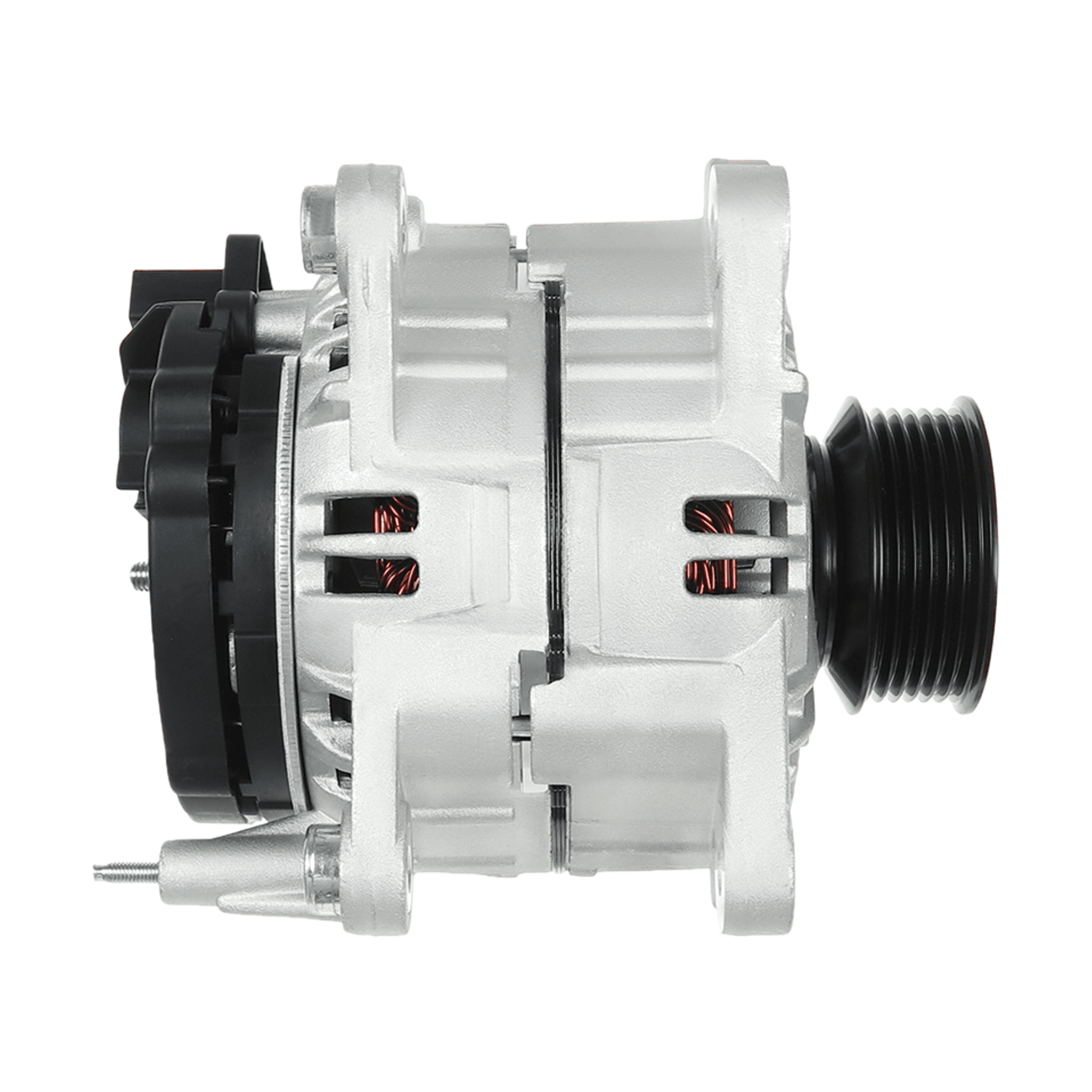

Alternator XTLALT0069

O.D.1 [ mm ]: 67.5 mm
Plug: PL_2300
D.3 [ mm ]: M8x1.25 mm
D.4 [ mm ]: M8x1.25 mm
L.1 [ mm ]: 192 mm
Size A [ mm ]: 40 mm
Size B [ mm ]: 14 mm
Size C [ mm ]: 61.5 mm
D.1 [ mm ]: 8.00 mm
D.2 [ mm ]: 8.00 mm

Voltage: 12 V
Amp: 120 A
Pulley: AP
G [ qty. ]: 6 qty

Alternator XTLALT0069

Download PDF

O.D.1 [ mm ]: 67.5 mm
Plug: PL_2300
D.3 [ mm ]: M8x1.25 mm
D.4 [ mm ]: M8x1.25 mm
L.1 [ mm ]: 192 mm
Size A [ mm ]: 40 mm
Size B [ mm ]: 14 mm
Size C [ mm ]: 61.5 mm
D.1 [ mm ]: 8.00 mm
D.2 [ mm ]: 8.00 mm
Voltage: 12 V
Amp: 120 A
Pulley: AP
G [ qty. ]: 6 qty

Applications

Make	Vehicle	Model Types	From	To
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AAF	09/1990	06/2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AAF	11/1990	04/2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AAF	11/1990	04/2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	ACU	09/1990	06/2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	ACU	11/1990	04/2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	ACU	11/1990	04/2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AEN	09/1990	06/2003

WhatsApp inquiry Email inquiry

Original Code

0124515013
0986041890
1-2829-01B0-2
22812
8111119

Equivalent Code (Vehicle Manufacturer)

A0036 (AS-PL)
UD103352A (AS-PL)
ALTL219 (3EFFE)
ALTL219EQ (3EFFE)
PRAL219 (3EFFE)
PRAL219B (3EFFE)
AI-90045 (AINDE)
CGB-83842 (AINDE)
10443402 (ALANKO)
ANM44110 (ANDEL)
ANM44110X (ANDEL)
L41890 (ATL AUTOTECHNIK)
AEC1445 (AUTOELECTRO)
ABO263A (AUTOTEAM)
BBA2177 (BORG & BECK)
STA0431R (BOVEZ)
G100502 (BTS TURBO)
G105997 (BTS TURBO)
113754 (CARGO)
F032113754 (CARGO)
BREF0320986041890 (CARWOOD GROUP)
BREF032113754 (CARWOOD GROUP)
BREF0321986A00837 (CARWOOD GROUP)
CAL10263AS (CASCO)
CAL10263GS (CASCO)
4060 (CEVAM)
CAR-821072 (COMLINE)
1516471R (DAF)
DB3000 (DELCO)
DRB1890 (DELCO)
DRB1890X (DELCO)
RAA22901 (DELCO)
2113011202 (DRI)
A-10365 (DTS)
56801 (EAI)
ALT1472 (ELECTROLOG)
28-3842 (ELSTOCK)
210605 (ERA)
210605A (ERA)
1638107980 (EUROREPAR)
12041890 (EUROTEC)
119795 (FARCOM)
9041890 (FRIESEN)
CA1445IR (HC PARTS)
8EL012427-541 (HELLA)
8EL737643-001 (HELLA)
3117381 (HENKEL PARTS)
3117383 (HENKEL PARTS)
32041890 (HERTH+BUSS)
20010263AV (ITAB AUTOMOTIVE)
20010263OV (ITAB AUTOMOTIVE)
ALB1445 (KRAUF)
301445RI (KUHNER)
301445RIV (KUHNER)
441592 (LOGISTIK)
LRA01948 (LUCAS)
LRA1948 (LUCAS)
063731445010 (MAGNETI MARELLI)
944390418900 (MAGNETI MARELLI)
MQA1445 (MAGNETI MARELLI)
MRA41890 (MAGNETI MARELLI)
55-0503 (MAXGEAR)
5510021 (MEAT & DORIA)
12160925 (MTR)
4841890 (NK)
89212262 (POWERMAX)
9212262 (POWERMAX)
20130246 (PRESTOLITE)
A2037B (PRESTOLITE)
IR6546 (PROTECH)
305.523.120.010 (PSH)
305.523.120.215 (PSH)
A132.268 (PSH)
A149.568 (PSH)
20101362BN (REAL)
20101362OE (REAL)
011-003-000430R (REMANTE)
310825 (RHIAG)
4G0048 (RIDEX)
RNL4189 (RNL)
RNL4189T (RNL)
2010263.0 (SANDO)
2010263.1 (SANDO)
A12BH0186 (SIDAT)
A12BH0186A2 (SIDAT)
ALT6810 (SIOM)
VW8089 (SNRA)
STX100058 (STARDAX)
STX100058R (STARDAX)
SKGN-0320047 (STARK)
801ST65 (STARTCAR)
TT11168 (TESLA TECHNICS)
TT11168PRO (TESLA TECHNICS)
RE73640N (THE NEWLINE)
AL01969 (TMI)
200038 (VALEO)
437661 (VALEO)
444736 (VALEO)
V10-13-41890 (VEMO)
8111119 (VOLVO)
8111122 (VOLVO)
8602322 (VOLVO)
9442130 (VOLVO)
9459093 (VOLVO)
074903025J (VW)
074903025Q (VW)
074903025R (VW)
74903025J (VW)
74903025N (VW)
74903025Q (VW)
74903025R (VW)
22812R (WAI / TRANSPO)
WAL00202 (WALKER)
WG2012077 (WILMINK GROUP)
WG2196783 (WILMINK GROUP)
WG2280699 (WILMINK GROUP)
WG2282890 (WILMINK GROUP)
ALT10365 (WOODAUTO)
WOOALT10365 (WOODAUTO)

Applications

Make	Vehicle	Model Types	From	To
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro	AAB	10/1992	09/1998
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AAF	09/1990	06/2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AAF	11/1990	04/2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AAF	11/1990	04/2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	ACU	09/1990	06/2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	ACU	11/1990	04/2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	ACU	11/1990	04/2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AEN	09/1990	06/2003
