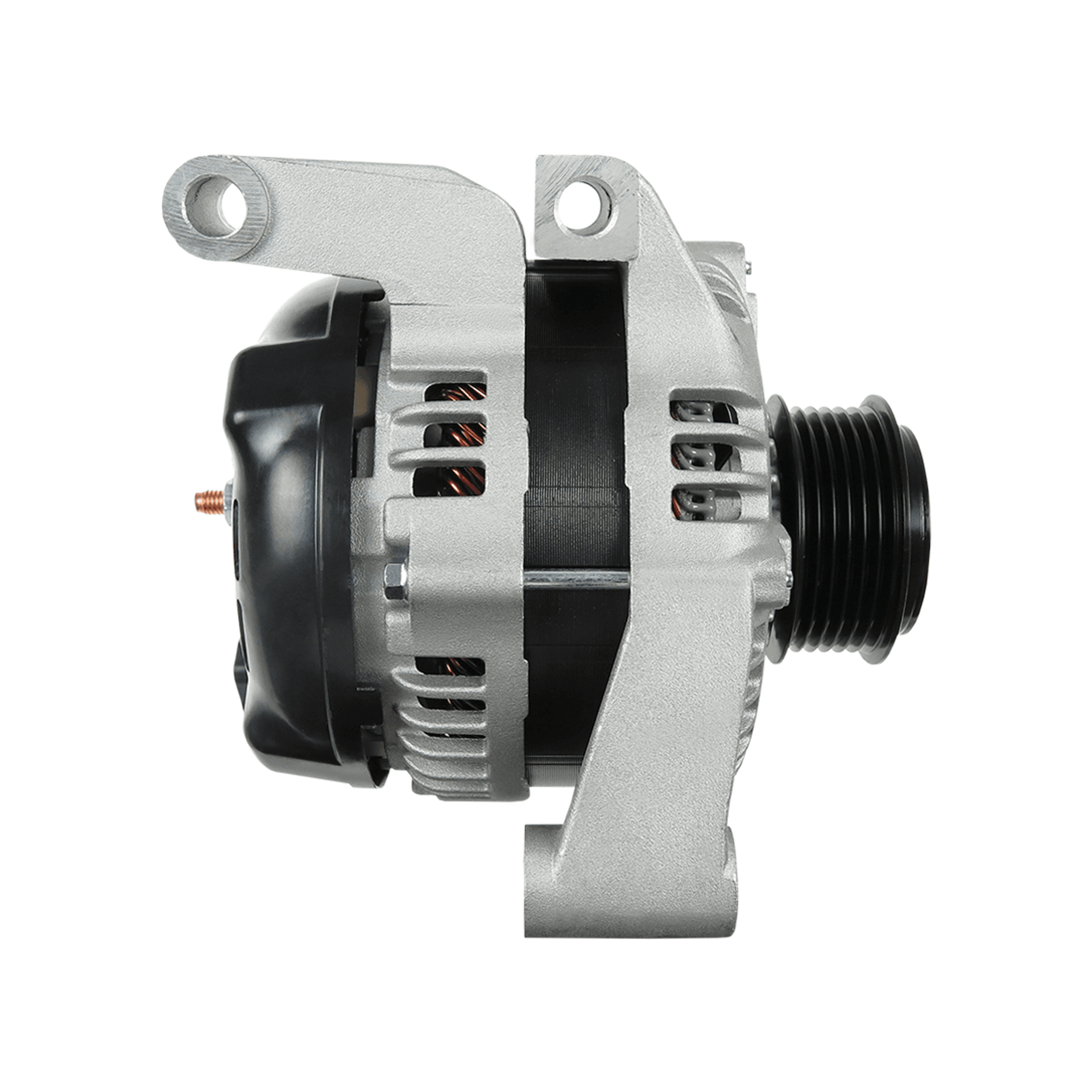

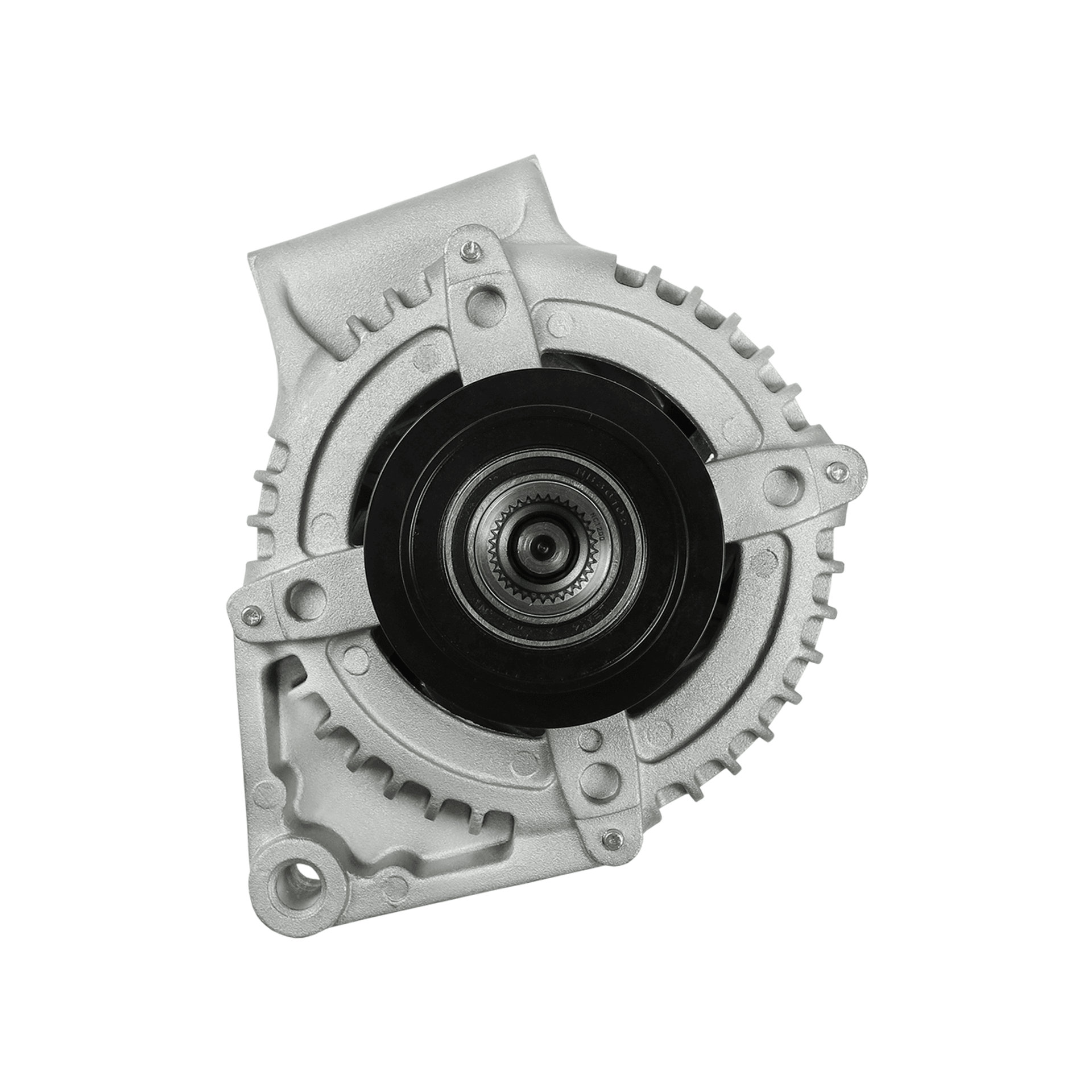

Alternator XTLALT0146
Download PDF

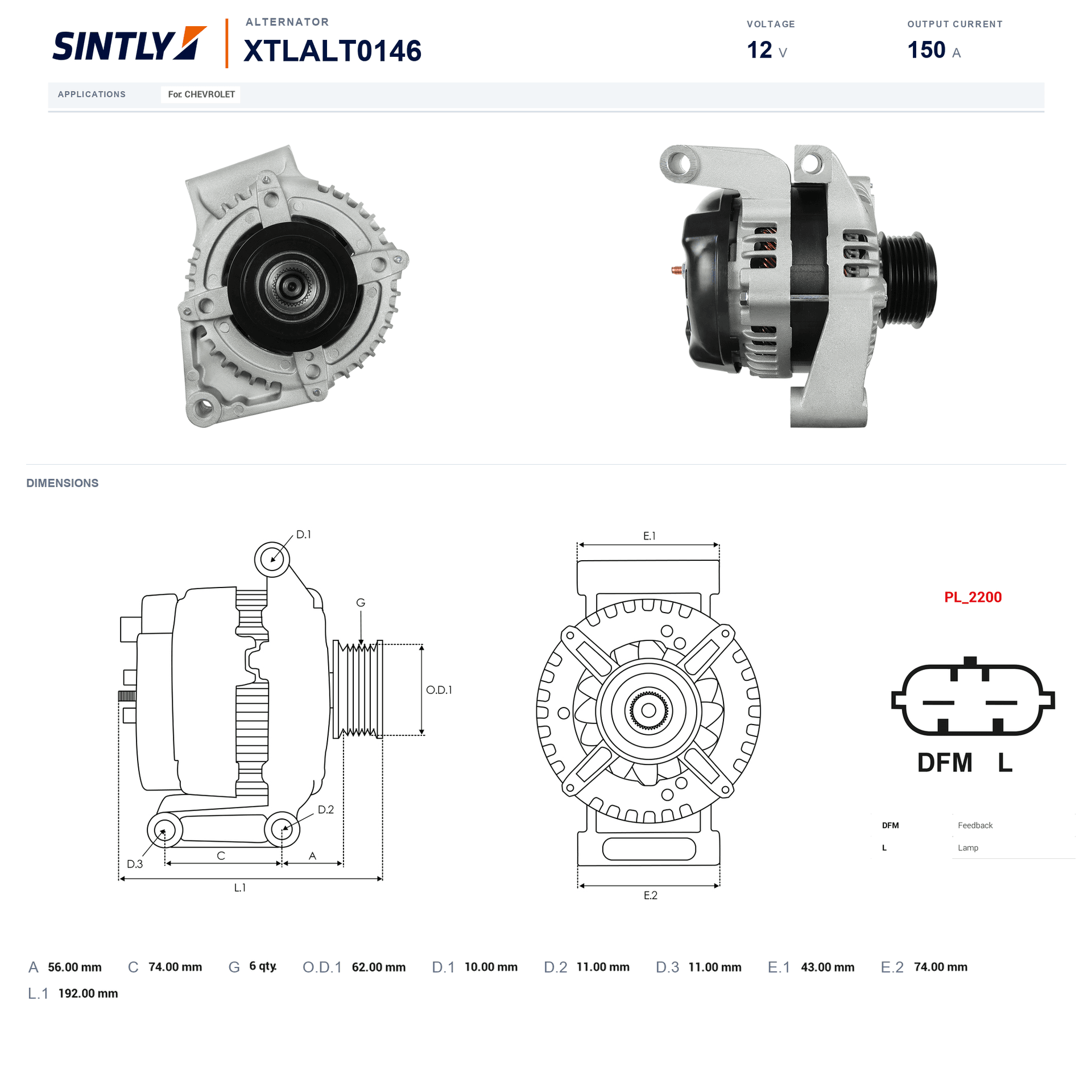

E.2 [ mm ]
74 mm
E.3 [ mm ]
30 mm
O.D.1 [ mm ]
62 mm
Plug
PL_2200
D.3 [ mm ]
11.00 mm
L.1 [ mm ]
192 mm
E.1 [ mm ]
43 mm
Size A [ mm ]
56 mm
Size B [ mm ]
43.3 mm
Size C [ mm ]
74 mm
D.1 [ mm ]
10.00 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
150 A
Pulley
AFP
G [ qty. ]
6 qty
View More
Alternator XTLALT0146
Download PDF
Send Inquiry
E.2 [ mm ]
74 mm
E.3 [ mm ]
30 mm
O.D.1 [ mm ]
62 mm
Plug
PL_2200
D.3 [ mm ]
11.00 mm
L.1 [ mm ]
192 mm
E.1 [ mm ]
43 mm
Size A [ mm ]
56 mm
Size B [ mm ]
43.3 mm
Size C [ mm ]
74 mm
D.1 [ mm ]
10.00 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
150 A
Pulley
AFP
G [ qty. ]
6 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT0146
Original Code
0124525038
0124525527
03C903023A
1-3126-01MM
23914
Equivalent Code (Vehicle Manufacturer)
11237R (WAI / TRANSPO)
12798 (DELCO)
15846253 (DELCO)
90-29-5590 (WILSON)
A-80359 (DIXIE)
UD11504A (AS-PL)
Applications
Applications
ALL
CHEVROLET
Make
Vehicle
From
To
CHEVROLET
Impala 3.9
01/2006
12/2010
CHEVROLET
Monte Carlo 3.9
01/2006
12/2007
