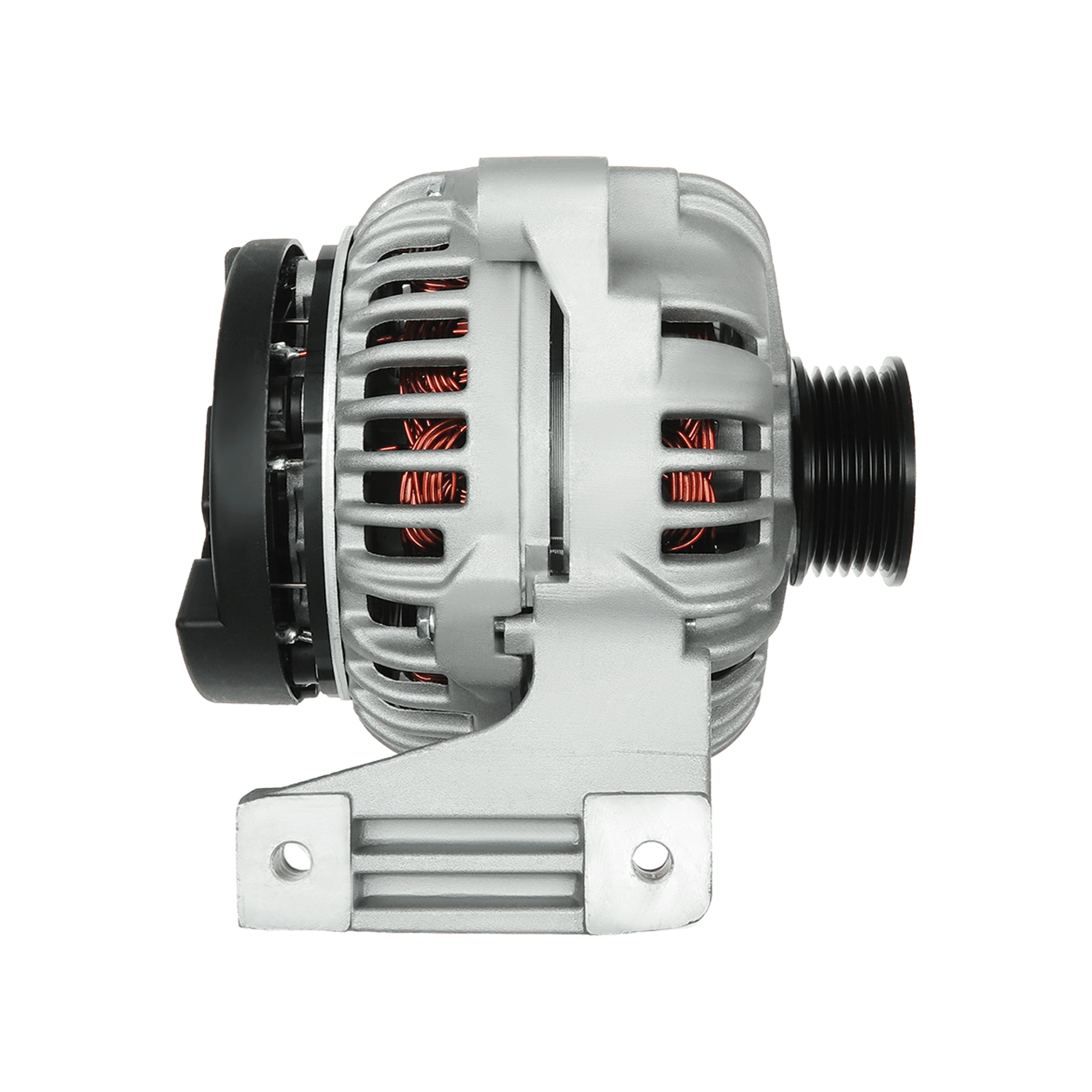

Alternator XTLALT0160
Download PDF
O.D.1 [ mm ]
56 mm
Plug
PL_1201
D.3 [ mm ]
8.50 mm
L.1 [ mm ]
187 mm
COM ID
88
E.1 [ mm ]
109 mm
Size A [ mm ]
46 mm
Size C [ mm ]
82 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
8.50 mm
Voltage
12 V
Amp
160 A
Pulley
AP
G [ qty. ]
6 qty
View More
Alternator XTLALT0160
Download PDF
Send Inquiry
O.D.1 [ mm ]
56 mm
Plug
PL_1201
D.3 [ mm ]
8.50 mm
L.1 [ mm ]
187 mm
COM ID
88
E.1 [ mm ]
109 mm
Size A [ mm ]
46 mm
Size C [ mm ]
82 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
8.50 mm
Voltage
12 V
Amp
160 A
Pulley
AP
G [ qty. ]
6 qty
Applications
ALL
VOLVO
Make
Vehicle
Model Types
From
To
VOLVO
S80 I (184) 2.9
B6294S2
05/1998
02/2008
VOLVO
S80 I (184) 3.0
B6294S2
06/2001
07/2006
VOLVO
S80 I (184) T6
B6294T
06/2001
07/2006
VOLVO
XC90 I (275) T6 AWD
B6294T
10/2002
12/2006
Original Code
0124525085
1-2547-00B0
12490
Equivalent Code (Vehicle Manufacturer)
A0430 (AS-PL)
UD11395A (AS-PL)
30658086 (VOLVO)
30667893 (VOLVO)
36050269 (VOLVO)
8603264 (VOLVO)
ALB5025 (KRAUF)
28-6979 (ELSTOCK)
LRA03869 (LUCAS)
WhatsApp inquiry
Email inquiry
Alternator XTLALT0160
LRA3869 (LUCAS)
90-15-6620 (WILSON)
40175 (CEVAM)
DRB7510 (DELCO)
BOS0124625025 (WOODAUTO)
89215740 (POWERMAX)
ALT1373 (ELECTROLOG)
