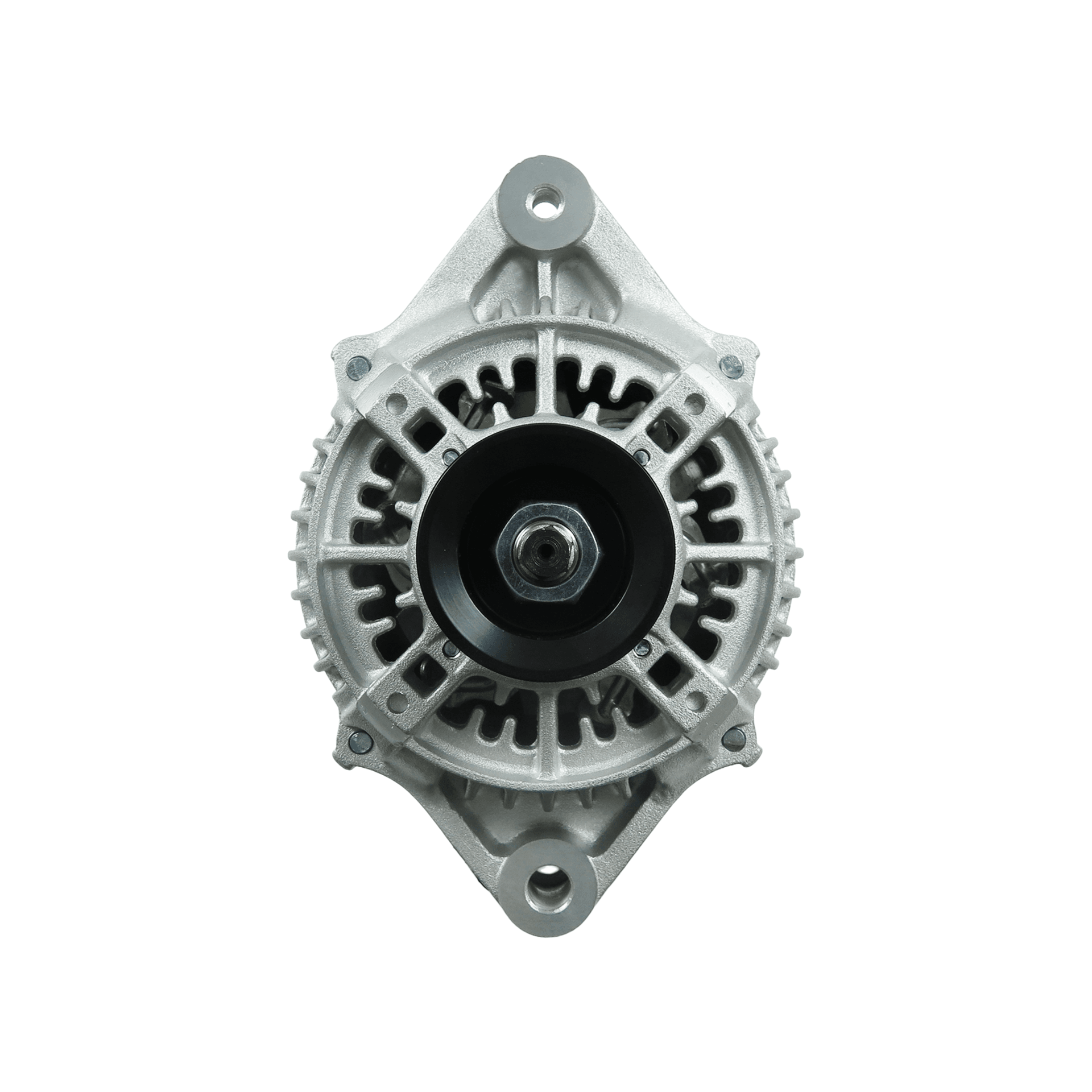

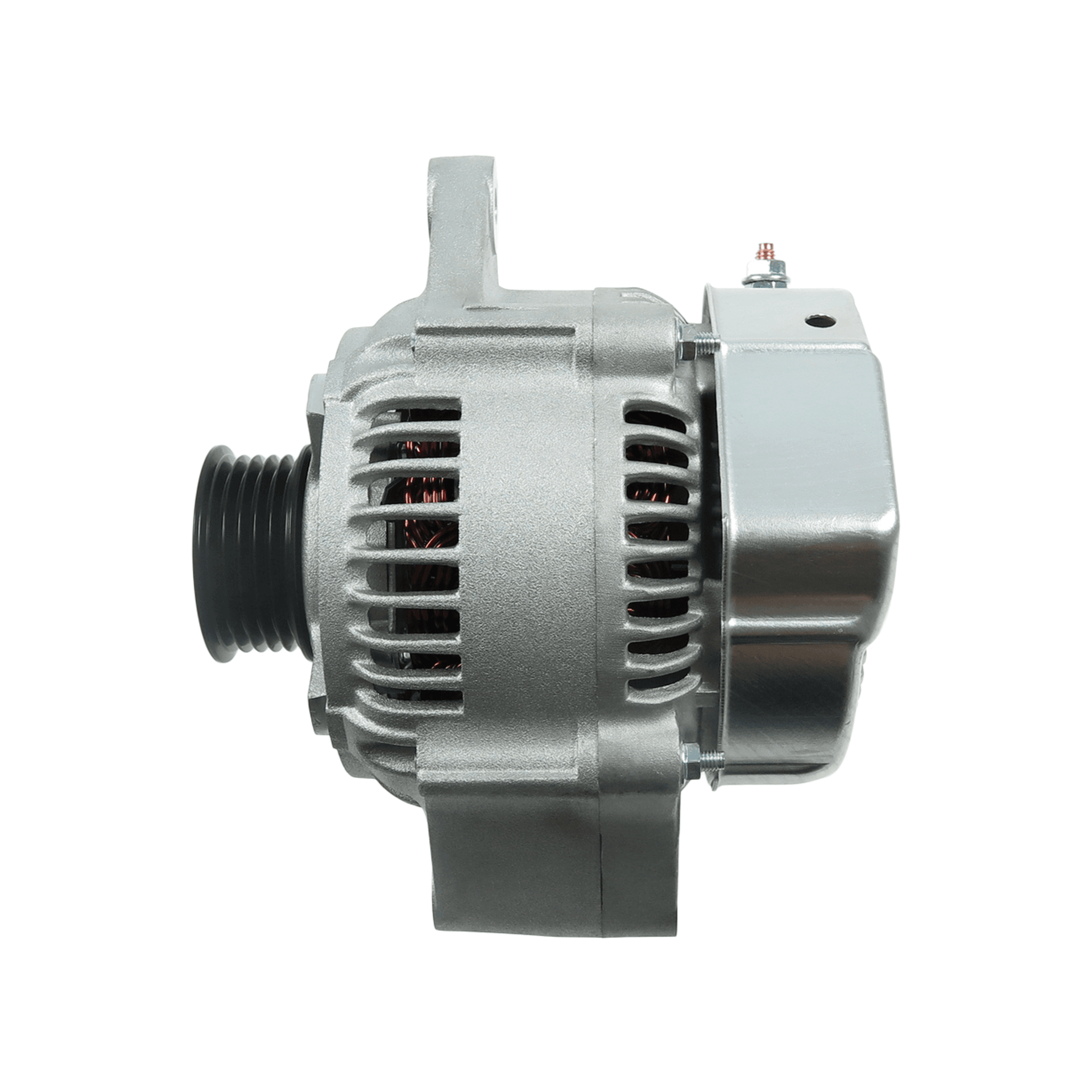

Alternator XTLALT2030
Download PDF
O.D.1 [ mm ]
48 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.50 mm
Plug
PL_3314
L.1 [ mm ]
153.5 mm
Voltage
12 V
Amp
70 A
Pulley
AP
Size A [ mm ]
91 mm
Size B [ mm ]
58.5 mm
G [ qty. ]
5 qty
View More
Alternator XTLALT2030
Download PDF
Send Inquiry
O.D.1 [ mm ]
48 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.50 mm
Plug
PL_3314
L.1 [ mm ]
153.5 mm
Voltage
12 V
Amp
70 A
Pulley
AP
Size A [ mm ]
91 mm
Size B [ mm ]
58.5 mm
G [ qty. ]
5 qty
Home
Alternator
Alternator XTLALT2030
Original Code
1-2183-01ND
101211-0520
101211-4120
13673
27060-75100
Equivalent Code (Vehicle Manufacturer)
0986080010 (BOSCH)
11.1535 (LAUBER)
112357 (CARGO)
F032112357 (CARGO)
13673N (WAI / TRANSPO)
146-26161 (DIXIE)
A-8628 (DIXIE)
A-8675 (DIXIE)
195.554.070 (PSH)
195.554.070.461 (PSH)
A131.415 (PSH)
27060-75100 (TOYOTA)
27060-75110 (TOYOTA)
27060-75150 (TOYOTA)
27060-75170 (TOYOTA)
28-3635 (ELSTOCK)
401535RI (KUHNER)
57293 (EAI)
8EL737838-001 (HELLA)
90-29-5283N (WILSON)
9051298 (FRIESEN)
9213251 (POWERMAX)
9323 (CEVAM)
ALTF082 (3EFFE)
CGB-10520 (AINDE)
DRA0278 (DELCO)
JA1535IR (HC PARTS)
LRA01816 (LUCAS)
LRA1816 (LUCAS)
UD12242A (AS-PL)
209141 (ERA)
A12DE0487A2 (SIDAT)
ALT6256 (ELECTROLOG)
STX101533 (STARDAX)
Applications
Applications
ALL
TOYOTA
Make
TOYOTA
