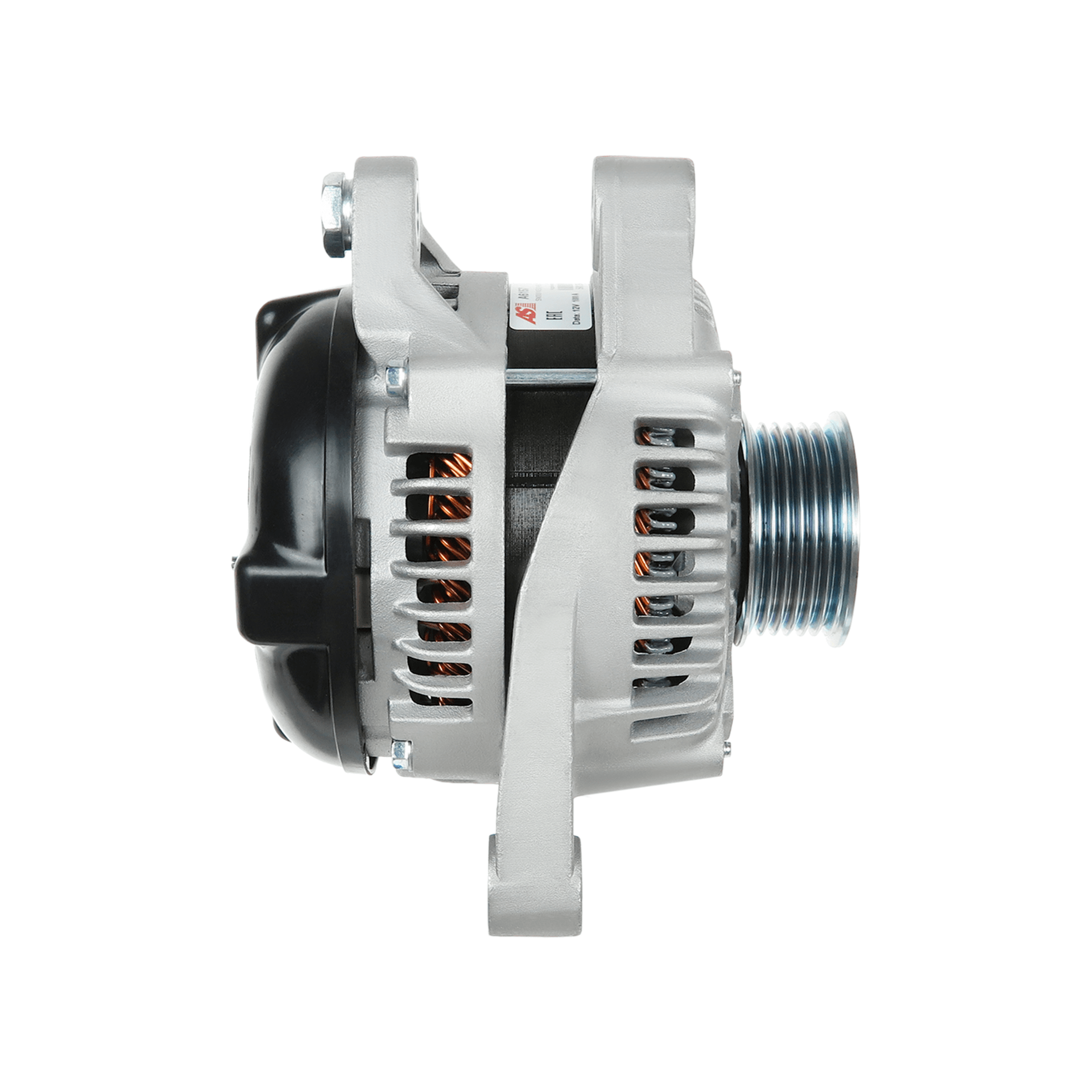

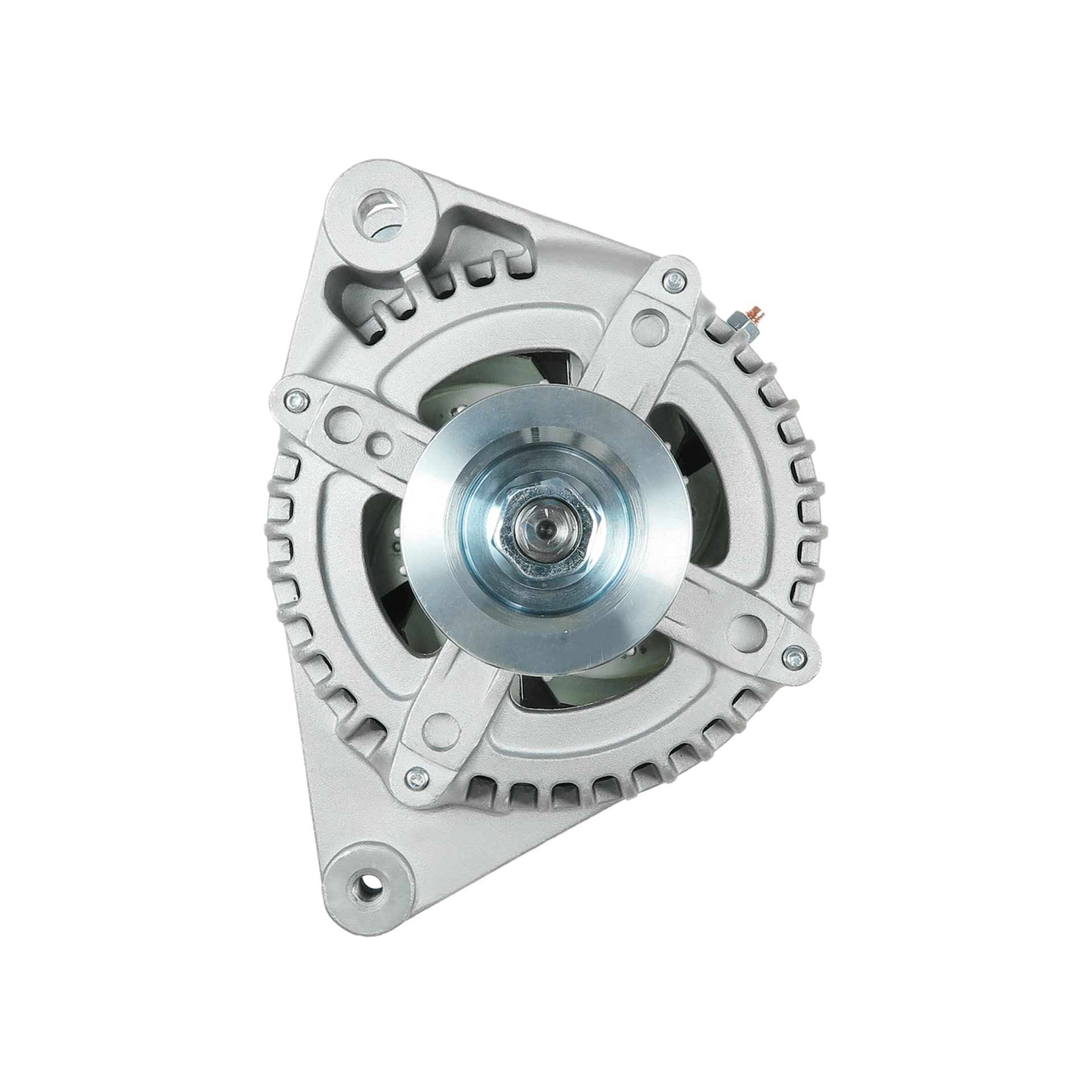

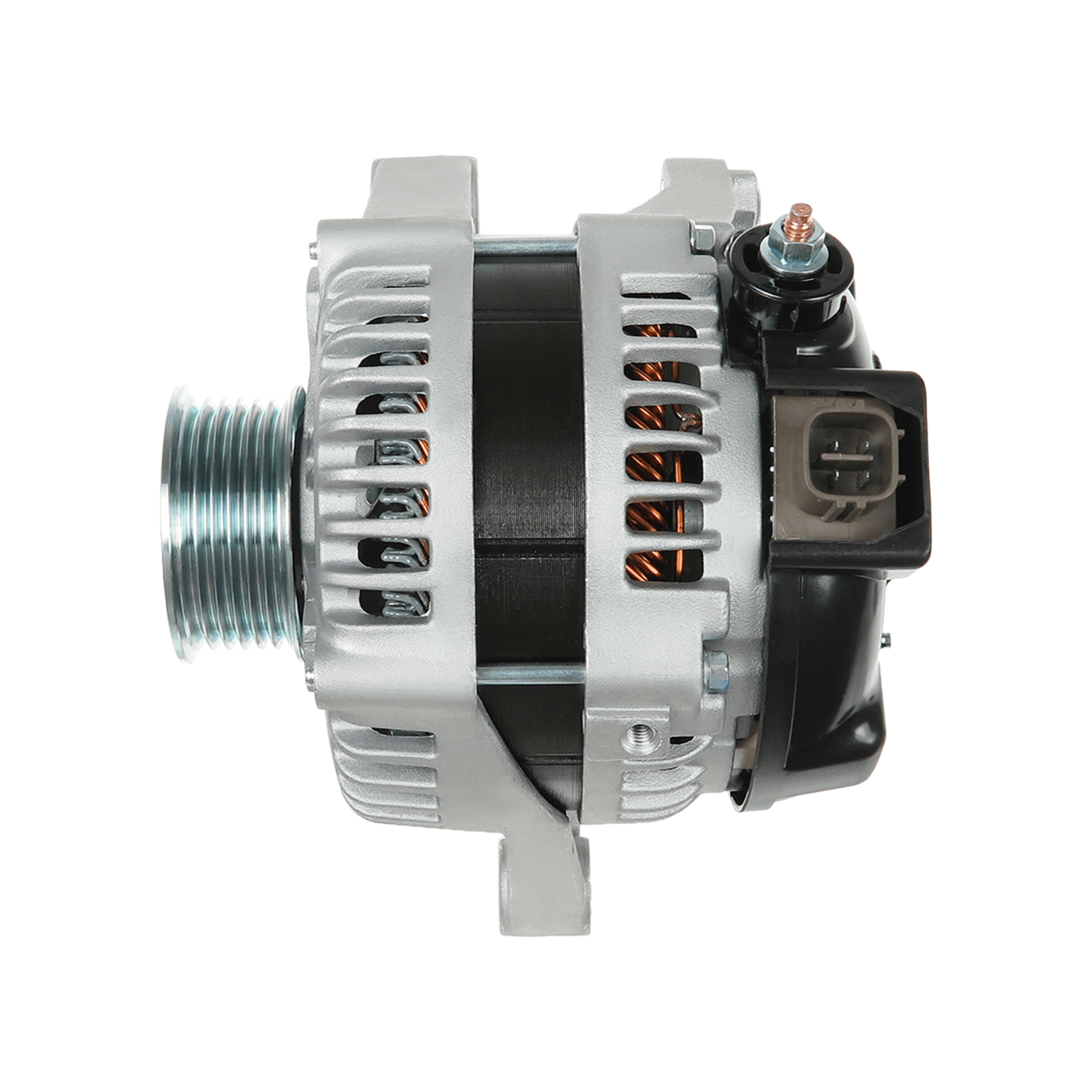

Alternator XTLALT2101
Download PDF
Send Inquiry

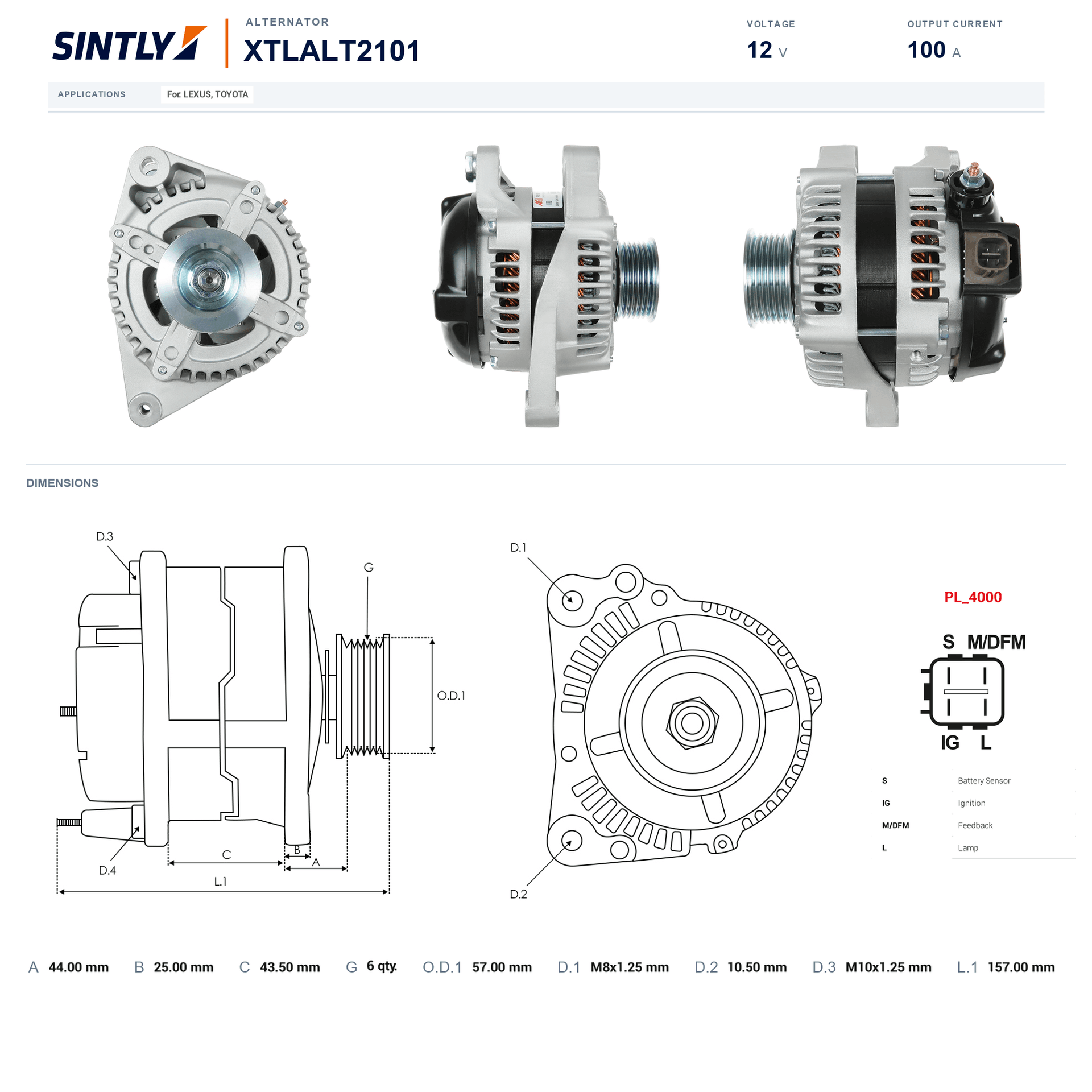

O.D.1 [ mm ]
57 mm
Plug
PL_4000
D.3 [ mm ]
M10x1.25 mm
L.1 [ mm ]
157 mm
Size A [ mm ]
44 mm
Size B [ mm ]
25 mm
Size C [ mm ]
43.5 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.50 mm
Voltage
12 V
Amp
100 A
Pulley
AP
G [ qty. ]
6 qty
View More
Alternator XTLALT2101
Download PDF
Send Inquiry
O.D.1 [ mm ]
57 mm
Plug
PL_4000
D.3 [ mm ]
M10x1.25 mm
L.1 [ mm ]
157 mm
Size A [ mm ]
44 mm
Size B [ mm ]
25 mm
Size C [ mm ]
43.5 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.50 mm
Voltage
12 V
Amp
100 A
Pulley
AP
G [ qty. ]
6 qty
Home
Alternator
Alternator XTLALT2101
Original Code
1-2935-01ND-3
104210-4190
1042103620
11033
27060-0A120
Equivalent Code (Vehicle Manufacturer)
11033N (WAI / TRANSPO)
11033R (WAI / TRANSPO)
27060-0A120 (TOYOTA)
27060-0A140 (TOYOTA)
27060-20270 (TOYOTA)
27060-20310 (TOYOTA)
554058RI (KUHNER)
ALT30454 (WOODAUTO)
UD10927A (AS-PL)
CAL40A06AS (CASCO)
2013260ABN (REAL)
2040A06.0 (SANDO)
Applications
Applications
ALL
TOYOTA
Make
TOYOTA
