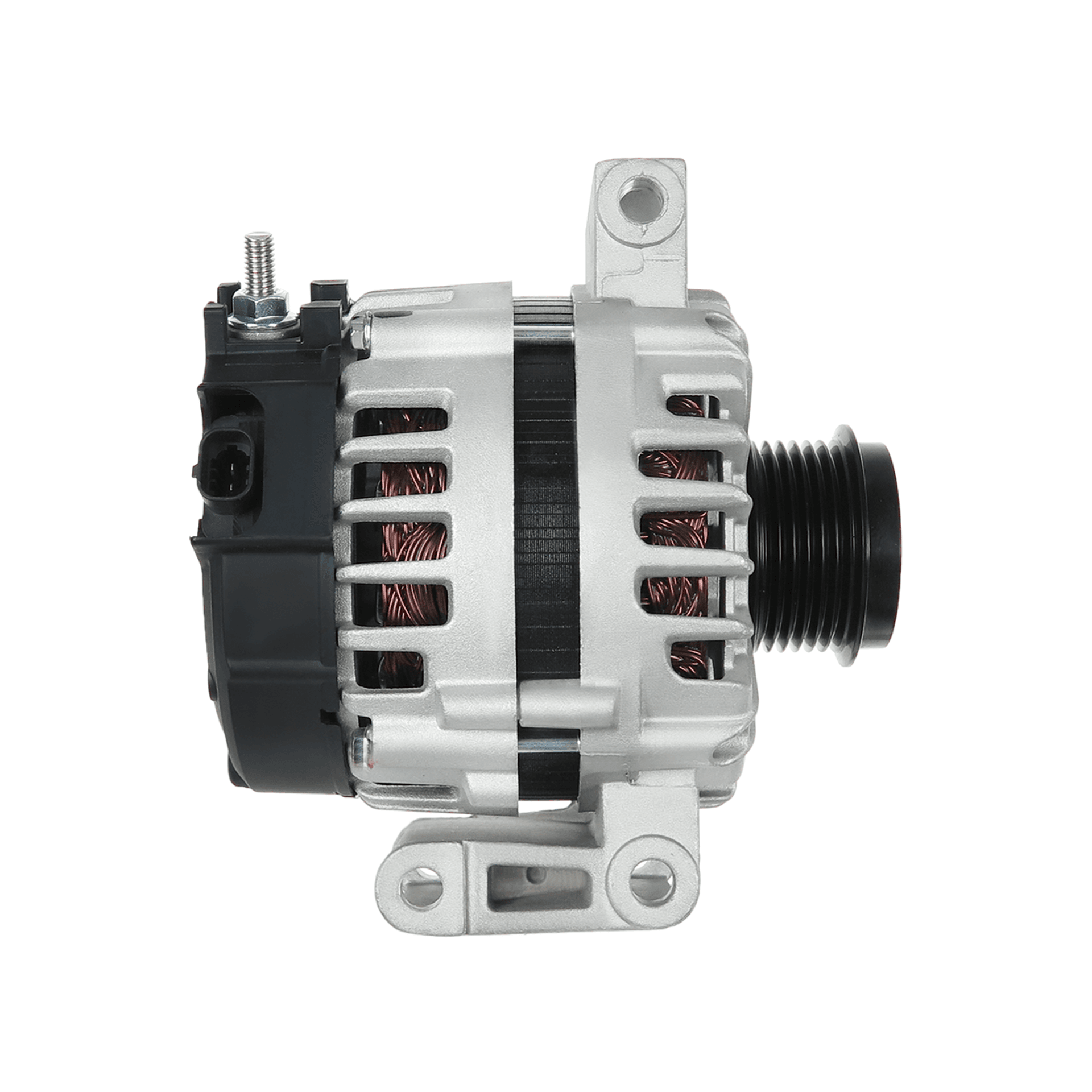

Alternator XTLALT2171
Download PDF

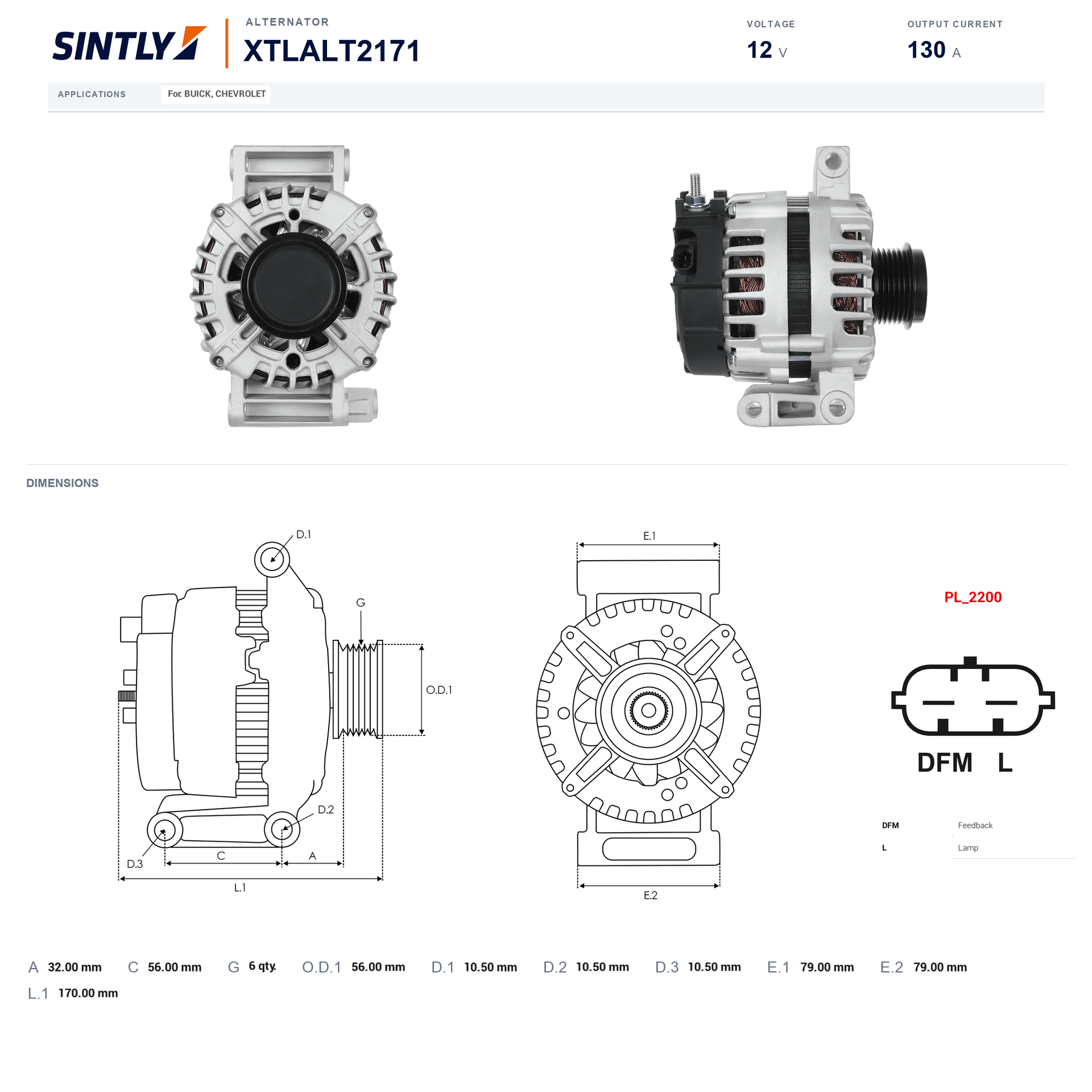

E.2 [ mm ]
79 mm
E.3 [ mm ]
79 mm
O.D.1 [ mm ]
56 mm
Plug
PL_2200
D.3 [ mm ]
10.50 mm
L.1 [ mm ]
170 mm
E.1 [ mm ]
79 mm
Size A [ mm ]
32 mm
Size C [ mm ]
56 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
10.50 mm
Voltage
12 V
Amp
130 A
Pulley
AFP
G [ qty. ]
6 qty
View More
Alternator XTLALT2171
Download PDF
Send Inquiry
E.2 [ mm ]
79 mm
E.3 [ mm ]
79 mm
O.D.1 [ mm ]
56 mm
Plug
PL_2200
D.3 [ mm ]
10.50 mm
L.1 [ mm ]
170 mm
E.1 [ mm ]
79 mm
Size A [ mm ]
32 mm
Size C [ mm ]
56 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
10.50 mm
Voltage
12 V
Amp
130 A
Pulley
AFP
G [ qty. ]
6 qty
Applications
Original Code
1-2075-01ND
1210004160
1210004161
13765
4686099
Equivalent Code (Vehicle Manufacturer)
10251 (DIXIE)
A-9596 (DIXIE)
11831N (WAI / TRANSPO)
13500576 (GM)
90-22-5663 (WILSON)
UD19322A (AS-PL)
WhatsApp inquiry
Email inquiry
Alternator XTLALT2171
Home
Alternator
Applications
ALL
CHRYSLER
Make
CHRYSLER
