Alternator XTLALT2236 | SINTLY
Previous slide
Next slide
Alternator XTLALT2236
Download PDF

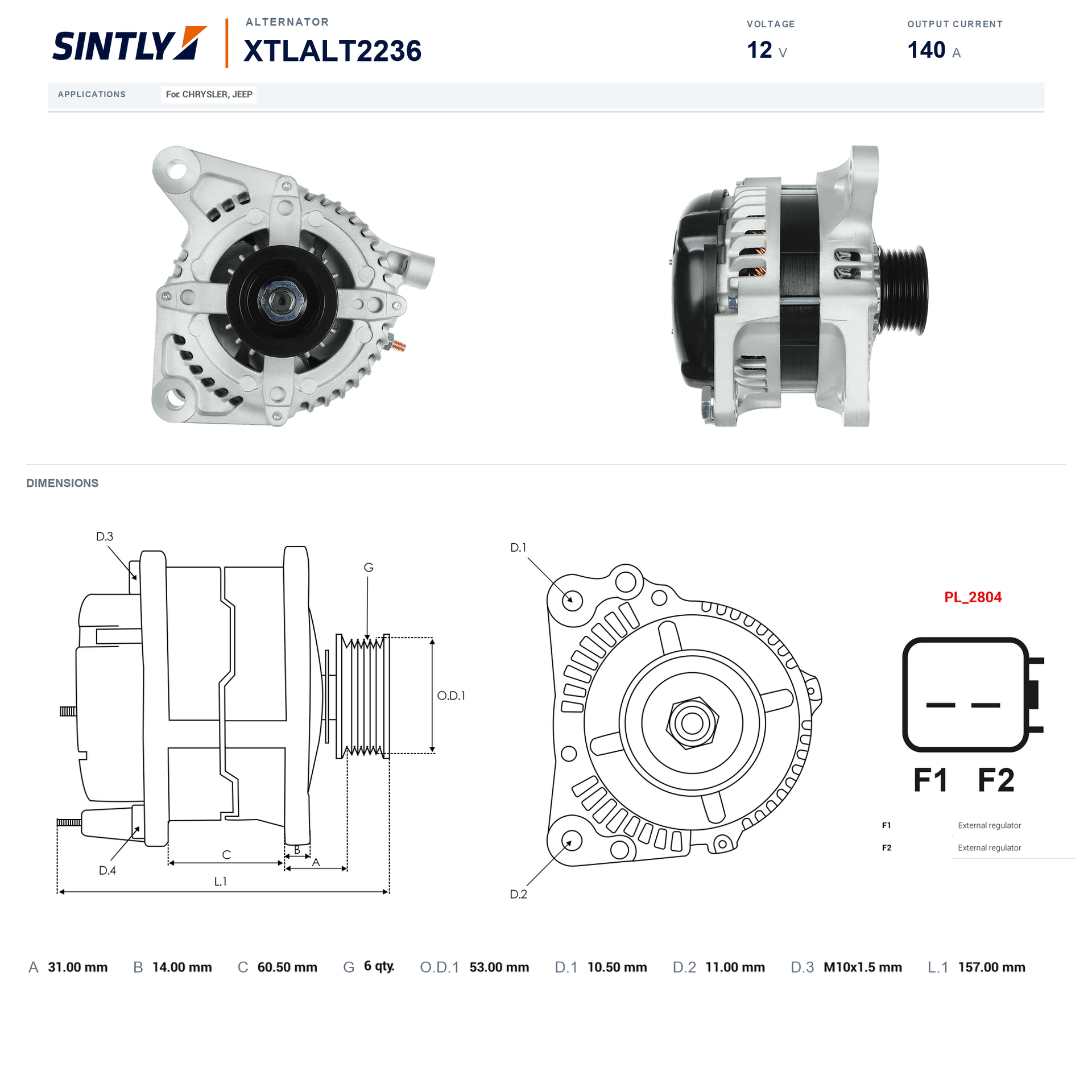

O.D.1 [ mm ]
53 mm
Plug
PL_2804
D.3 [ mm ]
M10x1.5 mm
L.1 [ mm ]
157 mm
Size A [ mm ]
31 mm
Size B [ mm ]
14 mm
Size C [ mm ]
60.5 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
140 A
Pulley
AP
G [ qty. ]
6 qty
View More
Alternator XTLALT2236
Download PDF
Send Inquiry
O.D.1 [ mm ]
53 mm
Plug
PL_2804
D.3 [ mm ]
M10x1.5 mm
L.1 [ mm ]
157 mm
Size A [ mm ]
31 mm
Size B [ mm ]
14 mm
Size C [ mm ]
60.5 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
140 A
Pulley
AP
G [ qty. ]
6 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT2236
Original Code
04727865AB
11294
421000-0560
421000-0561
Equivalent Code (Vehicle Manufacturer)
A6703S (AS-PL)
UD21241A (AS-PL)
40171 (CEVAM)
04727865AB (CHRYSLER)
04801304AC (CHRYSLER)
4727865AB (CHRYSLER)
4801304AC (CHRYSLER)
R4727865AB (CHRYSLER)
27-7593 (ELSTOCK)
LRA03983 (LUCAS)
LRA3983 (LUCAS)
835.952.140.050 (PSH)
A135.967 (PSH)
11294N (WAI / TRANSPO)
90-29-5699 (WILSON)
90-29-5699N (WILSON)
0986UR0689 (BOSCH)
0986UR6292 (BOSCH)
AL6462X (BOSCH)
AL6477X (BOSCH)
89216317 (POWERMAX)
446242 (LOGISTIK)
ALT6442 (ELECTROLOG)
STX110362 (STARDAX)
STX110362R (STARDAX)
Applications
Applications
ALL
CHRYSI
Make
Vehicle
CHRYSI
FR
