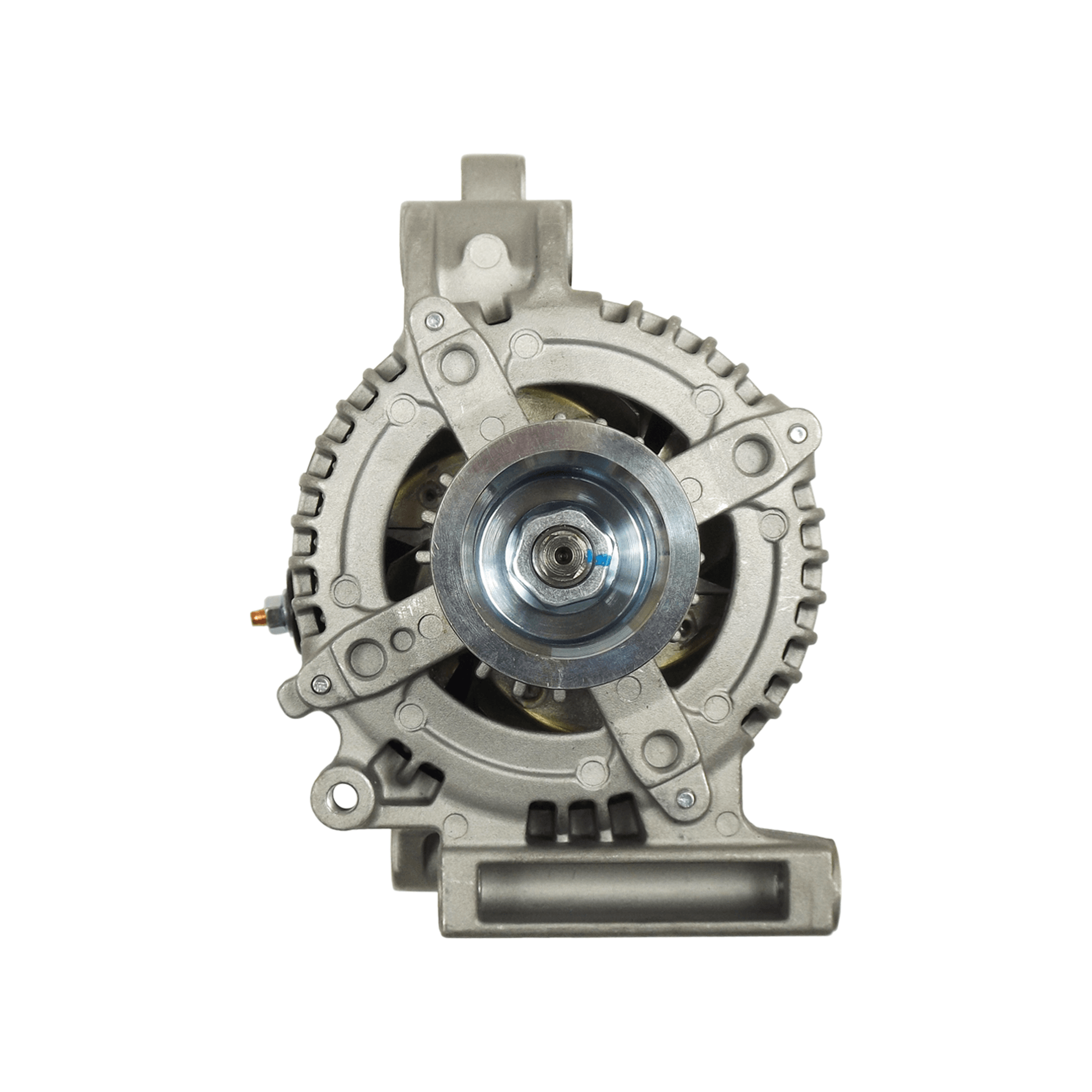

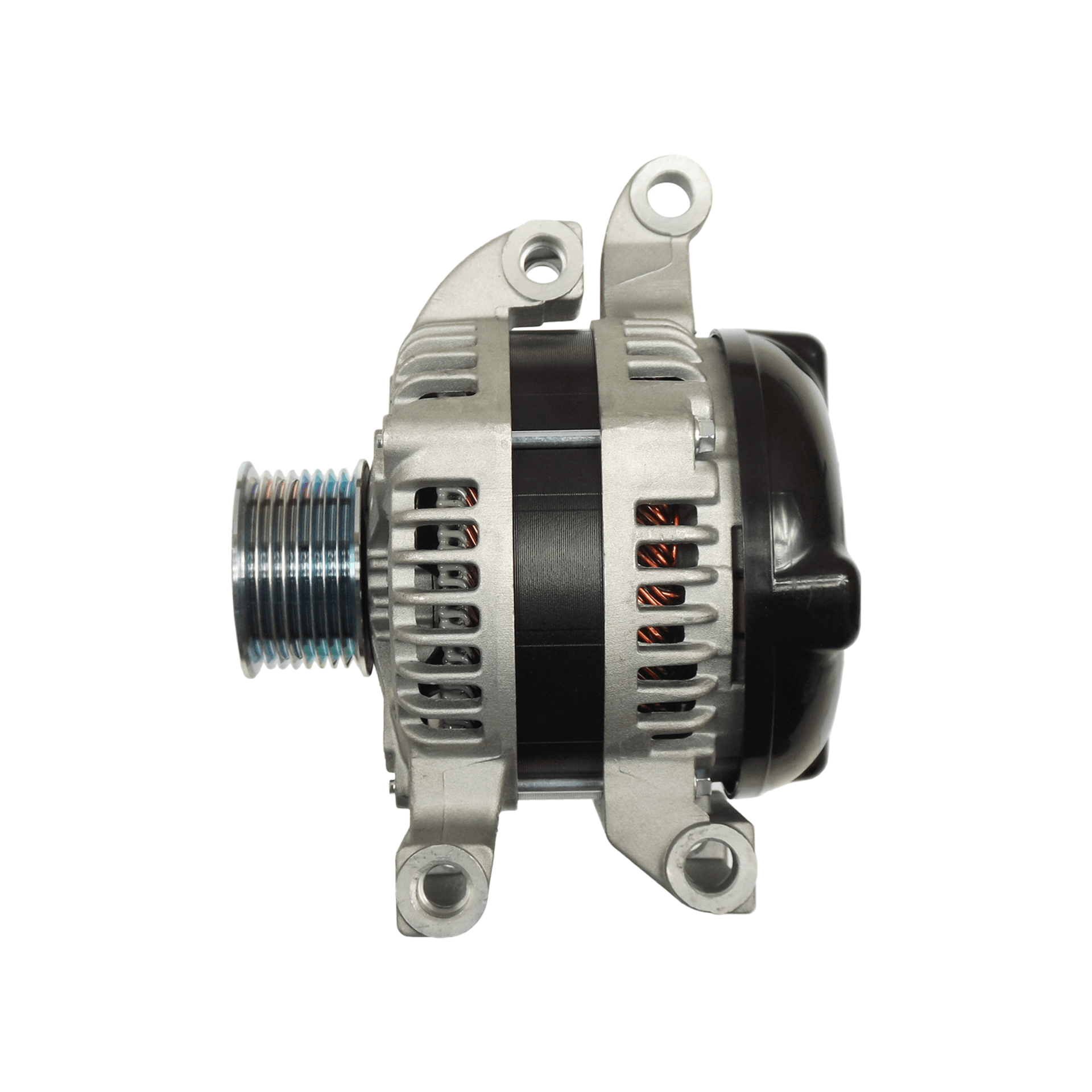

Alternator XTLALT2304
Download PDF

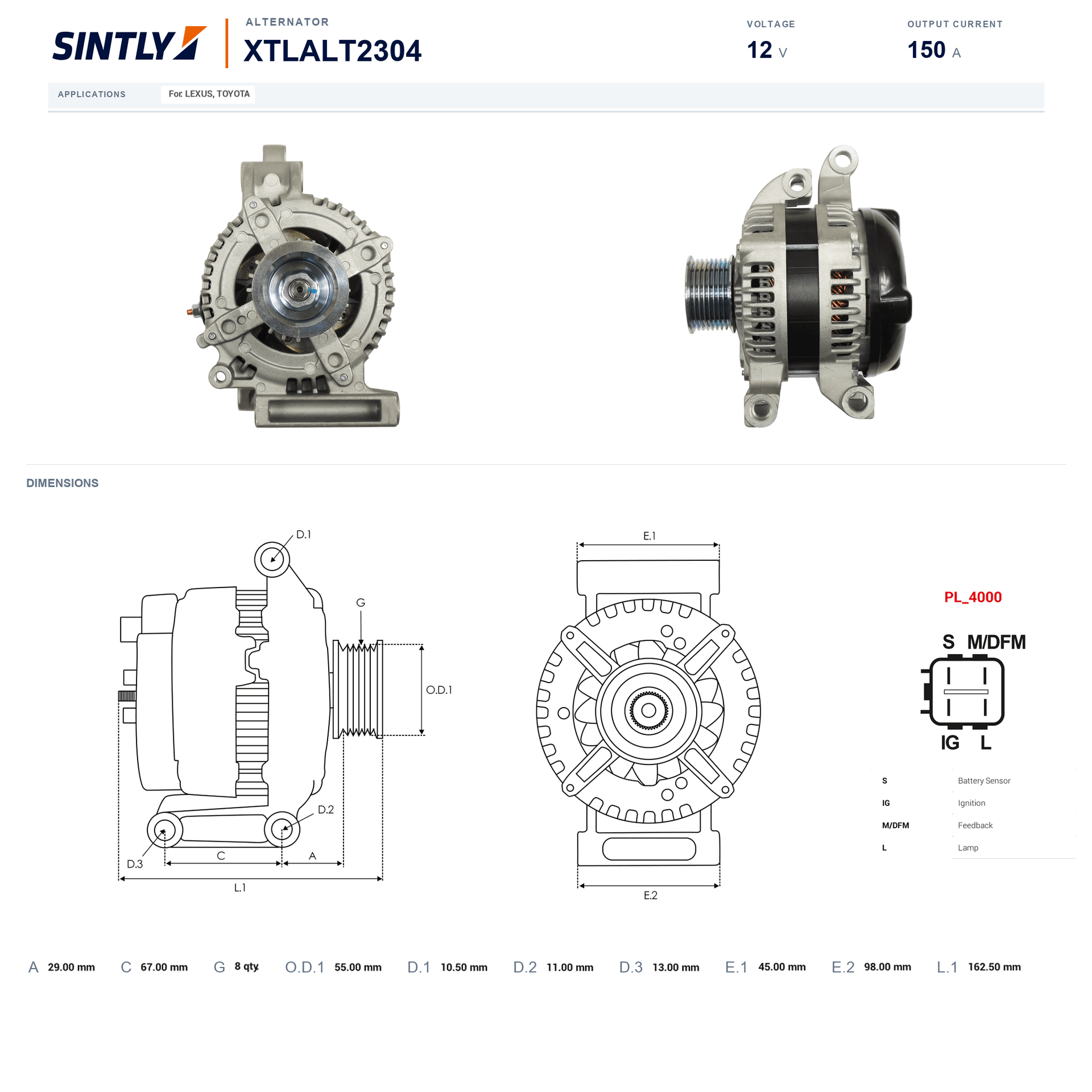

E.2 [ mm ]
98 mm
E.3 [ mm ]
92 mm
O.D.1 [ mm ]
55 mm
Plug
PL_4000
D.3 [ mm ]
13.00 mm
D.4 [ mm ]
13.00 mm
L.1 [ mm ]
162.5 mm
E.4 [ mm ]
18 mm
E.1 [ mm ]
45 mm
Size A [ mm ]
29 mm
Size C [ mm ]
67 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
150 A
Pulley
AP
G [ qty. ]
8 qty
View More
Alternator XTLALT2304
Download PDF
Send Inquiry
E.2 [ mm ]
98 mm
E.3 [ mm ]
92 mm
O.D.1 [ mm ]
55 mm
Plug
PL_4000
D.3 [ mm ]
13.00 mm
D.4 [ mm ]
13.00 mm
L.1 [ mm ]
162.5 mm
E.4 [ mm ]
18 mm
E.1 [ mm ]
45 mm
Size A [ mm ]
29 mm
Size C [ mm ]
67 mm
D.1 [ mm ]
10.50 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
150 A
Pulley
AP
G [ qty. ]
8 qty
Home
Alternator
Alternator XTLALT2304
Original Code
104210-5090
11352
27060-0S020
Equivalent Code (Vehicle Manufacturer)
11352R (WAI / TRANSPO)
27060-0S020 (TOYOTA)
2706038090 (TOYOTA)
2706038110 (TOYOTA)
554581RID (KUHNER)
90-29-5709 (WILSON)
A-80347 (DIXIE)
UD11391A (AS-PL)
CAL40470GS (CASCO)
2040470.1 (SANDO)
20132074OE (REAL)
Applications
Applications
ALL
TOYOTA
Make
TOYOTA
