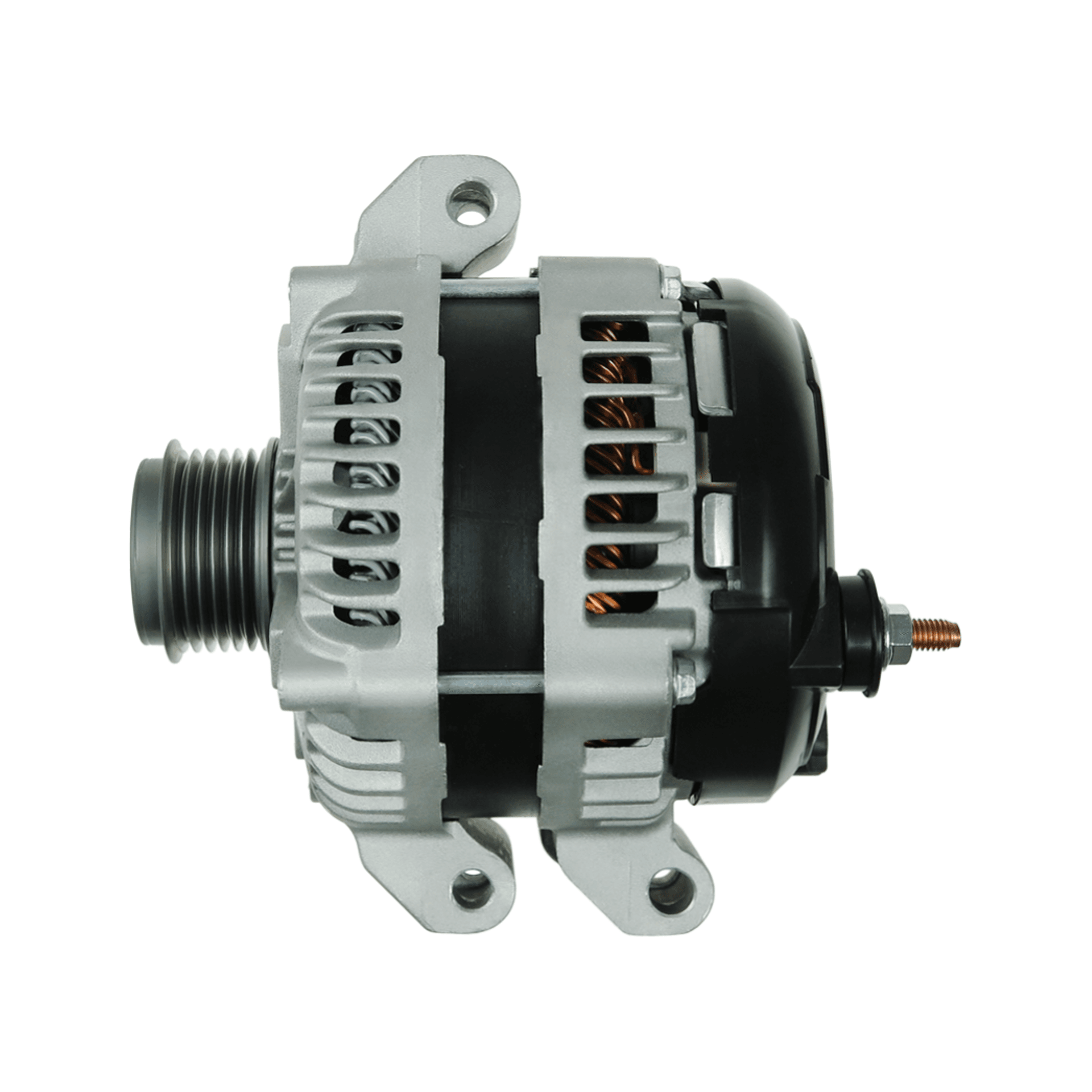

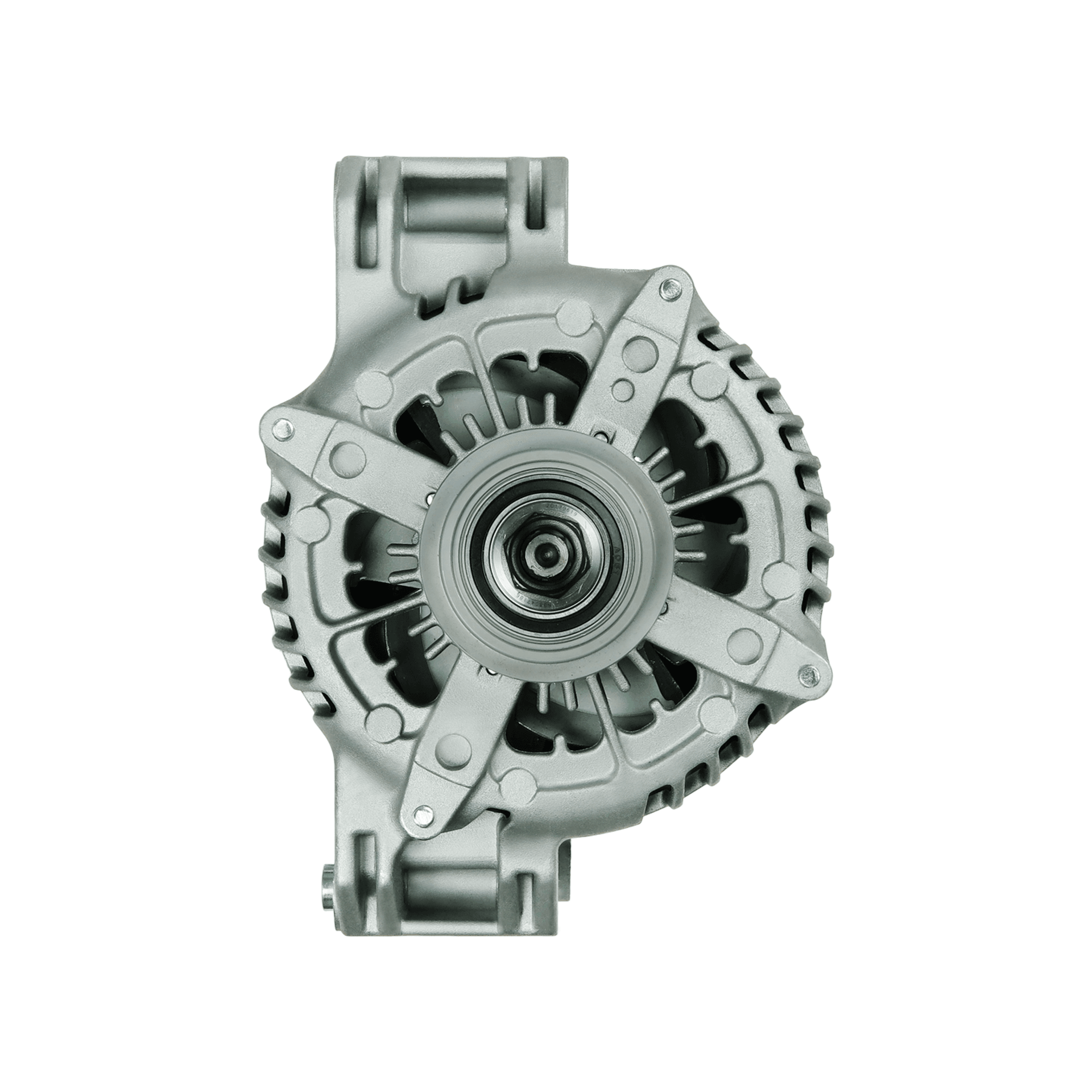

Alternator XTLALT2336
Download PDF
Send Inquiry
E.2 [ mm ]
61.5 mm
E.3 [ mm ]
60.5 mm
O.D.1 [ mm ]
52 mm
Plug
PL_2804
D.3 [ mm ]
11.00 mm
L.1 [ mm ]
201 mm
E.1 [ mm ]
60 mm
Size A [ mm ]
57 mm
Size C [ mm ]
50 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
8.50 mm
Voltage
12 V
Amp
180 A
Pulley
AFP
G [ qty. ]
6 qty
View More
Alternator XTLALT2336
Download PDF
Send Inquiry
E.2 [ mm ]
61.5 mm
E.3 [ mm ]
60.5 mm
O.D.1 [ mm ]
52 mm
Plug
PL_2804
D.3 [ mm ]
11.00 mm
L.1 [ mm ]
201 mm
E.1 [ mm ]
60 mm
Size A [ mm ]
57 mm
Size C [ mm ]
50 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
8.50 mm
Voltage
12 V
Amp
180 A
Pulley
AFP
G [ qty. ]
6 qty
Home
Alternator
Alternator XTLALT2336
Original Code
11598
421000-7040
421000-7041
4801778AF
Equivalent Code (Vehicle Manufacturer)
11075 (DELCO)
11598 (WAI / TRANSPO)
11598R (WAI / TRANSPO)
4801778AF (CHRYSLER)
4801778AI (CHRYSLER)
P04801778AF (CHRYSLER)
554819RI (KUHNER)
57521 (EAI)
835.933.180 (PSH)
835.933.180.460 (PSH)
A135.756 (PSH)
90-29-5791 (WILSON)
A-80556 (DIXIE)
ALN7040 (KRAUF)
A6407S (AS-PL)
UD13828A (AS-PL)
ALT6590 (ELECTROLOG)
Applications
Applications
ALL
CHRYSLER
Make
CHRYSLER
