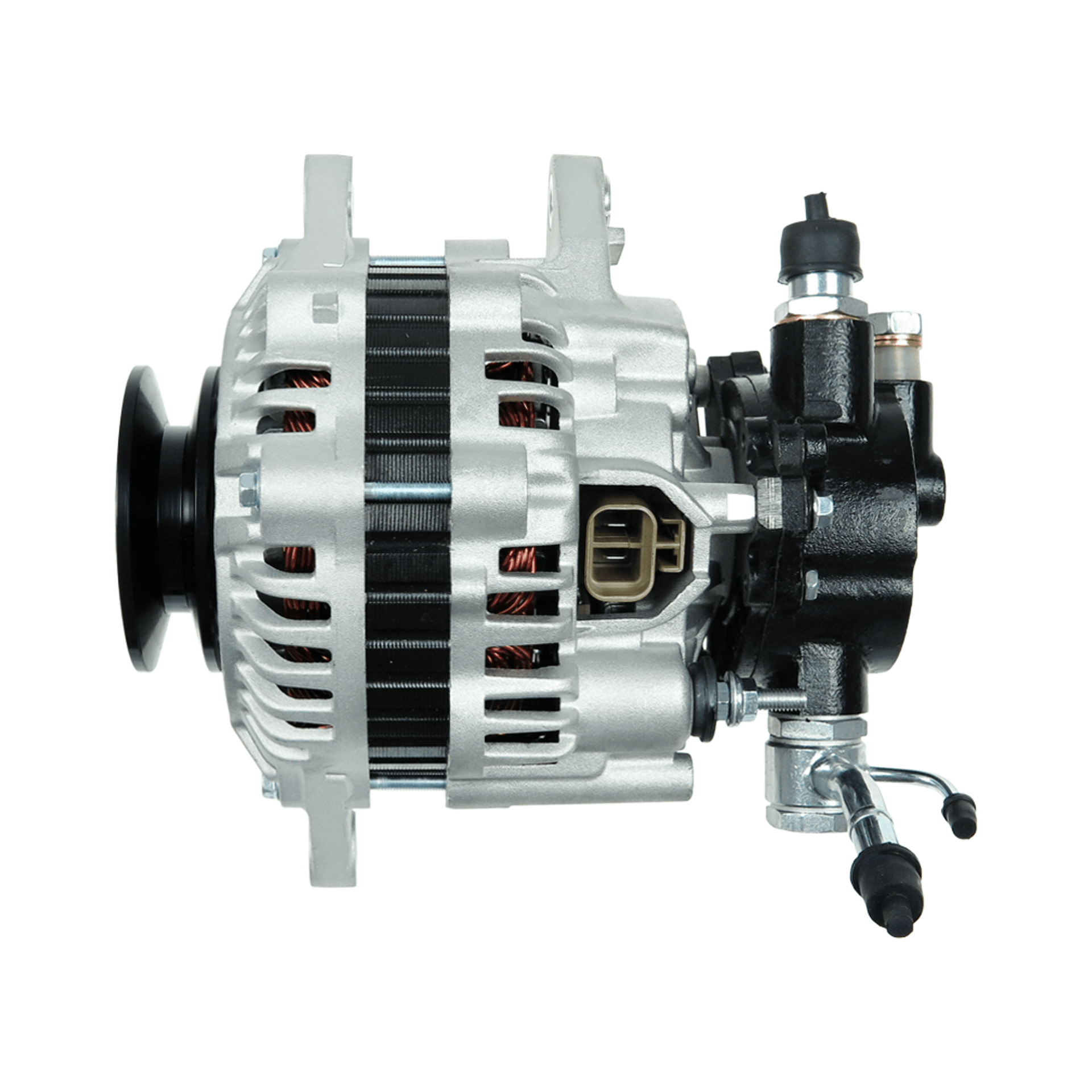

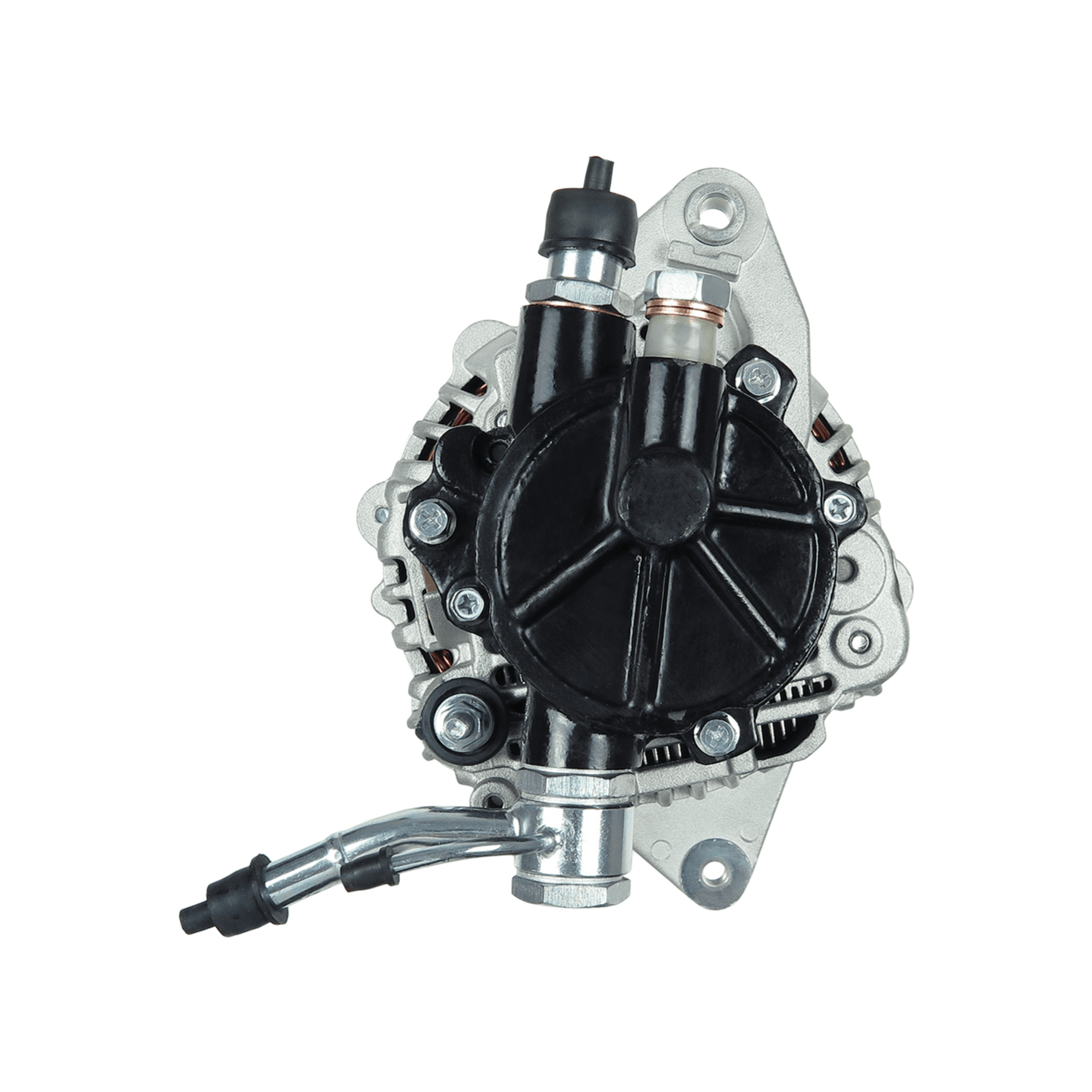

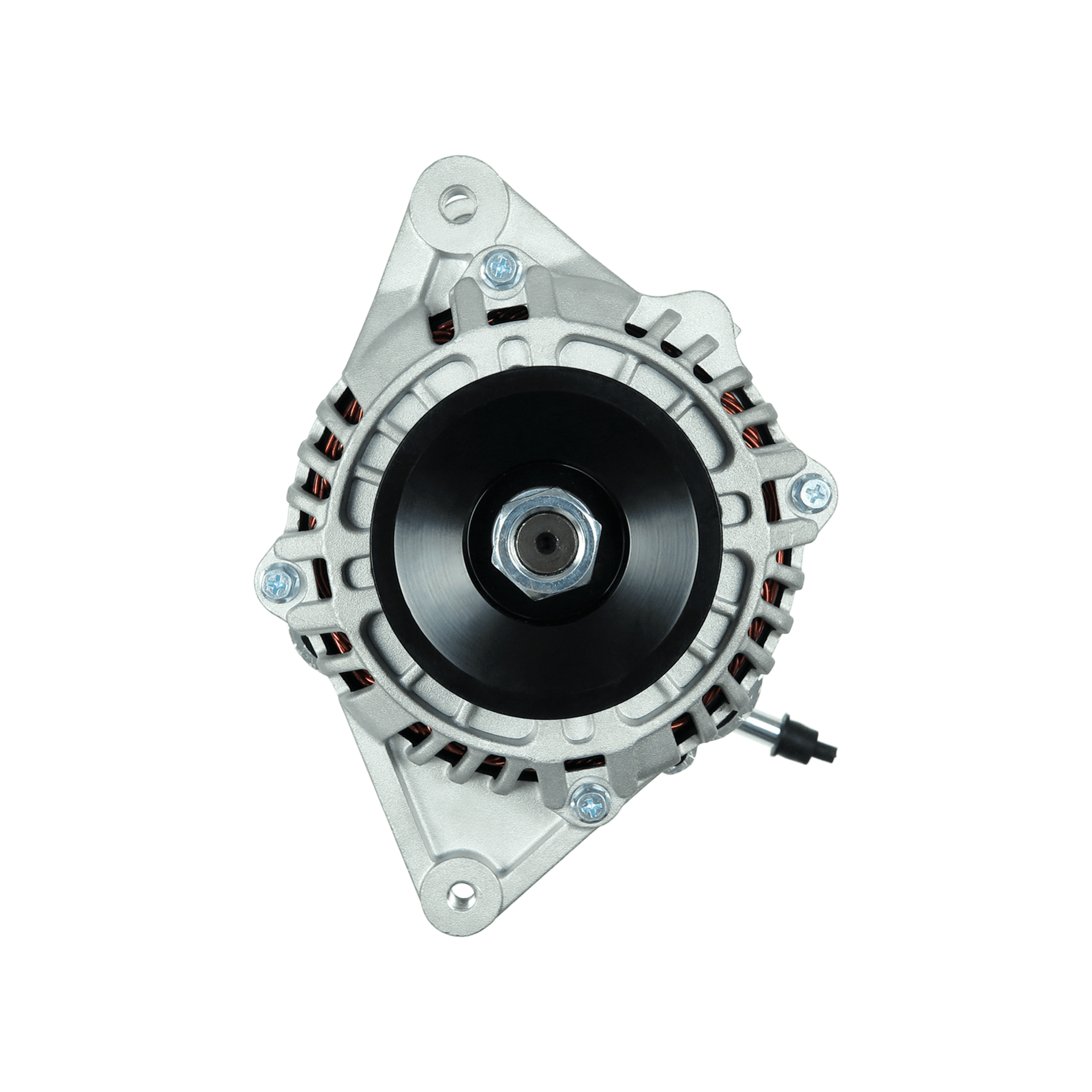

Alternator XTLALT4040
Download PDF

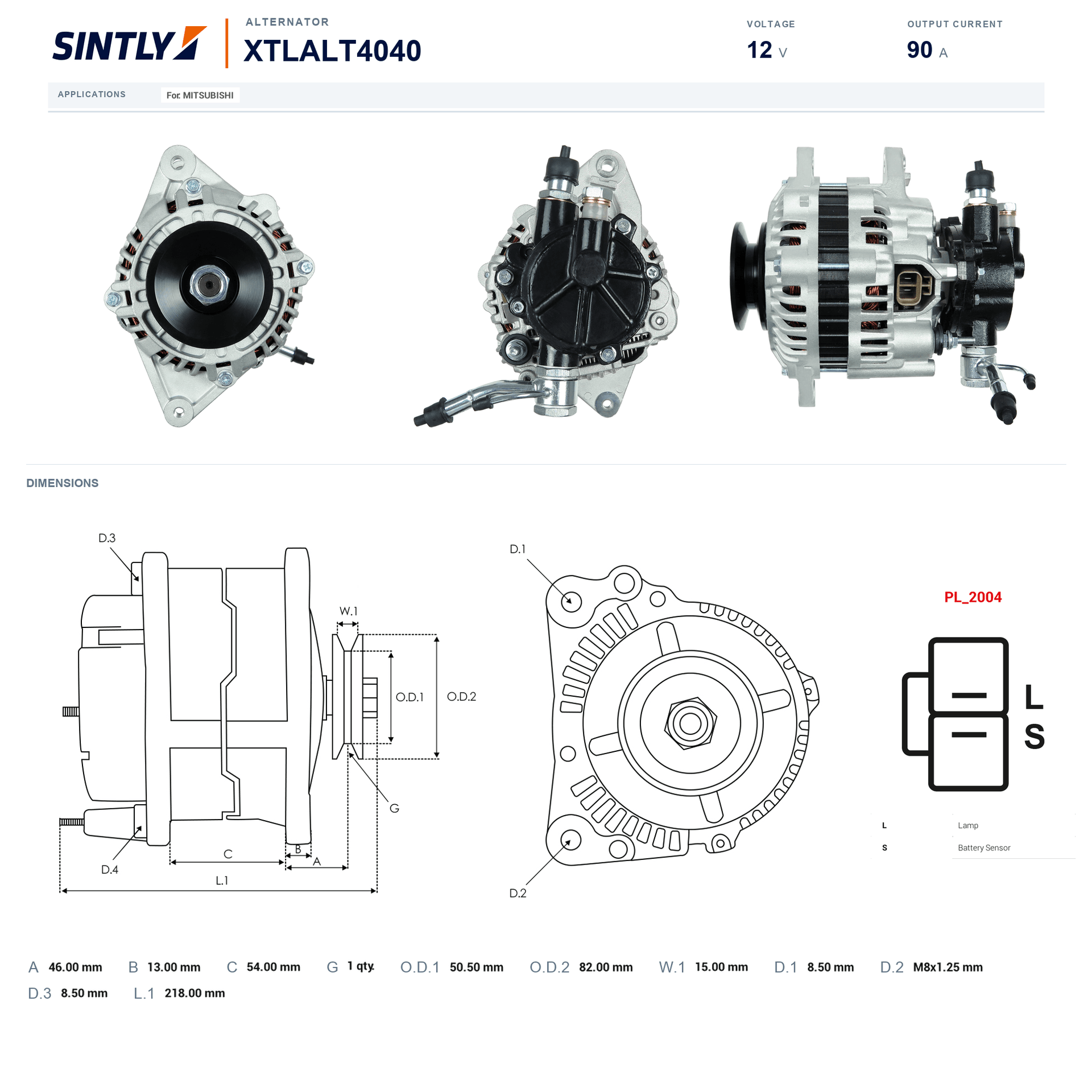

O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
50.5 mm
Plug
PL_2004
W.1 [ mm ]
15 mm
D.3 [ mm ]
8.50 mm
L.1 [ mm ]
218 mm
Vacuum pump
Yes
Size A [ mm ]
46 mm
Size B [ mm ]
13 mm
Size C [ mm ]
54 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
M8x1.25 mm
Voltage
12 V
Amp
90 A
Pulley
AP
G [ qty. ]
1 qty
View More
Alternator XTLALT4040
Download PDF
Send Inquiry
O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
50.5 mm
Plug
PL_2004
W.1 [ mm ]
15 mm
D.3 [ mm ]
8.50 mm
L.1 [ mm ]
218 mm
Vacuum pump
Yes
Size A [ mm ]
46 mm
Size B [ mm ]
13 mm
Size C [ mm ]
54 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
M8x1.25 mm
Voltage
12 V
Amp
90 A
Pulley
AP
G [ qty. ]
1 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT4040
Original Code
23718
A3T07483
MD162964
MD339609
Equivalent Code (Vehicle Manufacturer)
002-C302 (ASHIKA)
11.1184 (LAUBER)
112129 (CARGO)
F032112129 (CARGO)
20130140 (PRESTOLITE)
20137801BN (REAL)
2035108 (SANDO)
23718N (WAI / TRANSPO)
23718R (WAI / TRANSPO)
28-2804 (ELSTOCK)
2C302 (JAPKO)
401184RI (KUHNER)
401184RIM (KUHNER)
89213255 (POWERMAX)
9213255 (POWERMAX)
8EL737339-001 (HELLA)
9368 (CEVAM)
A5004 (AS-PL)
AEA2235 (AUTOELECTRO)
ALC302 (JAPANPARTS)
ALT31011 (WOODAUTO)
ALT6220 (SIOM)
ALTS147 (3EFFE)
CAL35108AS (CASCO)
CGB-13695 (AINDE)
DRA3695 (DELCO)
JA1184IR (HC PARTS)
LRA02717 (LUCAS)
LRA2717 (LUCAS)
SA027 (SOVEREIGN)
SA124 (SOVEREIGN)
SA125 (SOVEREIGN)
210461 (ERA)
A12MH0681A2 (SIDAT)
ANM35915X (ANDEL)
ALT5406 (ELECTROLOG)
STX100217 (STARDAX)
Applications
Applications
ALL
MITSUBISHI
Make
MITSUBISHI
