Alternator XTLALT4071 | SINTLY
Previous slide
Next slide

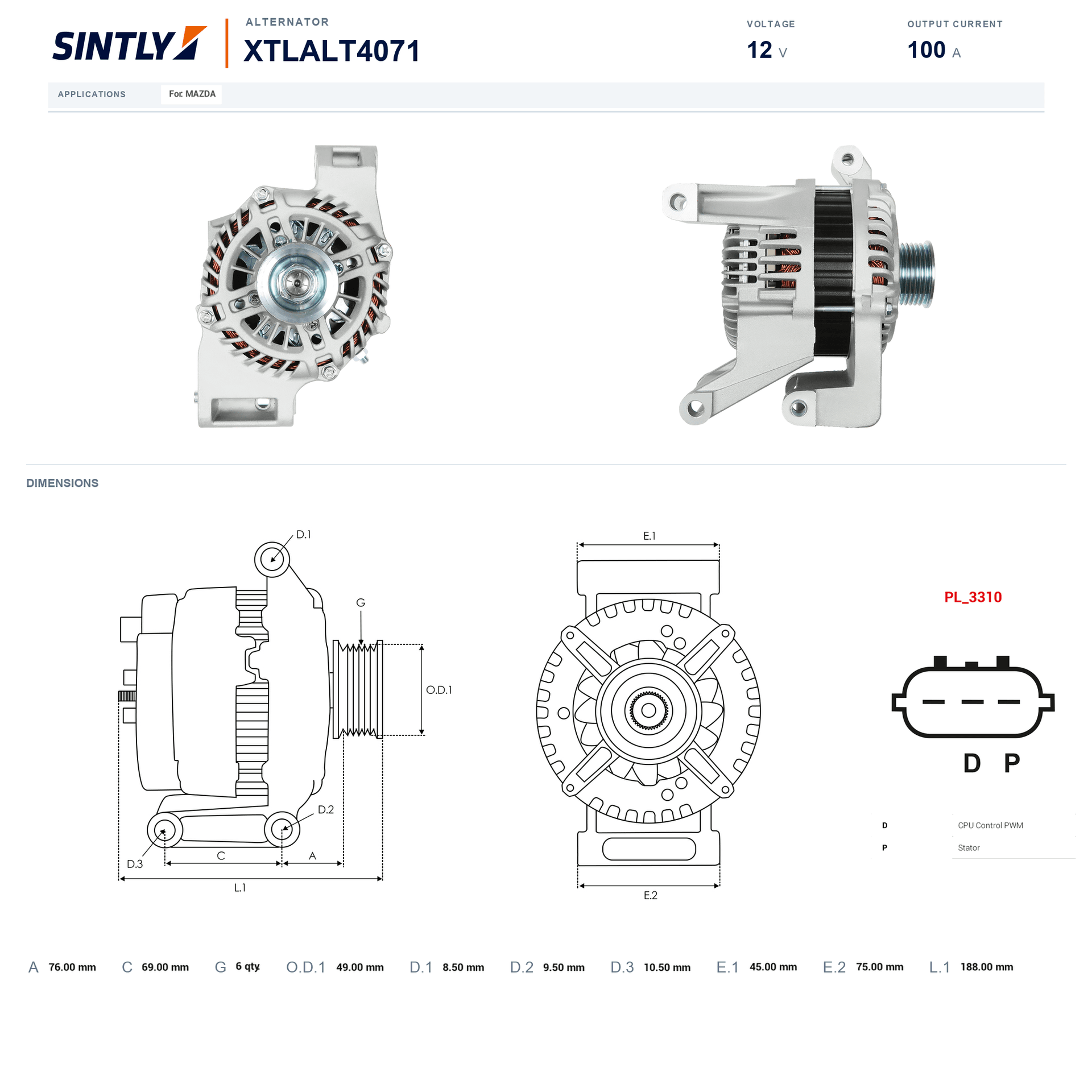

Alternator XTLALT4071
Download PDF
E.2 [ mm ]
75 mm
E.3 [ mm ]
45 mm
O.D.1 [ mm ]
49 mm
Plug
PL_3310
D.3 [ mm ]
10.50 mm
D.4 [ mm ]
10.50 mm
L.1 [ mm ]
188 mm
E.4 [ mm ]
75 mm
E.1 [ mm ]
45 mm
Size A [ mm ]
76 mm
Size C [ mm ]
69 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
9.50 mm
Voltage
12 V
Amp
100 A
Pulley
AP
G [ qty. ]
6 qty
View More
Alternator XTLALT4071
Download PDF
Send Inquiry
E.2 [ mm ]
75 mm
E.3 [ mm ]
45 mm
O.D.1 [ mm ]
49 mm
Plug
PL_3310
D.3 [ mm ]
10.50 mm
D.4 [ mm ]
10.50 mm
L.1 [ mm ]
188 mm
E.4 [ mm ]
75 mm
E.1 [ mm ]
45 mm
Size A [ mm ]
76 mm
Size C [ mm ]
69 mm
D.1 [ mm ]
8.50 mm
D.2 [ mm ]
9.50 mm
Voltage
12 V
Amp
100 A
Pulley
AP
G [ qty. ]
6 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT4071
Original Code
11342
A002TJ0791
A2TJ0791
LF8J-18-300
Equivalent Code (Vehicle Manufacturer)
27-6973 (ELSTOCK)
A5123 (AS-PL)
UD11014A (AS-PL)
ALTF895 (3EFFE)
PRAF895 (3EFFE)
DRA1284 (DELCO)
LF8J (MAZDA)
LF8J-18-300 (MAZDA)
LRA03863 (LUCAS)
LRA3863 (LUCAS)
446182 (LOGISTIK)
ALT31358 (WOODAUTO)
ALM4791 (KRAUF)
145.577.100.130 (PSH)
145.577.100.138 (PSH)
145.577.100.370 (PSH)
A130.294 (PSH)
A147.223 (PSH)
89215219 (POWERMAX)
ALT2369 (ROLLCO)
556056RI (KUHNER)
CAL35395GS (CASCO)
57834 (EAI)
11342N (WAI / TRANSPO)
4382 (CEVAM)
20137593OE (REAL)
2035395.1 (SANDO)
90-27-3399 (WILSON)
ALT5407 (ELECTROLOG)
STX100845 (STARDAX)
Applications
Applications
ALL
MAZUA
Make
MAZUA
