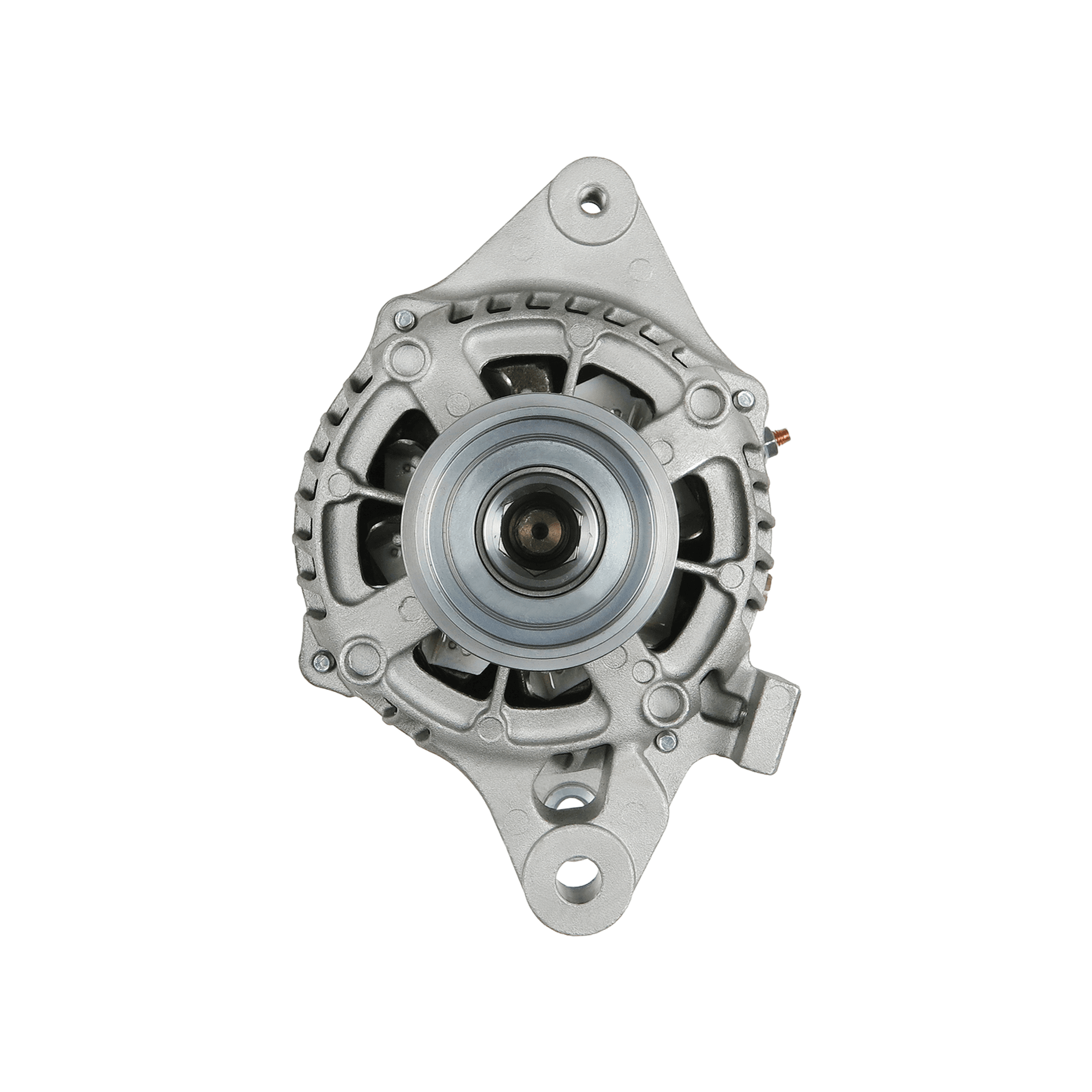

Alternator XTLALT4114
Download PDF
Send Inquiry

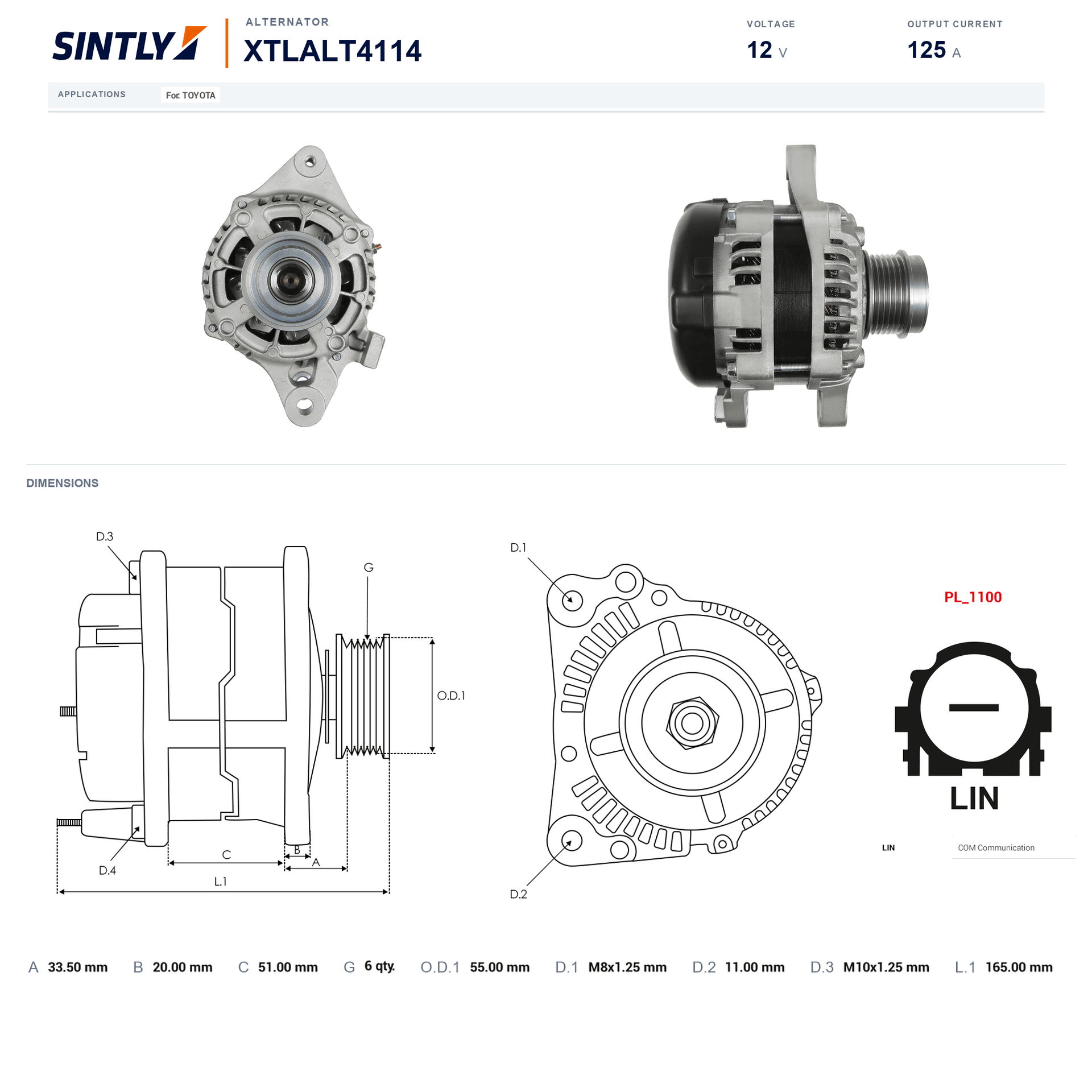

O.D.1 [ mm ]
55 mm
Plug
PL_1100
D.3 [ mm ]
M10x1.25 mm
L.1 [ mm ]
165 mm
COM ID
9
Size A [ mm ]
33.5 mm
Size B [ mm ]
20 mm
Size C [ mm ]
51 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
125 A
Pulley
AFP
G [ qty. ]
6 qty
View More
Alternator XTLALT4114
Download PDF
Send Inquiry
O.D.1 [ mm ]
55 mm
Plug
PL_1100
D.3 [ mm ]
M10x1.25 mm
L.1 [ mm ]
165 mm
COM ID
9
Size A [ mm ]
33.5 mm
Size B [ mm ]
20 mm
Size C [ mm ]
51 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
125 A
Pulley
AFP
G [ qty. ]
6 qty
Home
Alternator
Alternator XTLALT4114
Original Code (Vehicle Manufacturer)
104211-3310
104211-3310 (DENSO)
104211-3311
104211-3311 (DENSO)
104211-3312
104211-3312 (DENSO)
27060-0T260
UD21105A
90-29-5841
11777N
195.307.125.050
A131.286
ALN346
0986CR6341
0986UR6341
AL3386X
Equivalent Code (Vehicle Manufacturer)
27060-0T260 (TOYOTA)
UD21105A (AS-PL)
90-29-5841 (WILSON)
11777N (WAI / TRANSPO)
195.307.125.050 (PSH)
A131.286 (PSH)
ALN346 (KRAUF)
0986CR6341 (BOSCH)
0986UR6341 (BOSCH)
AL3386X (BOSCH)
Applications
Applications
ALL
TOYOTA
Make
Vehicle
Model Types
From
To
TOYOTA
COROLLA Saloon (_E18_, ZRE1_) 1.8 VVTi (ZRE170)
2ZR-FAE
09/2013
12/2014
