Alternator XTLALT4136
Download PDF

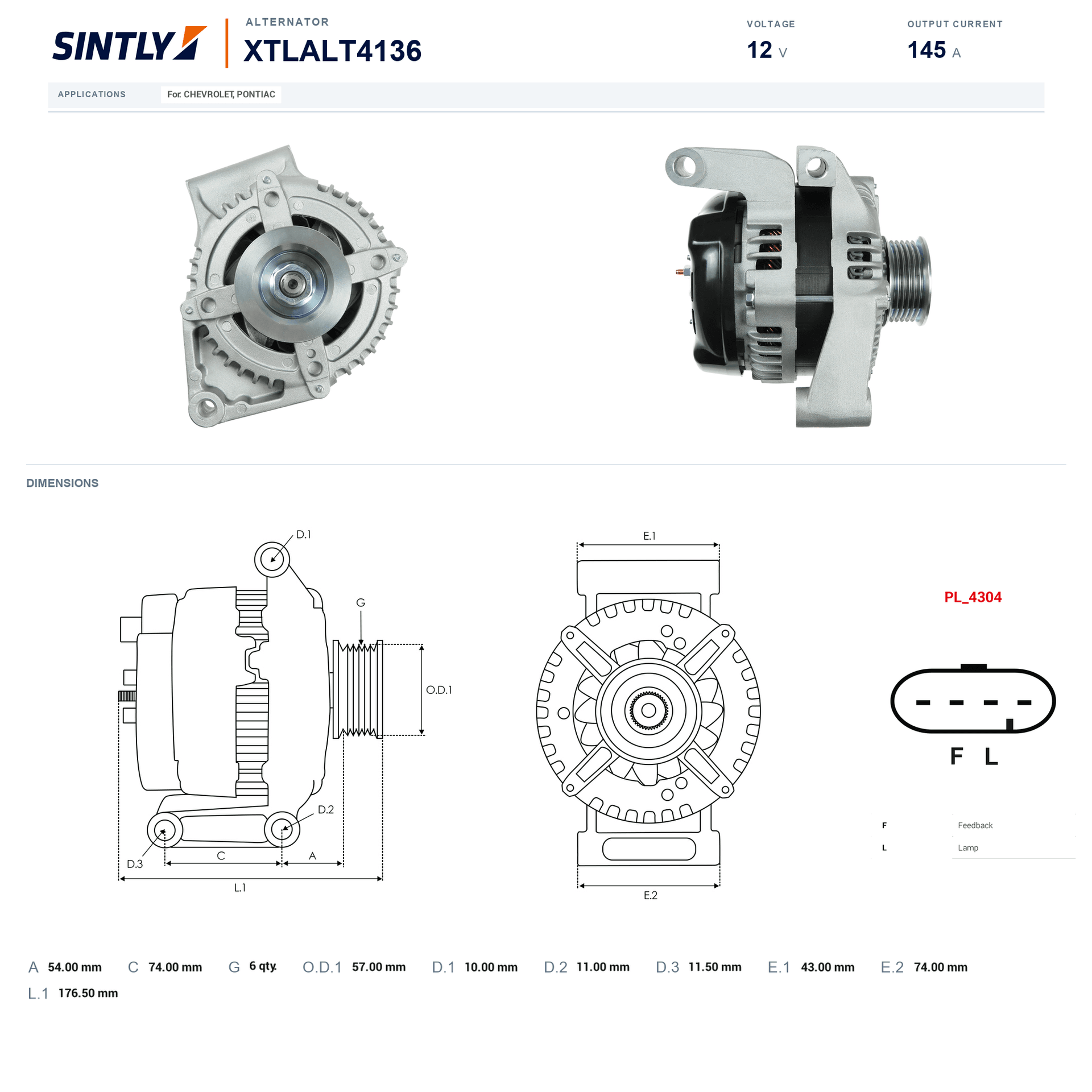

E.2 [ mm ]
74 mm
E.3 [ mm ]
30 mm
O.D.1 [ mm ]
57 mm
Plug
PL_4304
D.3 [ mm ]
11.50 mm
L.1 [ mm ]
176.5 mm
E.1 [ mm ]
43 mm
Size A [ mm ]
54 mm
Size C [ mm ]
74 mm
D.1 [ mm ]
10.00 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
145 A
Pulley
AP
G [ qty. ]
6 qty
View More
Alternator XTLALT4136
Download PDF
Send Inquiry
E.2 [ mm ]
74 mm
E.3 [ mm ]
30 mm
O.D.1 [ mm ]
57 mm
Plug
PL_4304
D.3 [ mm ]
11.50 mm
L.1 [ mm ]
176.5 mm
E.1 [ mm ]
43 mm
Size A [ mm ]
54 mm
Size C [ mm ]
74 mm
D.1 [ mm ]
10.00 mm
D.2 [ mm ]
11.00 mm
Voltage
12 V
Amp
145 A
Pulley
AP
G [ qty. ]
6 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT4136
Original Code (Vehicle Manufacturer)
10394201
12781
15812949
94779
104210-4990
104210-4990 (DENSO)
11146R
90-29-5624
90-29-5624N
A-80327
A6341
UD11502A
Equivalent Code (Vehicle Manufacturer)
10394201 (DELCO)
12781 (DELCO)
15812949 (DELCO)
94779 (DELCO)
11146R (WAI / TRANSPO)
90-29-5624 (WILSON)
90-29-5624N (WILSON)
A-80327 (DIXIE)
A6341 (AS-PL)
UD11502A (AS-PL)
Applications
Applications
ALL
CHEVROLET
PONTIAC
Make
Vehicle
Model Types
From
To
PONTIAC
ToRent 3.4
--
01/2006
12/2006
CHEVROLET
EQUINOX 3.4
LNJ
04/2003
09/2009
CHEVROLET
EQUINOX 3.4 AWD
LNJ
04/2003
09/2009
