Alternator XTLALT4519
Download PDF
Send Inquiry

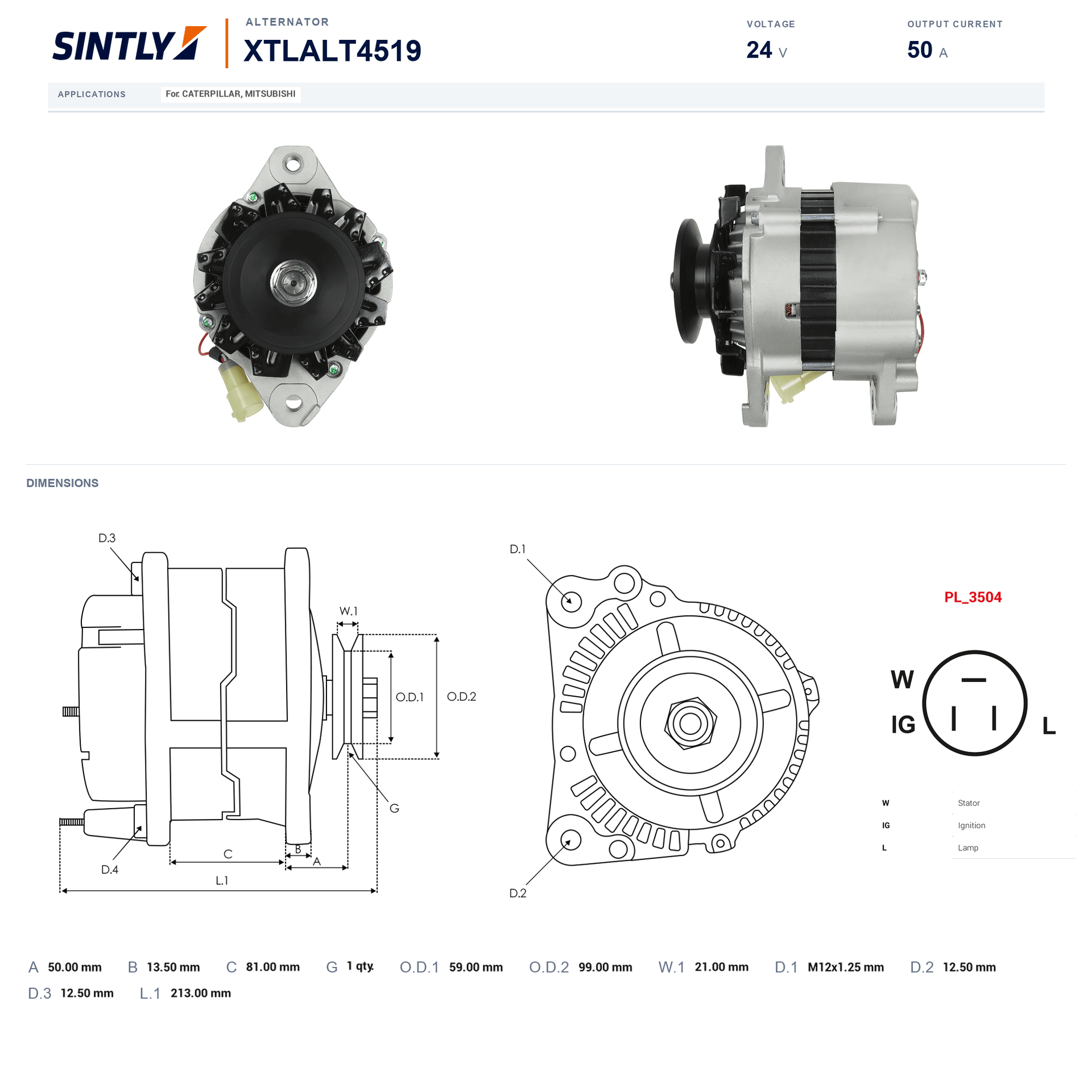

O.D.2 [ mm ]
99 mm
O.D.1 [ mm ]
59 mm
Plug
PL_3504
W.1 [ mm ]
21 mm
D.3 [ mm ]
12.50 mm
L.1 [ mm ]
213 mm
Size A [ mm ]
50 mm
Size B [ mm ]
13.5 mm
Size C [ mm ]
81 mm
D.1 [ mm ]
M12x1.25 mm
D.2 [ mm ]
12.50 mm
Voltage
24 V
Amp
50 A
Pulley
AP
G [ qty. ]
1 qty
View More
Alternator XTLALT4519
Download PDF
Send Inquiry
O.D.2 [ mm ]
99 mm
O.D.1 [ mm ]
59 mm
Plug
PL_3504
W.1 [ mm ]
21 mm
D.3 [ mm ]
12.50 mm
L.1 [ mm ]
213 mm
Size A [ mm ]
50 mm
Size B [ mm ]
13.5 mm
Size C [ mm ]
81 mm
D.1 [ mm ]
M12x1.25 mm
D.2 [ mm ]
12.50 mm
Voltage
24 V
Amp
50 A
Pulley
AP
G [ qty. ]
1 qty
Home
Alternator
Alternator XTLALT4519
Original Code
12316
A4T66786
ME150143
Equivalent Code (Vehicle Manufacturer)
12316N (WAI / TRANSPO)
UNITBOM203-282 (WAI / TRANSPO)
90-27-3205 (WILSON)
A-80069 (DIXIE)
ALT31259 (WOODAUTO)
DRA0327 (DELCO)
UD11282A (AS-PL)
ANM32547X (ANDEL)
Applications
Applications
ALL
CATERPILLAR
MITSUBISHI
Make
CATERPILLAR
MITSUBISHI
