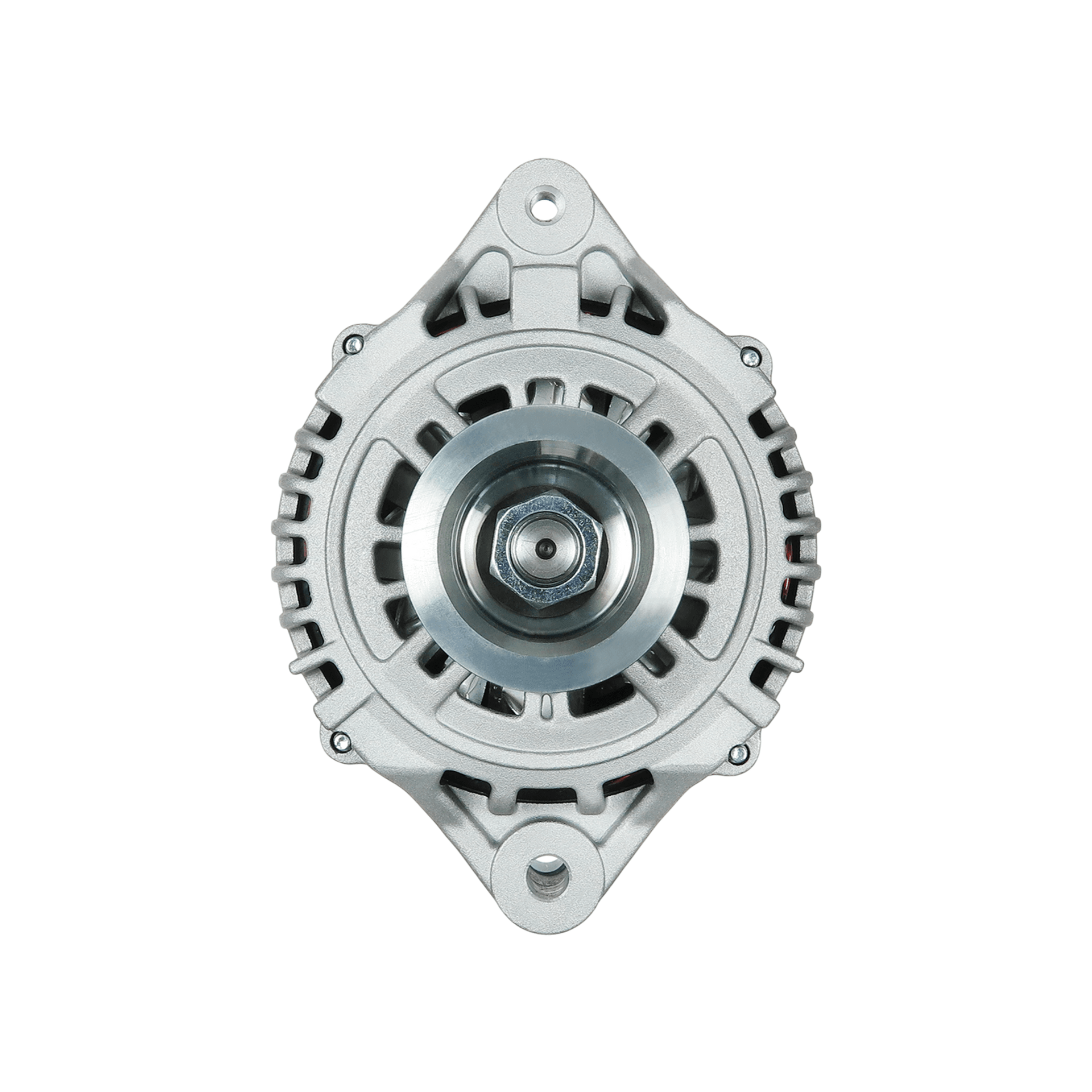

Alternator XTLALT6041
Previous slide
Next slide
Alternator XTLALT6041
Download PDF
Send Inquiry
Voltage
12 V
Output current
90 A
Rotation
Clockwise
Plug
PL_2004
Regulator Type
Internal
Pulley
AP
Pulley Type
Conventional
Pulley Belt Type
Serpentine
Pulley Groove Quantity
6 qty.
Pulley Diameter
57 mm
Overall Length
183 mm
Pulley Included
Yes
Brushless
No
One Wire Capable
No
Decoupled Or Clutch Pulley
No
AC Service Tap
No
Fan Type
Internal
Ground Type
Negative
Cooling Method
Air
Plug Clock Position
9
View More
Alternator XTLALT6041
Download PDF
Send Inquiry
Voltage
12 V
Output current
90 A
Rotation
Clockwise
Plug
PL_2004
Regulator Type
Internal
Pulley
AP
Pulley Type
Conventional
Pulley Belt Type
Serpentine
Pulley Groove Quantity
6 qty.
Pulley Diameter
57 mm
Overall Length
183 mm
Pulley Included
Yes
Brushless
No
One Wire Capable
No
Decoupled Or Clutch Pulley
No
AC Service Tap
No
Fan Type
Internal
Ground Type
Negative
Cooling Method
Air
Plug Clock Position
9
Reference Numbers
OE Numbers
HITACHI
LR190-744
LR190761
Other
13825
2902768200
LR190-744
LR190761
Equivalent Code
3EFFE
ALTE369
PRAE369
AS-PL
UD20722A
CASCO
CAL20185AS
DIXIE
A-8929
ELECTROLOG
ALT3205
ISUZU
2902768300
8972043320
8973553400
KRAUF
ALH3367
KUHNER
554870RI
POWERMAX
9214066
REAL
20145581BN
SANDO
2020185.0
SIOM
ALT221850
ALT221850A
WAI
135.935.090
135.935.090.088
135.935.090.460
13825N
A130.424
WILSON
90-25-1137
90-25-1137N
WOODAUTO
ALT32143
Applications
Home
Alternator
Alternator XTLALT6041
Applications
ISUZU
Rodeo
3.5
01/2004-12/2004
3.2
01/1999-12/2004
Amigo
3.2
01/1998-12/1998
3.2
01/2000-12/2000
3.2
01/2002-12/2002
HONDA
