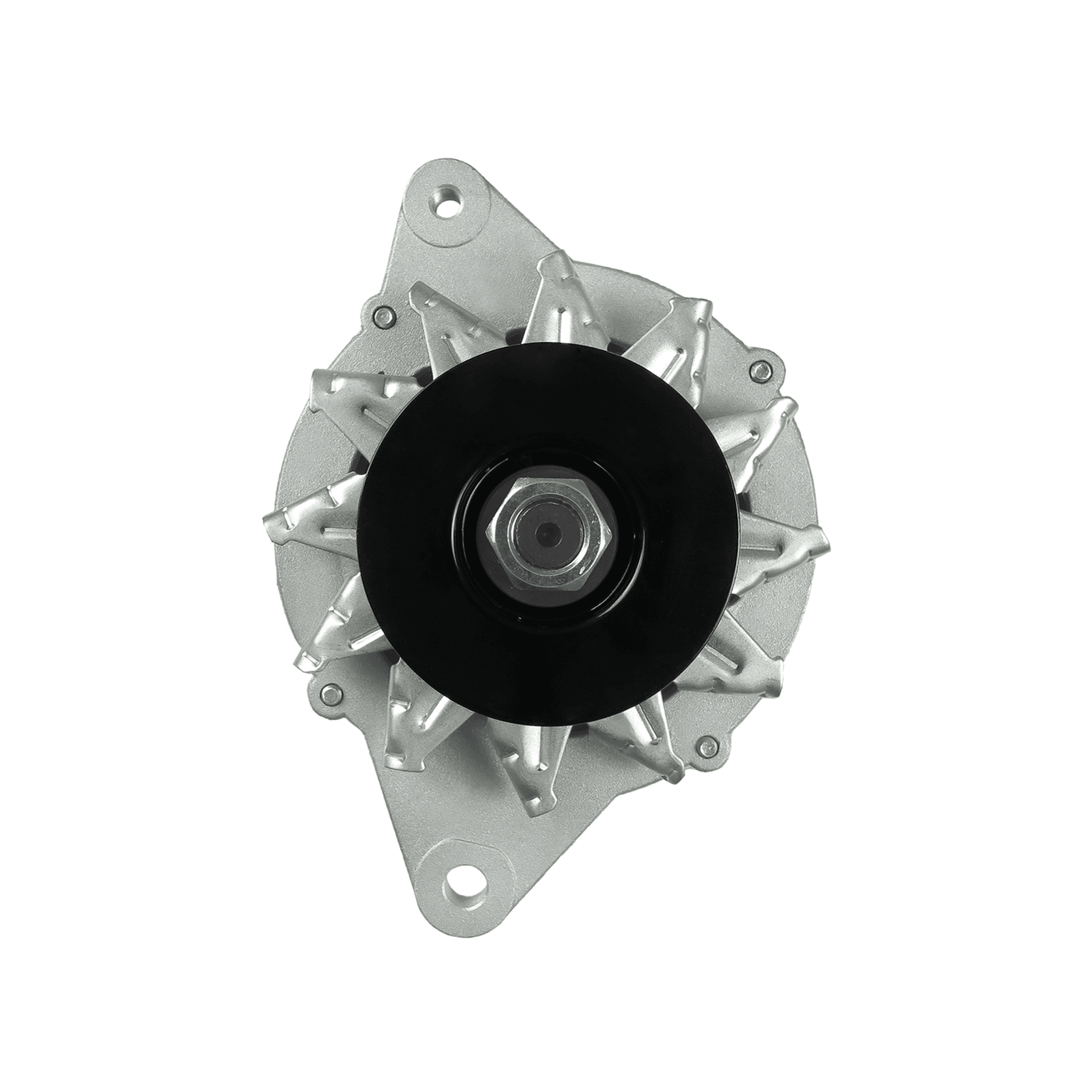

Alternator XTLALT6251
Download PDF
O.D.2 [ mm ]
81.5 mm
O.D.1 [ mm ]
50 mm
Plug
PL_4500
W.1 [ mm ]
16 mm
D.3 [ mm ]
10.00 mm
L.1 [ mm ]
238 mm
Vacuum pump
Yes
Size A [ mm ]
45.5 mm
Size B [ mm ]
12.5 mm
Size C [ mm ]
81.5 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.00 mm
Voltage
24 V
Amp
25 A
Pulley
AP
G [ qty. ]
1 qty
View More
Alternator XTLALT6251
Download PDF
Send Inquiry
O.D.2 [ mm ]
81.5 mm
O.D.1 [ mm ]
50 mm
Plug
PL_4500
W.1 [ mm ]
16 mm
D.3 [ mm ]
10.00 mm
L.1 [ mm ]
238 mm
Vacuum pump
Yes
Size A [ mm ]
45.5 mm
Size B [ mm ]
12.5 mm
Size C [ mm ]
81.5 mm
D.1 [ mm ]
M8x1.25 mm
D.2 [ mm ]
10.00 mm
Voltage
24 V
Amp
25 A
Pulley
AP
G [ qty. ]
1 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT6251
Original Code
8940723300
LR225-409
LR225408
Equivalent Code (Vehicle Manufacturer)
11.1171 (LAUBER)
18.3006 (LAUBER)
111493 (CARGO)
F032111493 (CARGO)
23099-T3402 (NISSAN)
401171RI (KUHNER)
48-1619 (ELSTOCK)
89212625 (POWERMAX)
9212625 (POWERMAX)
8940723300 (ISUZU)
8941004502 (ISUZU)
894122-2673 (ISUZU)
8943897721 (ISUZU)
8944046520 (ISUZU)
8944559730 (ISUZU)
8944723300 (ISUZU)
8944733300 (ISUZU)
8EL737226-001 (HELLA)
A2010 (AS-PL)
ALT5310 (SIOM)
ALTF491 (3EFFE)
ALTF970 (3EFFE)
PRAF491 (3EFFE)
PRAF970 (3EFFE)
ALTV038 (WOODAUTO)
DRA3849 (DELCO)
JA1171IR (HC PARTS)
LRA02445 (LUCAS)
LRA2445 (LUCAS)
446220 (LOGISTIK)
ALT3099 (ELECTROLOG)
Applications
Applications
ALL
ISUZU
Make
ISUZU
