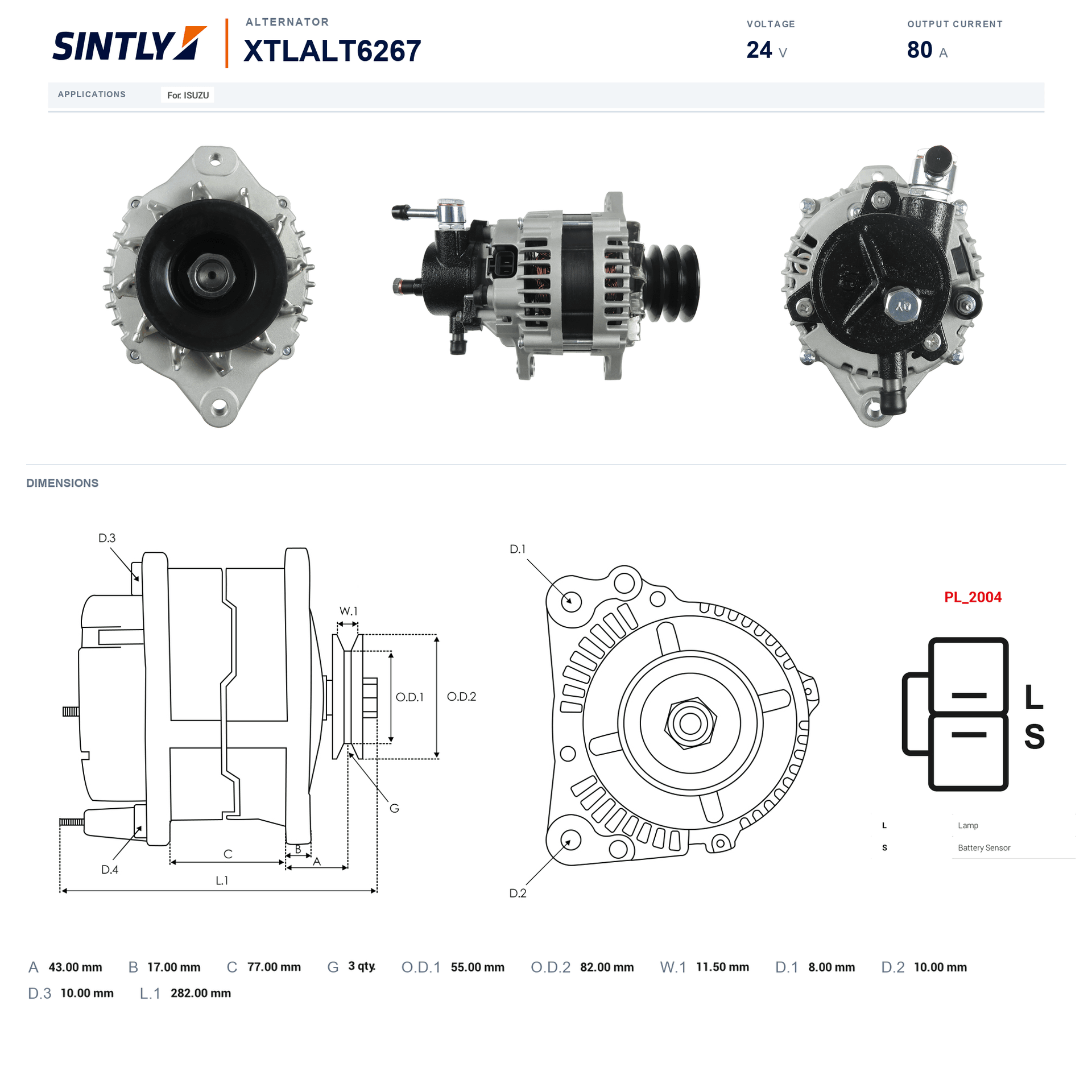

Alternator XTLALT6267
Download PDF
O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
55 mm
Plug
PL_2004
W.1 [ mm ]
11.5 mm
D.3 [ mm ]
10.00 mm
L.1 [ mm ]
282 mm
Vacuum pump
Yes
Size A [ mm ]
43 mm
Size B [ mm ]
17 mm
Size C [ mm ]
77 mm
D.1 [ mm ]
8.00 mm
D.2 [ mm ]
10.00 mm
Voltage
24 V
Amp
80 A
Pulley
AP
G [ qty. ]
3 qty
View More
Alternator XTLALT6267
Download PDF
Send Inquiry
O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
55 mm
Plug
PL_2004
W.1 [ mm ]
11.5 mm
D.3 [ mm ]
10.00 mm
L.1 [ mm ]
282 mm
Vacuum pump
Yes
Size A [ mm ]
43 mm
Size B [ mm ]
17 mm
Size C [ mm ]
77 mm
D.1 [ mm ]
8.00 mm
D.2 [ mm ]
10.00 mm
Voltage
24 V
Amp
80 A
Pulley
AP
G [ qty. ]
3 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT6267
Original Code
12718
LR280-501
LR280505
Equivalent Code (Vehicle Manufacturer)
20145806BN (REAL)
2020608.0 (SANDO)
554612RI (KUHNER)
8972416291 (ISUZU)
8972482951 (ISUZU)
8972489141 (ISUZU)
8972489150 (ISUZU)
8973325020 (ISUZU)
8973325032 (ISUZU)
8973515740 (ISUZU)
8973515741 (ISUZU)
8981808750 (ISUZU)
9873325020 (ISUZU)
ALT226080 (SIOM)
ALT226080A (SIOM)
ALT32187 (WOODAUTO)
ALTL402 (3EFFE)
PRAL402 (3EFFE)
CAL20608AS (CASCO)
A2055 (AS-PL)
12718N (WAI / TRANSPO)
116531 (CARGO)
F032116531 (CARGO)
ALT3135 (ELECTROLOG)
Applications
Applications
ALL
SUZU
Make
SUZU
