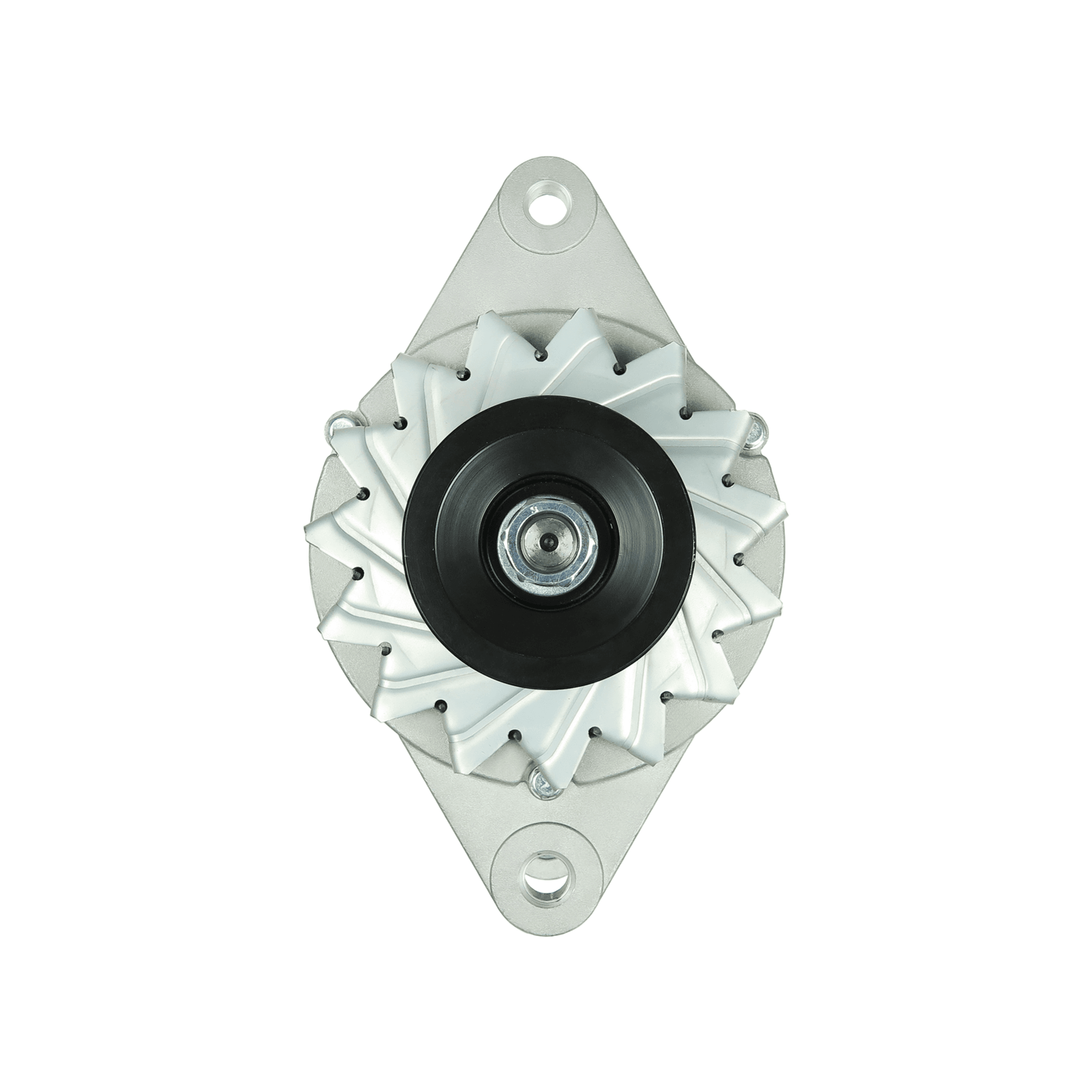

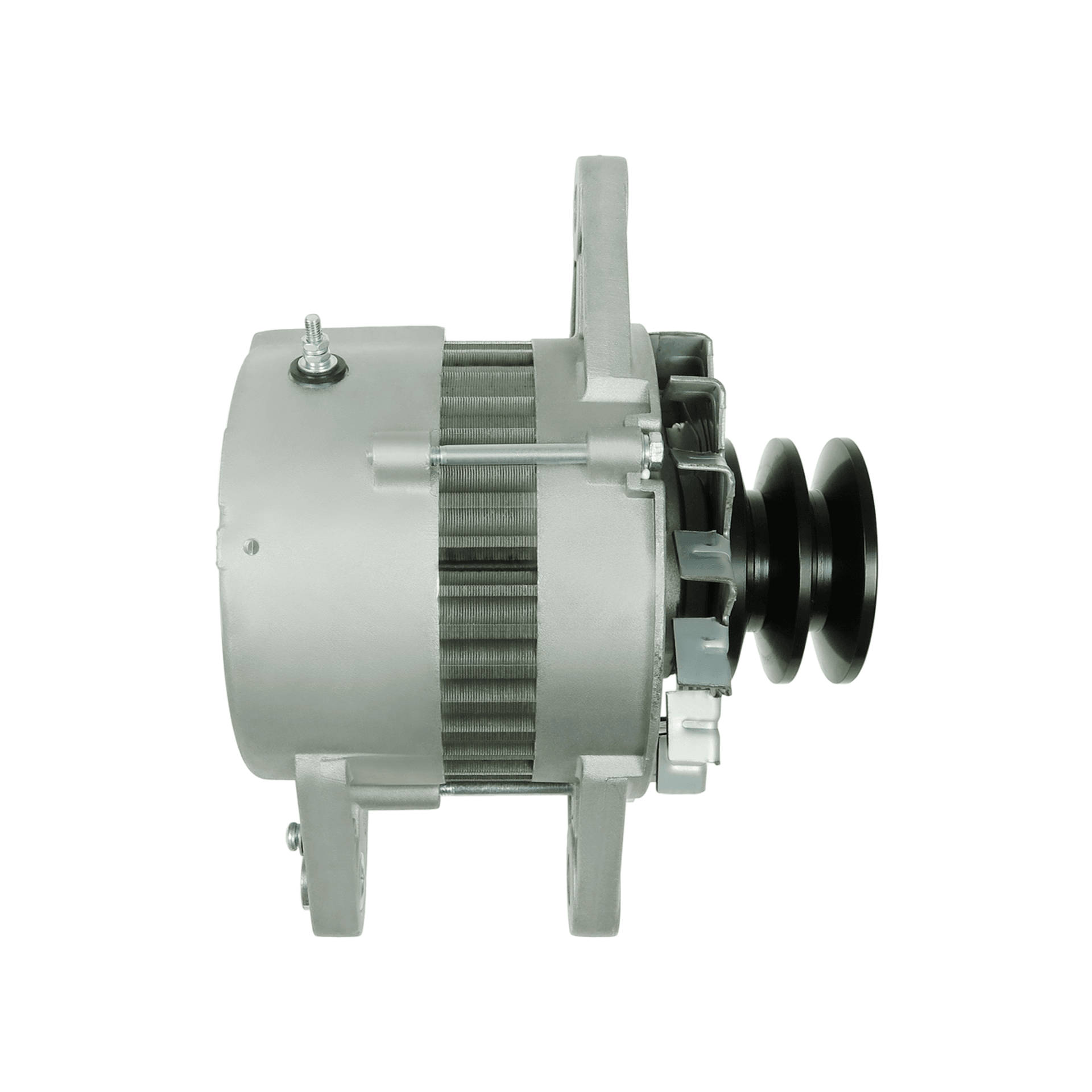

Alternator XTLALT6760
Download PDF

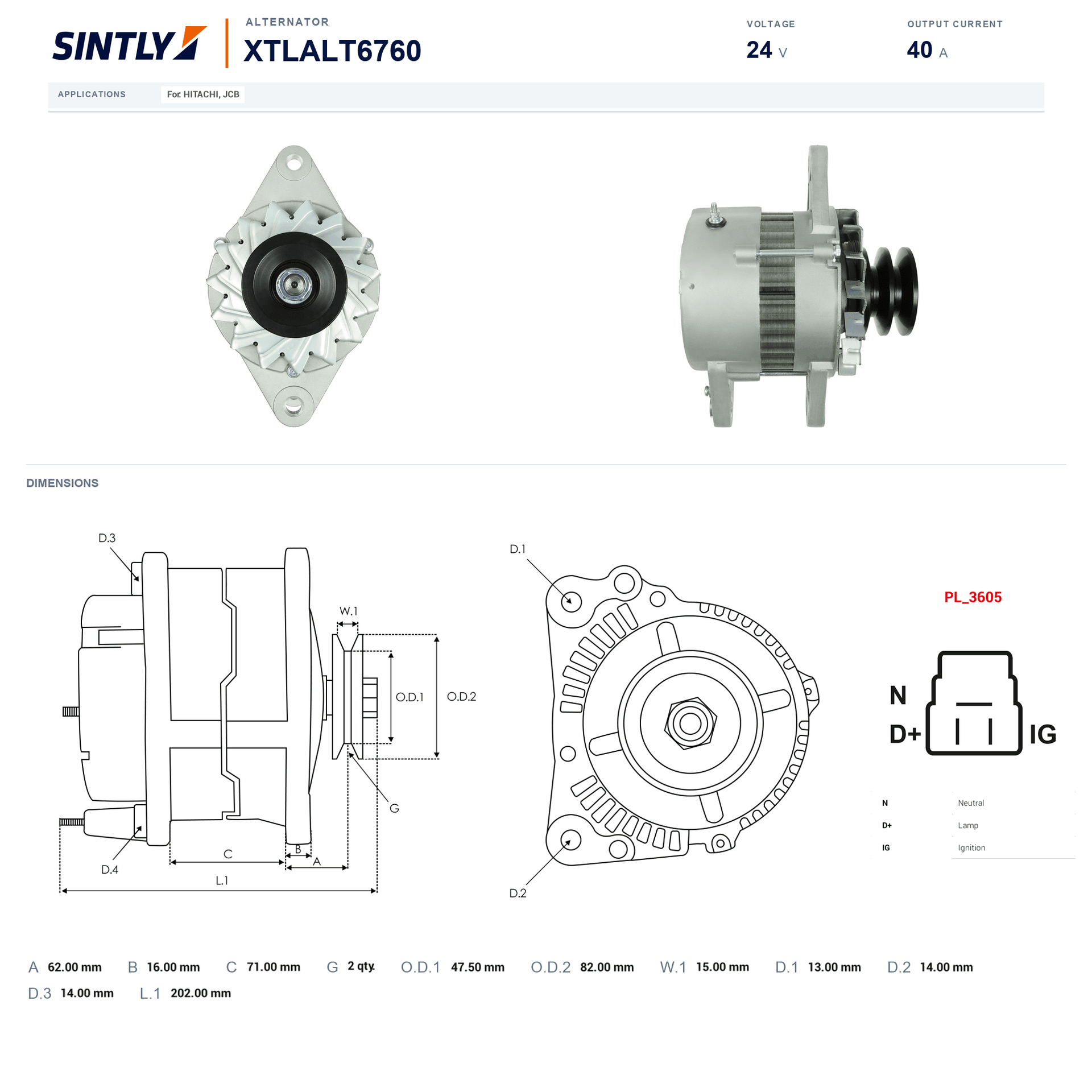

O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
47.5 mm
Plug
PL_3605
W.1 [ mm ]
15 mm
D.3 [ mm ]
14.00 mm
L.1 [ mm ]
202 mm
Size A [ mm ]
62 mm
Size B [ mm ]
16 mm
Size C [ mm ]
71 mm
D.1 [ mm ]
13.00 mm
D.2 [ mm ]
14.00 mm
Voltage
24 V
Amp
40 A
Pulley
AP
G [ qty. ]
2 qty
View More
Alternator XTLALT6760
Download PDF
Send Inquiry
O.D.2 [ mm ]
82 mm
O.D.1 [ mm ]
47.5 mm
Plug
PL_3605
W.1 [ mm ]
15 mm
D.3 [ mm ]
14.00 mm
L.1 [ mm ]
202 mm
Size A [ mm ]
62 mm
Size B [ mm ]
16 mm
Size C [ mm ]
71 mm
D.1 [ mm ]
13.00 mm
D.2 [ mm ]
14.00 mm
Voltage
24 V
Amp
40 A
Pulley
AP
G [ qty. ]
2 qty
WhatsApp inquiry
Email inquiry
Home
Alternator
Alternator XTLALT6760
Original Code
0-35000-0013
0-35000-3013
12264
1812002492
Equivalent Code (Vehicle Manufacturer)
1812002491 (ISUZU)
1812002492 (ISUZU)
1812002493 (ISUZU)
1812002970 (ISUZU)
1812003660 (ISUZU)
1812003970 (ISUZU)
1812004001 (ISUZU)
23100Z5702 (ISUZU)
2458 (CEVAM)
71436100 (JCB)
71440321 (JCB)
A9266S (AS-PL)
UD14287A (AS-PL)
ALT29004 (WOODAUTO)
ALT526040 (SIOM)
ALT526270A (SIOM)
CAL50627AS (CASCO)
CAL50627GS (CASCO)
CGB-13072 (AINDE)
UNIT BOM 285-151 (WAI / TRANSPO)
446868 (LOGISTIK)
2050627.0 (SANDO)
2050627.1 (SANDO)
20146726BN (REAL)
20146726OE (REAL)
115994 (CARGO)
F032115994 (CARGO)
6008215620 (KOMATSU)
6008215630 (KOMATSU)
Applications
Applications
ALL
ISUZU
Make
ISUZU
