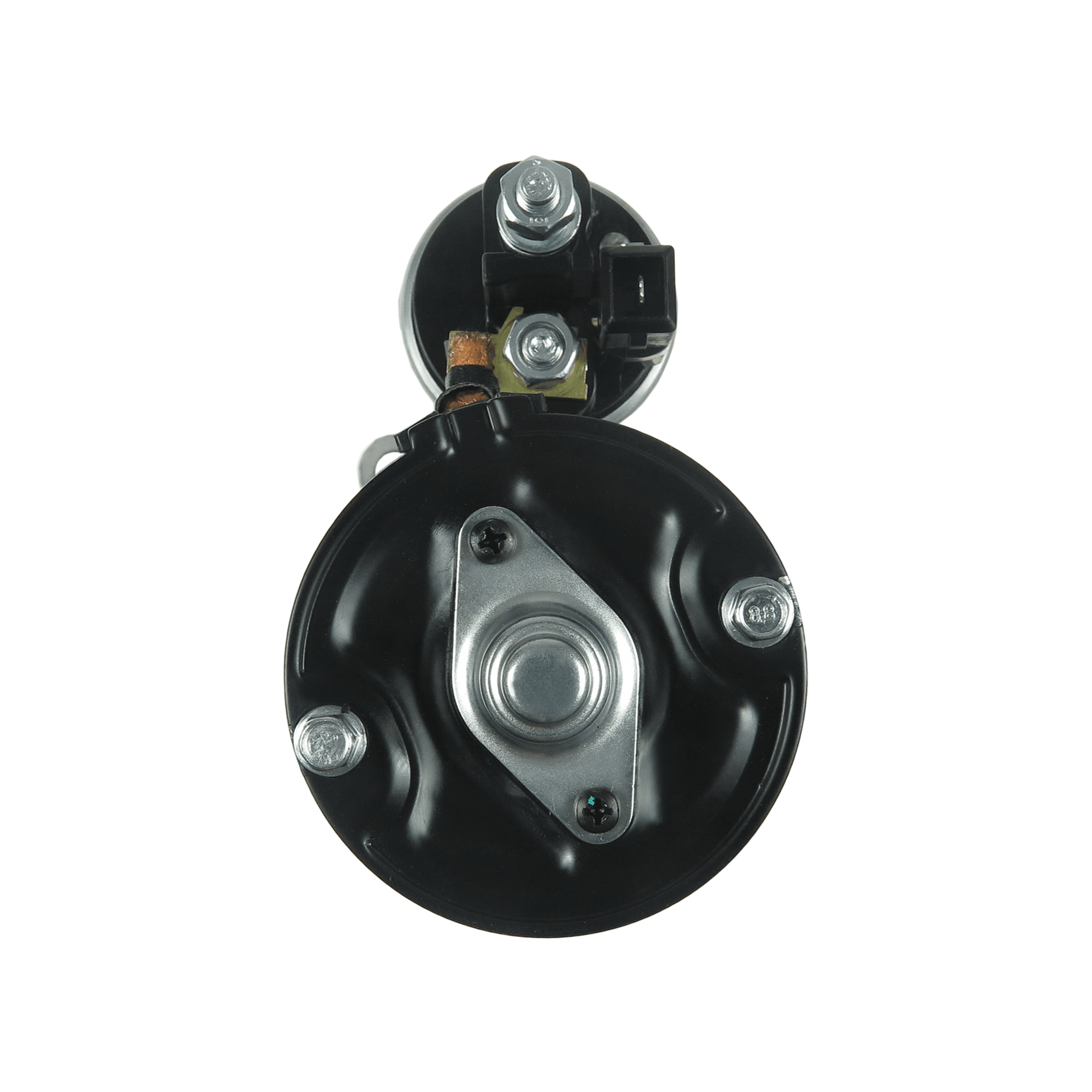

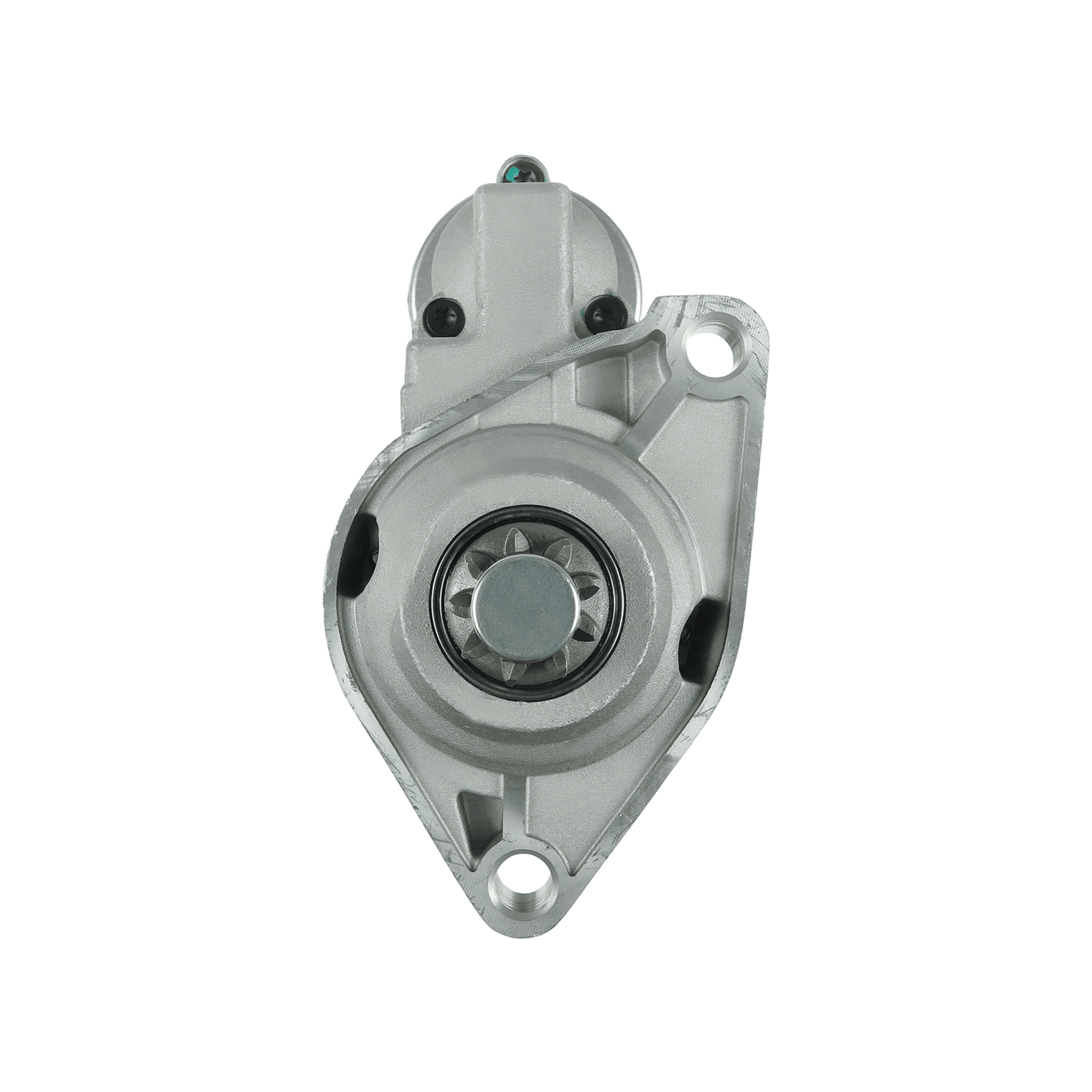

Starter XTLSTR0145

No./teeth: 9 qty
Power: 1.8 kW
No./mount. holes [ qty. ]: 2 qty
O.1 [ mm ]: 111 mm
No./mount. holes with thread [ qty. ]: 0 qty
C.1 [ mm ]: 11.00 mm
L.1 [ mm ]: 245 mm
Voltage: 12 V
Rotation: ACW
C.2 [ mm ]: 11.00 mm

Size A [ mm ]: 66 mm
Size B [ mm ]: 46 mm

Starter XTLSTR0145

Download PDF

No./teeth: 9 qty
Power: 1.8 kW
No./mount. holes [ qty. ]: 2 qty
O.1 [ mm ]: 111 mm
No./mount. holes with thread [ qty. ]: 0 qty
C.1 [ mm ]: 11.00 mm
L.1 [ mm ]: 245 mm
Voltage: 12 V
Rotation: ACW
C.2 [ mm ]: 11.00 mm
Size A [ mm ]: 66 mm
Size B [ mm ]: 46 mm

Applications

Make	Vehicle	Model Types	From	To
VW	POLO III (6N1) 1.7 SDI	AHG	04/1997	10/1999
VW	POLO (6N2) 1.7 SDI	AKU	10/1999	09/2001
VW	LUPO I (6X1, 6E1) 1.7 SDI	AKU	09/1998	07/2005
VW	POLO Variant (6V5) 1.7 SDI	AKW	08/1997	09/2001
VW	POLO (6N2) 1.9 D	AEF	10/1999	09/2001
VW	POLO (6N2) 1.9 SDI	AGD	10/1999	09/2001
VW	POLO (6N2) 1.9 SDI	ASX	10/1999	09/2001
VW	POLO III CLASSIC (6V2) 57 1.7 SDI	AKW	07/1997	09/2001
VW	POLO III (6N1) 60 1.7 SDI	AKU	08/1997	10/1999
VW	POLO III CLASSIC (6V2) 64 1,9 D	1Y	01/1996	10/1996

WhatsApp inquiry Email inquiry

Original Code

0001124007
0001124011
085911023A
31227

Equivalent Code (Vehicle Manufacturer)

063521240220 (MAGNETI MARELLI)
943253107010 (MAGNETI MARELLI)
944280174500 (MAGNETI MARELLI)
MRS17450 (MAGNETI MARELLI)
MSR5307 (MAGNETI MARELLI)
085911023A (VW)
085911023AV (VW)
085911023AX (VW)
085911023FX (VW)
085911023K (VW)
085911023KX (VW)
085911023L (VW)
085911023M (VW)
085911023MX (VW)
85911023A (VW)
85911023AV (VW)
85911023AX (VW)
85911023FX (VW)
85911023K (VW)
85911023KX (VW)
10988 (KUHNER)
11.139.439 (ISKRA / LETRIKA)
AZE2665 (ISKRA / LETRIKA)
IS9432 (ISKRA / LETRIKA)
111904 (CARGO)
F032111904 (CARGO)
11806 (EAI)
20401751BN (REAL)
20401751OE (REAL)
20510172 (PRESTOLITE)
S1060B (PRESTOLITE)
22.0988 (LAUBER)
25-2106 (ELSTOCK)
31227N (WAI / TRANSPO)
3836 (CEVAM)
42017450 (HERTH+BUSS)
458492 (VALEO)
726050 (VALEO)
726850 (VALEO)
8017450 (FRIESEN)
8213290 (POWERMAX)
88213290 (POWERMAX)
8EA011610-591 (HELLA)
8EA011610-592 (HELLA)
8EA737237-001 (HELLA)
AES1272 (AUTOELECTRO)
CS988 (HC PARTS)
CST10157AS (CASCO)
CST10157GS (CASCO)
DRS7450 (DELCO)
GS124022-A (GPARTS)
LRT00172 (LUCAS)
LRT172 (LUCAS)
MAV172100 (SIOM)
MAV6760 (SIOM)
MS 125 (MAHLE)
S0094 (AS-PL)
STR50012 (WOODAUTO)
PRSF516 (3EFFE)
PRSL017 (3EFFE)
STRF516 (3EFFE)
STRL017 (3EFFE)
220130 (ERA)
220130A (ERA)
220130R (ERA)
S12BH0438A2 (SIDAT)
ANM19670 (ANDEL)
ANM19670X (ANDEL)
331140 (LOGISTIK)
5010316 (MEAT & DORIA)
STR1581 (ELECTROLOG)
STR79673 (ELECTROLOG)
STA0211R (BOVEZ)
STX200108 (STARDAX)
STX200108R (STARDAX)
300.524.092.010 (PSH)
300.524.092.210 (PSH)
300.524.092.215 (PSH)
300.524.092.340 (PSH)
300.524.092.440 (PSH)
300.524.092.461 (PSH)
S132.200 (PSH)
S148.606 (PSH)
6010157.0 (SANDO)
6010157.1 (SANDO)
AC-CBS0988 (ACAUTO)
30-0314 (AIRSTAL)
10440686 (ALANKO)
SBO157 (AUTOTEAM)
SBO157A (AUTOTEAM)
BST2190 (BORG & BECK)
S100401 (BTS TURBO)
BOL-B051080 (BOLK)
BREF0320986017450 (CARWOOD GROUP)
BREF032111904 (CARWOOD GROUP)
021099 (DA SILVA)
JD021099 (DA SILVA)
MSQ0165 (DA SILVA)
311062092 (DRI)
S-50012 (DTS)
1638128180 (EUROREPAR)
11017450 (EUROTEC)
SG0394 (GHIBAUDI)
SG0394RB (GHIBAUDI)
3116735 (HENKEL PARTS)
3116736 (HENKEL PARTS)
3116738 (HENKEL PARTS)
10010157AV (ITAB AUTOMOTIVE)
LES0508 (LE PART)
13869 (MAPCO)
4717450 (NK)
IR8342 (PROTECH)
QRS2152 (QUINTON HAZELL)
011-001-000261R (REMANTE)
2S0129 (RIDEX)
2S0129R (RIDEX)
VW9040 (SNRA)
SKSTR-0330128 (STARK)
806ST11 (STARTCAR)
TT15606PRO (TESLA TECHNICS)
RE81020N (THE NEWLINE)
ST00778 (TMI)
WST00654 (WALKER)
103650 (FARCOM)
A17450 (ATL AUTOTECHNIK)
AI-80156 (AINDE)

Applications

Make	Vehicle	Model Types	From	To
VW	POLO III (6N1) 1.7 SDI	AHG	04/1997	10/1999
VW	POLO (6N2) 1.7 SDI	AKU	10/1999	09/2001
VW	LUPO I (6X1, 6E1) 1.7 SDI	AKU	09/1998	07/2005
VW	POLO Variant (6V5) 1.7 SDI	AKW	08/1997	09/2001
VW	POLO (6N2) 1.9 D	AEF	10/1999	09/2001
VW	POLO (6N2) 1.9 SDI	AGD	10/1999	09/2001
VW	POLO (6N2) 1.9 SDI	ASX	10/1999	09/2001
VW	POLO III CLASSIC (6V2) 57 1.7 SDI	AKW	07/1997	09/2001
VW	POLO III (6N1) 60 1.7 SDI	AKU	08/1997	10/1999
VW	POLO III CLASSIC (6V2) 64 1,9 D	1Y	01/1996	10/1996
