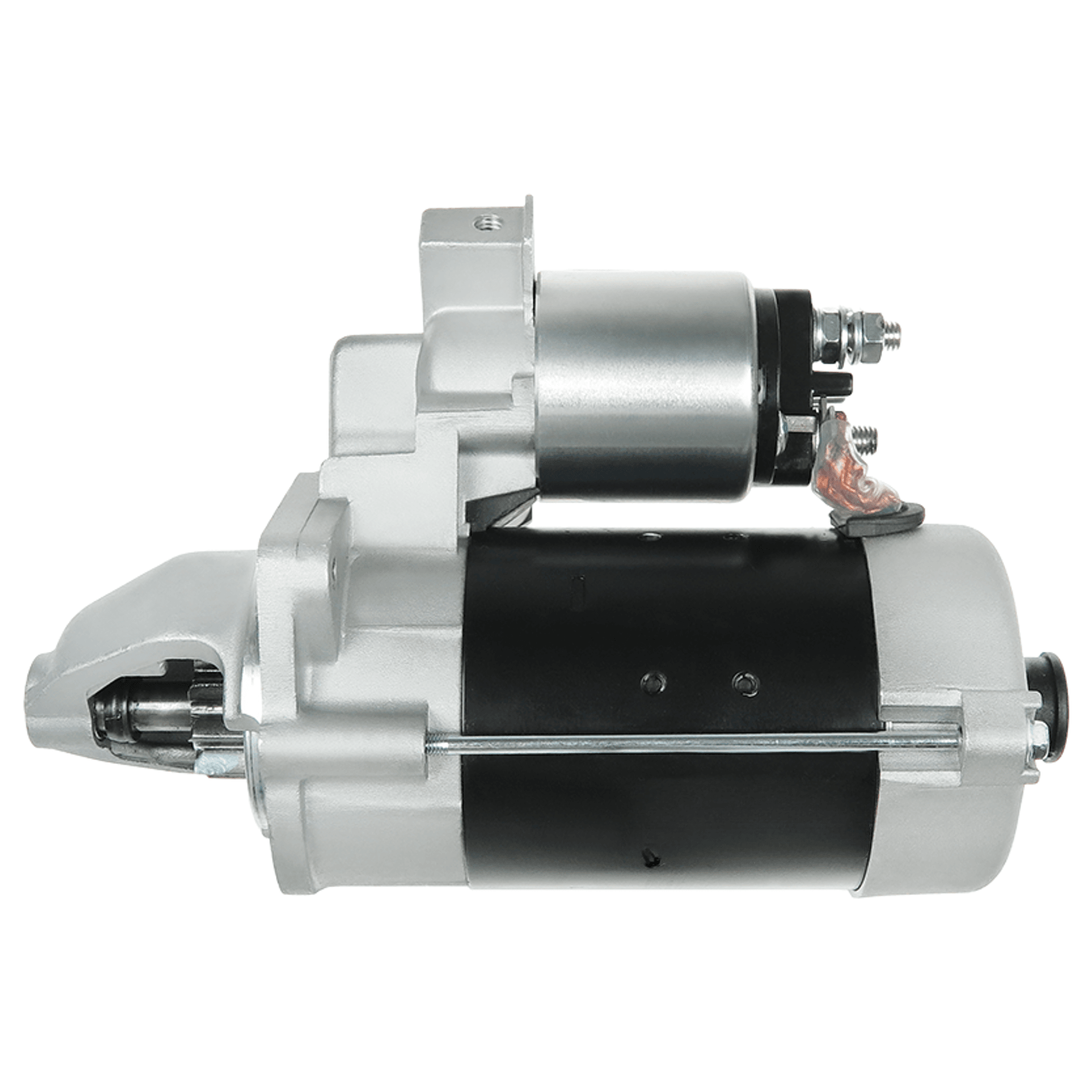

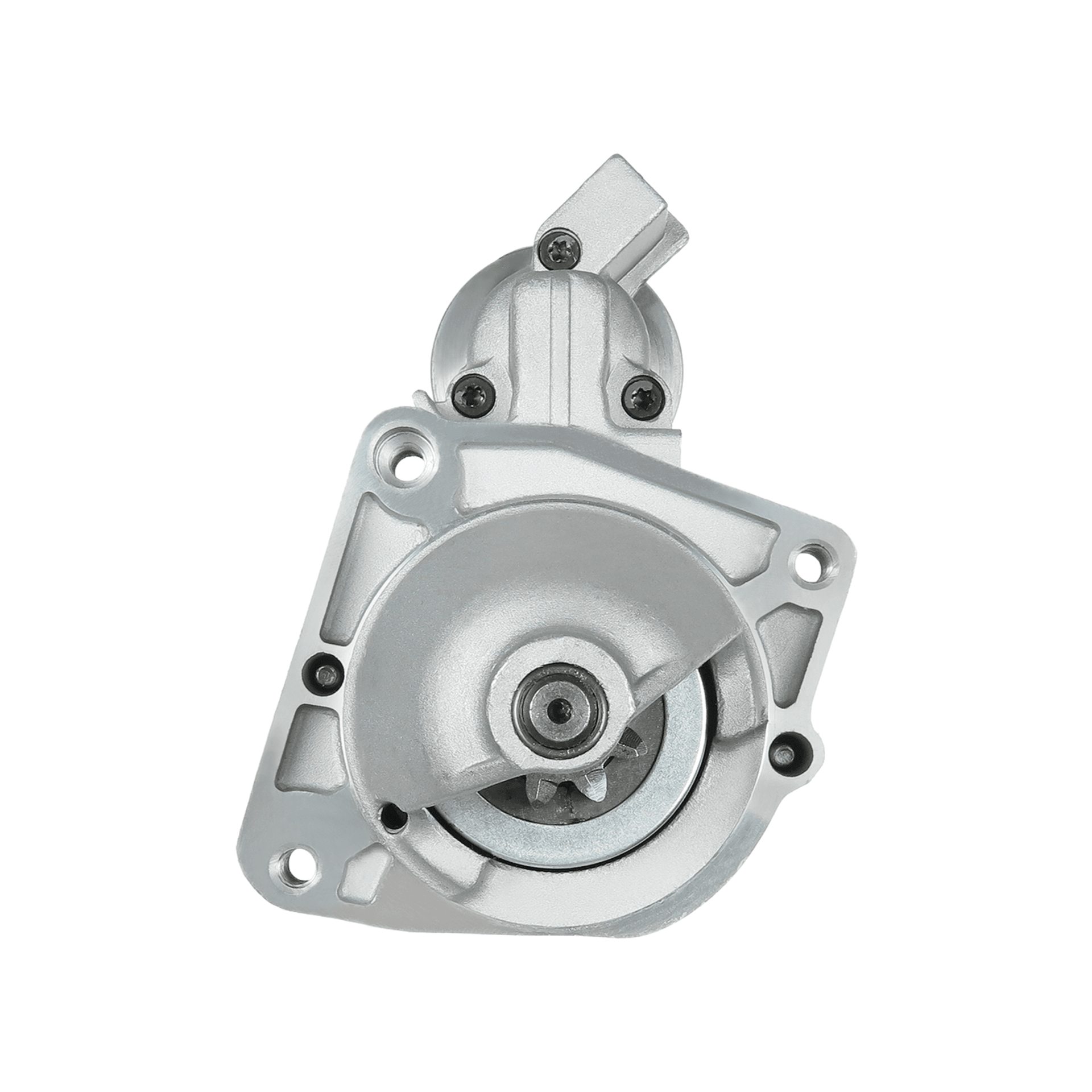

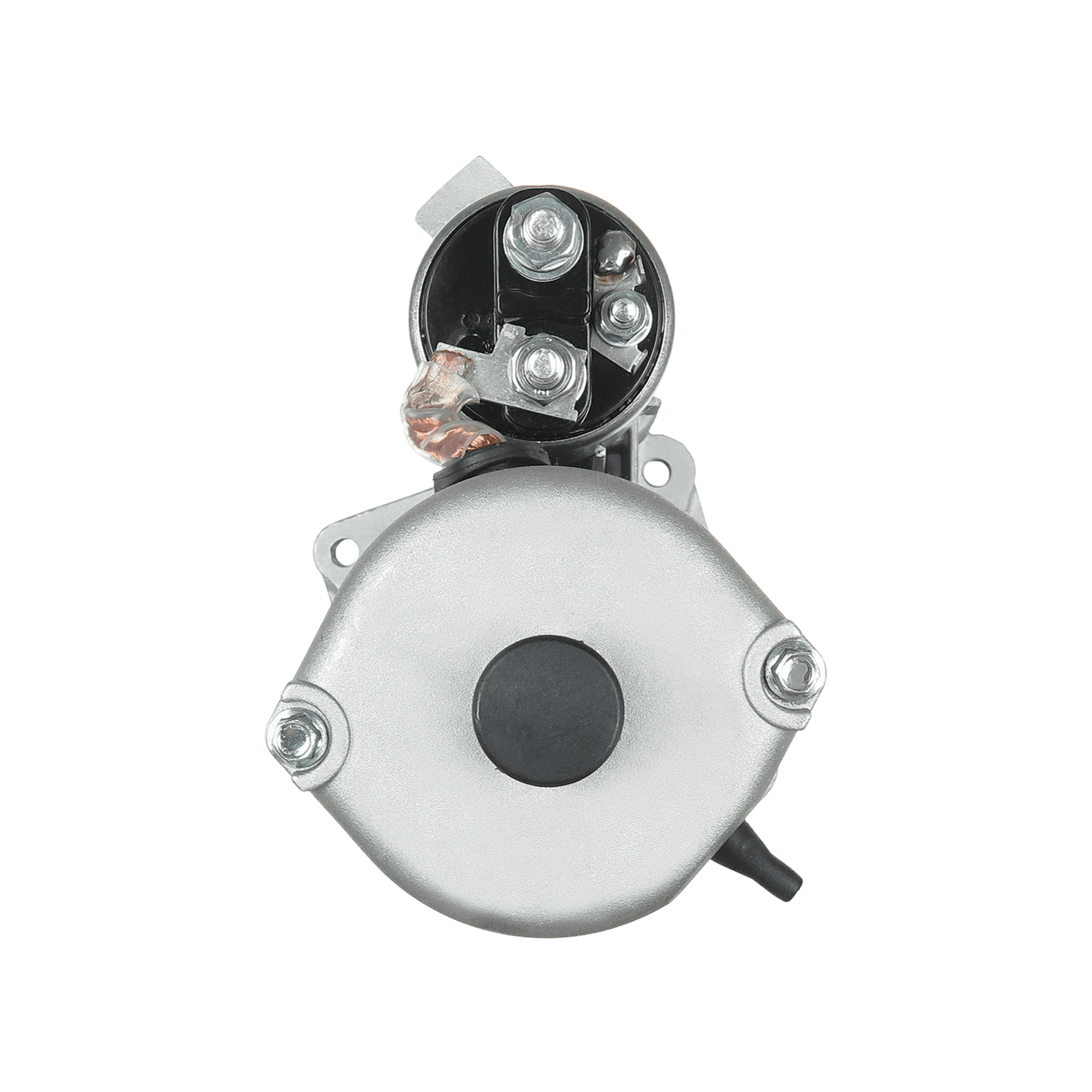

Starter XTLSTR0205
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
83 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
248 mm
Rotation
CW
Size A [ mm ]
81.5 mm
Size B [ mm ]
23 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
2.3 kW
O.3 [ mm ]
83 mm
O.2 [ mm ]
116.5 mm
C.1 [ mm ]
M8x1.25 mm
Voltage
12 V
C.3 [ mm ]
M8x1.25 mm
C.2 [ mm ]
M8x1.25 mm
View More
Starter XTLSTR0205
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
83 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
248 mm
Rotation
CW
Size A [ mm ]
81.5 mm
Size B [ mm ]
23 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
2.3 kW
O.3 [ mm ]
83 mm
O.2 [ mm ]
116.5 mm
C.1 [ mm ]
M8x1.25 mm
Voltage
12 V
C.3 [ mm ]
M8x1.25 mm
C.2 [ mm ]
M8x1.25 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR0205
Original Code
0001223013
2-2970-B0
33222
Equivalent Code (Vehicle Manufacturer)
101198 (KUHNER)
101198B (KUHNER)
112436 (CARGO)
F032112436 (CARGO)
11854 (EAI)
1329201080 (FIAT)
1349920080 (FIAT)
46758240 (FIAT)
71723353 (FIAT)
71786770 (FIAT)
71786771 (FIAT)
80296470 (FIAT)
K1329201080 (FIAT)
20401261BN (REAL)
20401261OE (REAL)
22.1198 (LAUBER)
22.1198M (LAUBER)
220033 (ERA)
25-3106 (ELSTOCK)
33222N (WAI / TRANSPO)
3671 (CEVAM)
42018960 (HERTH+BUSS)
438392 (VALEO)
438410 (VALEO)
438515 (VALEO)
458486 (VALEO)
5802-EE (PEUGEOT)
5802-Y9 (PEUGEOT)
5802-Z1 (PEUGEOT)
5802-Z2 (PEUGEOT)
5802-Z4 (PEUGEOT)
5802Z0 (PEUGEOT)
5802Z3 (PEUGEOT)
8018960 (FRIESEN)
8029647 (IVECO)
88213011 (POWERMAX)
8EA012526-221 (HELLA)
8EA737853-001 (HELLA)
AEU1198 (AUTOELECTRO)
CGB-28960 (AINDE)
CS1198 (HC PARTS)
CST10162AS (CASCO)
CST10162GS (CASCO)
DRS8960 (DELCO)
DRS8960N (DELCO)
G201198B-R (GPARTS)
GS223013-A (GPARTS)
LRS01592 (LUCAS)
LRS1592 (LUCAS)
MAV6730 (SIOM)
RNL1896 (RNL)
S0089 (AS-PL)
S1065B (PRESTOLITE)
SS248 (SOVEREIGN)
STR22122 (WOODAUTO)
PRSL096 (3EFFE)
STRL096 (3EFFE)
STRL096B (3EFFE)
943253266010 (MAGNETI MARELLI)
STB1198 (KRAUF)
6010162.0 (SANDO)
6010162.1 (SANDO)
500.525.093.010 (PSH)
500.525.093.215 (PSH)
S132.767 (PSH)
S12BH0016 (SIDAT)
S12BH0016A2 (SIDAT)
ANM11180X (ANDEL)
5010060 (MEAT & DORIA)
STR1247 (ELECTROLOG)
STA0068R (BOVEZ)
STA0406R (BOVEZ)
1516685R (DAF)
STX200042 (STARDAX)
STX200042R (STARDAX)
STX200091 (STARDAX)
STX200091R (STARDAX)
ASM1473 (APEC)
NPANSM1473 (NAPA)
Applications
Applications
ALL
FIAT
Make
FIAT
