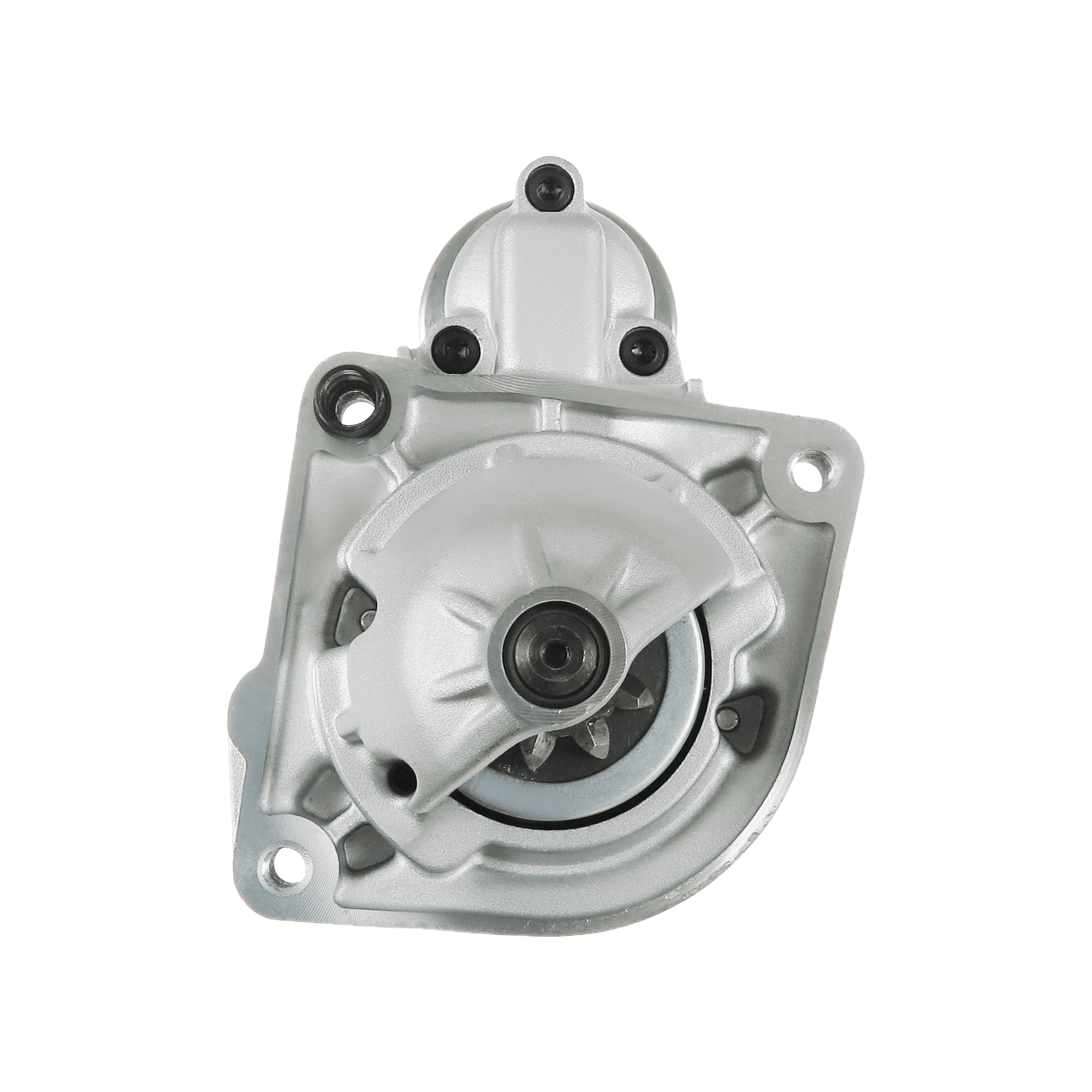

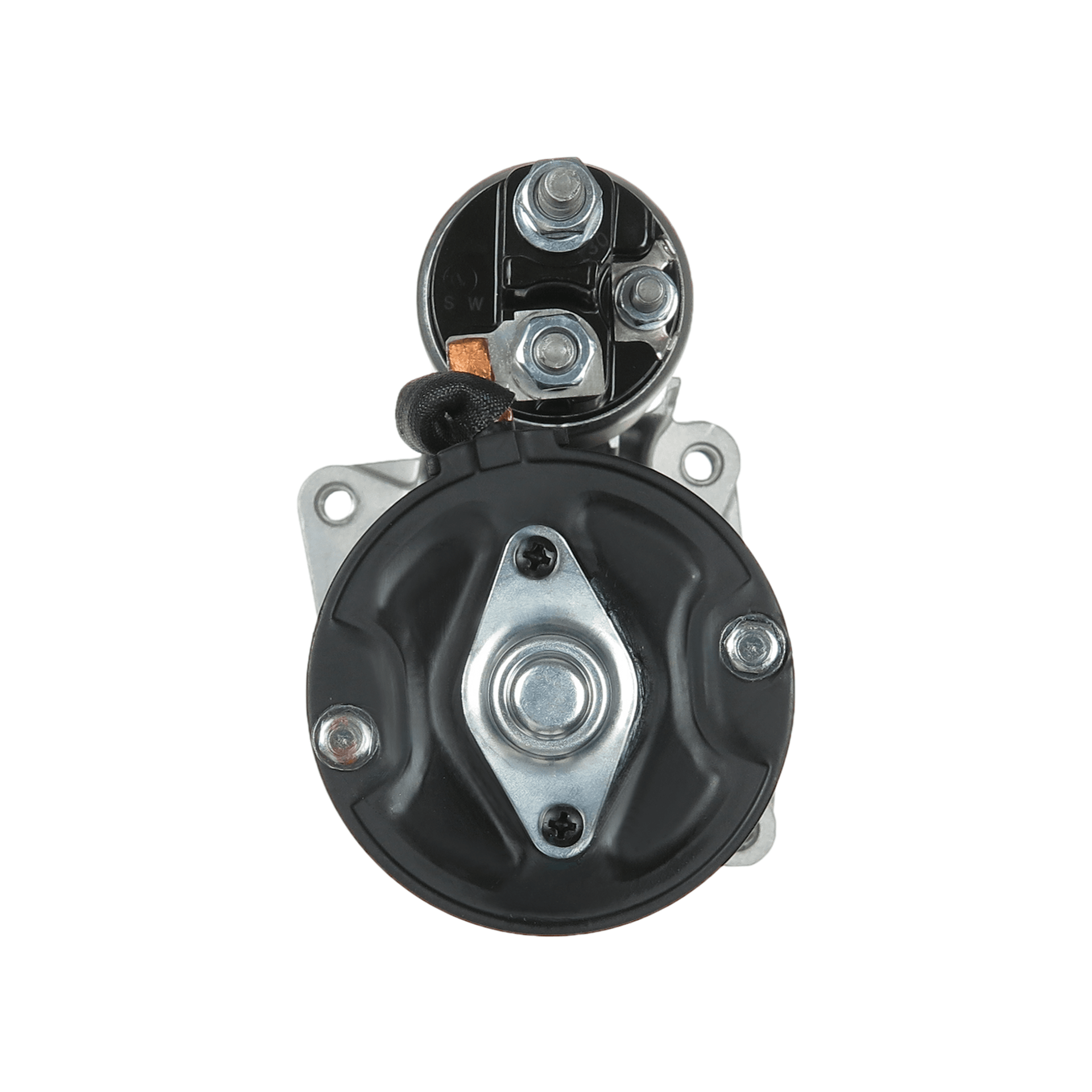

Starter XTLSTR0216

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 116 mm
No./mount. holes with thread [ qty. ]: 3 qty
L.1 [ mm ]: 247 mm
Rotation: CW
Size A [ mm ]: 82 mm
Size B [ mm ]: 24 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9 qty
Power: 2.5 kW

O.3 [ mm ]: 82 mm
O.2 [ mm ]: 82 mm
C.1 [ mm ]: M8x1.25 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: M8x1.25 mm

Starter XTLSTR0216

Download PDF

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 116 mm
No./mount. holes with thread [ qty. ]: 3 qty
L.1 [ mm ]: 247 mm
Rotation: CW
Size A [ mm ]: 82 mm
Size B [ mm ]: 24 mm
No./teeth: 9 qty
No./teeth (fits into) [ qty. ]: 9 qty
Power: 2.5 kW
O.3 [ mm ]: 82 mm
O.2 [ mm ]: 82 mm
C.1 [ mm ]: M8x1.25 mm
Voltage: 12 V
C.3 [ mm ]: M8x1.25 mm
C.2 [ mm ]: M8x1.25 mm

Applications

Make
FIAT

WhatsApp inquiry Email inquiry

Original Code

0001109302
0001109520
33318
51779086

Equivalent Code (Vehicle Manufacturer)

201062 (VALEO)
458747 (VALEO)
1349920080 (FIAT)
51779086 (FIAT)
51832958 (FIAT)
518329580 (FIAT)
51984358 (FIAT)
55779086 (FIAT)
71789745 (FIAT)
71794196 (FIAT)
71795571 (FIAT)
K1349920080 (FIAT)
8EA012527-681 (HELLA)
8EA738258-891 (HELLA)
063521093020 (MAGNETI MARELLI)
063721449010 (MAGNETI MARELLI)
101449 (KUHNER)
101449B (KUHNER)
114054 (CARGO)
115516 (CARGO)
F032114054 (CARGO)
F032115516 (CARGO)
120-10226 (ROBERT'S)
12082 (EAI)
1611206880 (PEUGEOT)
1614379980 (PEUGEOT)
1616451080 (PEUGEOT)
5802AY (PEUGEOT)
5802EE (PEUGEOT)
5802FQ (PEUGEOT)
20401044OE (REAL)
20401082 (REAL)
20401082BN (REAL)
20401082OE (REAL)
220663 (ERA)
220817 (ERA)
25-3490 (ELSTOCK)
3164 (CEVAM)
33318N (WAI / TRANSPO)
33318R (WAI / TRANSPO)
42023120 (HERTH+BUSS)
5801440013 (IVECO)
88212989 (POWERMAX)
AEY2318 (AUTOELECTRO)
BOS0001109302 (WOODAUTO)
STR50476 (WOODAUTO)
CGB-27983 (AINDE)
CS1449 (HC PARTS)
DRS7983 (DELCO)
DS9093 (DELCO)
RAS38094 (DELCO)
GS109302-A (GPARTS)
GS109302B-R (GPARTS)
LRS02318 (LUCAS)
LRS2318 (LUCAS)
MAV122800 (SIOM)
RNL109302 (RNL)
SG0098 (GHIBAUDI)
STB1449 (KRAUF)
STM1184 (ROLLCO)
PRSS203 (3EFFE)
STRS203 (3EFFE)
SX 2182 (STARLINE)
S12BH0047 (SIDAT)
S12BH0047A2 (SIDAT)
ANM10203X (ANDEL)
331866 (LOGISTIK)
500.551.093.010 (PSH)
500.551.093.018 (PSH)
500.551.093.212 (PSH)
500.551.093.215 (PSH)
500.551.093.260 (PSH)
500.551.093.280 (PSH)
500.551.093.281 (PSH)
500.551.093.340 (PSH)
500.551.093.460 (PSH)
500.551.093.461 (PSH)
S133.008 (PSH)
S144.710 (PSH)
S148.436 (PSH)
5010084 (MEAT & DORIA)
STR1524 (ELECTROLOG)
STA0373R (BOVEZ)
STX200031 (STARDAX)
STX200031R (STARDAX)
CST10280AS (CASCO)
CST10280GS (CASCO)
CST10440GS (CASCO)
6010280.0 (SANDO)
6010280.1 (SANDO)
6010440.1 (SANDO)
S0159 (AS-PL)
ASM1086 (APEC)
NPANSM1086 (NAPA)
