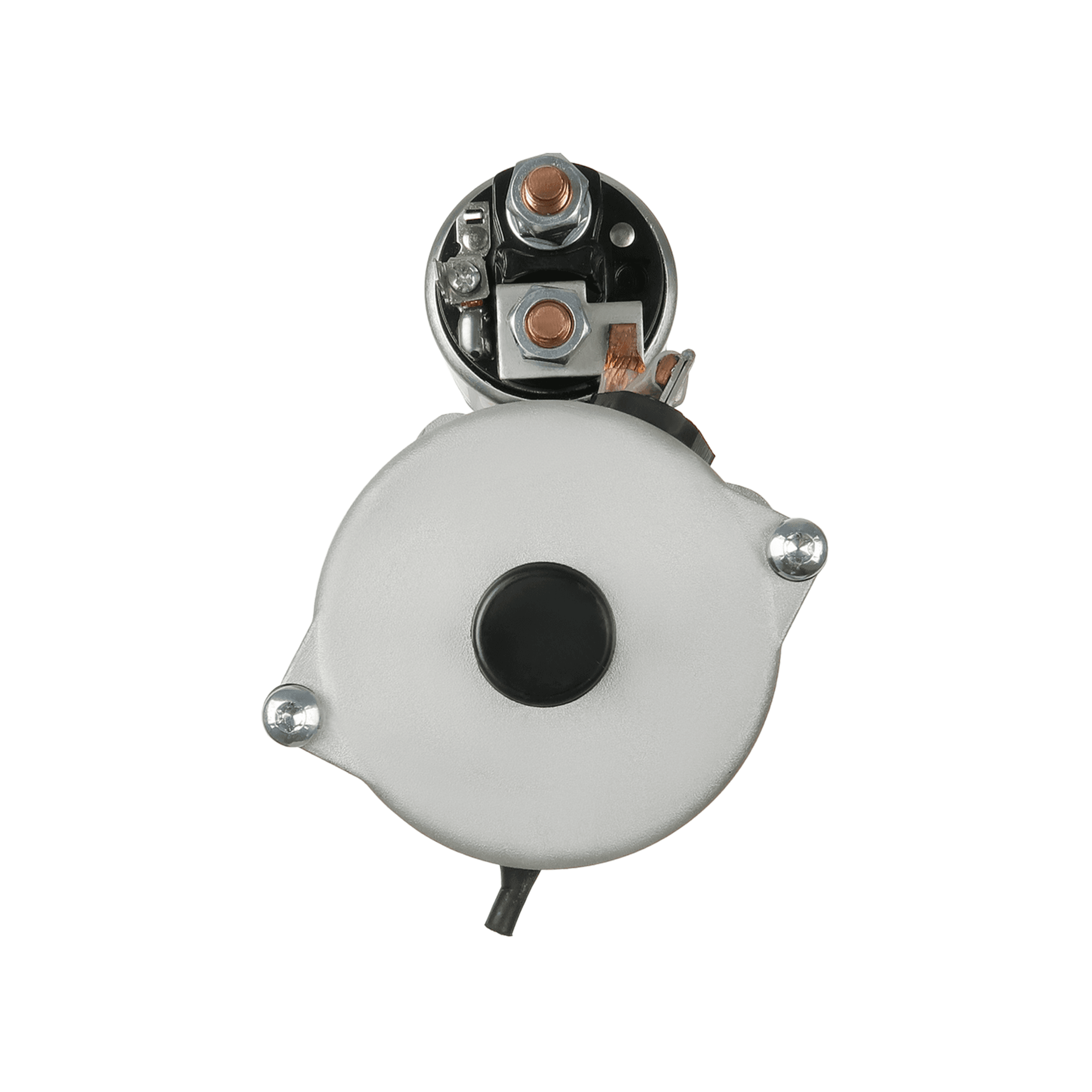

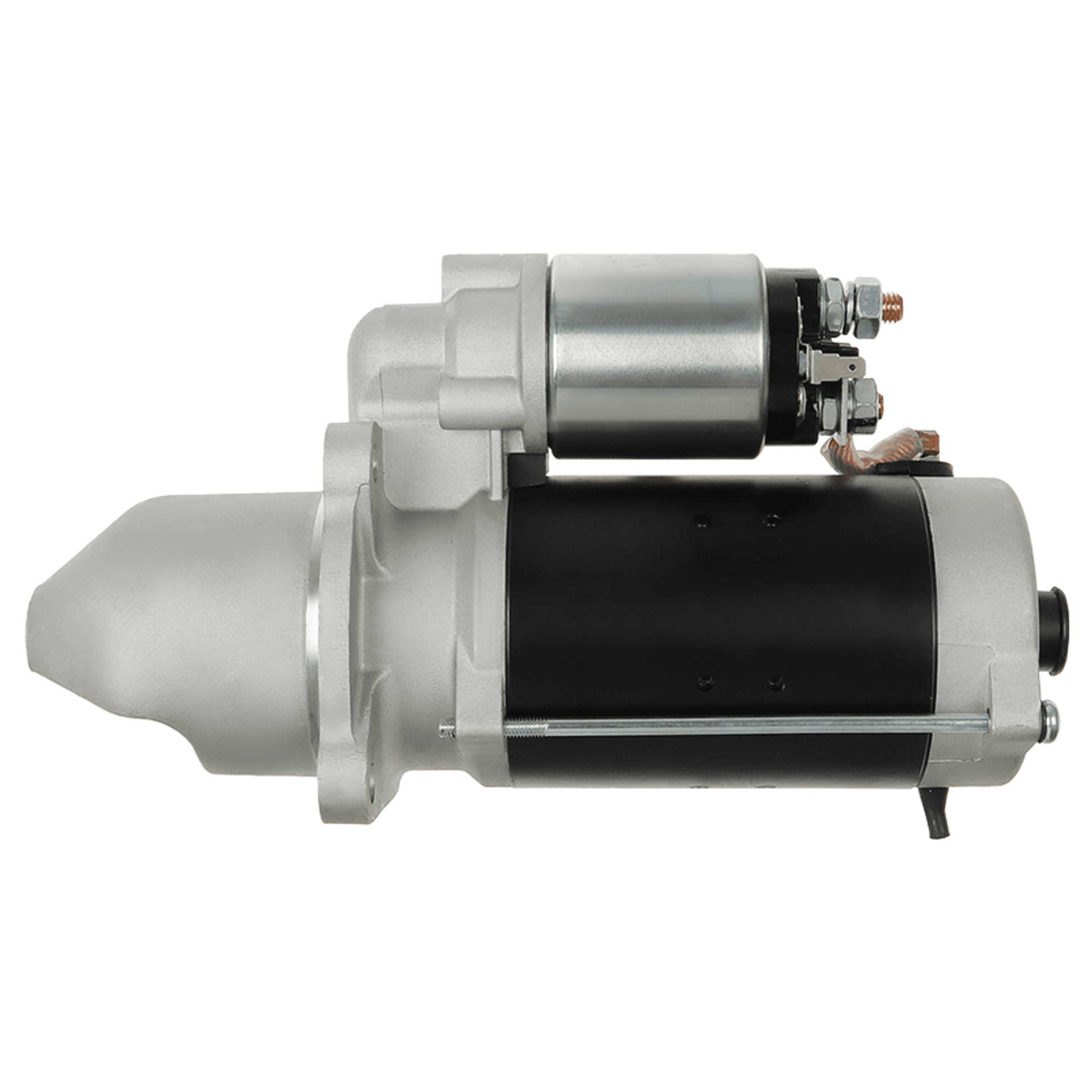

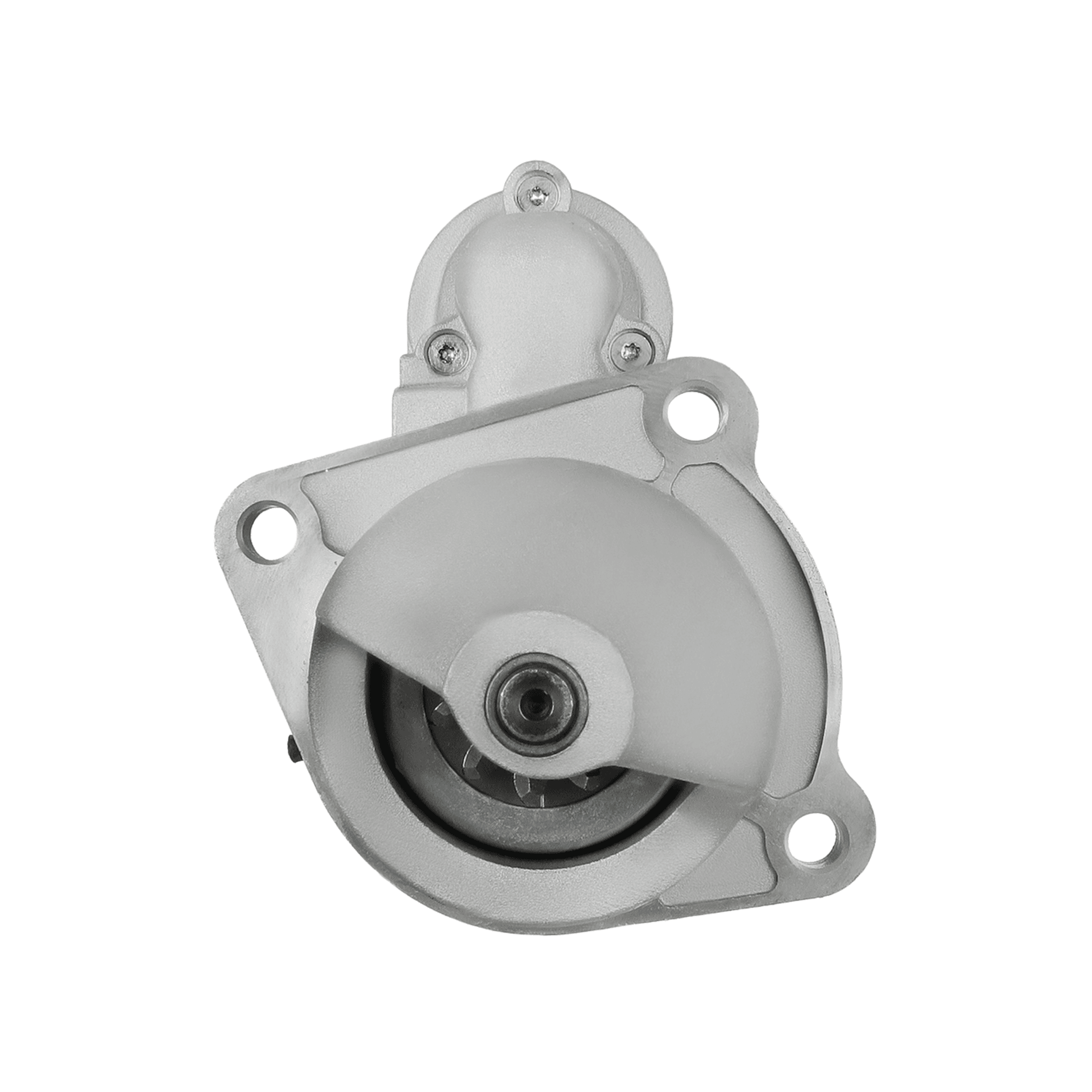

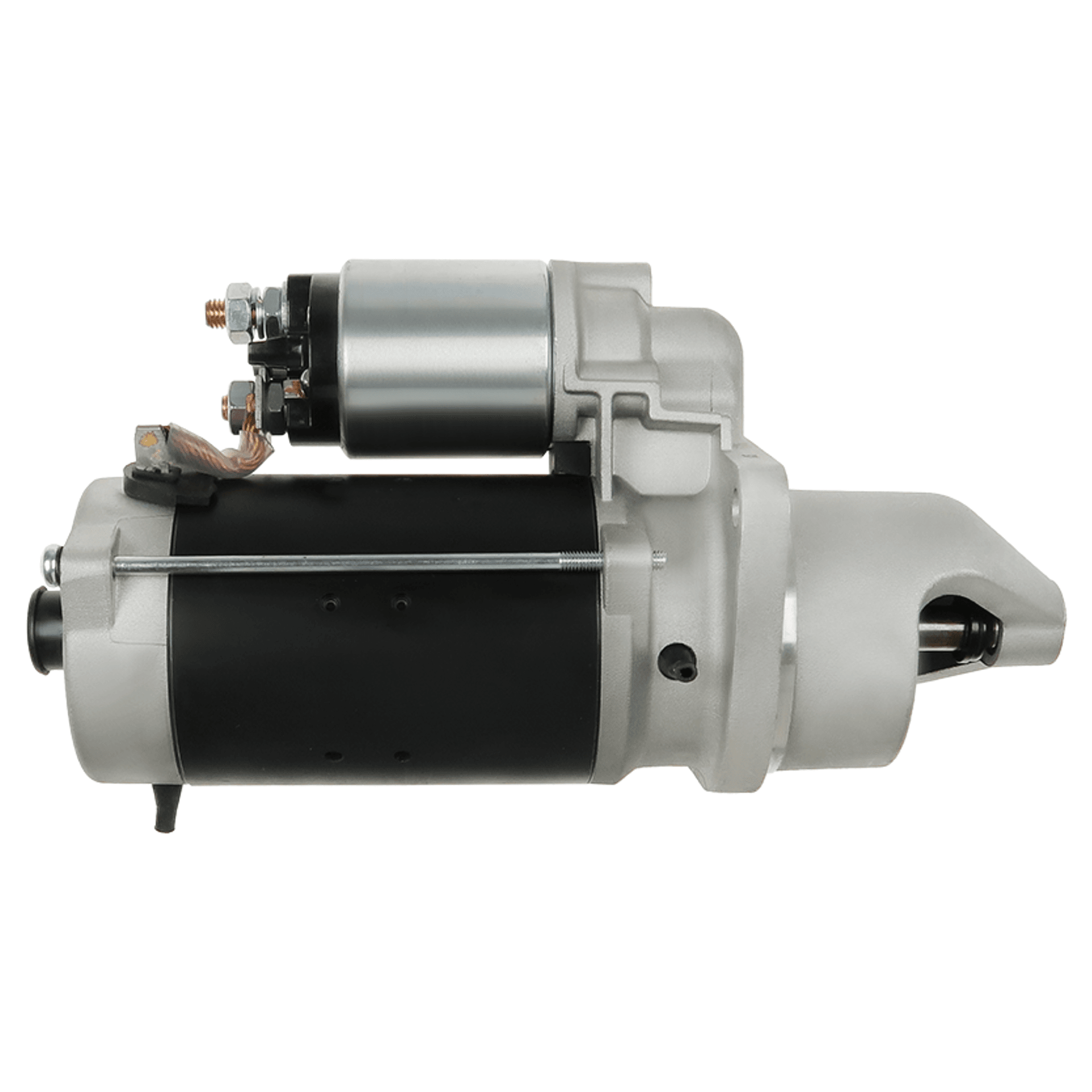

Starter XTLSTR0220
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
315 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
3 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR0220
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
315 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
3 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR0220
Original Code
0001230008
120-6109
RE501551
Equivalent Code (Vehicle Manufacturer)
CST10381AS (CASCO)
CST10381GS (CASCO)
88215000 (POWERMAX)
RE501551 (JOHN DEERE)
RE507943 (JOHN DEERE)
RE509856 (JOHN DEERE)
254366 (KUHNER)
630.505.103.010 (PSH)
S134.453 (PSH)
STR50416 (WOODAUTO)
DRS0362 (DELCO)
6010381.0 (SANDO)
6010381.1 (SANDO)
20401183BN (REAL)
20401183OE (REAL)
114195 (CARGO)
F032114195 (CARGO)
STRS677 (3EFFE)
331300 (LOGISTIK)
120-6109 (WAI / TRANSPO)
CGB-93008 (AINDE)
S12BH0704A2 (SIDAT)
S0296 (AS-PL)
5010530 (MEAT & DORIA)
STR10005 (ELECTROLOG)
Applications
Applications
ALL
JOHN
Make
Vehicle
JOHN
DEERE
