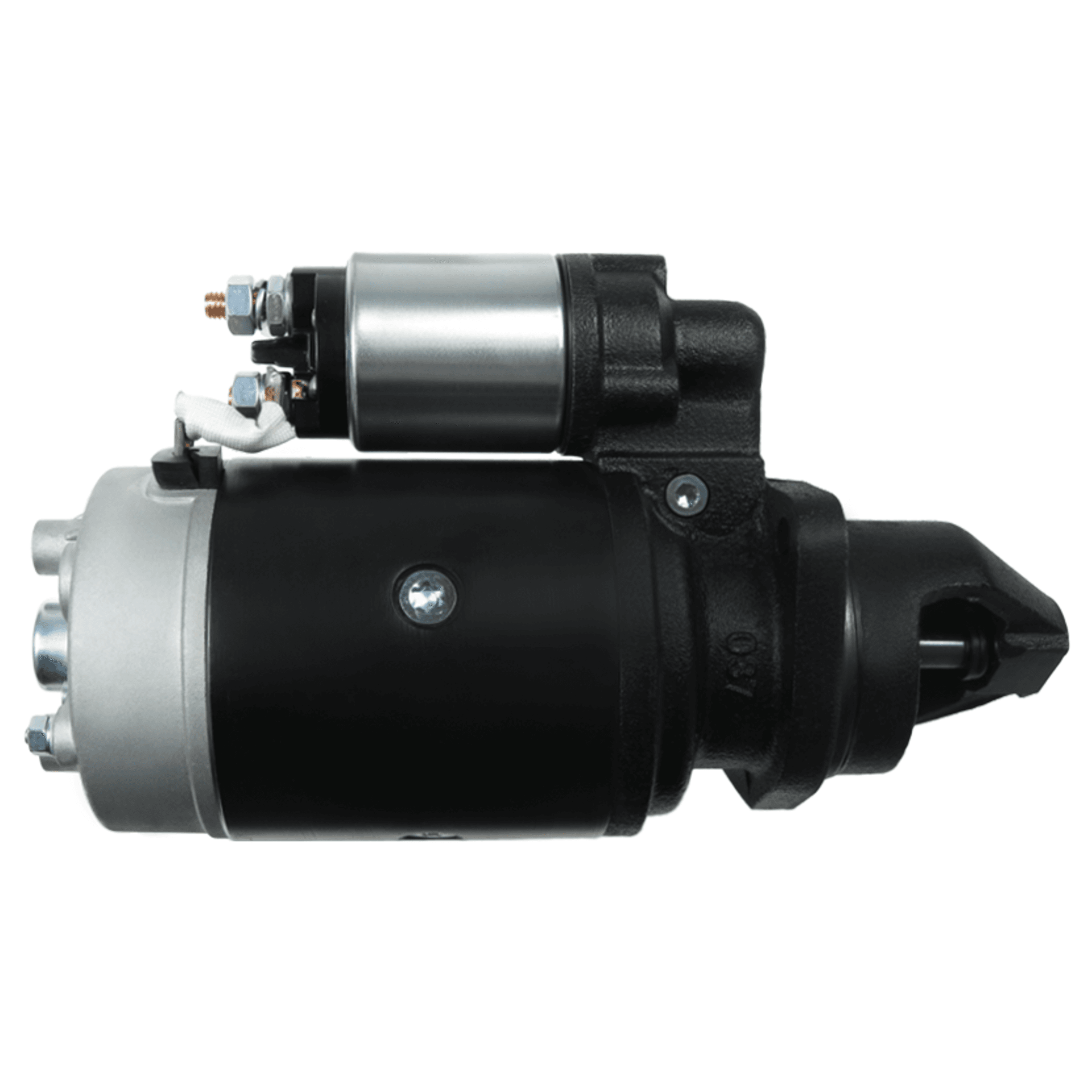

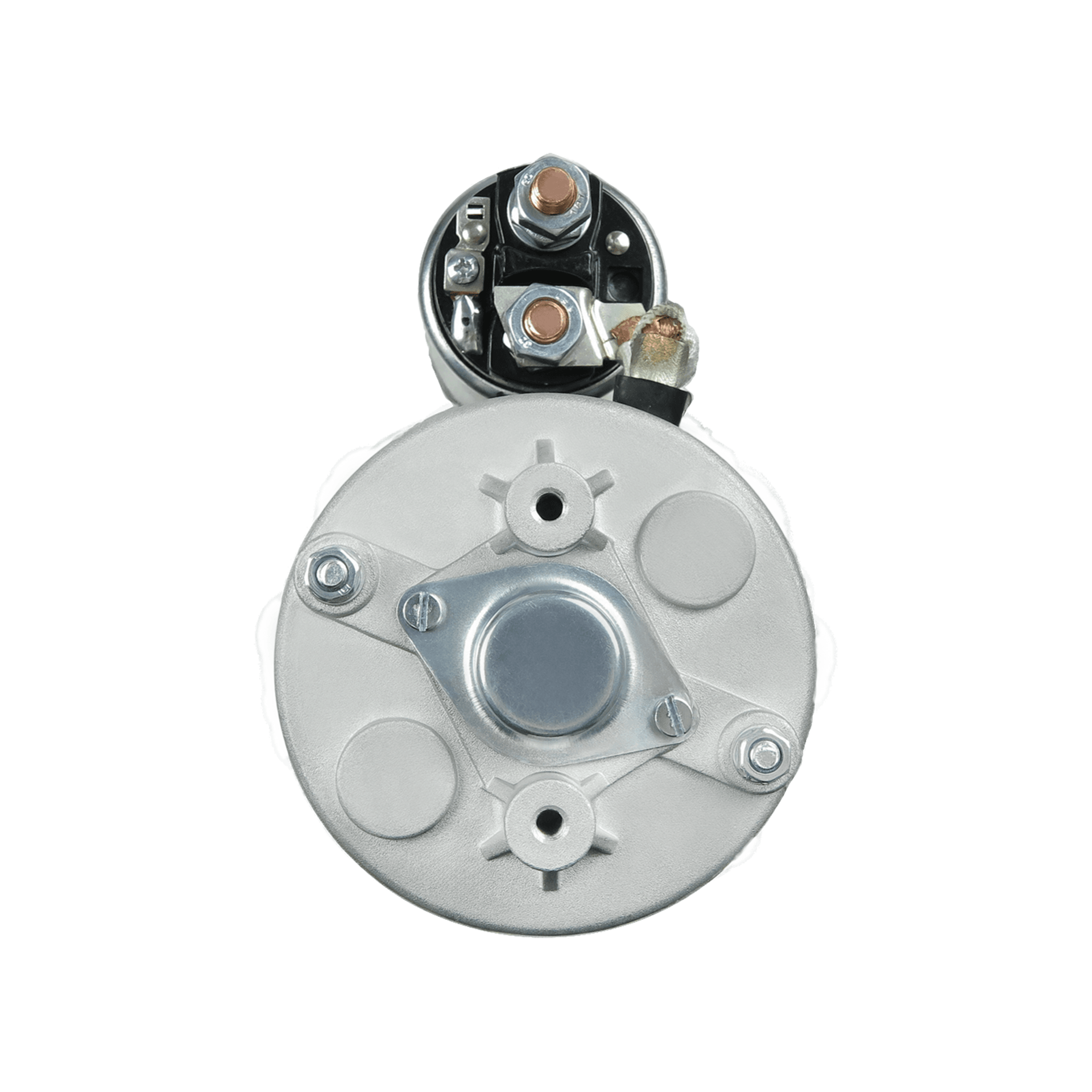

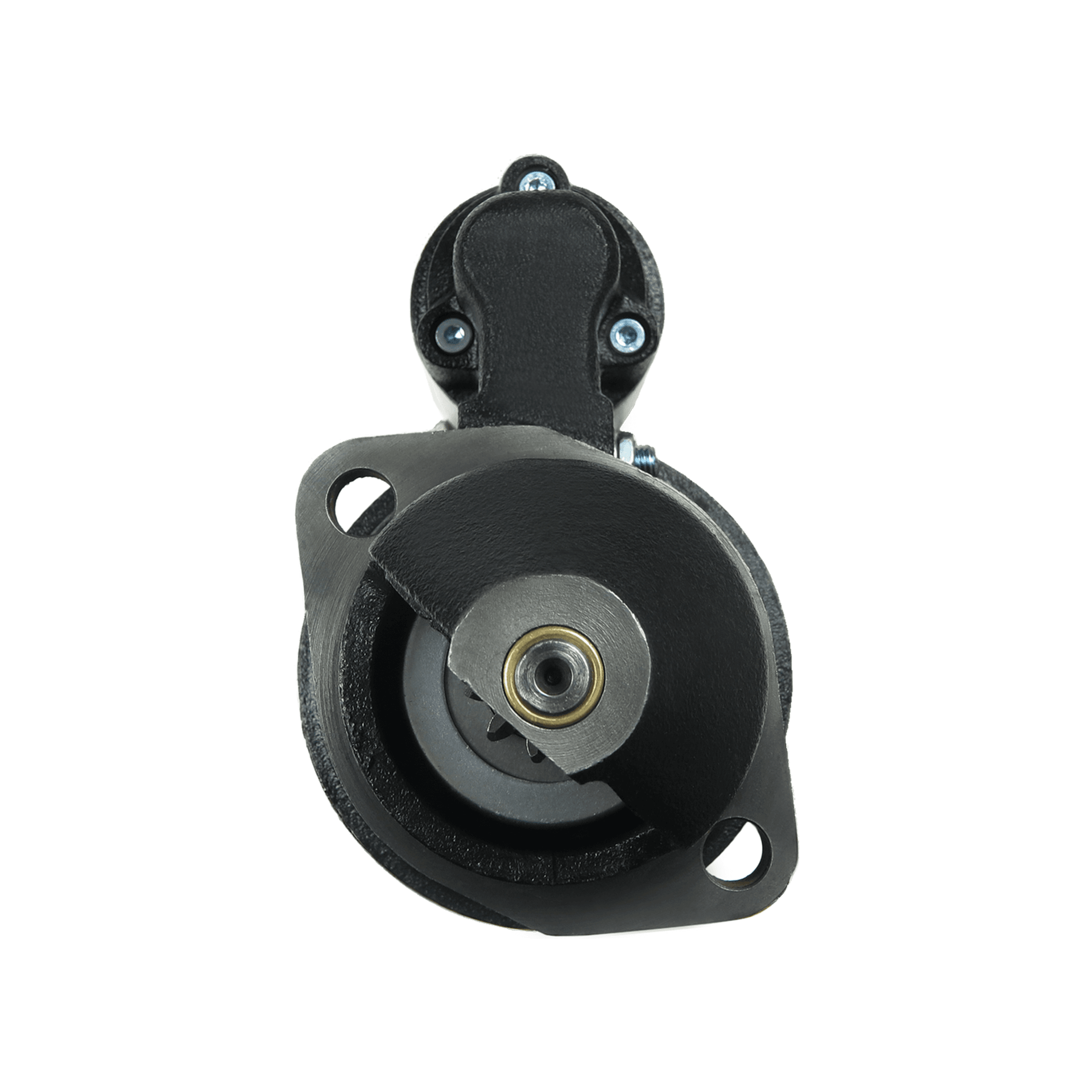

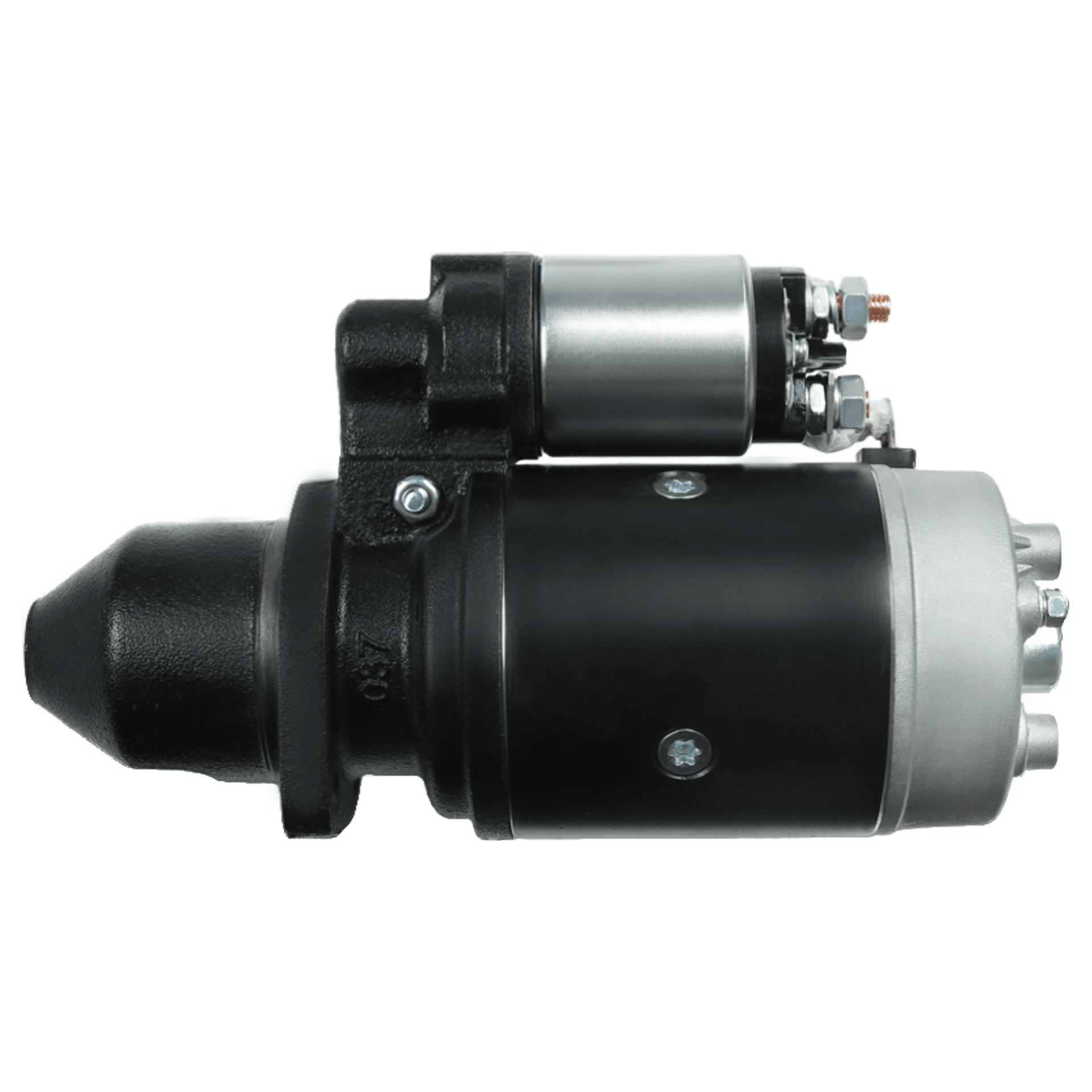

Starter XTLSTR0221
Download PDF
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
106 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
82.5 mm
Size B [ mm ]
35 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
3 kW
C.1 [ mm ]
13.50 mm
Voltage
12 V
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR0221
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
106 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
82.5 mm
Size B [ mm ]
35 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
3 kW
C.1 [ mm ]
13.50 mm
Voltage
12 V
C.2 [ mm ]
13.50 mm
Applications
Original Code
0001362316
0001367075
AL110503
Equivalent Code (Vehicle Manufacturer)
10395 (KUHNER)
10395I (KUHNER)
10395M (KUHNER)
11.130.819 (ISKRA / LETRIKA)
AZJ3283 (ISKRA / LETRIKA)
IS0569 (ISKRA / LETRIKA)
1107871 (DELCO)
220856 (ERA)
25-0227 (ELSTOCK)
WhatsApp inquiry
Email inquiry
Starter XTLSTR0221
33886 (EAI)
443115142700 (MAGNETON)
630.002.102.011 (PSH)
630.002.102.017 (PSH)
630.002.102.019 (PSH)
630.002.102.312 (PSH)
630.002.102.313 (PSH)
630.002.102.395 (PSH)
S134.227 (PSH)
S144.087 (PSH)
72735892 (MAHLE)
MS264 (MAHLE)
AL110503 (JOHN DEERE)
AL110504 (JOHN DEERE)
AL110597 (JOHN DEERE)
AL39700 (JOHN DEERE)
AL62772 (JOHN DEERE)
AL78760 (JOHN DEERE)
AR70436 (JOHN DEERE)
AT23401 (JOHN DEERE)
SE501427 (JOHN DEERE)
LRS00565 (LUCAS)
LRS565 (LUCAS)
MAV3400 (SIOM)
PRSS082 (3EFFE)
STRS082 (3EFFE)
S0117 (AS-PL)
S12BH0289A2 (SIDAT)
330547 (LOGISTIK)
5065899 (MEAT & DORIA)
CST10239AS (CASCO)
20401932BN (REAL)
6010239.0 (SANDO)
STR10070 (ELECTROLOG)
STR7945 (ELECTROLOG)
16010392A (MOTEURS BAUDOUIN.S.A)
STX200520 (STARDAX)
STX200520R (STARDAX)
