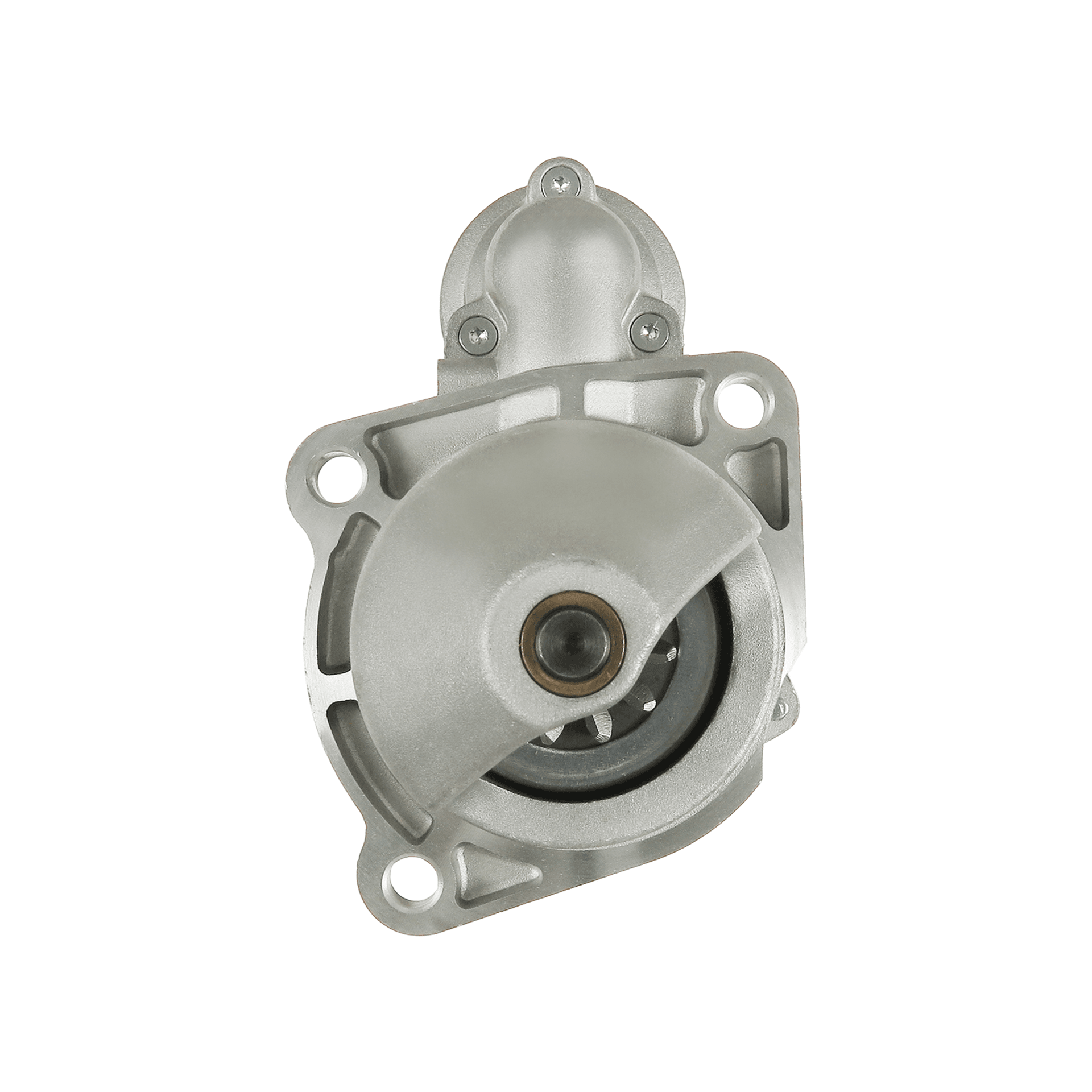

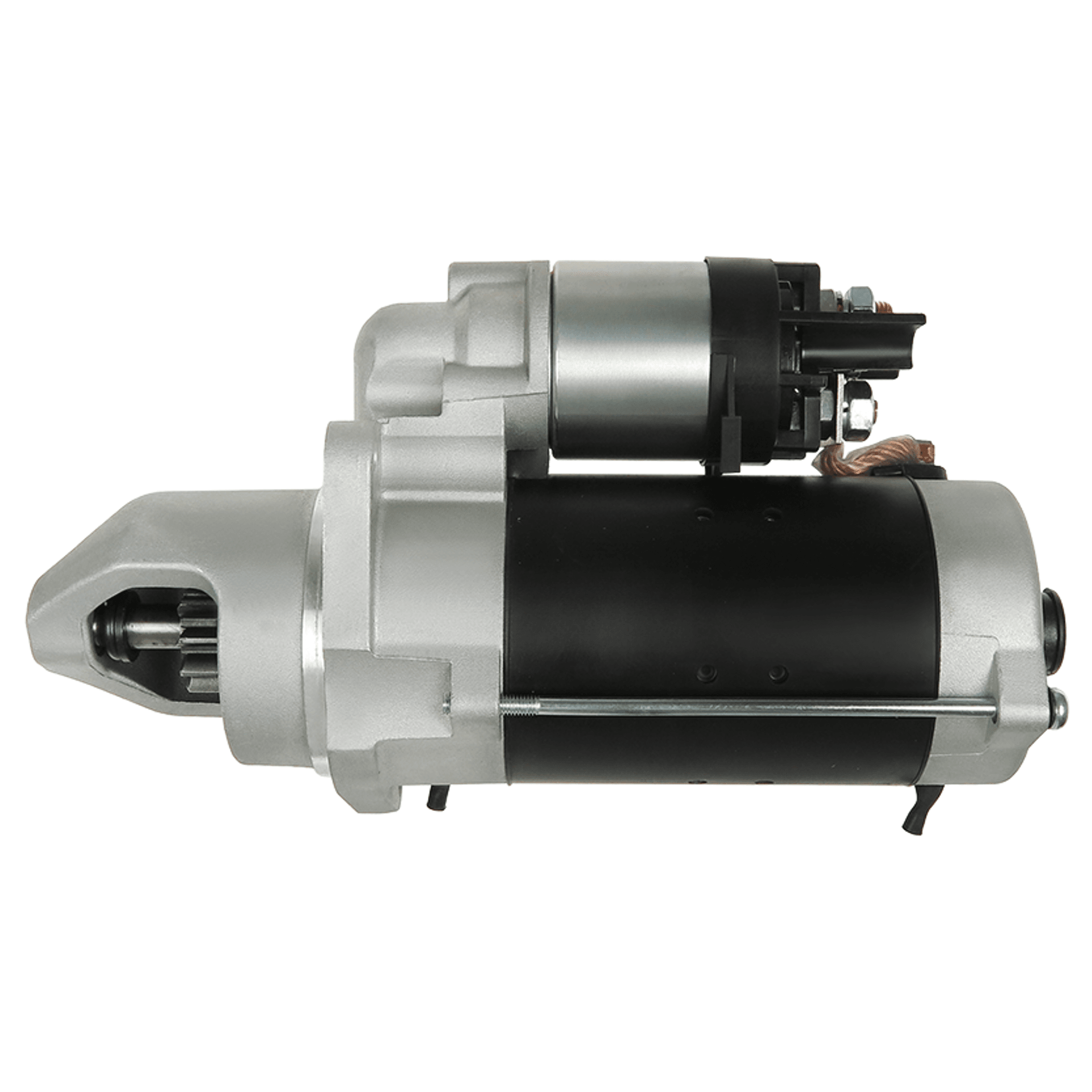

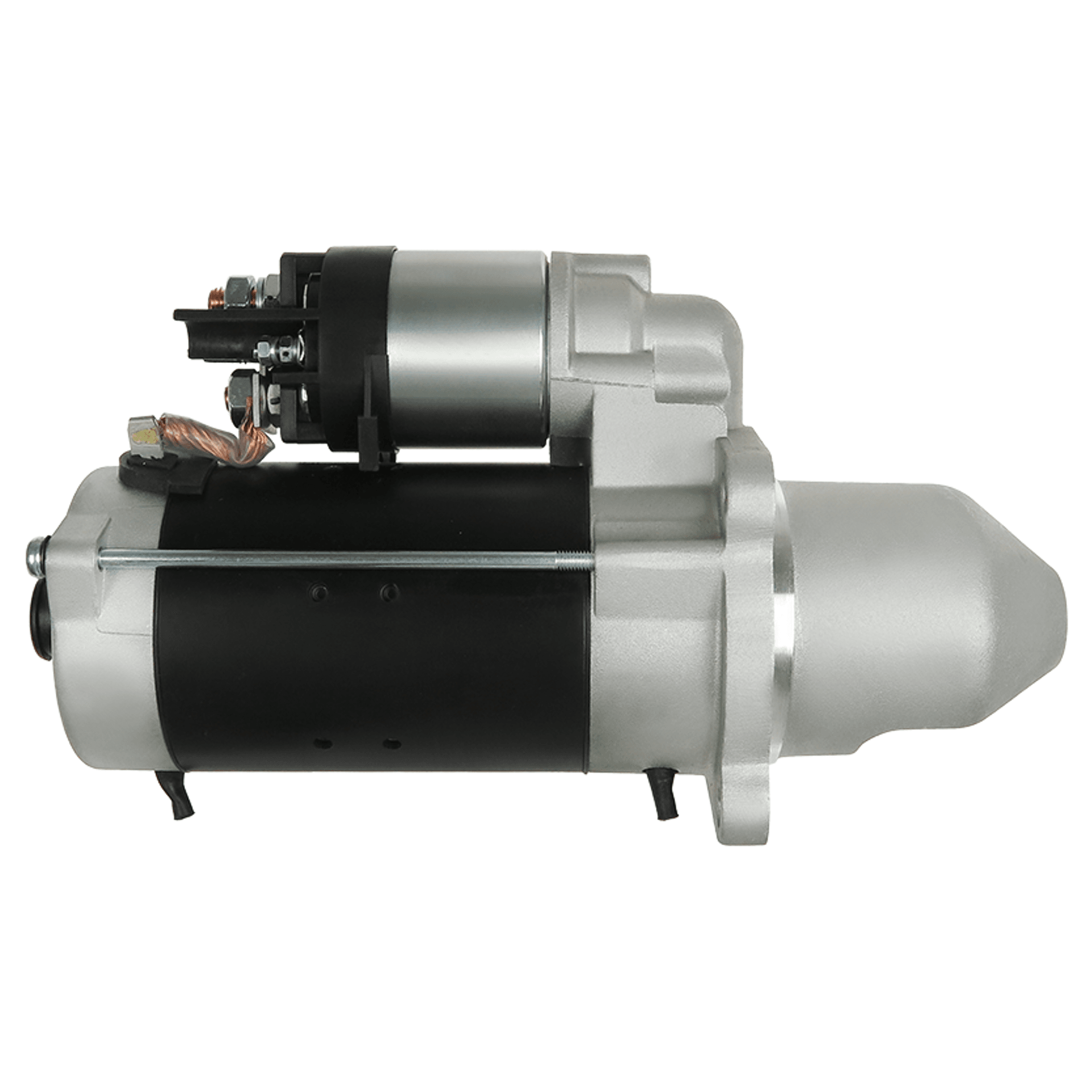

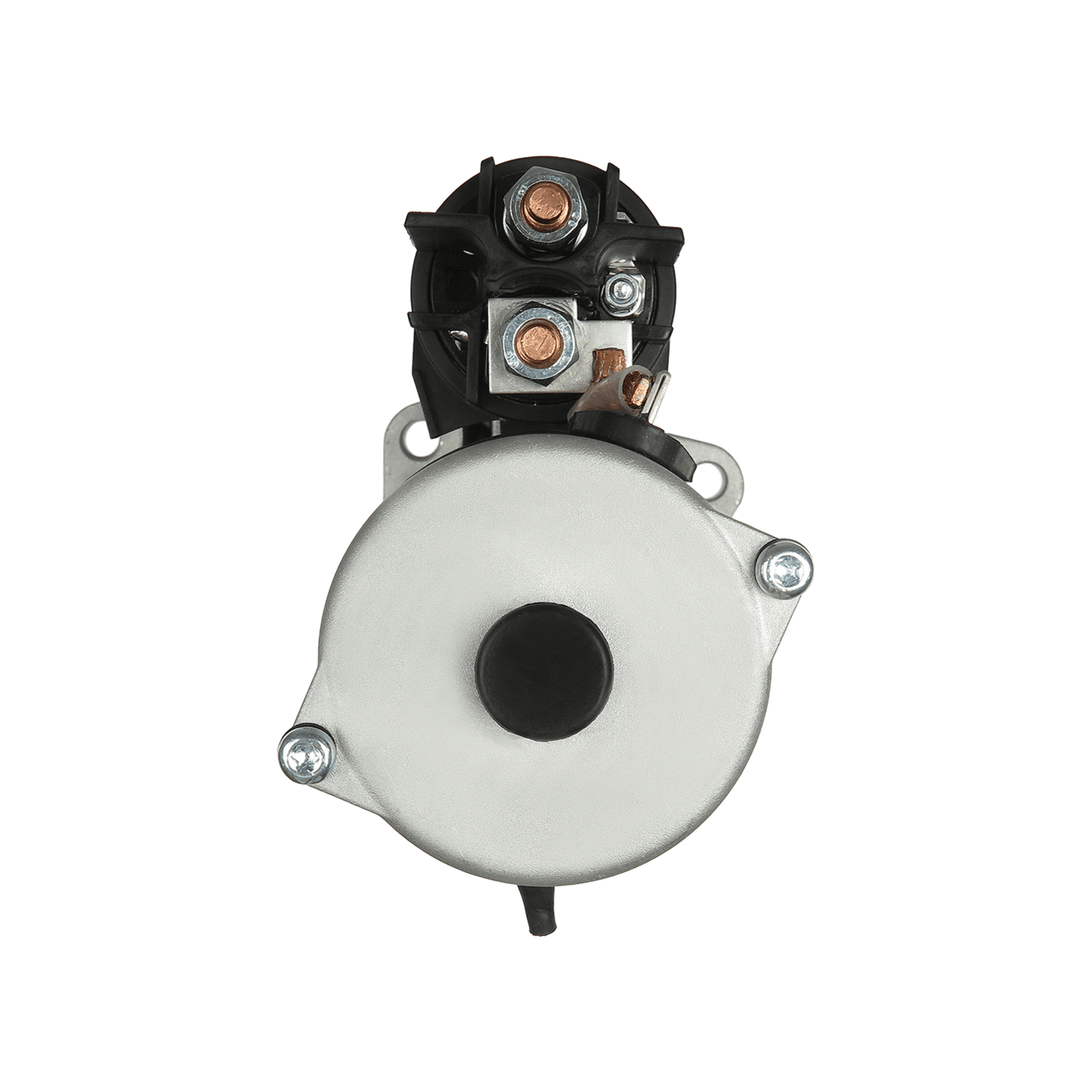

Starter XTLSTR0222
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
10. 11 qty
Power
3 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR0222
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
10. 11 qty
Power
3 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
12 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR0222
Original Code
0001230002
18361
1986S10057
RE501157
Equivalent Code (Vehicle Manufacturer)
AL81154 (JOHN DEERE)
RE501157 (JOHN DEERE)
RE503226 (JOHN DEERE)
RE504807 (JOHN DEERE)
101376 (KUHNER)
19083002 (DELCO)
DRS0067N (DELCO)
20401822BN (REAL)
20401822OE (REAL)
22.1376 (CQ)
22.1376M (CQ)
220915 (ERA)
25-3062 (ELSTOCK)
260-23109 (DIXIE)
TS-6230 (DIXIE)
630.501.113.010 (PSH)
630.501.113.460 (PSH)
S134.360 (PSH)
8146 (CEVAM)
8212692 (POWERMAX)
88212692 (POWERMAX)
91-15-7296 (WILSON)
BOS0001230002 (WOODAUTO)
WOOSTR50133 (WOODAUTO)
WOOSTR60631 (WOODAUTO)
CGB-20002 (AINDE)
CS1376 (HC PARTS)
6010228.0 (SANDO)
6010228.1 (SANDO)
CST10228AS (CASCO)
CST10228GS (CASCO)
MAV122280 (SIOM)
STB1376 (KRAUF)
STI1376 (KRAUF)
PRSL886 (3EFFE)
STRL886 (3EFFE)
ANM12287X (ANDEL)
331496 (LOGISTIK)
STR1263 (ELECTROLOG)
7700045291 (RENAULT)
87524725 (IVECO)
STX200383 (STARDAX)
STX200904 (STARDAX)
STX201006 (STARDAX)
STX201072 (STARDAX)
18361N (WAI / TRANSPO)
18361R (WAI / TRANSPO)
19655N (WAI / TRANSPO)
19655R (WAI / TRANSPO)
S0297 (AS-PL)
Applications
Applications
ALL
JOHN
Make
Vehicle
JOHN
DEERE 6010
