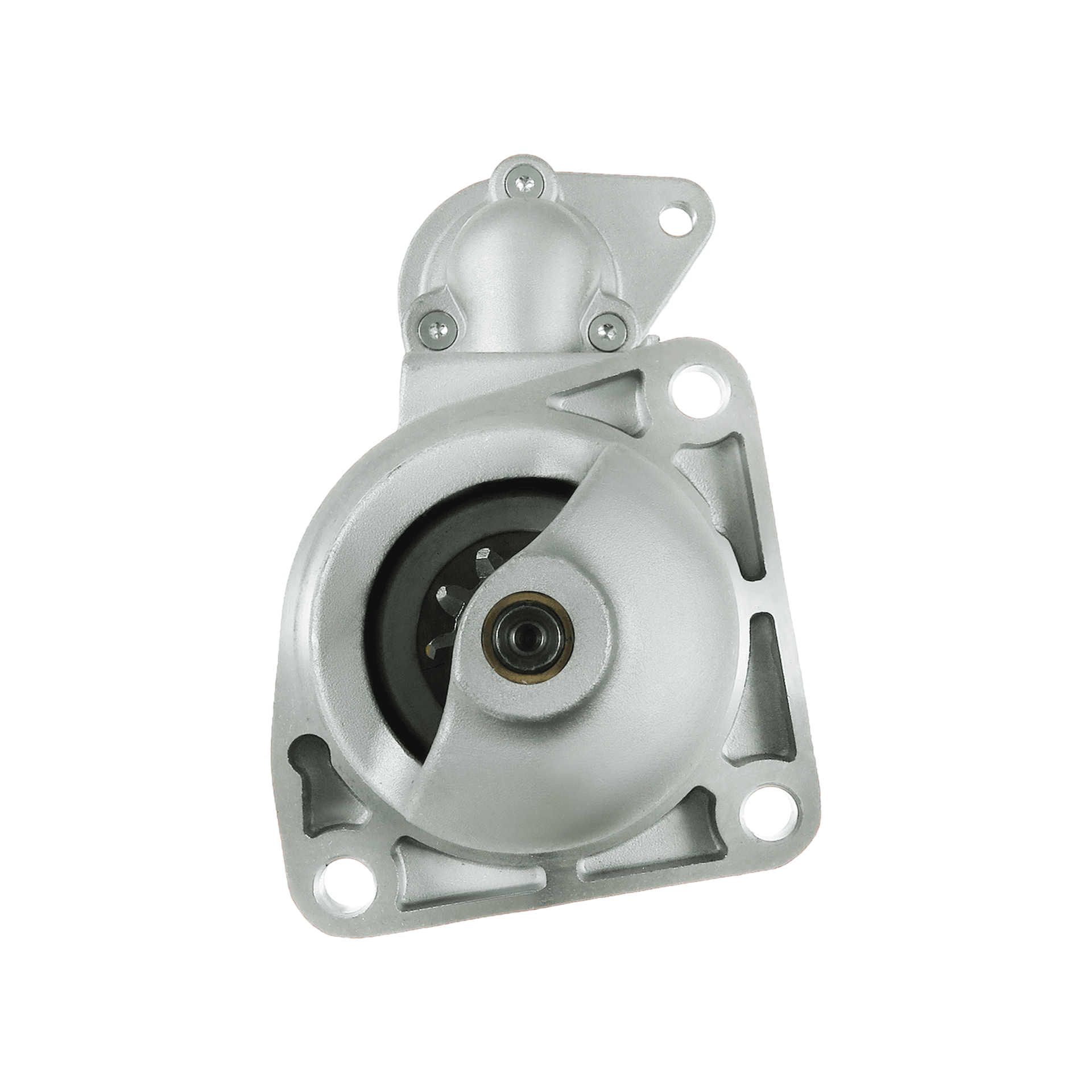

Starter XTLSTR1002
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
27 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR1002
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
27 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1002
Original Code
0001231017
0001231045
1387381
30129
Equivalent Code (Vehicle Manufacturer)
8821190 (FRIESEN)
SG0536 (GHIBAUDI)
CS1382 (HC PARTS)
8EA012586-341 (HELLA)
8EA738258-081 (HELLA)
6.7045.1 (IKA)
11.139.608 (ISKRA / LETRIKA)
AZF4403 (ISKRA / LETRIKA)
IS9460 (ISKRA / LETRIKA)
STB1382 (KRAUF)
AELD021 (LEYLAND)
AELF189 (LEYLAND)
AELF405 (LEYLAND)
AFLF189 (LEYLAND)
ALEF189 (LEYLAND)
331788 (LOGISTIK)
LRS02176 (LUCAS)
LRS2176 (LUCAS)
72442886 (MAHLE)
MS766 (MAHLE)
5110025 (MEAT & DORIA)
88212999 (POWERMAX)
860815 (PRESTOLITE)
M93R3105SE (PRESTOLITE)
901.503.103 (PSH)
901.503.103.011 (PSH)
901.503.103.018 (PSH)
901.503.103.213 (PSH)
901.503.103.216 (PSH)
901.503.103.280 (PSH)
901.503.103.310 (PSH)
S135.897 (PSH)
S144.507 (PSH)
20401186BN (REAL)
20401186OE (REAL)
120-20146 (ROBERT'S)
6010681.0 (SANDO)
6010681.1 (SANDO)
S24BH0115 (SIDAT)
S24BH0115A2 (SIDAT)
MAV126810 (SIOM)
203036 (VALEO)
438540 (VALEO)
458329 (VALEO)
30129N (WAI / TRANSPO)
31284N (WAI / TRANSPO)
BOS0001231017 (WOODAUTO)
BOS0001231045 (WOODAUTO)
BOS0001263001 (WOODAUTO)
BOS0001263002 (WOODAUTO)
STR22124 (WOODAUTO)
STR50673 (WOODAUTO)
AC-CBS1382 (ACAUTO)
10439784 (ALANKO)
A21190 (ATL AUTOTECHNIK)
91201 (AUGER)
SBO681 (AUTOTEAM)
SBO681A (AUTOTEAM)
BST32048 (BORG & BECK)
646009104 (DRI)
5.47008 (DT SPARE PARTS)
S-22124 (DTS)
11021190 (EUROTEC)
105470 (FARCOM)
48969 (FEBI BILSTEIN)
10010681AV (ITAB AUTOMOTIVE)
10010681OV (ITAB AUTOMOTIVE)
LES0457 (LE PART)
330527 (MEC-DIESEL)
PTC-4023 (POWER TRUCK)
052.262 (SAMPA)
ST02659 (TMI)
WG2045393 (WILMINK GROUP)
WG2192611 (WILMINK GROUP)
STR10202 (ELECTROLOG)
STR79695 (ELECTROLOG)
01.180.8504.000 (ST-TEMPLIN)
QRS2665 (QUINTON HAZELL)
S0178 (AS-PL)
Applications
Applications
ALL
DAF
Make
DAF
