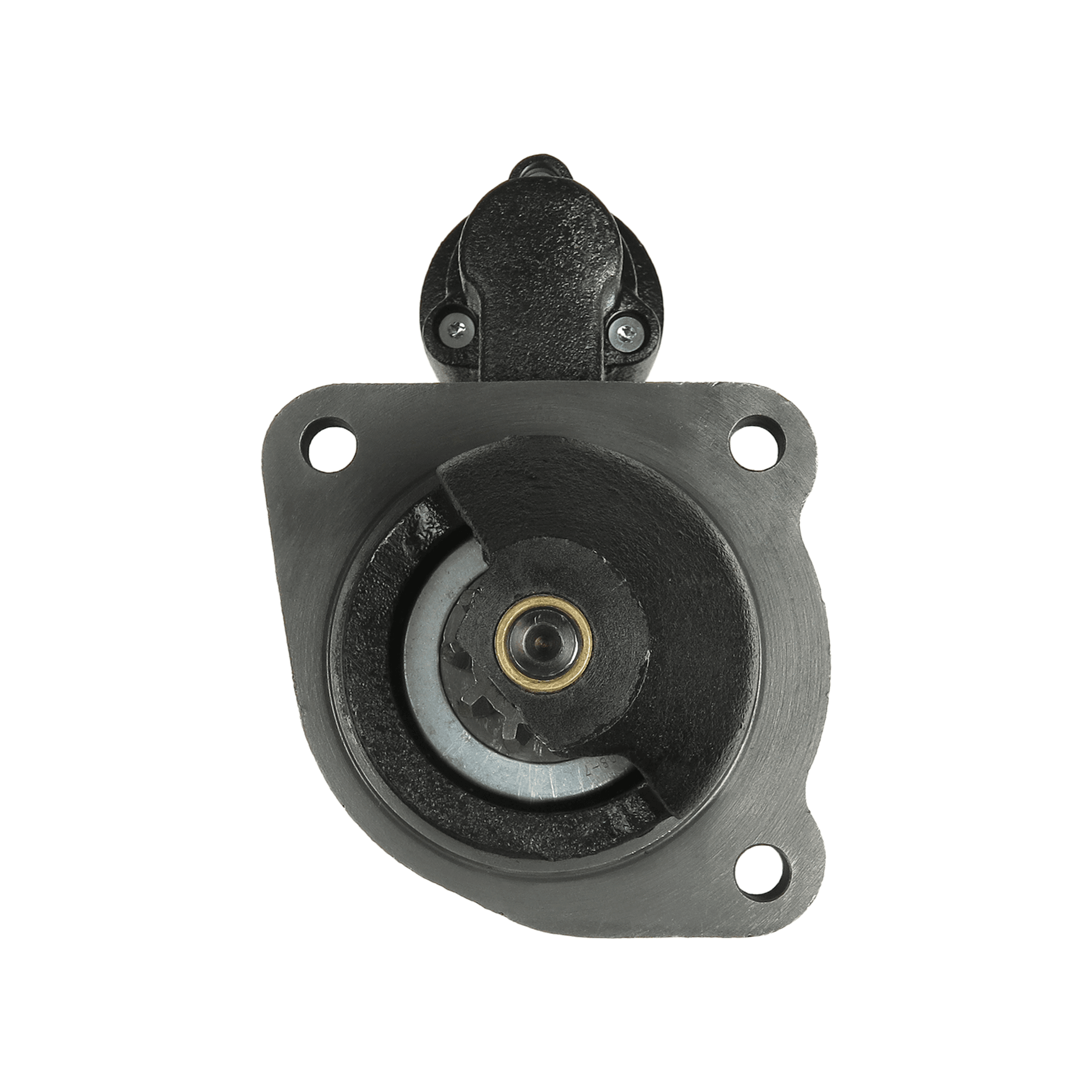

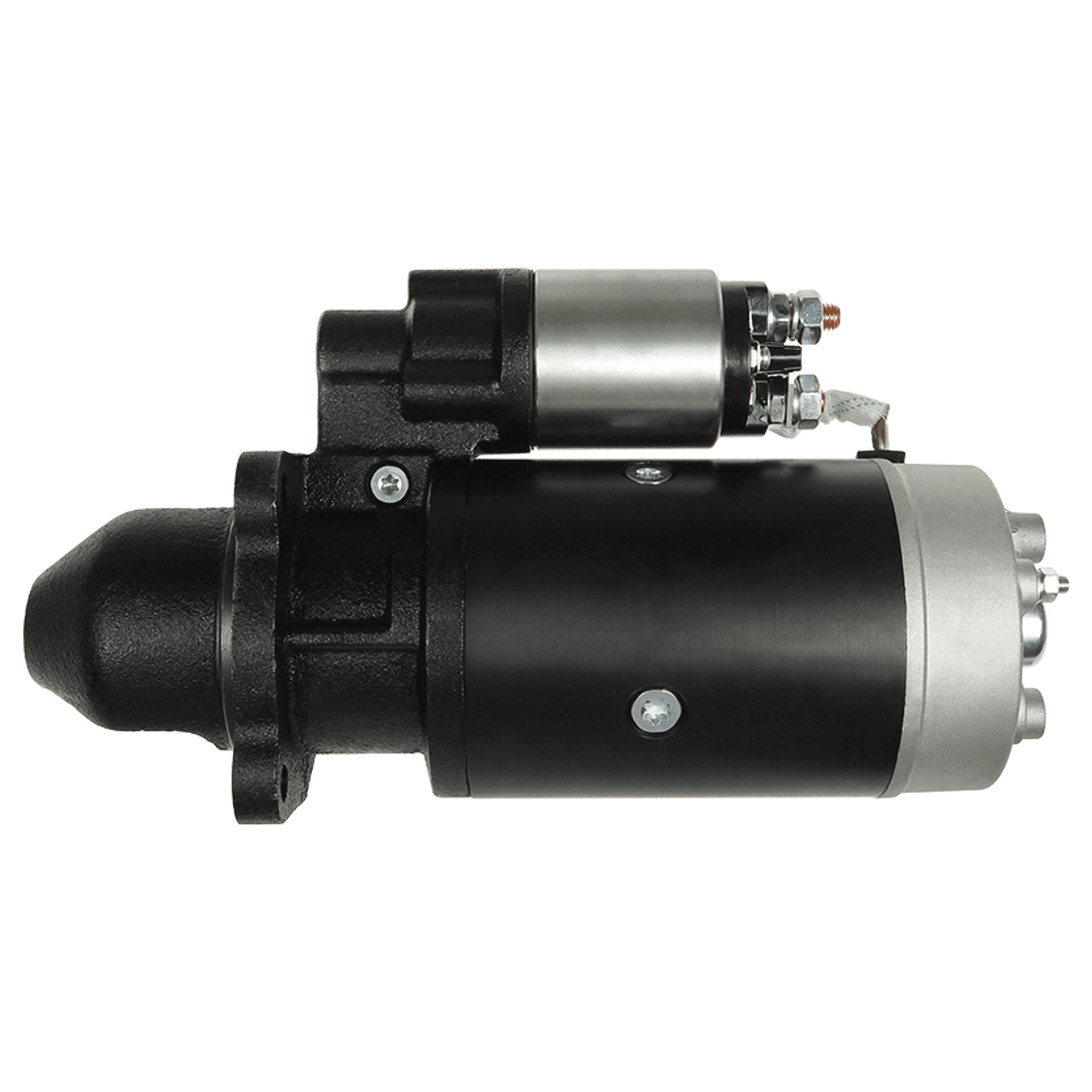

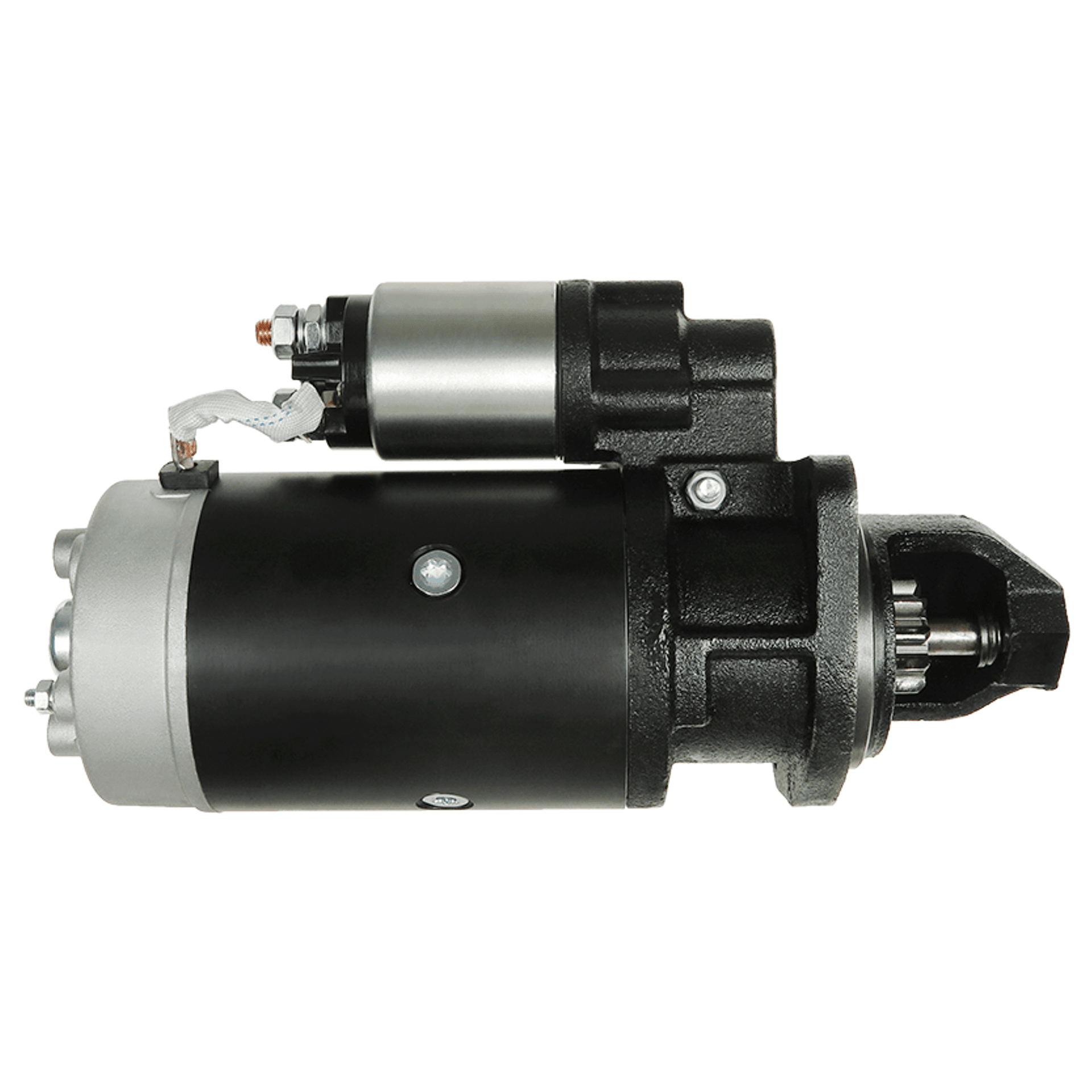

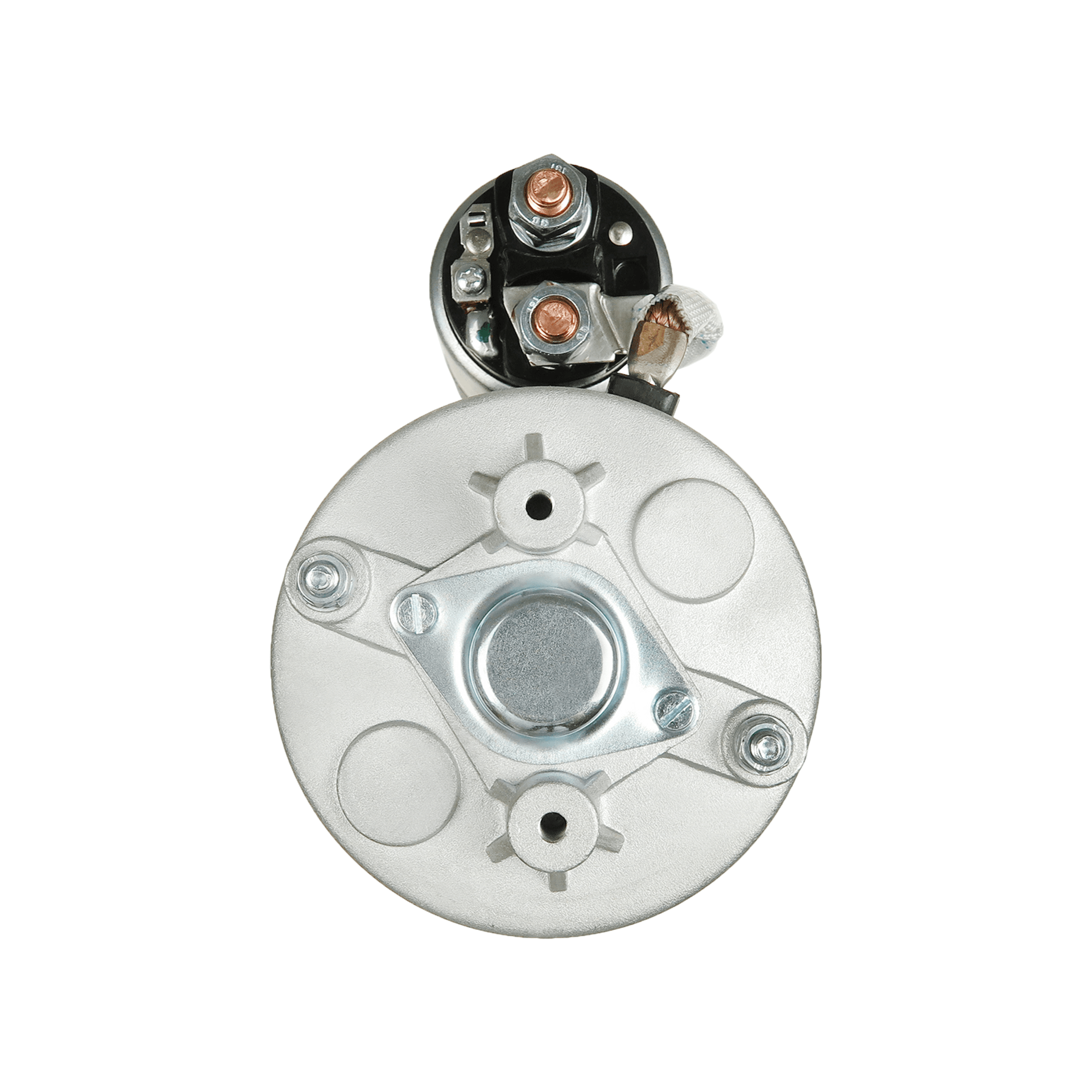

Starter XTLSTR1010
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
28 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR1010
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
340 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
28 mm
No./teeth
10 qty
No./teeth (fits into) [ qty. ]
10 qty
Power
4 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1010
Original Code
0001368040
18254
2-2285-BO
2873K063
Equivalent Code (Vehicle Manufacturer)
11.130.993 (ISKRA / LETRIKA)
AZJ3351 (ISKRA / LETRIKA)
IS0993 (ISKRA / LETRIKA)
112670 (CARGO)
F032112670 (CARGO)
120-6018 (PIC)
17654 (LESTER)
18254 (LESTER)
18254N (WAI / TRANSPO)
2-2299-BO (WAI / TRANSPO)
20401866BN (REAL)
20500923GB (PRESTOLITE)
860105Z (PRESTOLITE)
860112 (PRESTOLITE)
860112Z (PRESTOLITE)
861053 (PRESTOLITE)
M93R3004SE (PRESTOLITE)
254191 (KUHNER)
260-67204 (DIXIE)
TS-6072 (DIXIE)
27301K (LUCAS)
27309 (LUCAS)
27309A (LUCAS)
27309E (LUCAS)
27311 (LUCAS)
27311A (LUCAS)
27311E (LUCAS)
27311H (LUCAS)
27315 (LUCAS)
27315A (LUCAS)
27315B (LUCAS)
27315E (LUCAS)
LRS01845 (LUCAS)
LRS1845 (LUCAS)
28.3047 (LAUBER)
2873306 (MASSEY FERGUSON)
3091293M91 (MASSEY FERGUSON)
3091293M92 (MASSEY FERGUSON)
8091293M91 (MASSEY FERGUSON)
33795 (EAI)
45-1185 (ELSTOCK)
5000383929 (RENAULT)
5000683929 (RENAULT)
5100383929 (RENAULT)
6010668 (SANDO)
646.006.104 (DRI)
11001346 (VOLVO)
8113096 (VOLVO)
9011001346 (VOLVO)
8714 (CEVAM)
88-13.770 (FRIESEN)
91-15-7078 (WILSON)
943252252 (MAGNETI MARELLI)
CST10668AS (CASCO)
DRS3770 (DELCO)
MAV126680 (SIOM)
MS 369 (MAHLE)
S0284 (AS-PL)
UD03446S (AS-PL)
SBO0077 (AEP)
STR22050 (WOODAUTO)
STRL838 (3EFFE)
2873k063 (PERKINS)
PF54924 (PERKINS)
120-30129 (ROBERT'S)
88213691 (POWERMAX)
331943 (LOGISTIK)
STR1312 (ELECTROLOG)
STR79101 (ELECTROLOG)
0R1903 (CATERPILLAR)
OR1903 (CATERPILLAR)
F005510 (JOHN DEERE)
Applications
Applications
ALL
MAN
Make
MAN
