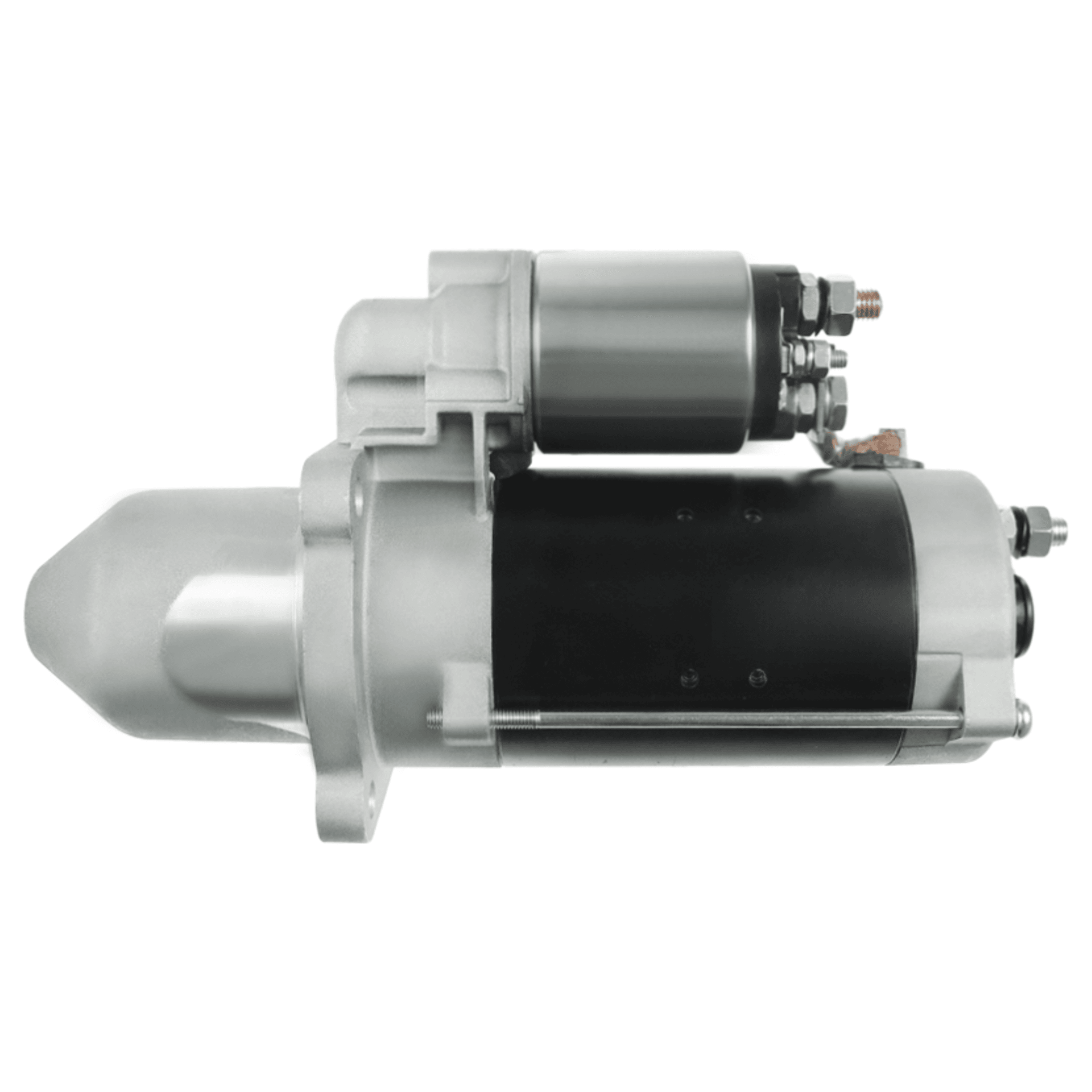

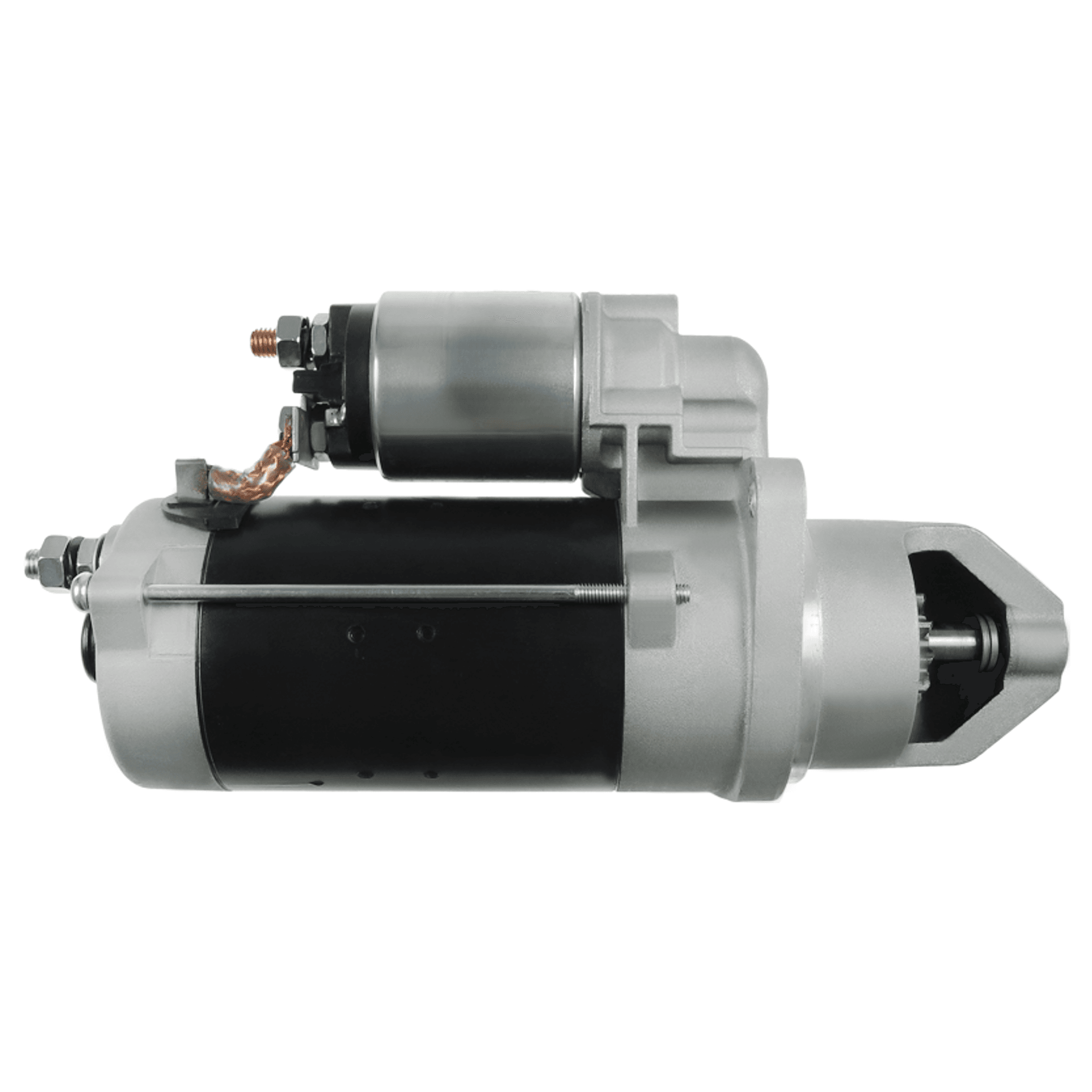

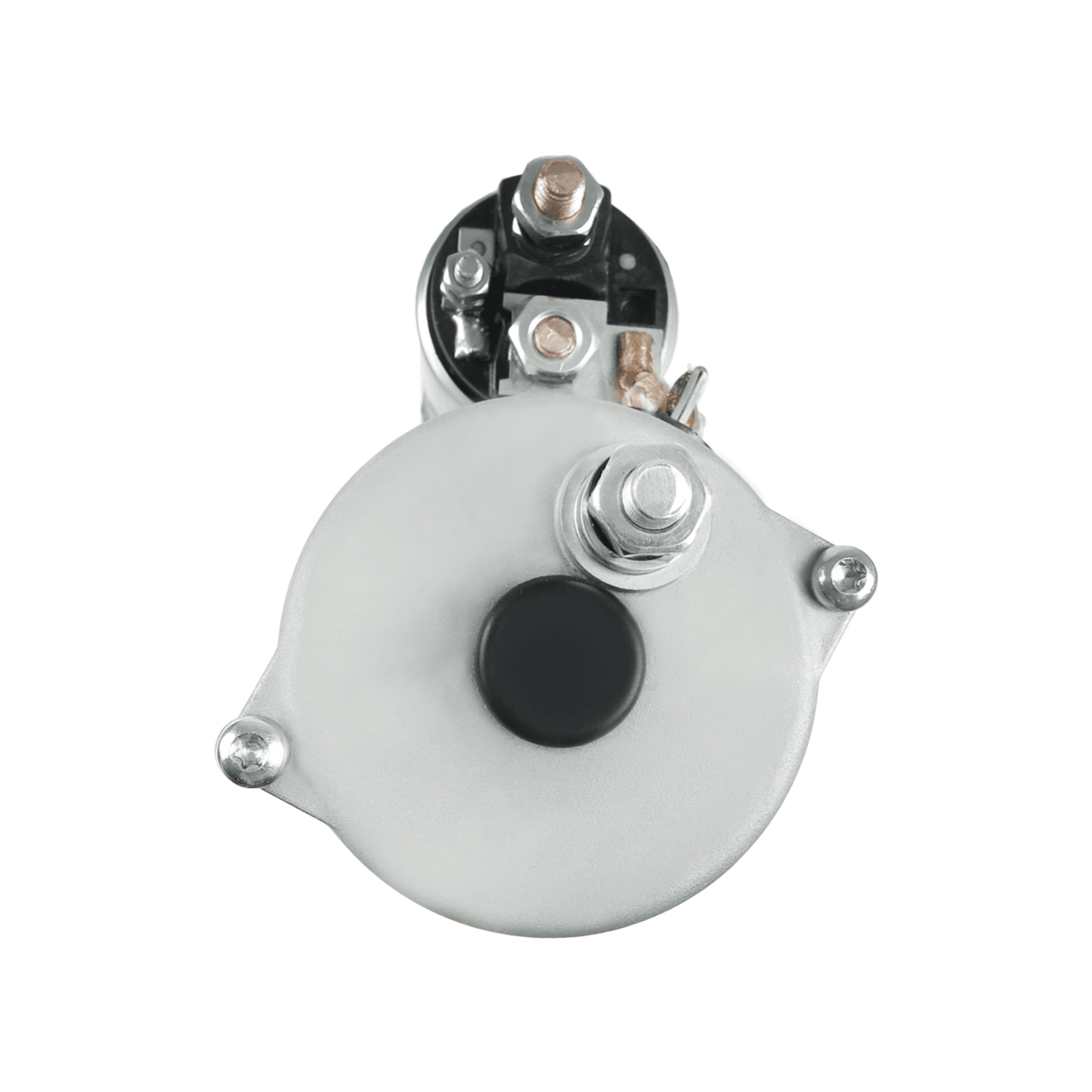

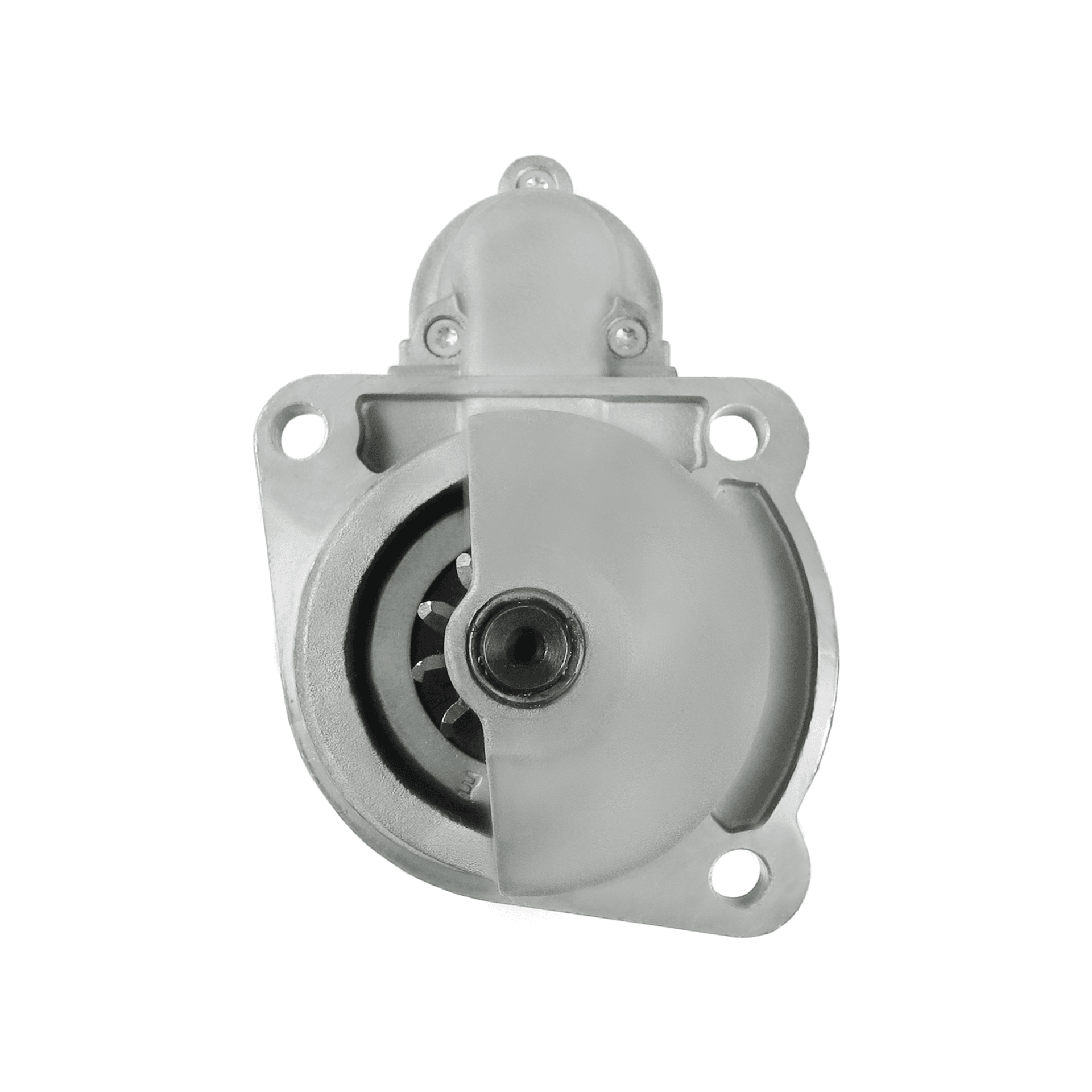

Starter XTLSTR1014

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 89 mm
No./mount. holes with thread [ qty. ]: 0 qty
L.1 [ mm ]: 334 mm
Rotation: CW
Size A [ mm ]: 89 mm
Size B [ mm ]: 48 mm
No./teeth: 11 qty
No./teeth (fits into) [ qty. ]: 9. 11 qty
Power: 4 kW

O.3 [ mm ]: 127 mm
O.2 [ mm ]: 89 mm
C.1 [ mm ]: 11.00 mm
Voltage: 24 V
C.3 [ mm ]: 11.00 mm
C.2 [ mm ]: 11.00 mm

Starter XTLSTR1014

Download PDF

No./mount. holes [ qty. ]: 3 qty
O.1 [ mm ]: 89 mm
No./mount. holes with thread [ qty. ]: 0 qty
L.1 [ mm ]: 334 mm
Rotation: CW
Size A [ mm ]: 89 mm
Size B [ mm ]: 48 mm
No./teeth: 11 qty
No./teeth (fits into) [ qty. ]: 9. 11 qty
Power: 4 kW
O.3 [ mm ]: 127 mm
O.2 [ mm ]: 89 mm
C.1 [ mm ]: 11.00 mm
Voltage: 24 V
C.3 [ mm ]: 11.00 mm
C.2 [ mm ]: 11.00 mm

Applications

Make	Vehicle	Model Types	From	To
VOLVO	F6 F 610	TD60C	02/1980	10/1986
VOLVO	F6 F 611	TD60C	02/1980	02/1986
VOLVO	F6 F 612	TD60C	04/1983	02/1986
VOLVO	F6 F 613,F 614	TD60A	09/1975	02/1986
VOLVO	F6 F 613,F 614	TD60B	09/1975	02/1986
VOLVO	F6 F 616	TD60B	02/1981	02/1986
VOLVO	F7 F 7	TD70F	08/1978	12/1985
VOLVO	F7 F 7	TD70FS	08/1978	12/1985
VOLVO	F7 F 7	TD70G	08/1978	12/1985
VOLVO	FL FL 180-10	D6B	--	--

WhatsApp inquiry Email inquiry

Original Code

0001231014
0001263068
18957
21067513

Equivalent Code (Vehicle Manufacturer)

167822 (VOLVO)
21067513 (VOLVO)
21477589 (VOLVO)
3978044 (VOLVO)
420718 (VOLVO)
4881598 (VOLVO)
8112224 (VOLVO)
8112996 (VOLVO)
8113860 (VOLVO)
85000446 (VOLVO)
85003303 (VOLVO)
10391 (KUHNER)
10391B (KUHNER)
10391P (KUHNER)
ANM13200X (ANDEL)
811.505.113.010 (PSH)
811.505.113.016 (PSH)
811.505.113.018 (PSH)
811.505.113.210 (PSH)
811.505.113.211 (PSH)
811.505.113.215 (PSH)
811.505.113.280 (PSH)
811.505.113.310 (PSH)
S135.507 (PSH)
S145.735 (PSH)
S100678 (BTS TURBO)
025581 (DA SILVA)
19084010 (DELCO)
19084211 (DELCO)
DRS0167 (DELCO)
SER84211-12B1 (DELCO)
103421 (FARCOM)
10010716AV (ITAB AUTOMOTIVE)
10010716OV (ITAB AUTOMOTIVE)
100529 (FEBI BILSTEIN)
T001008006 (SEG AUTOMOTIVE)
11.139.613 (ISKRA / LETRIKA)
AZF4407 (ISKRA / LETRIKA)
IS9465 (ISKRA / LETRIKA)
18957N (WAI / TRANSPO)
26023211 (DIXIE)
72444498 (MAHLE)
MS774 (MAHLE)
861038 (PRESTOLITE)
BOS0001231014 (WOODAUTO)
MAHMS774 (WOODAUTO)
PRE861038 (WOODAUTO)
STR22074 (WOODAUTO)
WOOSTR22074 (WOODAUTO)
CS1474 (HC PARTS)
HCS1474 (HC PARTS)
LRS02175 (LUCAS)
LRS2175 (LUCAS)
RNL231014 (RNL)
45-3349 (ELSTOCK)
CST10716AS (CASCO)
CST10716GS (CASCO)
8644 (CEVAM)
8644R (CEVAM)
33525 (EAI)
SG0070 (GHIBAUDI)
111638 (CARGO)
F032111638 (CARGO)
8EA012586-331 (HELLA)
8EA012586-511 (HELLA)
943252208010 (MAGNETI MARELLI)
MSR701 (MAGNETI MARELLI)
5110018 (MEAT & DORIA)
88212842 (POWERMAX)
S24BH0107A2 (SIDAT)
120-20144 (ROBERT'S)
STM921 (ROLLCO)
331998 (LOGISTIK)
20401617BN (REAL)
20401617OE (REAL)
6010716.0 (SANDO)
6010716.1 (SANDO)
MAV127160A (SIOM)
STB0391 (KRAUF)
CGB-23076 (AINDE)
CGB-53349 (AINDE)
PRSE392 (3EFFE)
STRE392 (3EFFE)
STR1359 (ELECTROLOG)
STR7925 (ELECTROLOG)
PTC-4012 (POWER TRUCK)
S0107 (AS-PL)
