Starter XTLSTR1027 | SINTLY
Previous slide
Next slide

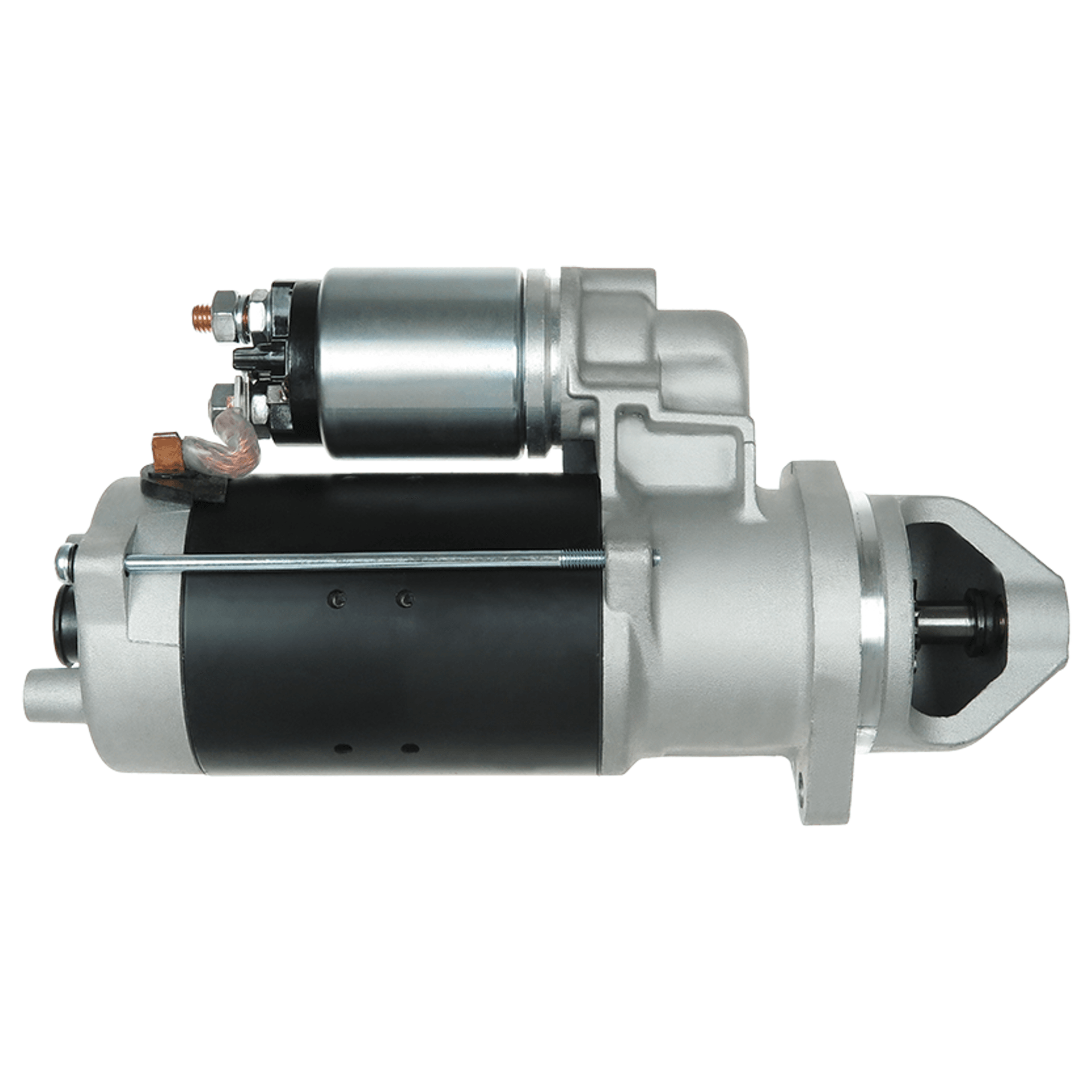

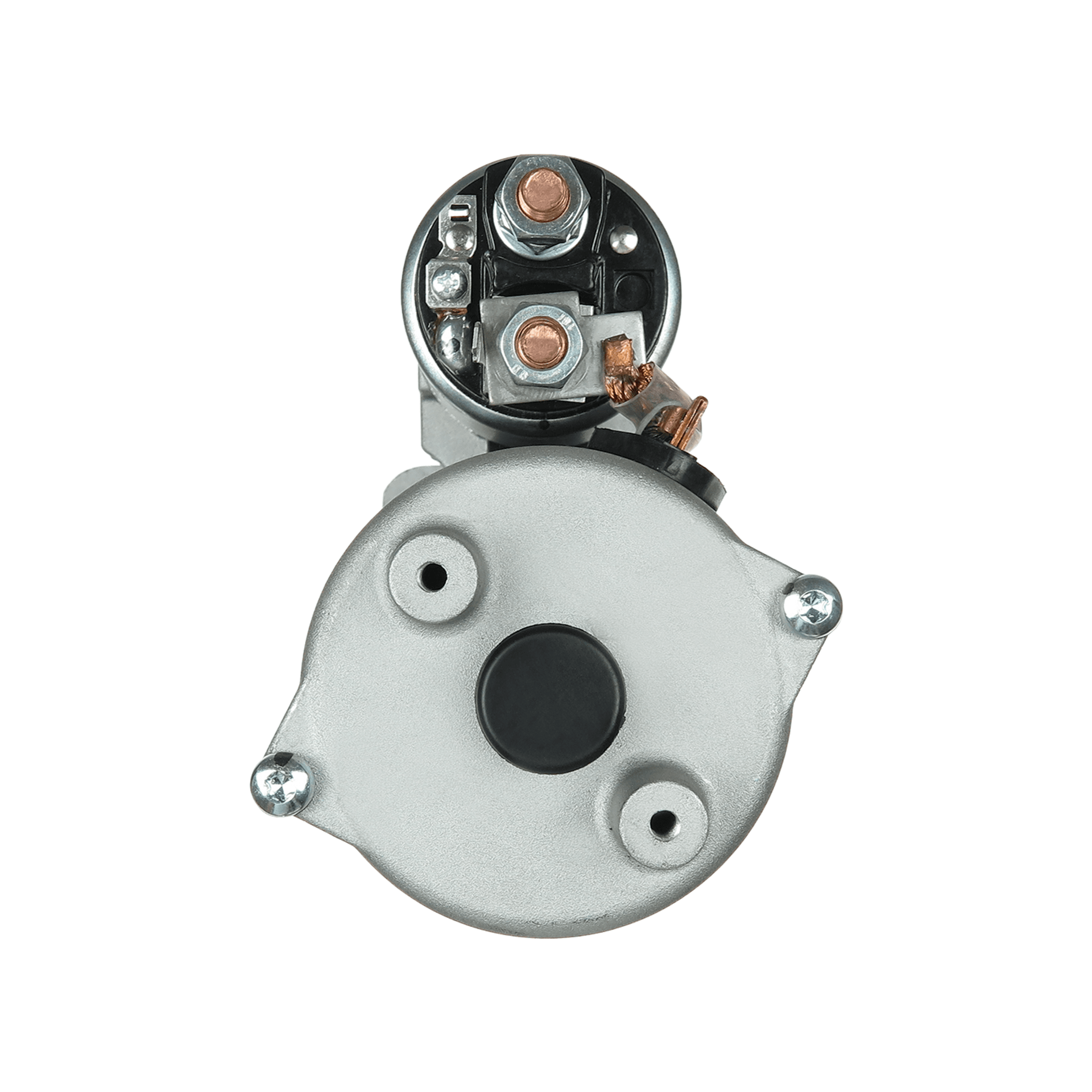

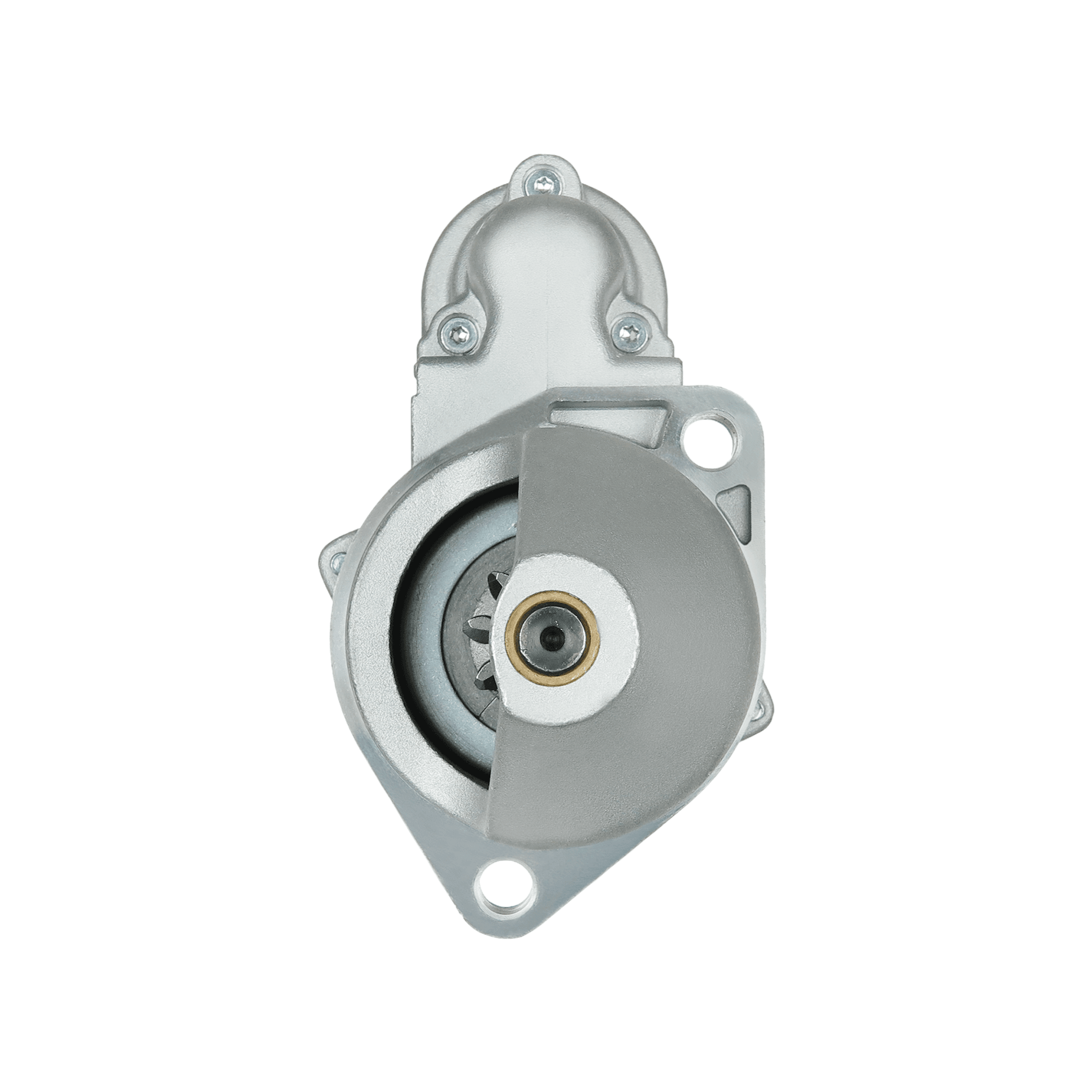

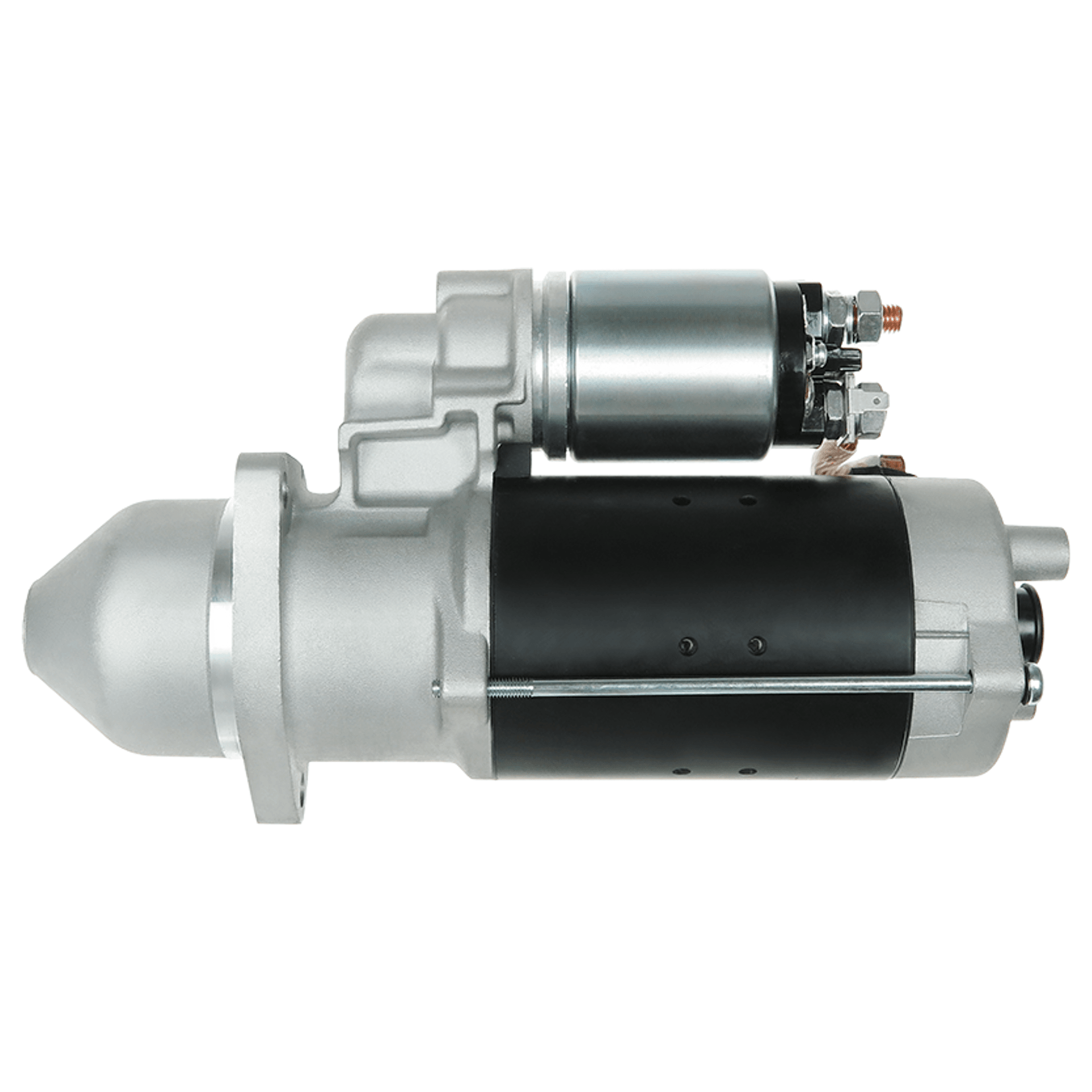

Starter XTLSTR1027
Download PDF
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
102 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
320 mm
Rotation
CW
Size A [ mm ]
82.5 mm
Size B [ mm ]
23 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR1027
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
102 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
320 mm
Rotation
CW
Size A [ mm ]
82.5 mm
Size B [ mm ]
23 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.2 [ mm ]
10.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1027
Original Code
0001101110
0001231018
01171750
30329
Equivalent Code (Vehicle Manufacturer)
CGB-31018 (AINDE)
ANM12586X (ANDEL)
S0182 (AS-PL)
UD11166S (AS-PL)
S100680 (BTS TURBO)
S104404 (BTS TURBO)
S104405 (BTS TURBO)
114220 (CARGO)
116132 (CARGO)
F032114220 (CARGO)
F032116132 (CARGO)
CST10684AS (CASCO)
CST10684GS (CASCO)
8110 (CEVAM)
19083008 (DELCO)
DRS0366 (DELCO)
DRS0366N (DELCO)
SER84222-12B1 (DELCO REMY)
260-23219 (DIXIE)
STR1173 (ELECTROLOG)
STR7975 (ELECTROLOG)
45-4402 (ELSTOCK)
105159 (FARCOM)
SG0550 (GHIBAUDI)
11.131.607 (ISKRA / LETRIKA)
11.131.863 (ISKRA / LETRIKA)
AZF4156 (ISKRA / LETRIKA)
AZF4230 (ISKRA / LETRIKA)
IS1236 (ISKRA / LETRIKA)
10010684AV (ITAB AUTOMOTIVE)
10010684OV (ITAB AUTOMOTIVE)
01171750 (KHD)
01181753 (KHD)
01182126 (KHD)
01182390 (KHD)
04300286 (KHD)
1171750 (KHD)
1181753 (KHD)
1182126 (KHD)
1182390 (KHD)
4300286 (KHD)
STB4220 (KRAUF)
STI4220 (KRAUF)
254308 (KUHNER)
254308M (KUHNER)
254308S (KUHNER)
19724 (LESTER)
332134 (LOGISTIK)
LRS02729 (LUCAS)
LRS2729 (LUCAS)
063522310180 (MAGNETI MARELLI)
63522310 (MAGNETI MARELLI)
MSN2046 (MAGNETI MARELLI)
72735696 (MAHLE)
MS68 (MAHLE)
88213990 (POWERMAX)
511.502.092.010 (PSH)
511.502.092.090 (PSH)
511.502.092.280 (PSH)
511.502.092.310 (PSH)
S133.390 (PSH)
S144.533 (PSH)
20401486BN (REAL)
20401486OE (REAL)
RNL231018 (RNL)
6010684.0 (SANDO)
6010684.1 (SANDO)
S24BH0015 (SIDAT)
S24BH0015A2 (SIDAT)
MAV126840 (SIOM)
MAV126840A (SIOM)
30329N (WAI / TRANSPO)
BOS0001231018 (WOODAUTO)
LETIS1236 (WOODAUTO)
MAHMS68 (WOODAUTO)
STR50079 (WOODAUTO)
STR60644 (WOODAUTO)
WOOSTR50079 (WOODAUTO)
WOOSTR60644 (WOODAUTO)
Applications
Applications
ALL
24
DEUT7-FAHR
Make
Vehicle
24
(V 4.0
DEUT7-FAHR
--
