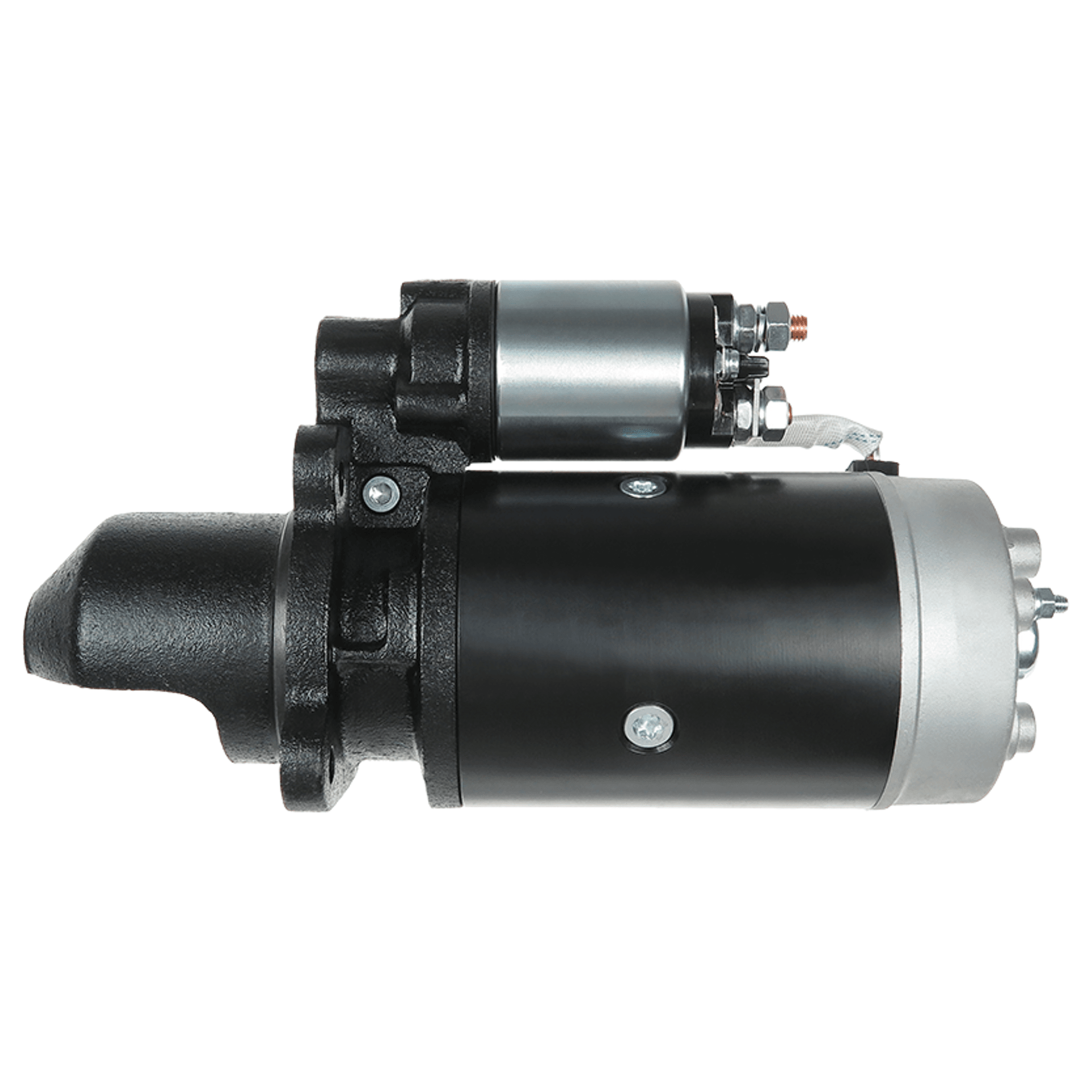

Starter XTLSTR1029
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
339 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48.5 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
O.3 [ mm ]
128 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR1029
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
339 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48.5 mm
No./teeth
9 qty
No./teeth (fits into) [ qty. ]
9 qty
Power
4 kW
O.3 [ mm ]
128 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1029
Original Code
0001368307
0011519601
18371
2-2297-B0
Equivalent Code (Vehicle Manufacturer)
0011519601 (MERCEDES)
001151960180 (MERCEDES)
0021510701 (MERCEDES)
0031510401 (MERCEDES)
003151040180 (MERCEDES)
0031510801 (MERCEDES)
003151080180 (MERCEDES)
0031511801 (MERCEDES)
003151180180 (MERCEDES)
0031517401 (MERCEDES)
003151740180 (MERCEDES)
0031518601 (MERCEDES)
003151860180 (MERCEDES)
0031518801 (MERCEDES)
003151880180 (MERCEDES)
0041515901 (MERCEDES)
004151590180 (MERCEDES)
0041517301 (MERCEDES)
004151730180 (MERCEDES)
0041518601 (MERCEDES)
3441517401 (MERCEDES)
41518601 (MERCEDES)
A0011519601 (MERCEDES)
A001151960180 (MERCEDES)
A0021510701 (MERCEDES)
A0031510401 (MERCEDES)
A003151040180 (MERCEDES)
A0031510801 (MERCEDES)
A003151080180 (MERCEDES)
A0031511801 (MERCEDES)
A003151180180 (MERCEDES)
A0031517401 (MERCEDES)
A003151740180 (MERCEDES)
A0031518601 (MERCEDES)
A003151860180 (MERCEDES)
A0031518801 (MERCEDES)
A003151880180 (MERCEDES)
A0041515901 (MERCEDES)
A004151590180 (MERCEDES)
A0041517301 (MERCEDES)
A004151730180 (MERCEDES)
A0041518601 (MERCEDES)
A3441517401 (MERCEDES)
02201 (EFEL)
10440 (EFEL)
10460 (EFEL)
11580 (EFEL)
13090 (EFEL)
10120 (KUHNER)
10120K (KUHNER)
10120P (KUHNER)
10479627 (DELCO)
19024204 (DELCO)
19024225 (DELCO)
19024258 (DELCO)
DRS1360 (DELCO)
DRS3490 (DELCO)
DRX67131 (DELCO)
11.130.010 (ISKRA / LETRIKA)
11.130.230 (ISKRA / LETRIKA)
11.130.339 (ISKRA / LETRIKA)
11.130.407 (ISKRA / LETRIKA)
AZJ0501 (ISKRA / LETRIKA)
AZJ3113 (ISKRA / LETRIKA)
AZJ3549 (ISKRA / LETRIKA)
AZJ3589 (ISKRA / LETRIKA)
IS0407 (ISKRA / LETRIKA)
110524 (CARGO)
F032110524 (CARGO)
18371N (WAI / TRANSPO)
20401216BN (REAL)
20401216EL (REAL)
220232 (ERA)
28.0120 (LAUBER)
33378 (EAI)
35261130 (PRESTOLITE)
35261450 (PRESTOLITE)
861036 (PRESTOLITE)
45-0174 (ELSTOCK)
455528 (VALEO)
455529 (VALEO)
455618 (VALEO)
523037 (MONARK)
81368024 (MONARK)
81388024 (MONARK)
81388309 (MONARK)
8667 (CEVAM)
8811360 (FRIESEN)
8817990 (FRIESEN)
88212349 (POWERMAX)
8EA725973-001 (HELLA)
AES1237 (AUTOELECTRO)
AES8118 (AUTOELECTRO)
CGB-68309 (AINDE)
CS120 (HC PARTS)
CST10612AS (CASCO)
CST10612ES (CASCO)
LRS00818 (LUCAS)
LRS818 (LUCAS)
LRT00137 (LUCAS)
MAV126120 (SIOM)
72735819 (MAHLE)
MS191 (MAHLE)
RNL1349 (RNL)
S0002 (AS-PL)
UD03453S (AS-PL)
MAHMS191 (WOODAUTO)
STR22011 (WOODAUTO)
PRSL847 (3EFFE)
PRSS140 (3EFFE)
STRL847 (3EFFE)
STRS140 (3EFFE)
S24BH0055A2 (SIDAT)
ANM15710X (ANDEL)
330272 (LOGISTIK)
51262017028 (MAN)
51262017067 (MAN)
51262017101 (MAN)
51262019028 (MAN)
51262019067 (MAN)
2873D301 (PERKINS)
551.002.093.011 (PSH)
551.002.093.017 (PSH)
551.002.093.018 (PSH)
551.002.093.218 (PSH)
551.002.093.312 (PSH)
551.002.093.313 (PSH)
551.002.093.510 (PSH)
S133.111 (PSH)
S144.983 (PSH)
6010612.0 (SANDO)
6010612.3 (SANDO)
8010302 (ZM)
ZM8010302 (ZM)
STR1055 (ELECTROLOG)
STR79000 (ELECTROLOG)
STR79001 (ELECTROLOG)
STR7911 (ELECTROLOG)
STA0282R (BOVEZ)
04682999 (KHD)
1516687R (DAF)
1701061 (FAUN)
5000240884 (RENAULT)
5001001391 (RENAULT)
5602565 (LIEBHERR)
560256508 (LIEBHERR)
PTC-4009 (POWER TRUCK)
PTC-4018 (POWER TRUCK)
123456 (MISCELLANEOUS)
Applications
Applications
ALL
MERCEDES-BENZ
Make
MERCEDES-BENZ
