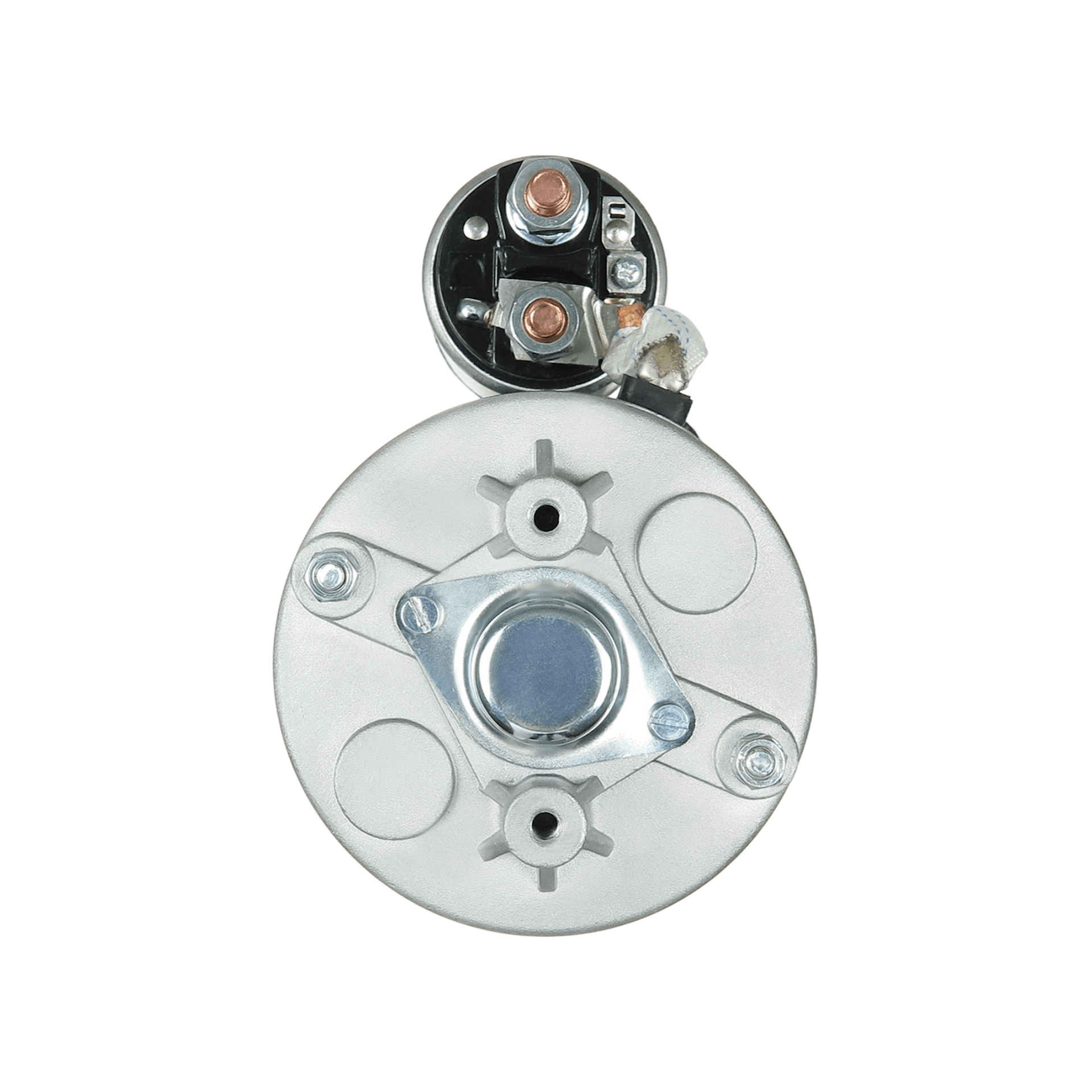

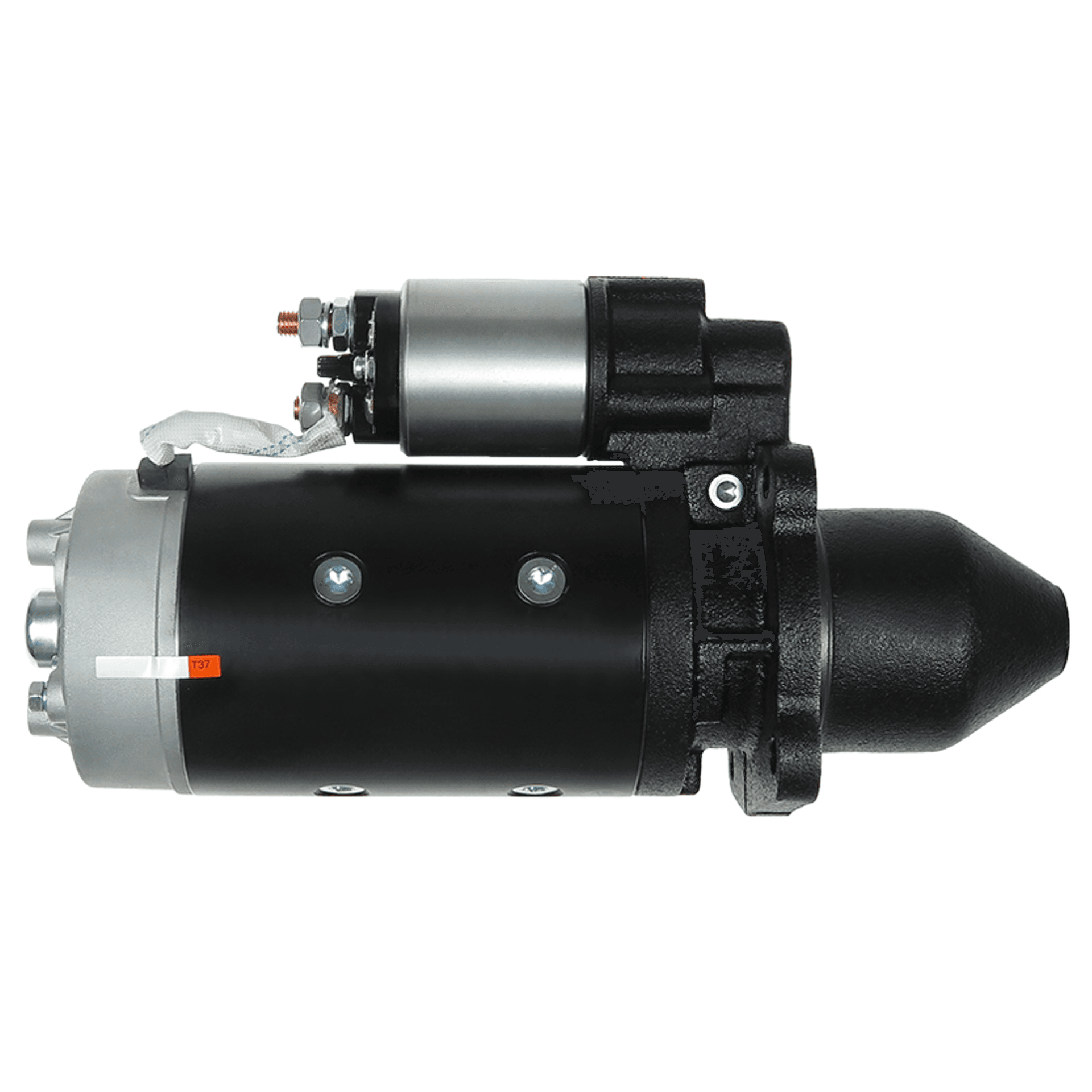

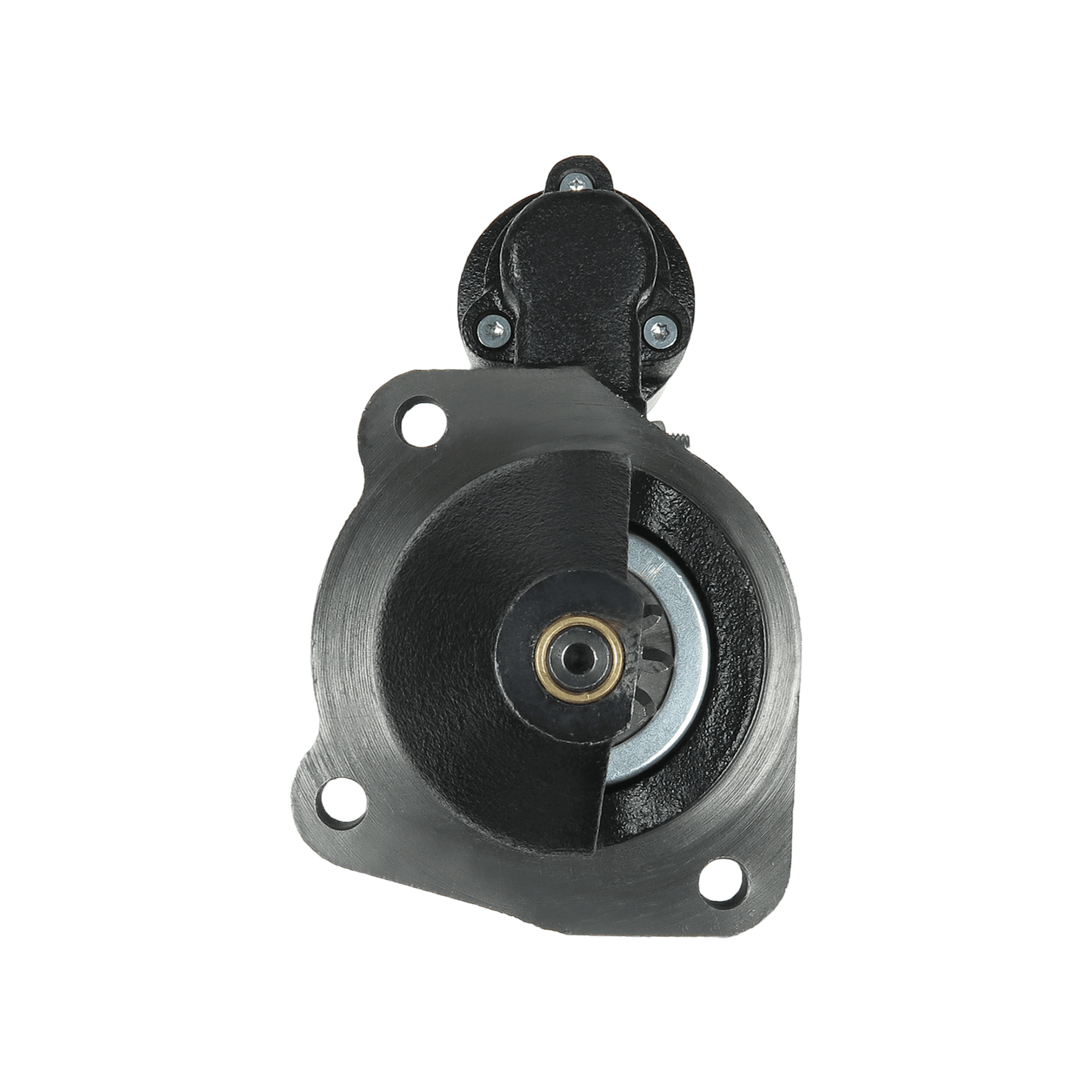

Starter XTLSTR1036
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
358 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
11 qty
Power
4.8 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR1036
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
358 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
48 mm
No./teeth
11 qty
Power
4.8 kW
O.3 [ mm ]
127 mm
O.2 [ mm ]
90 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1036
Original Code
0001364101
0001364300
01179595
Equivalent Code (Vehicle Manufacturer)
01179595 (KHD)
1164376 (KHD)
1179595 (KHD)
05710935 (BOMAG)
11.130.672 (ISKRA / LETRIKA)
11.132.342 (ISKRA / LETRIKA)
AZJ0602 (ISKRA / LETRIKA)
AZJ3221 (ISKRA / LETRIKA)
AZJ3481 (ISKRA / LETRIKA)
IS0030 (ISKRA / LETRIKA)
112651 (CARGO)
F032112651 (CARGO)
120-30110 (ROBERT'S)
182-30199 (ROBERT'S)
20401596BN (REAL)
260-64201 (DIXIE)
TS-6054 (DIXIE)
33464 (EAI)
45-0249 (ELSTOCK)
5278775 (TAM)
5636102 (TAM)
561.001.113 (PSH)
S133.682 (PSH)
S144.094 (PSH)
6010695.0 (SANDO)
72735802 (MAHLE)
MS 174 (MAHLE)
MS 612 (MAHLE)
8676 (CEVAM)
88213615 (POWERMAX)
91-15-6929 (WILSON)
CST10695AS (CASCO)
D11E149 (VALEO)
DRS2700 (DELCO)
DS3810 (DELCO)
LRS01813 (LUCAS)
LRS1813 (LUCAS)
MAHMS174 (WOODAUTO)
STR22080 (WOODAUTO)
STR50285 (WOODAUTO)
MAV126110 (SIOM)
MAV126950 (SIOM)
STB2651 (KRAUF)
STRL165 (3EFFE)
S0795S (AS-PL)
UD16586S (AS-PL)
STR1112 (ELECTROLOG)
STR7839 (ELECTROLOG)
Applications
Applications
ALL
IVECO
Make
IVECO
