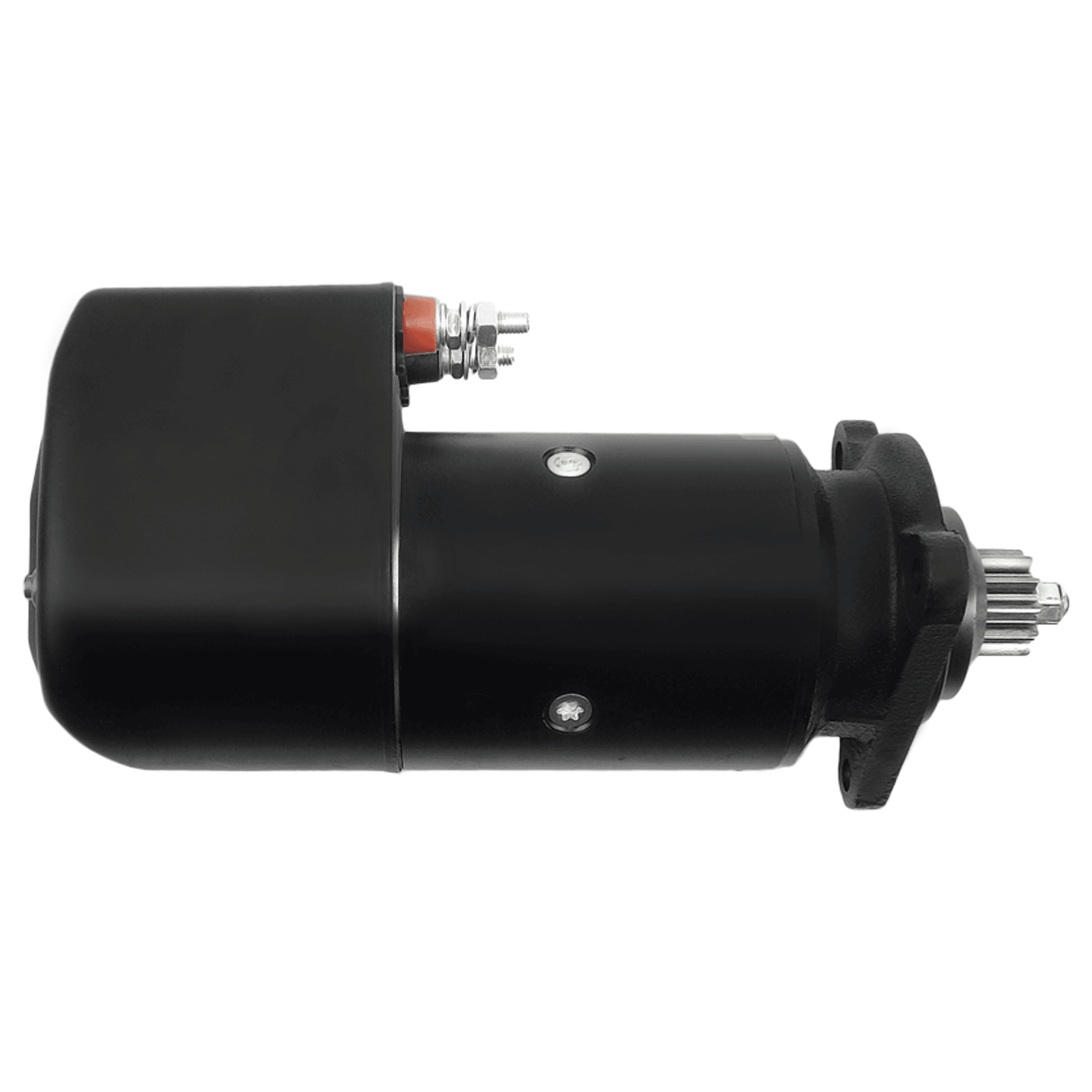

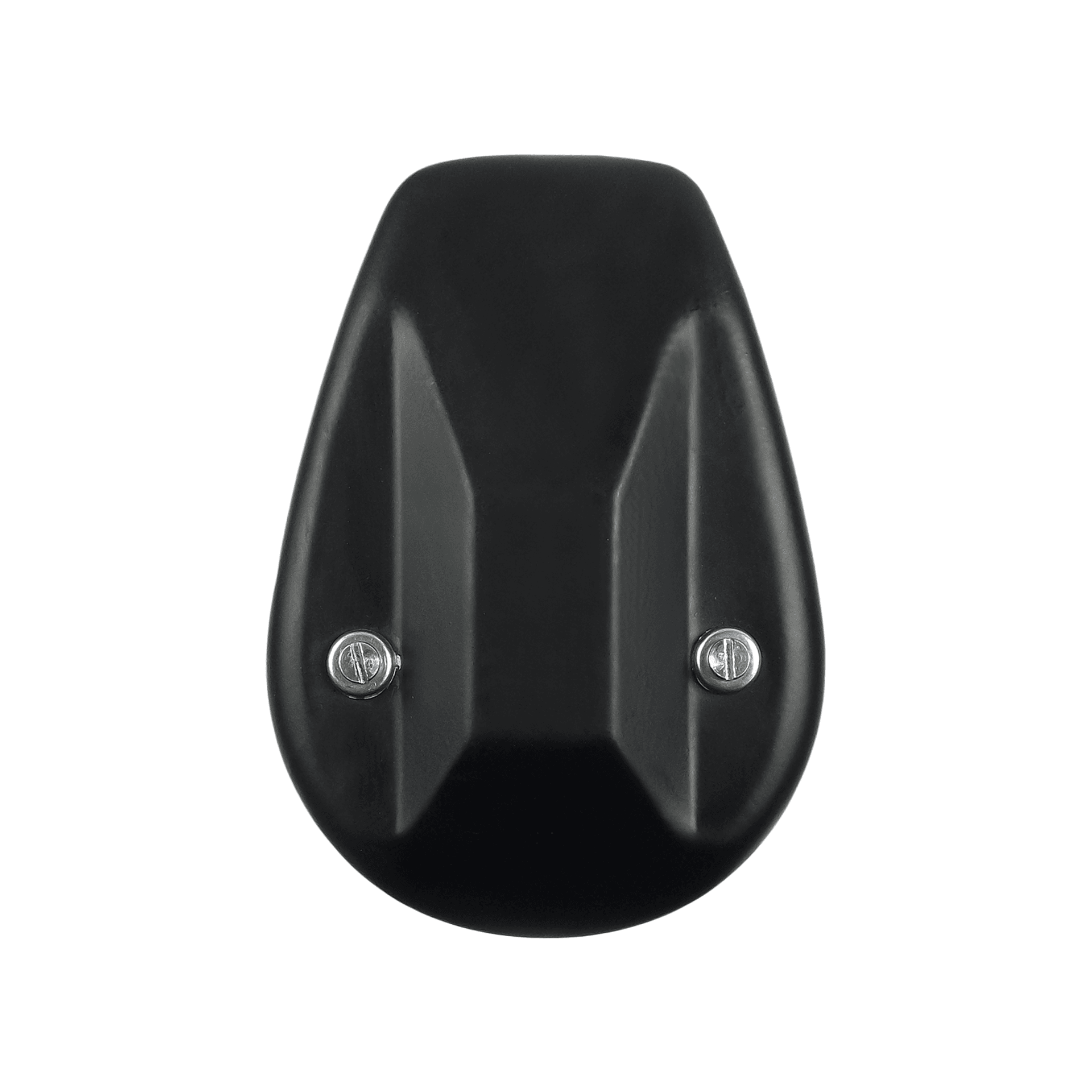

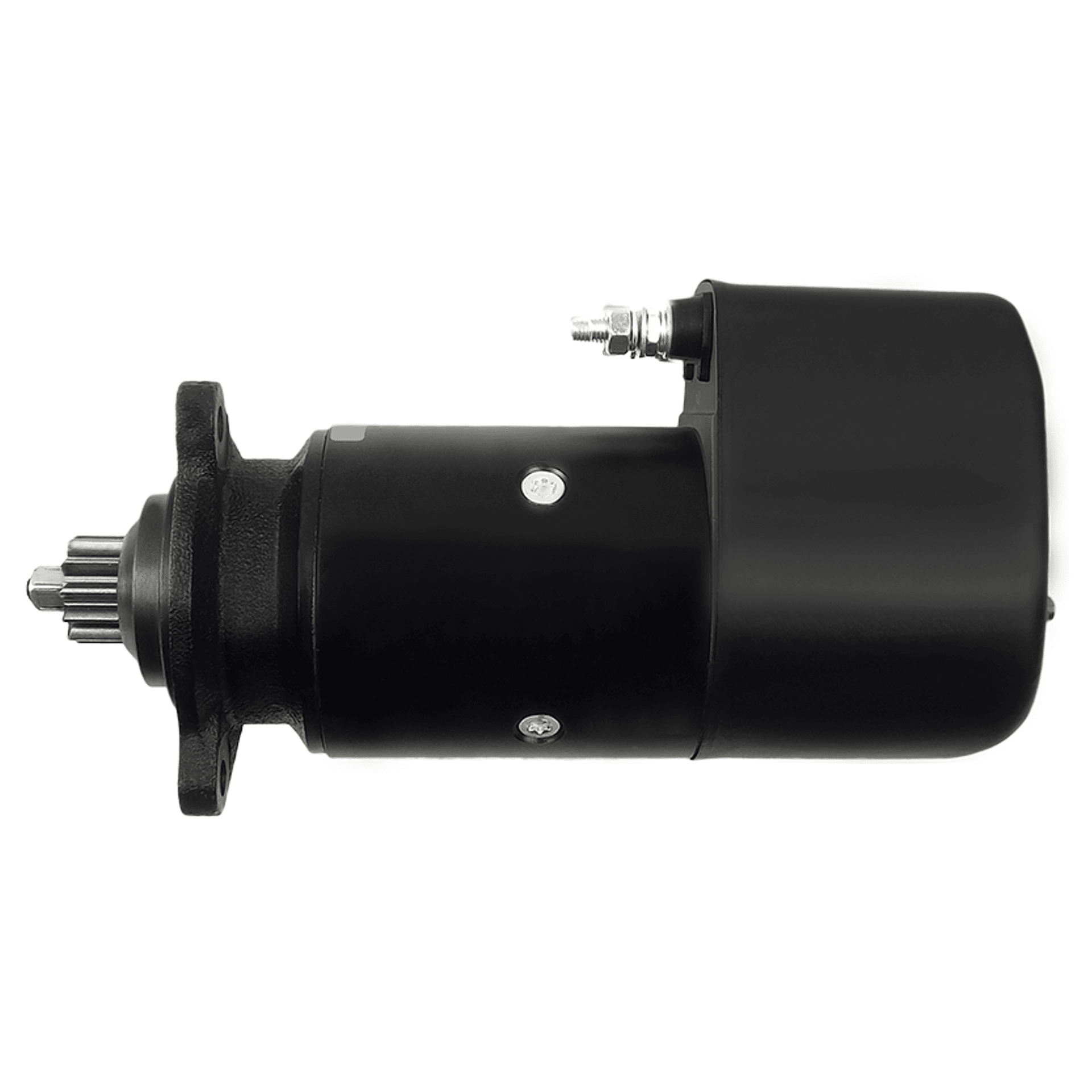

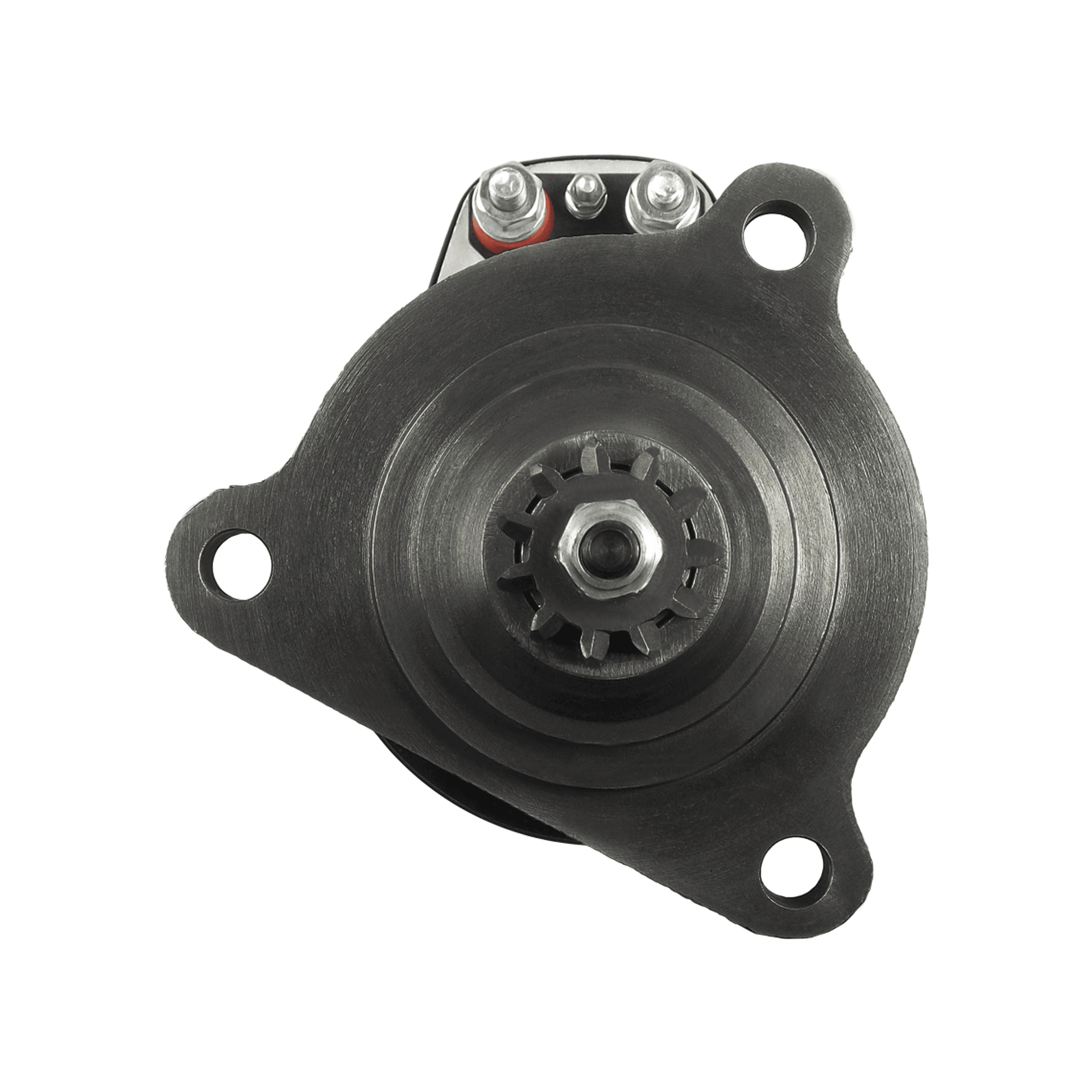

Starter XTLSTR1039
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
125 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.4 kW
O.3 [ mm ]
125 mm
Oil sealed
Yes
O.2 [ mm ]
125 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
View More
Starter XTLSTR1039
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
125 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
No./teeth (fits into) [ qty. ]
11 qty
Power
5.4 kW
O.3 [ mm ]
125 mm
Oil sealed
Yes
O.2 [ mm ]
125 mm
C.1 [ mm ]
13.50 mm
Voltage
24 V
C.3 [ mm ]
13.50 mm
C.2 [ mm ]
13.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1039
Original Code
0001416011
19784
2-3177-2W
2995116
Equivalent Code (Vehicle Manufacturer)
10502 (KUHNER)
10502P (KUHNER)
110582 (CARGO)
F032110582 (CARGO)
19784N (WAI / TRANSPO)
20401226BN (REAL)
20401226EL (REAL)
20401436BN (REAL)
20401436EL (REAL)
20401436RC (REAL)
10825 (EFEL)
22608 (EFEL)
28.0502 (LAUBER)
2995116 (IVECO)
2997384 (IVECO)
42498148 (IVECO)
42498619 (IVECO)
611466642 (IVECO)
33532 (EAI)
45-1368 (ELSTOCK)
45-2459 (ELSTOCK)
455522 (VALEO)
4784445 (FIAT)
4784745 (FIAT)
4784747 (FIAT)
61583669 (FIAT)
6010622 (SANDO)
6010634 (SANDO)
81466052 (MONARK)
860516GB (PRESTOLITE)
8704 (CEVAM)
8813420 (FRIESEN)
88212396 (POWERMAX)
8EA726150-001 (HELLA)
AES9186 (AUTOELECTRO)
CGB-11552 (AINDE)
CS502 (HC PARTS)
CST10622AS (CASCO)
CST10622ES (CASCO)
CST10622RS (CASCO)
CST10634AS (CASCO)
CST10634ES (CASCO)
CST10634GS (CASCO)
CST10634RS (CASCO)
DRS3420 (DELCO)
DRS8420 (DELCO)
IM511 (AVF)
LRS00986 (LUCAS)
LRS986 (LUCAS)
MAV126340 (SIOM)
MAV1306 (SIOM)
MAV2070 (SIOM)
S0221 (AS-PL)
UD102942S (AS-PL)
STR22057 (WOODAUTO)
PRSL316 (3EFFE)
STRL316 (3EFFE)
220022 (ERA)
220220 (ERA)
S24BH0039A2 (SIDAT)
S24BH0040A2 (SIDAT)
ANM15640X (ANDEL)
5110042 (MEAT & DORIA)
R20K1 (ELMOT)
STR1644 (ELECTROLOG)
1516763R (DAF)
PTC-4040 (POWER TRUCK)
Applications
Applications
ALL
IVECO
Make
IVECO
