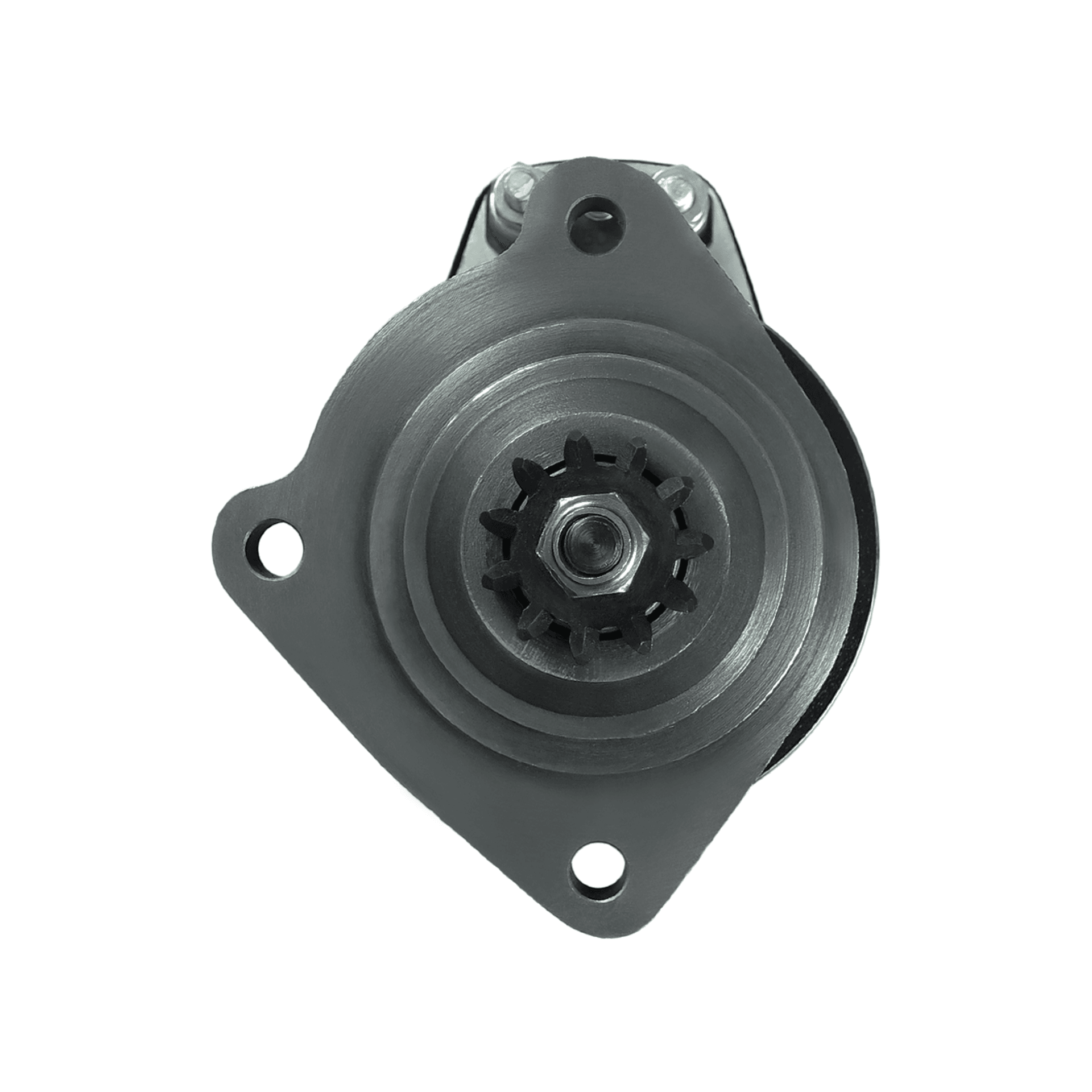

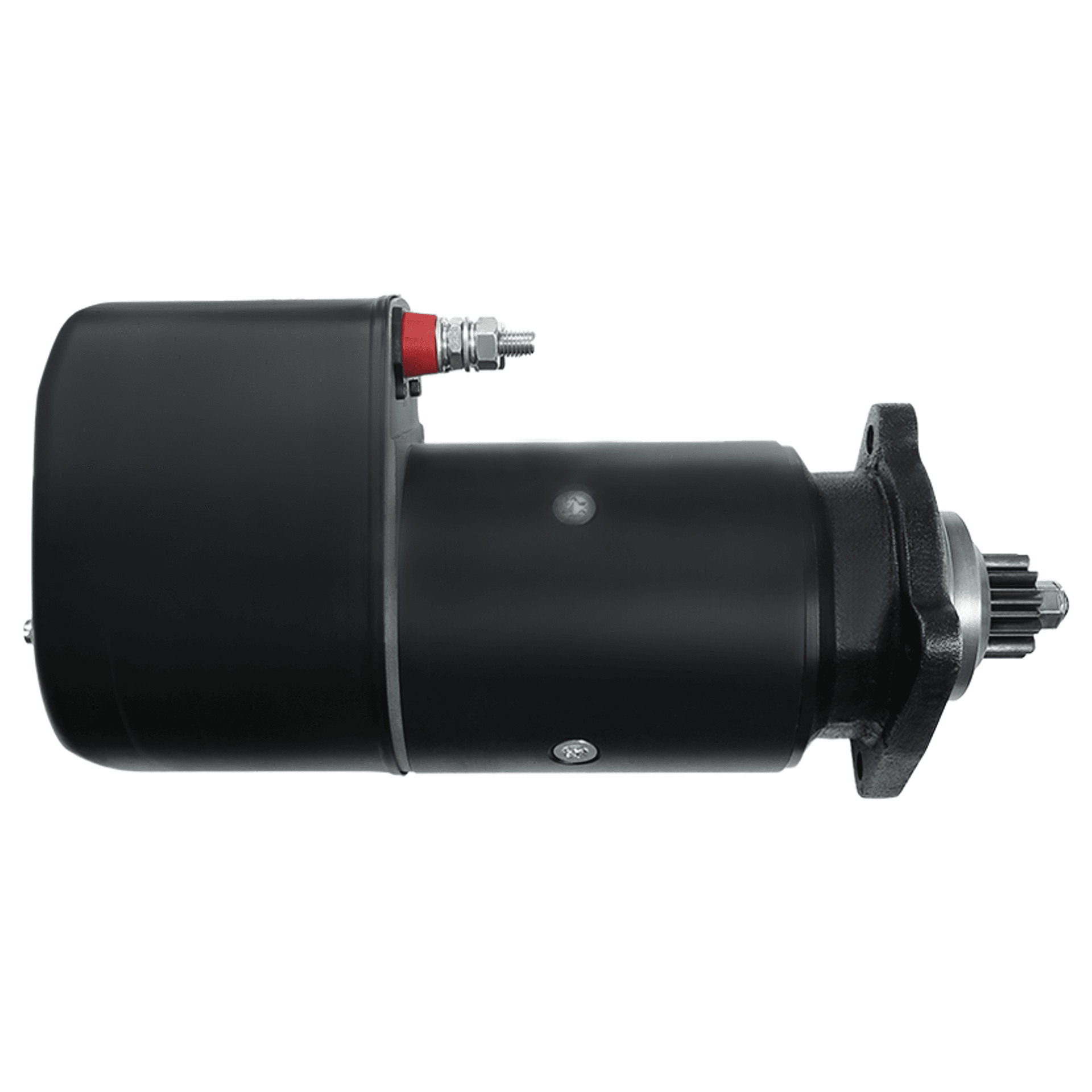

Starter XTLSTR1048
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
5.5 kW
O.3 [ mm ]
89 mm
Oil sealed
Yes
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR1048
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
386 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
11 qty
Power
5.5 kW
O.3 [ mm ]
89 mm
Oil sealed
Yes
O.2 [ mm ]
89 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1048
Original Code
0001416036
2-3174-2W
30773
42498250
Equivalent Code (Vehicle Manufacturer)
01171955 (KHD)
01174639 (KHD)
01174645 (KHD)
1171955 (KHD)
3040680 (KHD)
10384 (KUHNER)
11.139.013 (ISKRA / LETRIKA)
AZK5173 (ISKRA / LETRIKA)
IS9013 (ISKRA / LETRIKA)
110535 (CARGO)
F032110535 (CARGO)
16372N (WAI / TRANSPO)
20401826BN (REAL)
20401826EL (REAL)
22.0384 (LAUBER)
28.0384 (LAUBER)
33631 (EAI)
45-1370 (ELSTOCK)
455616 (VALEO)
621.000.0 (ELMOT)
R23-21 (ELMOT)
81466036 (MONARK)
860655GB (PRESTOLITE)
860656GB (PRESTOLITE)
8694 (CEVAM)
8812730 (FRIESEN)
8EA726132-001 (HELLA)
CGB-11536 (AINDE)
CS384 (HC PARTS)
CST10628AS (CASCO)
CST10628ES (CASCO)
DRS2730 (DELCO)
IM536 (AVF)
LRS00748 (LUCAS)
LRS748 (LUCAS)
MAV126260 (SIOM)
MAV126280 (SIOM)
72736194 (MAHLE)
MS566 (MAHLE)
STR22018 (WOODAUTO)
PRSS903 (3EFFE)
STRS903 (3EFFE)
220322 (ERA)
330536 (LOGISTIK)
22620 (EFEL)
6010628.0 (SANDO)
6010628.3 (SANDO)
STR1648 (ELECTROLOG)
STR79443 (ELECTROLOG)
42498250 (IVECO)
42522680 (IVECO)
42526680 (IVECO)
8121335 (IVECO)
1516756R (DAF)
1701063 (FAUN)
C9JF11350A (FORD)
D6PZ11350C (FORD)
Applications
Applications
ALL
IVECO
Make
IVECO
