Starter XTLSTR1077 | SINTLY
Previous slide
Next slide

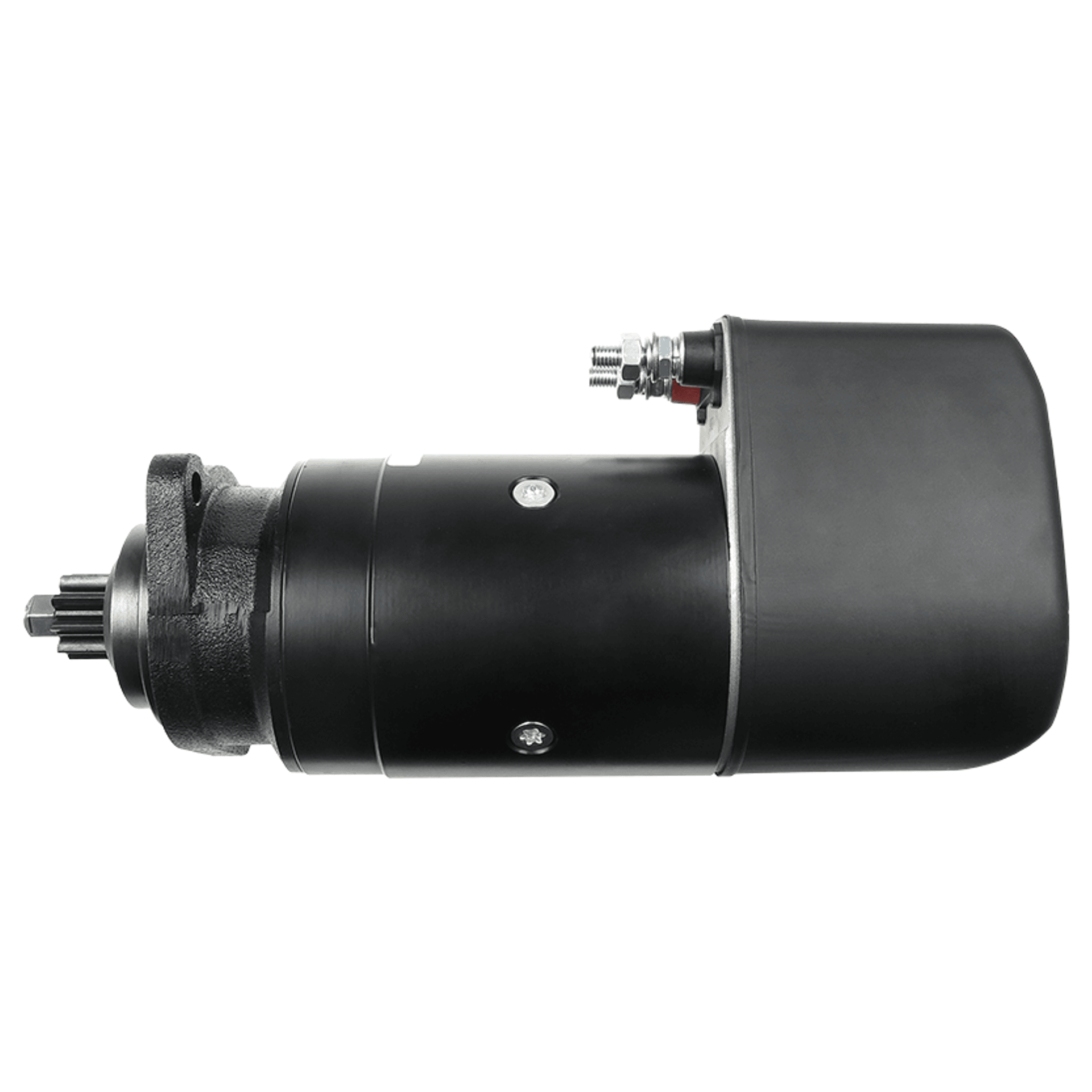

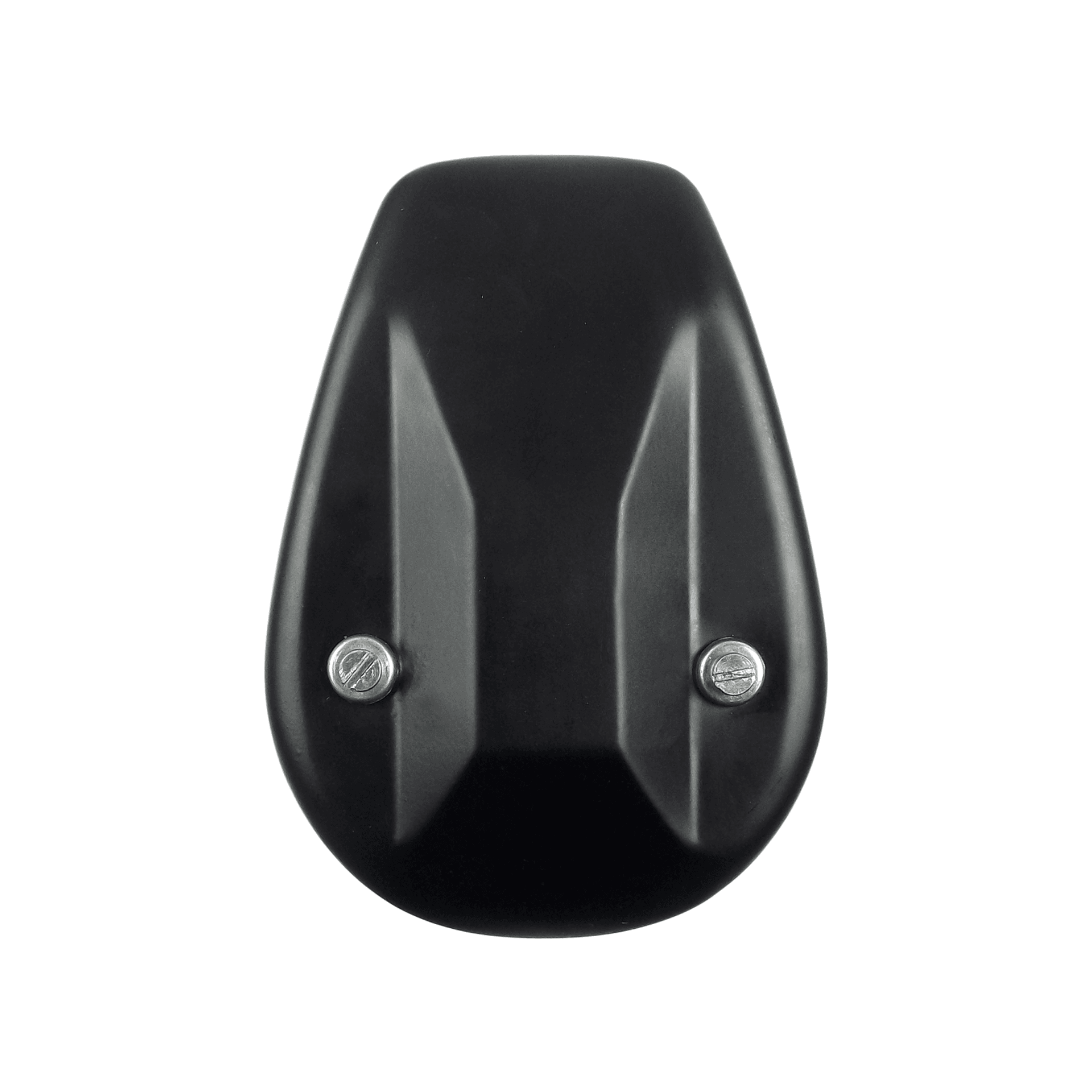

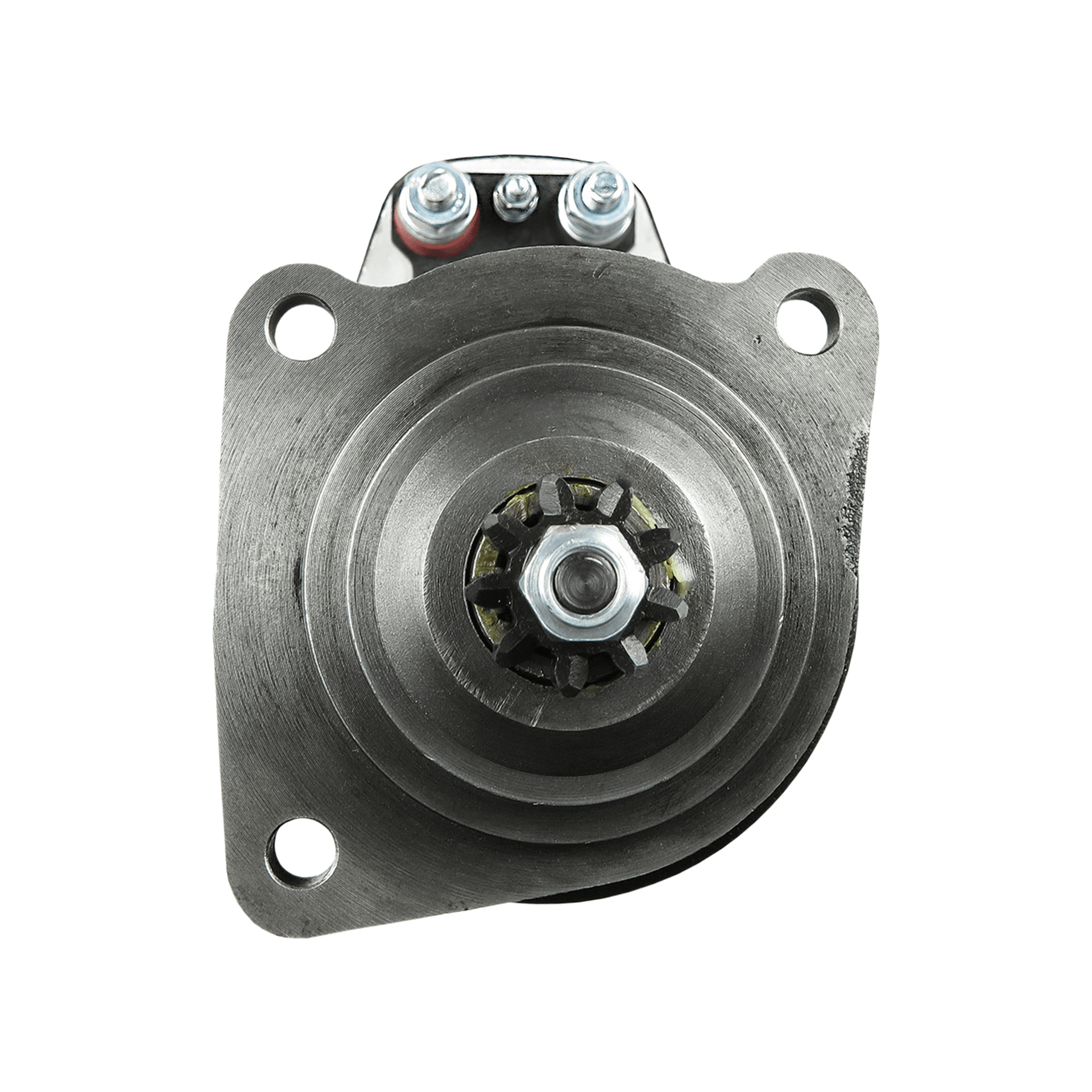

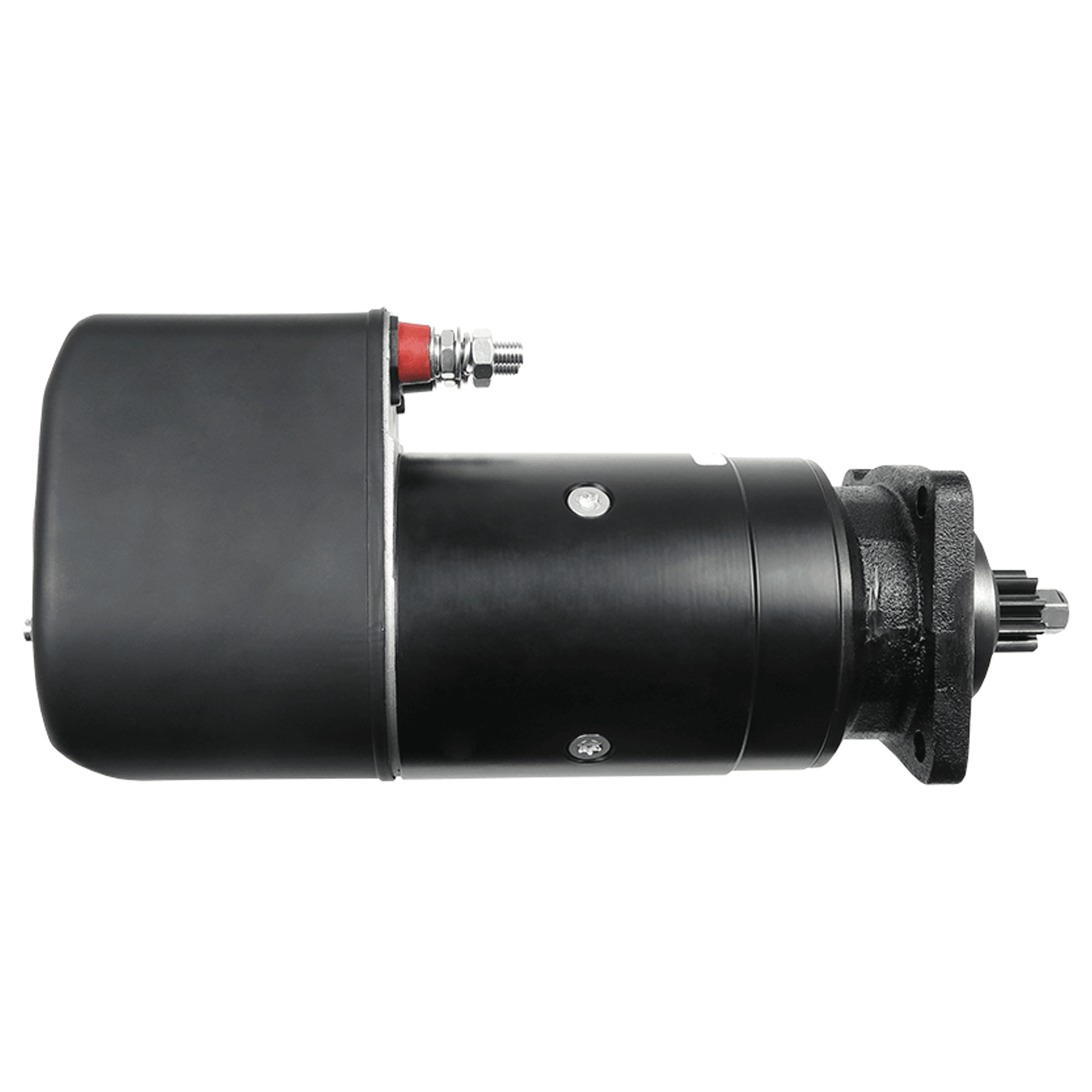

Starter XTLSTR1077
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
405 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
9 qty
Power
6.6 kW
O.3 [ mm ]
90 mm
Oil sealed
Yes
Insulated return
Yes
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
View More
Starter XTLSTR1077
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
127 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
405 mm
Rotation
CW
Size A [ mm ]
89 mm
Size B [ mm ]
47 mm
No./teeth
9 qty
Power
6.6 kW
O.3 [ mm ]
90 mm
Oil sealed
Yes
Insulated return
Yes
O.2 [ mm ]
90 mm
C.1 [ mm ]
10.50 mm
Voltage
24 V
C.3 [ mm ]
10.50 mm
C.2 [ mm ]
10.50 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR1077
Original Code
0001417026
0001417040
1395211
Equivalent Code (Vehicle Manufacturer)
0031515801 (MERCEDES)
A0031515801 (MERCEDES)
01176483 (KHD)
1176483 (KHD)
11.139.066 (ISKRA / LETRIKA)
11.139.130 (ISKRA / LETRIKA)
AZK5421 (ISKRA / LETRIKA)
AZK5478 (ISKRA / LETRIKA)
IS9057 (ISKRA / LETRIKA)
IS9117 (ISKRA / LETRIKA)
1395211 (SCANIA)
19024066 (DELCO)
DRS0318 (DELCO)
254323 (KUHNER)
45-5017 (ELSTOCK)
605720100043 (MWM)
605720100101 (MWM)
8194 (CEVAM)
860547 (PRESTOLITE)
860547GB (PRESTOLITE)
860670GB (PRESTOLITE)
91-15-7182 (WILSON)
911.205.093 (PSH)
S136.213 (PSH)
S145.480 (PSH)
BOS0001417026 (WOODAUTO)
PRE860547GB (WOODAUTO)
IM336 (AVF)
IM626 (AVF)
IM640 (AVF)
JB243708304 (JUBANA)
LRS03844 (LUCAS)
LRS3844 (LUCAS)
MS 552 (MAHLE)
MS 588 (MAHLE)
STRF300 (3EFFE)
S0522 (AS-PL)
UD03003S (AS-PL)
UNIT BOM 120-6478 (WAI / TRANSPO)
220305 (ERA)
ANM12538X (ANDEL)
CST10873 (CASCO)
20401378 (REAL)
6010873 (SANDO)
STR1656 (ELECTROLOG)
STR79497 (ELECTROLOG)
STR79557 (ELECTROLOG)
Applications
Applications
ALL
SCANIA
Make
SCANIA
