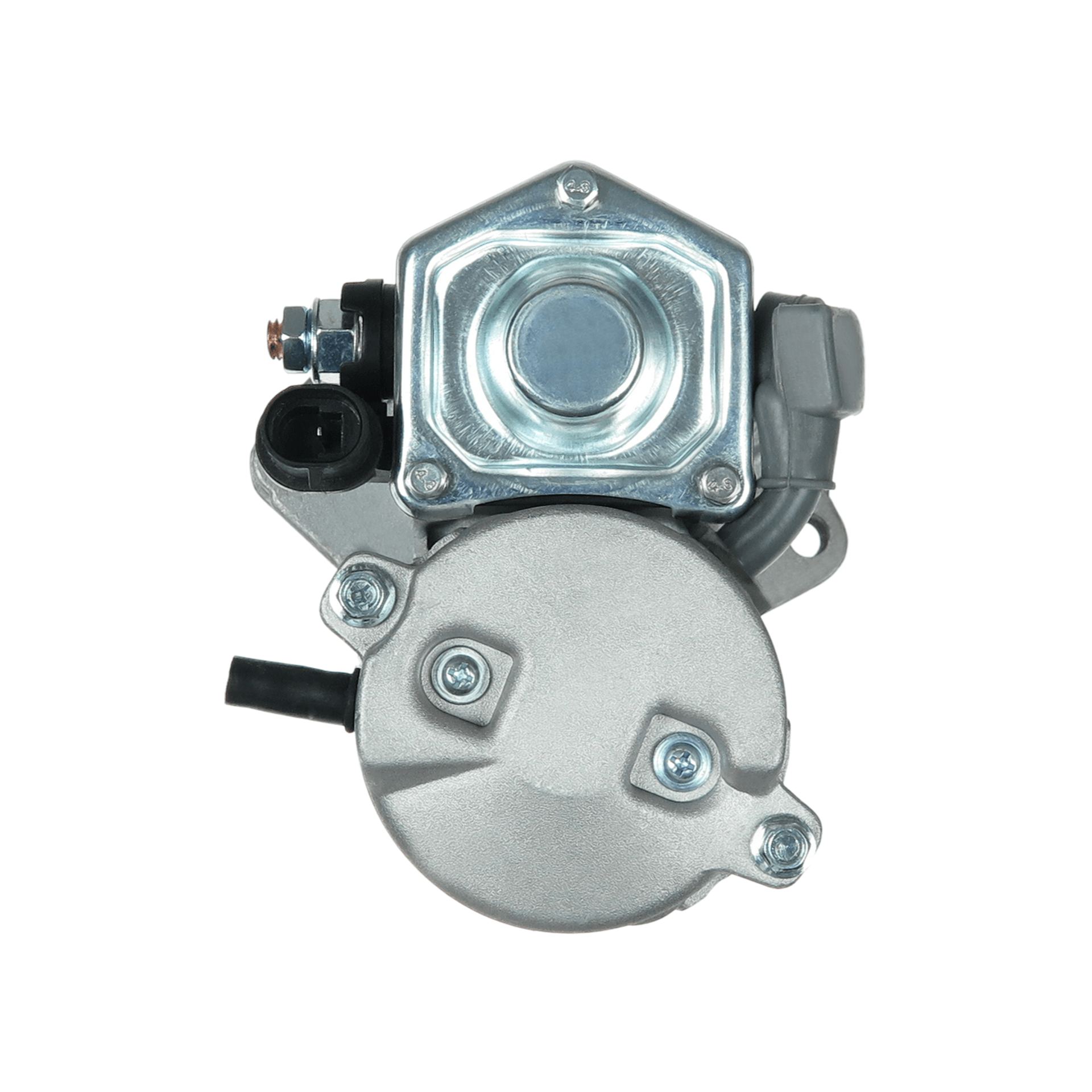

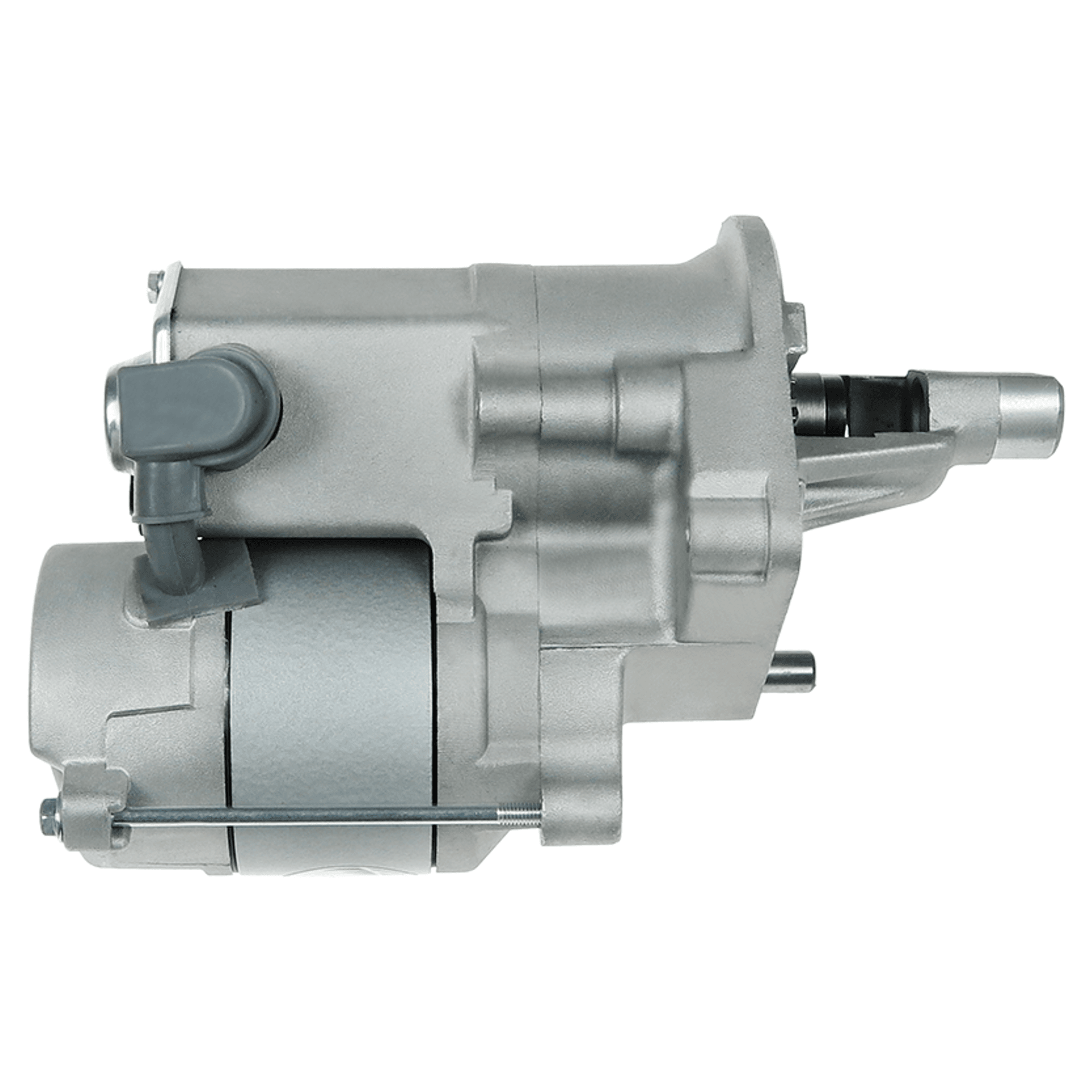

Starter XTLSTR2016
Download PDF
No./teeth
10 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
225 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.5 mm
Size A [ mm ]
81.5 mm
Size B [ mm ]
7 mm
View More
Starter XTLSTR2016
Download PDF
Send Inquiry
No./teeth
10 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
225 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.5 mm
Size A [ mm ]
81.5 mm
Size B [ mm ]
7 mm
Applications
Original Code
04686045AB
17784
228000-7640
228000-7641
Equivalent Code (Vehicle Manufacturer)
04686045AB (CHRYSLER)
114135 (CARGO)
F032114135 (CARGO)
17784N (WAI / TRANSPO)
17784R (WAI / TRANSPO)
25-3240 (ELSTOCK)
830.504.092 (PSH)
830.504.092.415 (PSH)
WhatsApp inquiry
Email inquiry
Starter XTLSTR2016
830.504.092.461 (PSH)
S148.569 (PSH)
88213267 (POWERMAX)
91-29-5492 (WILSON)
91-29-5492N (WILSON)
CS1501 (HC PARTS)
LRS01692 (LUCAS)
LRS1692 (LUCAS)
S-8917 (DIXIE)
STN4135 (KRAUF)
STR70255 (WOODAUTO)
UD16976S (AS-PL)
STX200486 (STARDAX)
