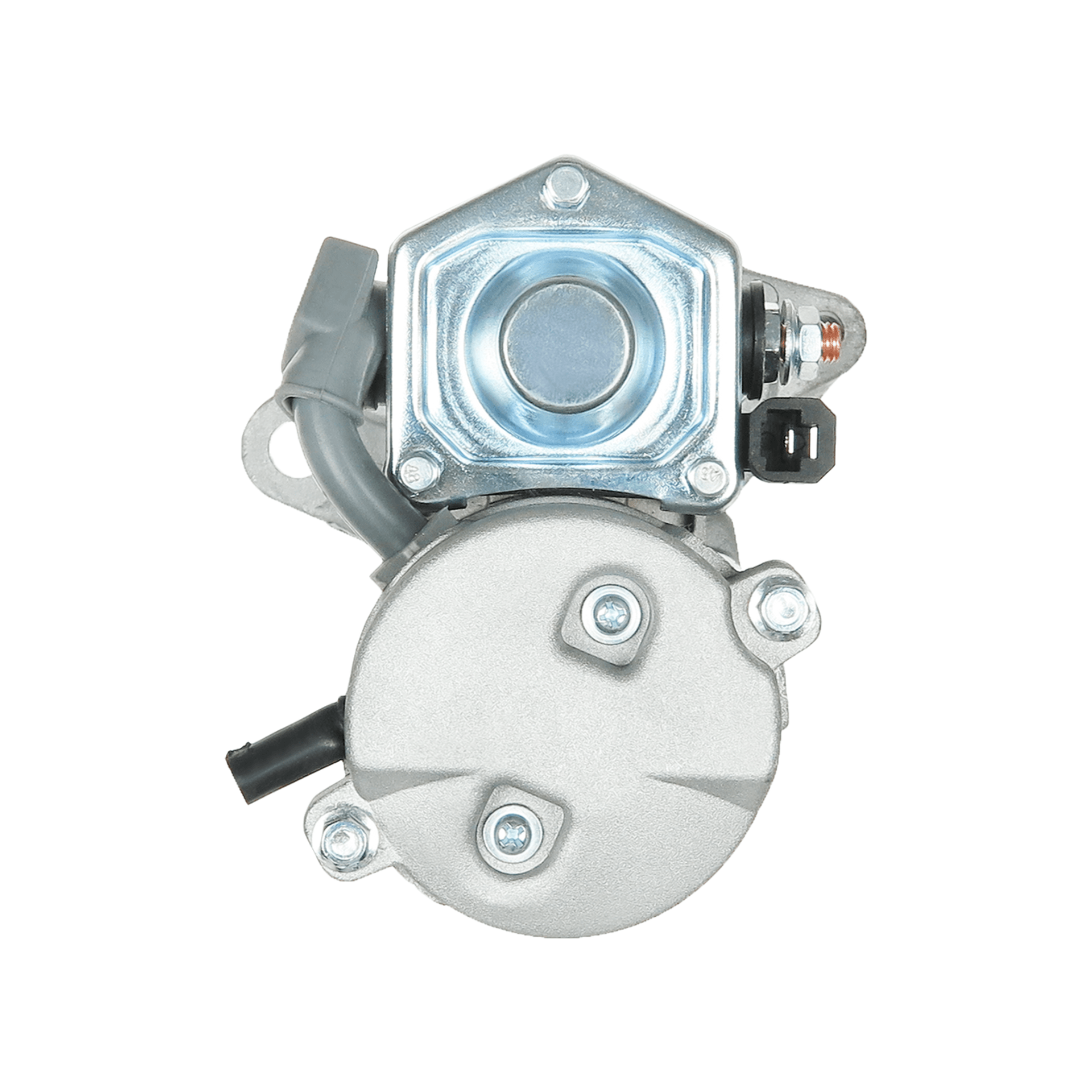

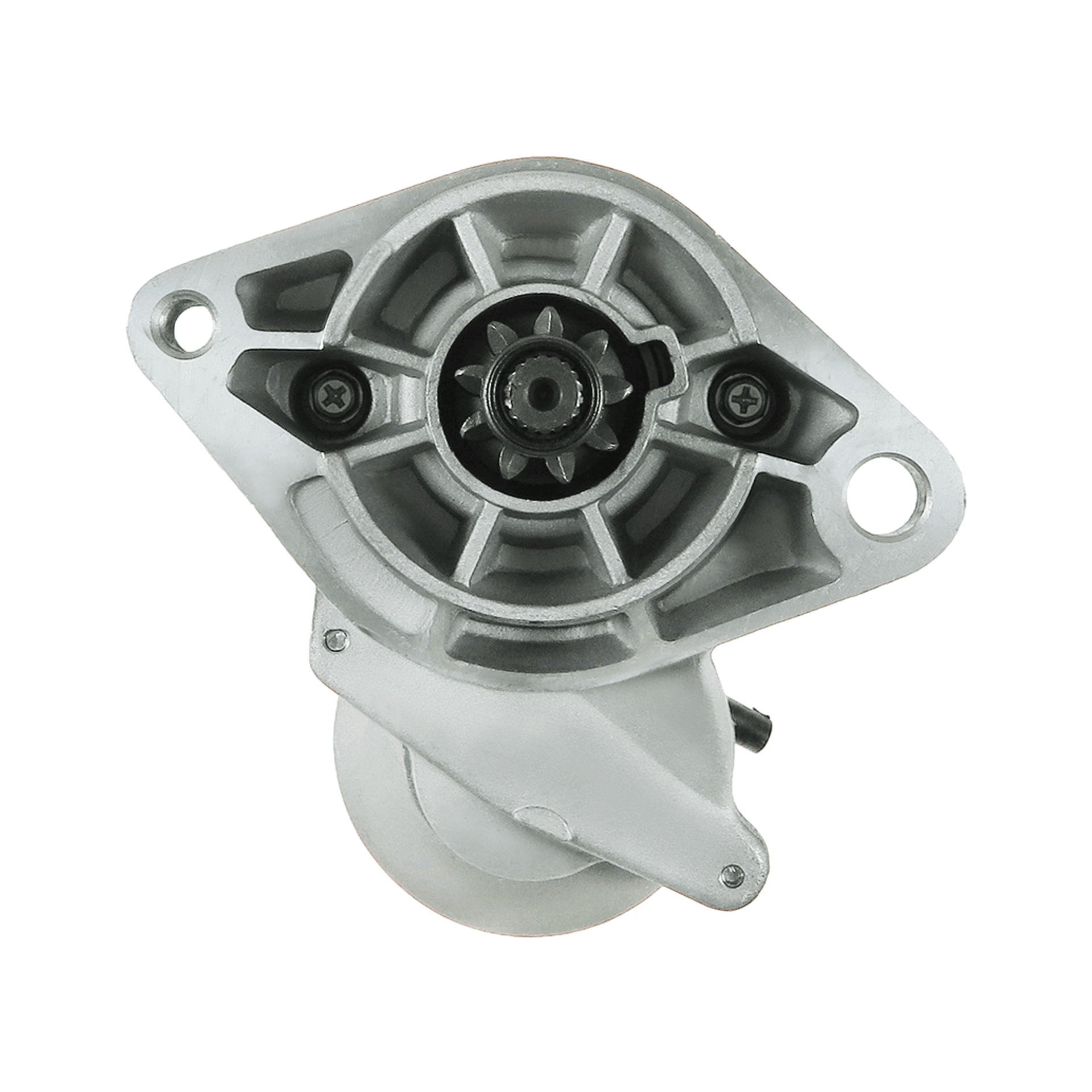

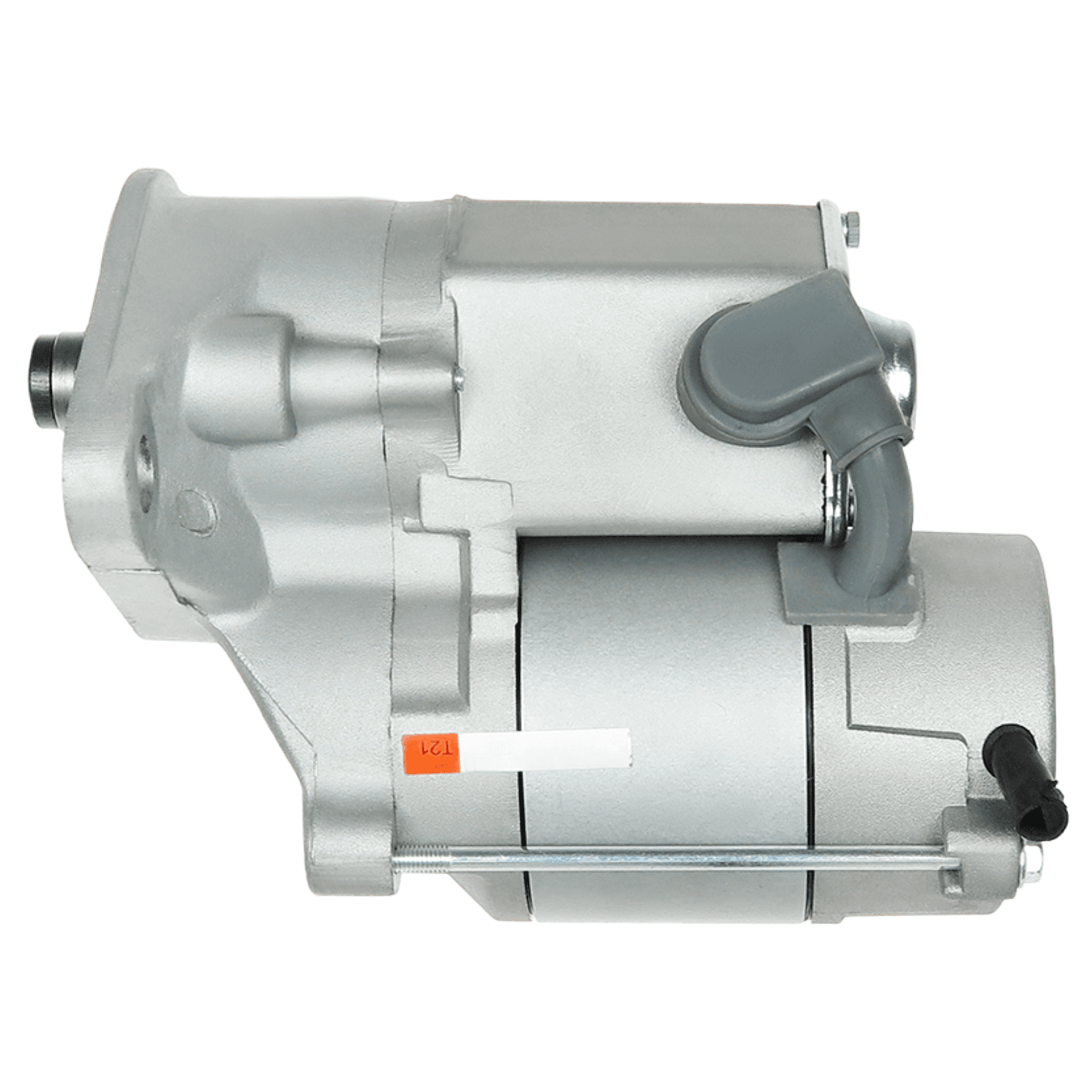

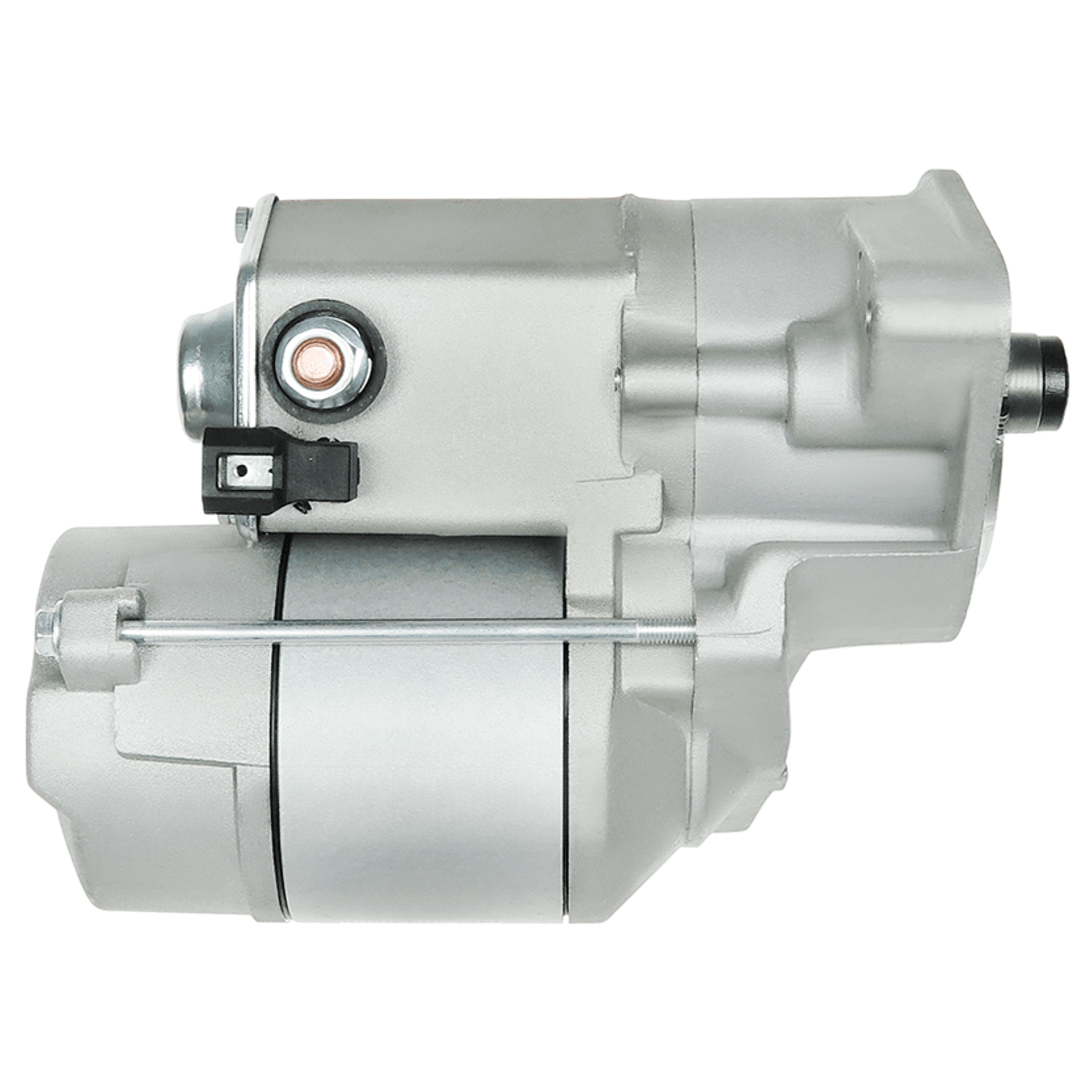

Starter XTLSTR2068
Download PDF
No./teeth
9 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
119.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
189 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
13.00 mm
Size A [ mm ]
74 mm
Size B [ mm ]
10 mm
View More
Starter XTLSTR2068
Download PDF
Send Inquiry
No./teeth
9 qty
Power
1.4 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
119.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.5 mm
L.1 [ mm ]
189 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
13.00 mm
Size A [ mm ]
74 mm
Size B [ mm ]
10 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR2068
Original Code
17562
228000-3020
228000-3024
4609703
Equivalent Code (Vehicle Manufacturer)
17562N (WAI / TRANSPO)
17562R (WAI / TRANSPO)
190-20311 (ROBERT'S)
25-3008 (ELSTOCK)
4609703 (CHRYSLER)
4686111 (CHRYSLER)
4686111AE (CHRYSLER)
830.596.092 (PSH)
830.596.092.058 (PSH)
830.596.092.945 (PSH)
88213581 (POWERMAX)
91-29-5739 (WILSON)
91-29-5739N (WILSON)
DRZ5183 (DELCO)
DZ6293 (DELCO)
LRS01530 (LUCAS)
LRS1530 (LUCAS)
S-8442 (DIXIE)
STN3115 (KRAUF)
STR8051 (WOODAUTO)
UD16985S (AS-PL)
CST40276AS (CASCO)
20432672BN (REAL)
6040276.0 (SANDO)
MAV422760A (SIOM)
STR6774 (ELECTROLOG)
STM675 (ROLLCO)
STX201116 (STARDAX)
Applications
Applications
ALL
CHRYSLER
Make
CHRYSLER
