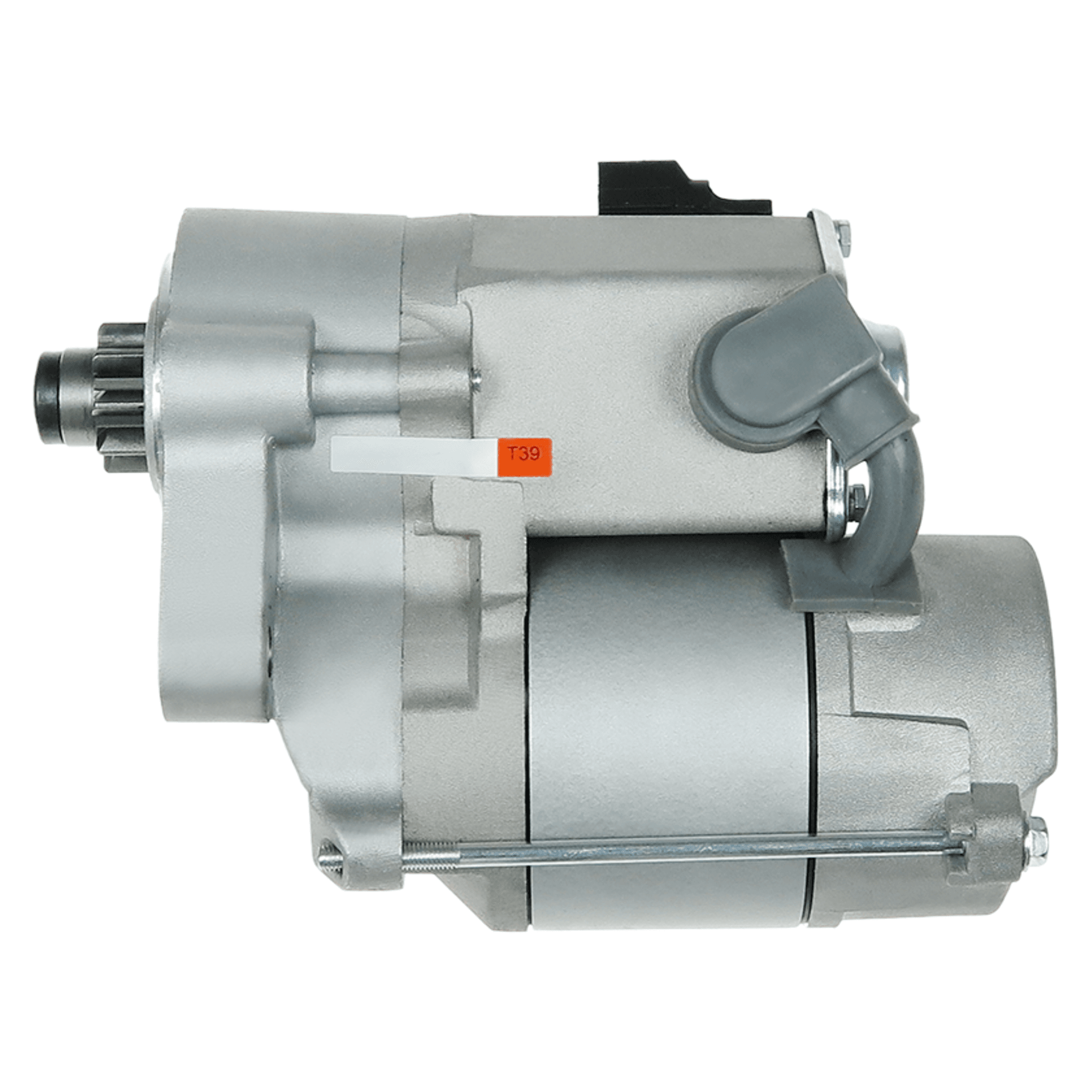

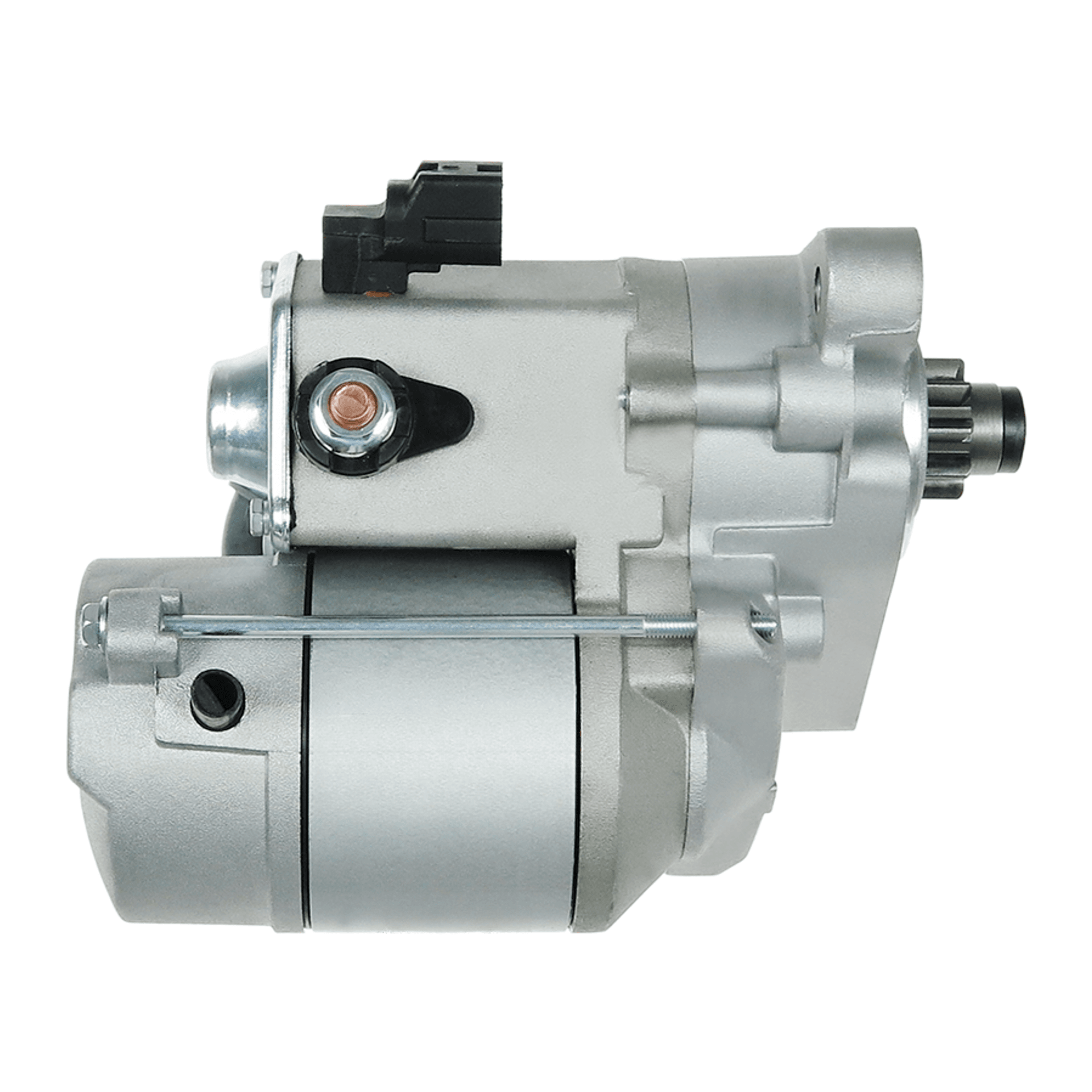

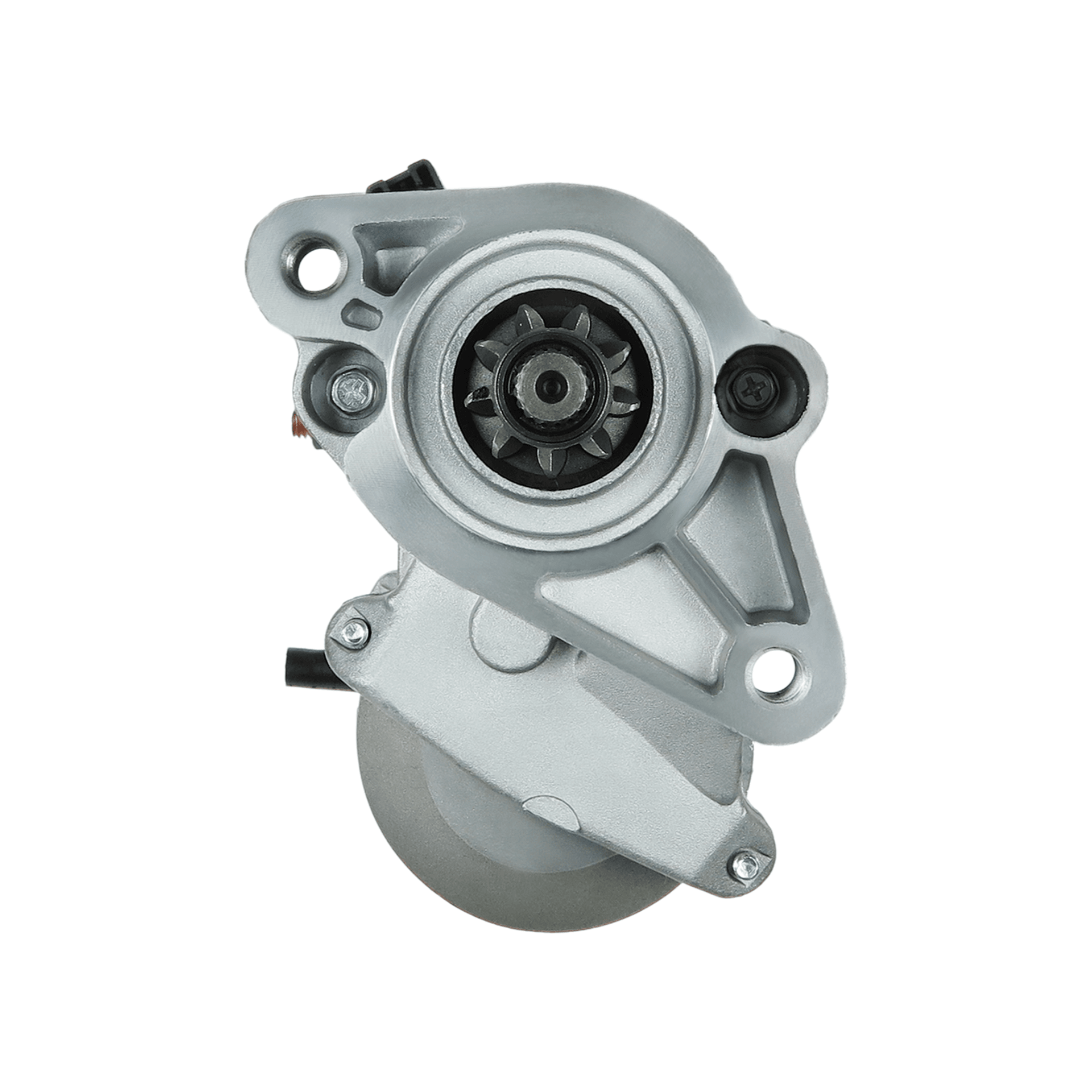

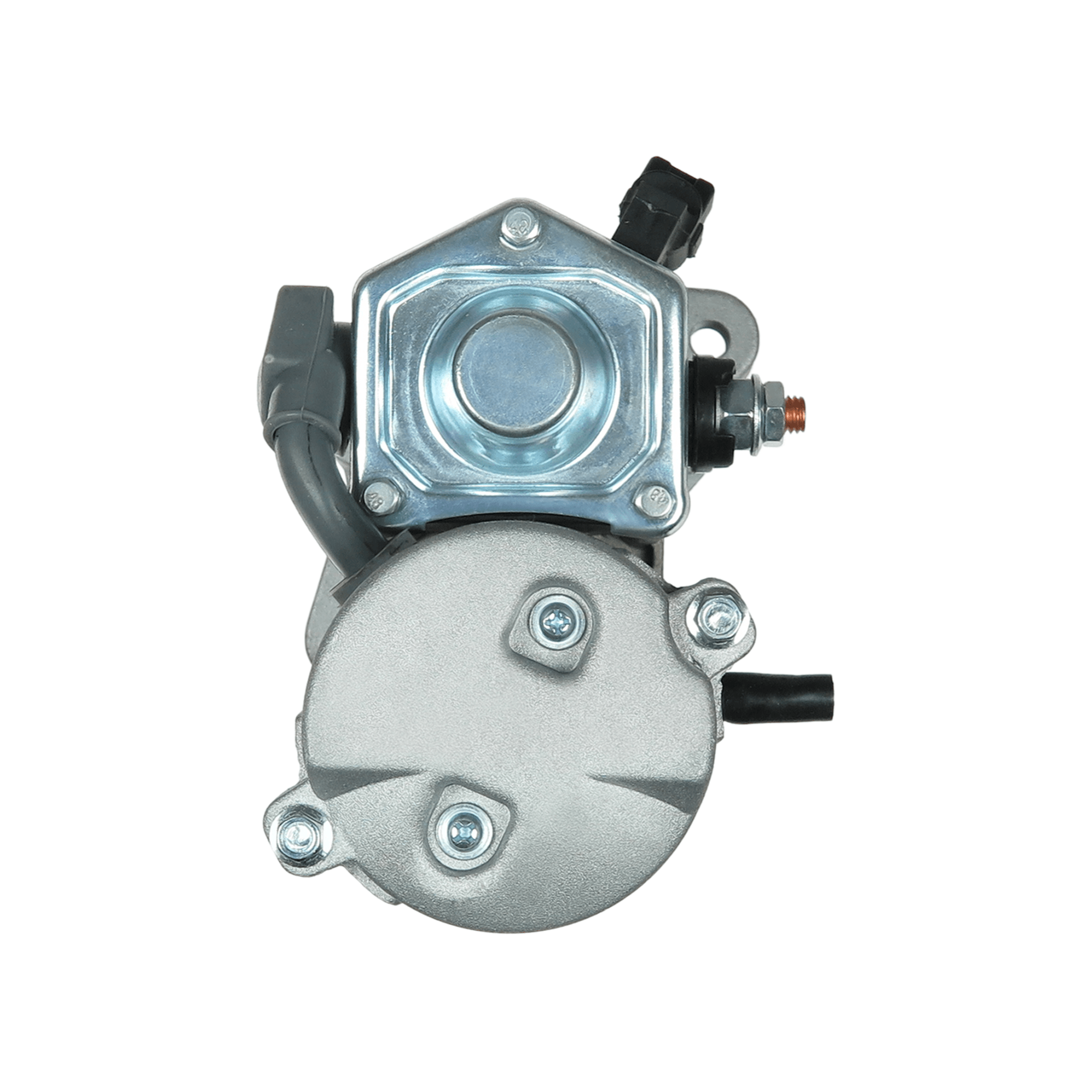

Starter XTLSTR2090
Download PDF
No./teeth
9 qty
Power
1.6 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
106 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
190 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.25 mm
Size A [ mm ]
55 mm
Size B [ mm ]
17 mm
View More
Starter XTLSTR2090
Download PDF
Send Inquiry
No./teeth
9 qty
Power
1.6 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
106 mm
No./mount. holes with thread [ qty. ]
2 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
190 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
M10x1.25 mm
Size A [ mm ]
55 mm
Size B [ mm ]
17 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR2090
Original Code
128000-5560
17523
228000-2730
28100-65020
Equivalent Code (Vehicle Manufacturer)
113112 (CARGO)
F032113112 (CARGO)
17523N (WAI / TRANSPO)
17523R (WAI / TRANSPO)
201099 (KUHNER)
20432372BN (REAL)
25-1417 (ELSTOCK)
25-3236 (ELSTOCK)
28100-65020 (TOYOTA)
28100-65030 (TOYOTA)
28100-65080 (TOYOTA)
28100-65090 (TOYOTA)
28100-65100 (TOYOTA)
281000-W030 (TOYOTA)
2810065010 (TOYOTA)
6040273.0 (SANDO)
88213041 (POWERMAX)
8EA737480-001 (HELLA)
91-29-5290 (WILSON)
91-29-5290N (WILSON)
CGB-23256 (AINDE)
CST40273AS (CASCO)
DRS3847 (DELCO)
DS4957 (DELCO)
JS1099 (HC PARTS)
LRS01247 (LUCAS)
LRS1247 (LUCAS)
S-8456 (DIXIE)
STN3112 (KRAUF)
STR70123 (WOODAUTO)
STRW160 (3EFFE)
UD16844S (AS-PL)
ANM16067X (ANDEL)
335769 (LOGISTIK)
Applications
Applications
ALL
TOYOTA
Make
TOYOTA
