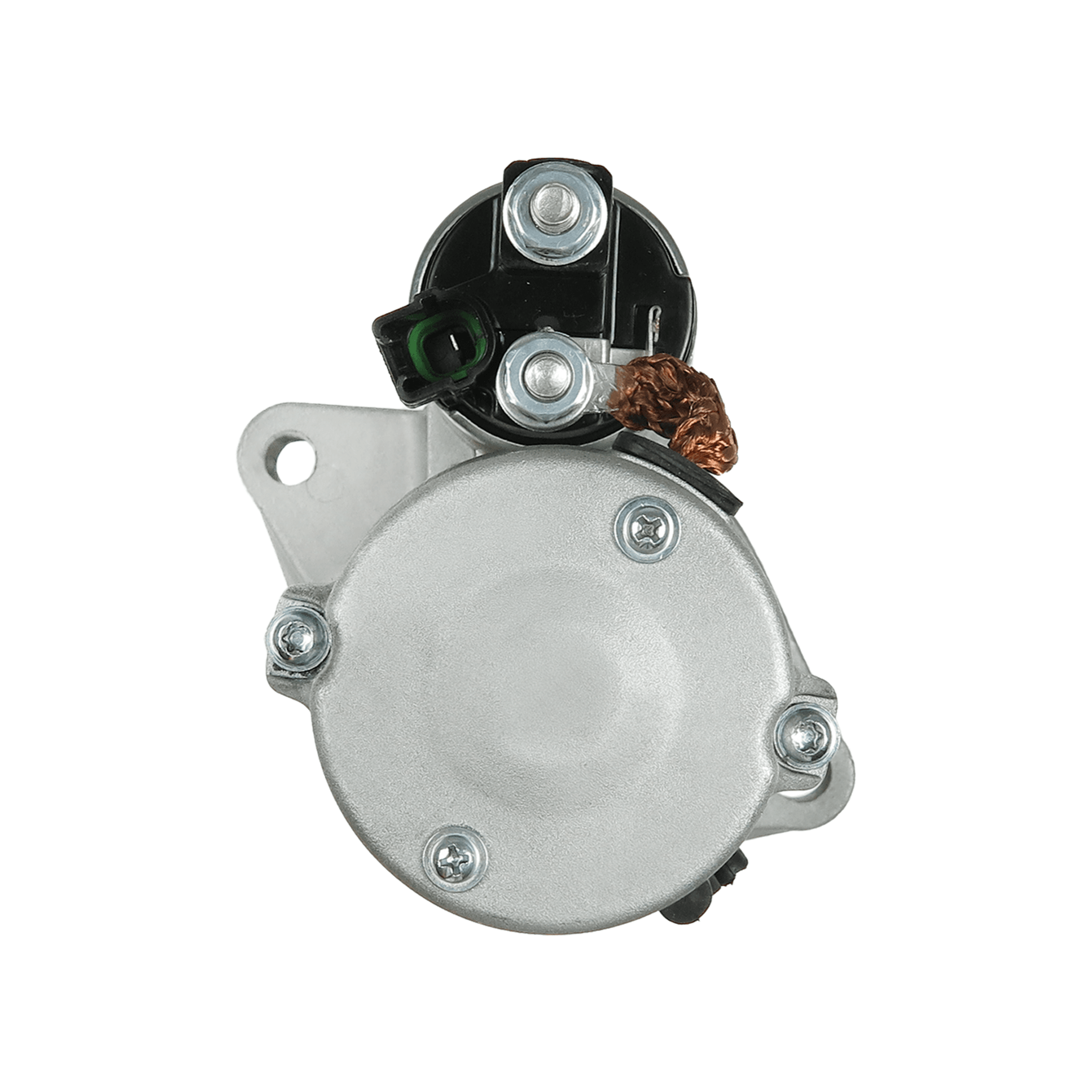

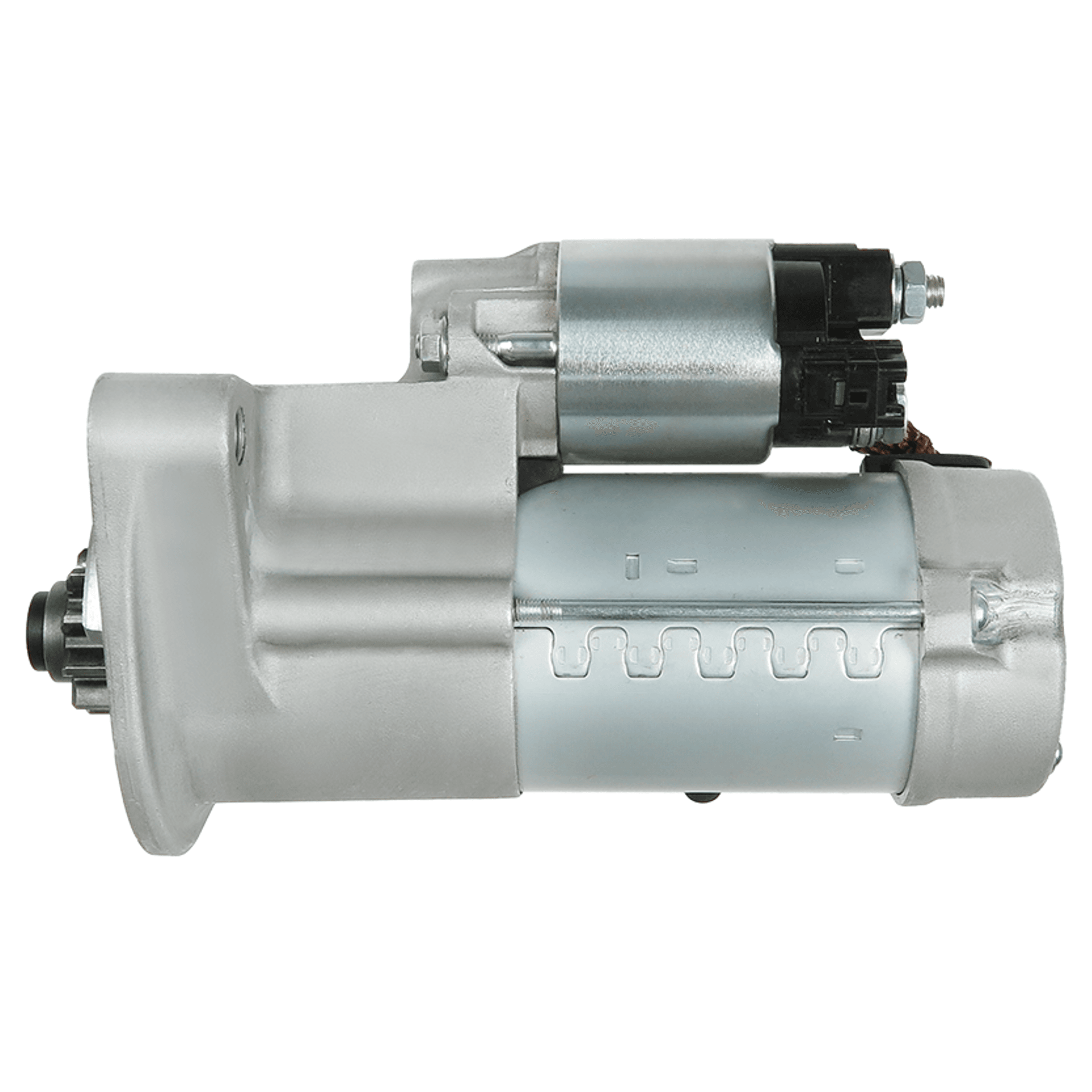

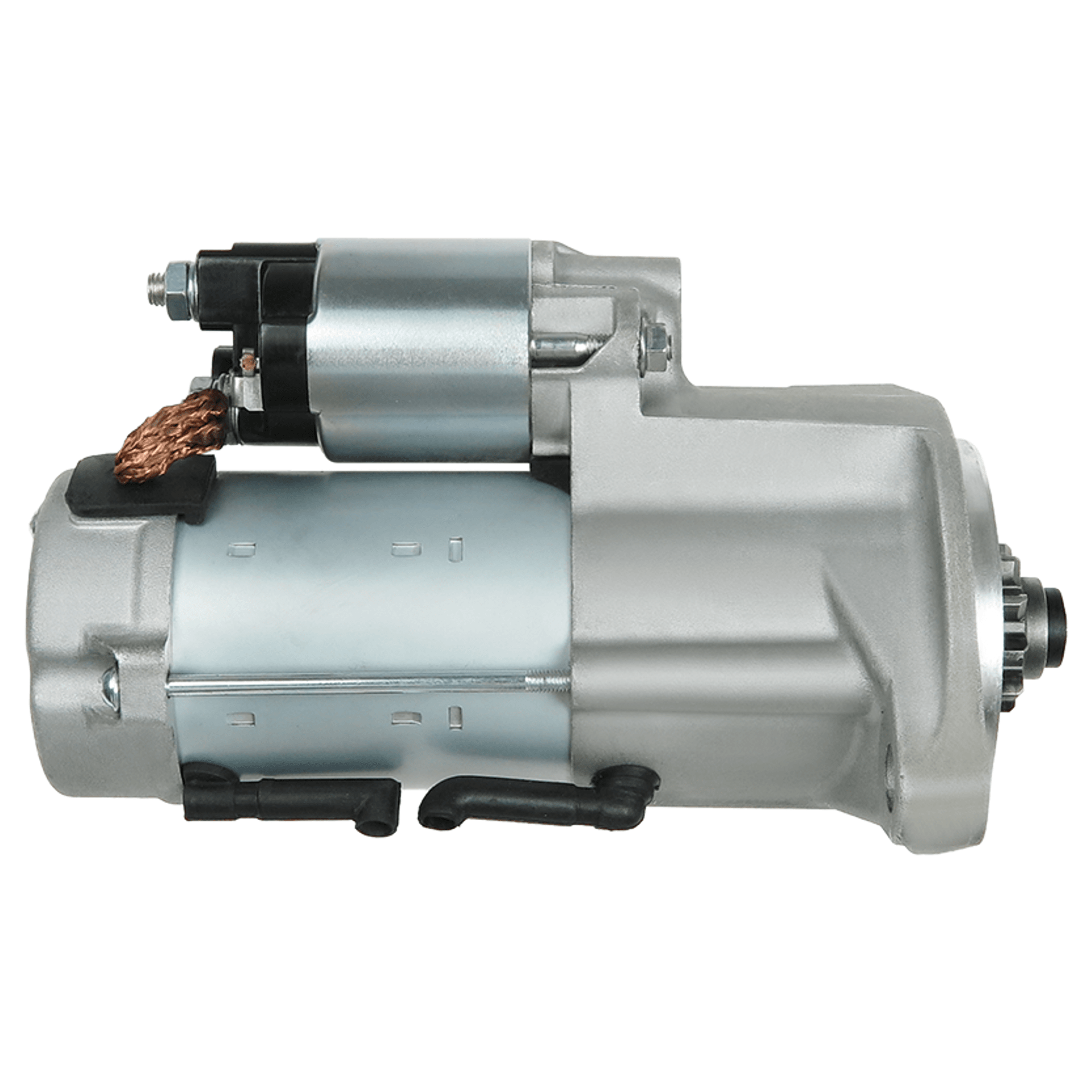

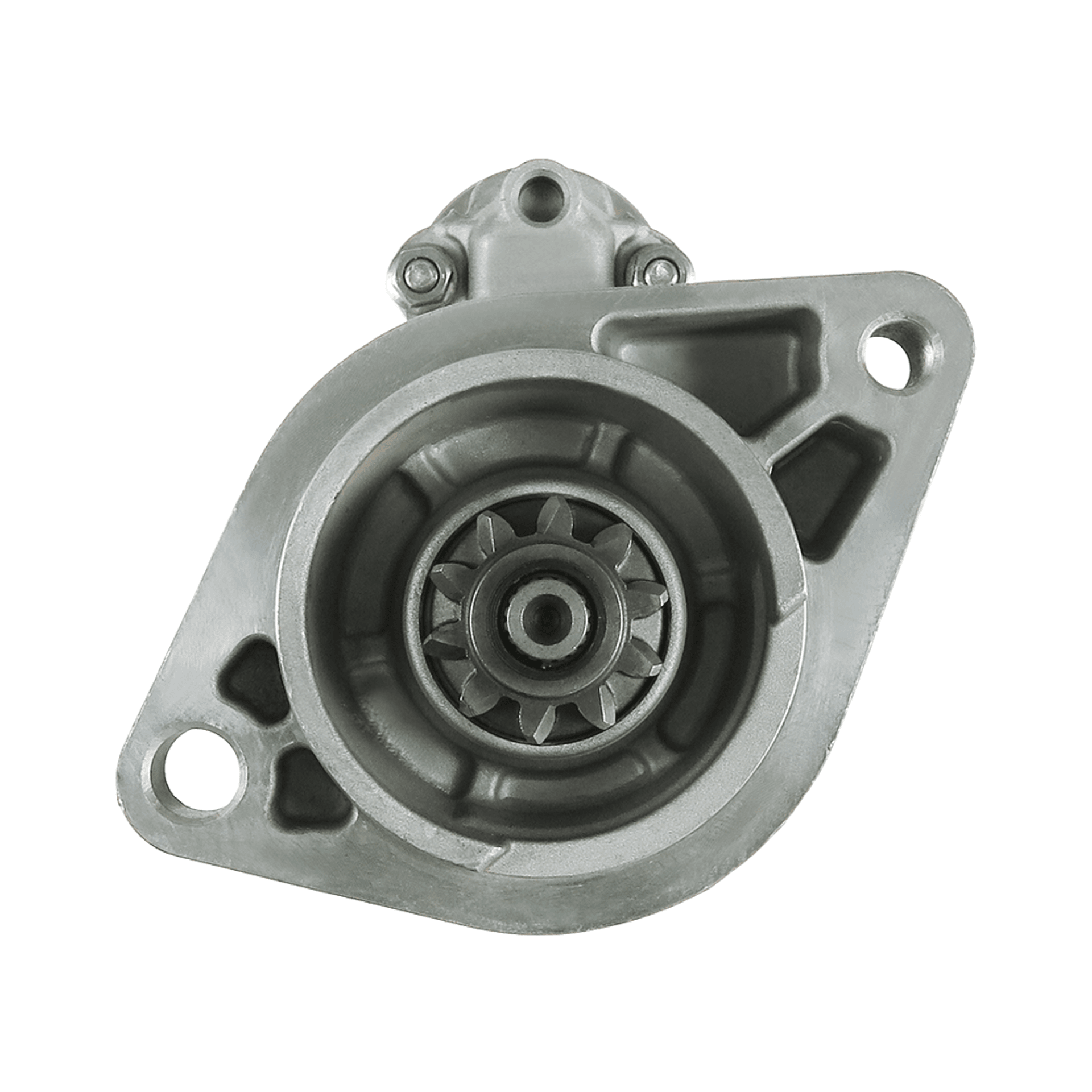

Starter XTLSTR2503
Download PDF
No./teeth
10 qty
Power
1.8 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
129 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M12x1.25 mm
L.1 [ mm ]
227 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
13.50 mm
Size A [ mm ]
82.5 mm
Size B [ mm ]
17 mm
View More
Starter XTLSTR2503
Download PDF
Send Inquiry
No./teeth
10 qty
Power
1.8 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
129 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M12x1.25 mm
L.1 [ mm ]
227 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
13.50 mm
Size A [ mm ]
82.5 mm
Size B [ mm ]
17 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR2503
Original Code
28100-OL180
438000-1790
Equivalent Code (Vehicle Manufacturer)
20432194BN (REAL)
28100-0L180 (TOYOTA)
28100-11190 (TOYOTA)
CST40491AS (CASCO)
S6289S (AS-PL)
UD102266S (AS-PL)
UD104370S (AS-PL)
UD104577S (AS-PL)
UD14906S (AS-PL)
STR6677 (ELECTROLOG)
6040491.0 (SANDO)
25-5258 (ELSTOCK)
LRS04095 (LUCAS)
LRS4095 (LUCAS)
88214453 (POWERMAX)
190.955.102.050 (PSH)
S131.380 (PSH)
STR70589 (WOODAUTO)
WOOSTR70589 (WOODAUTO)
S1358D (PRESTOLITE)
ASM2025 (APEC)
NPANSM2025 (NAPA)
31135N (WAI / TRANSPO)
Applications
Applications
ALL
TOYOTA
Make
TOYOTA
