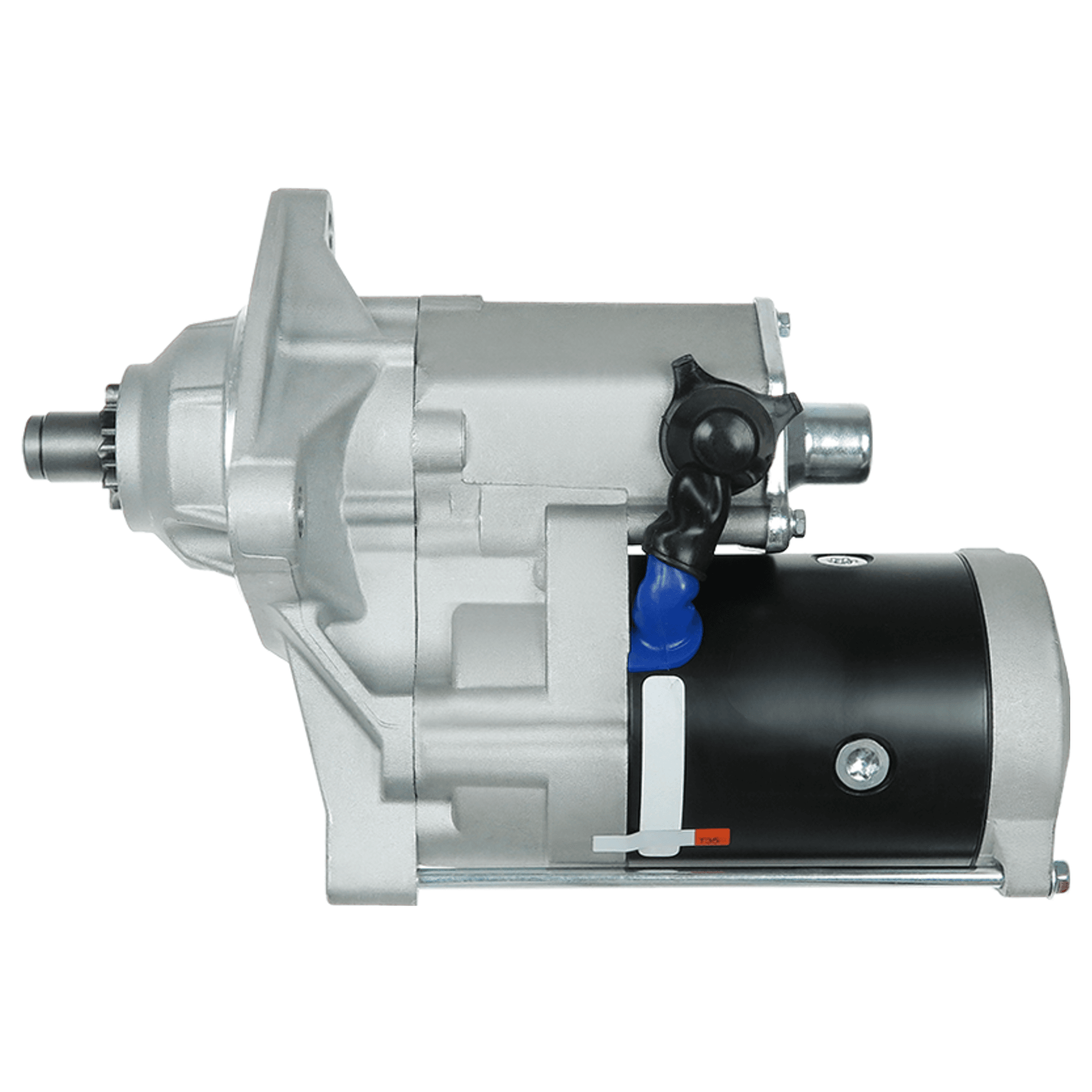

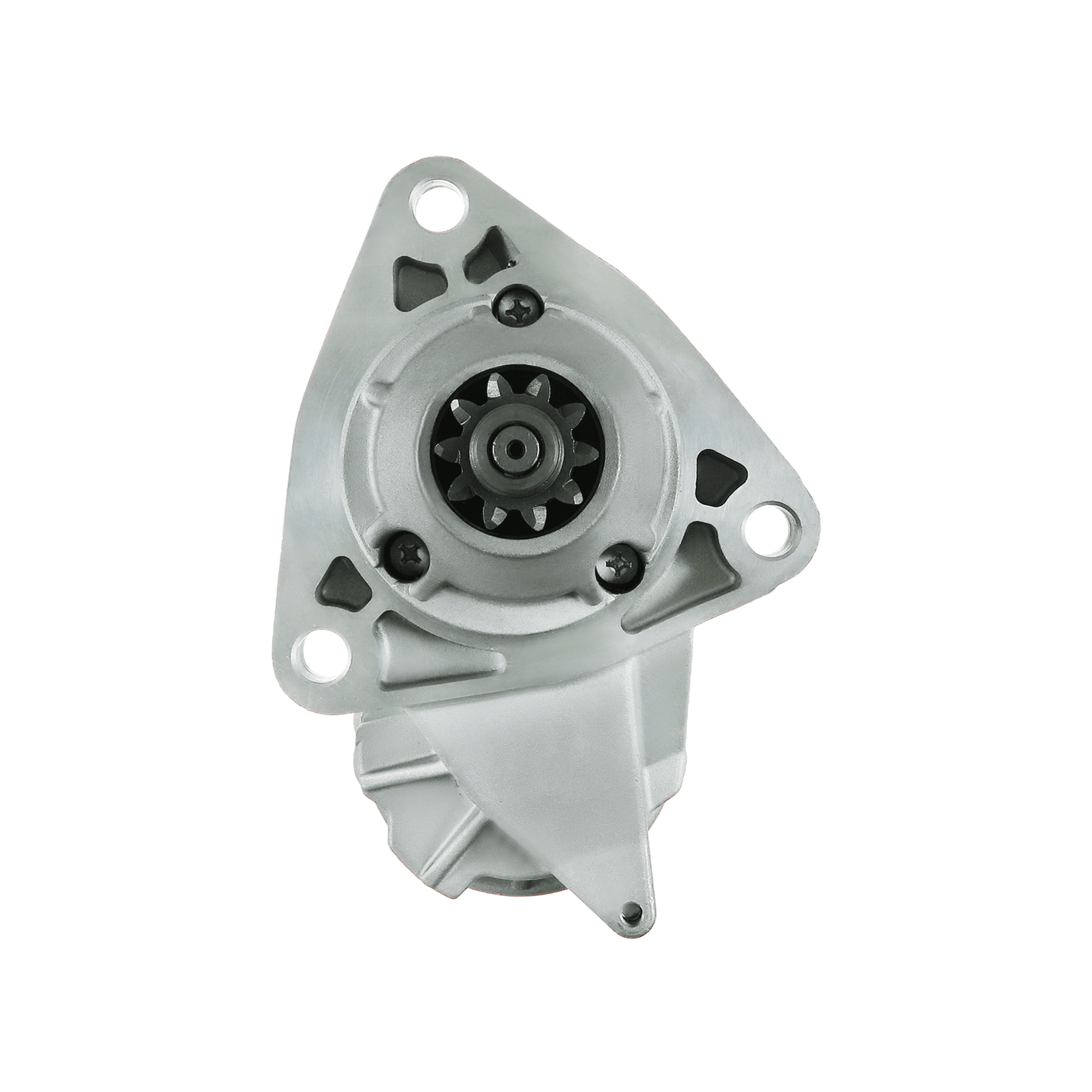

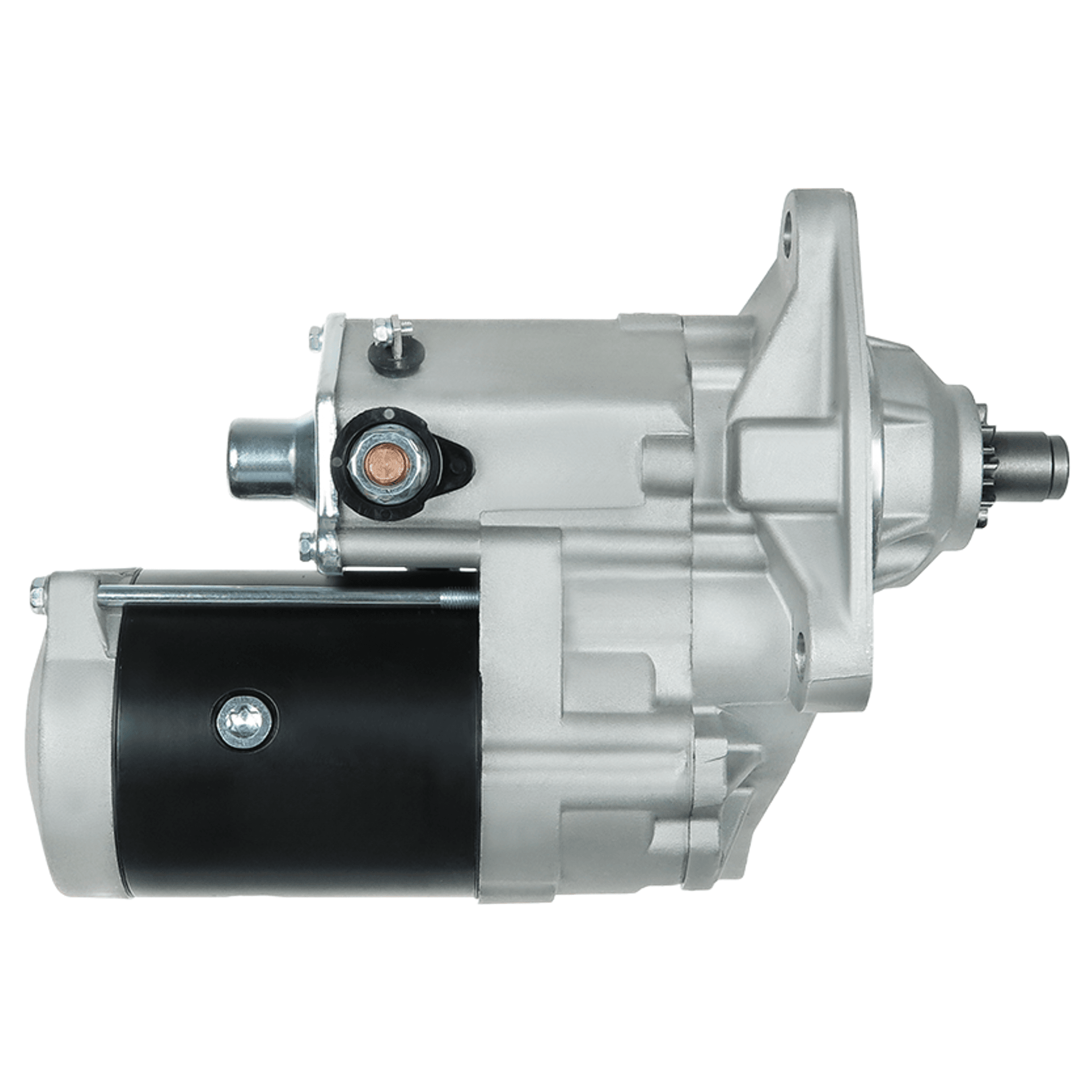

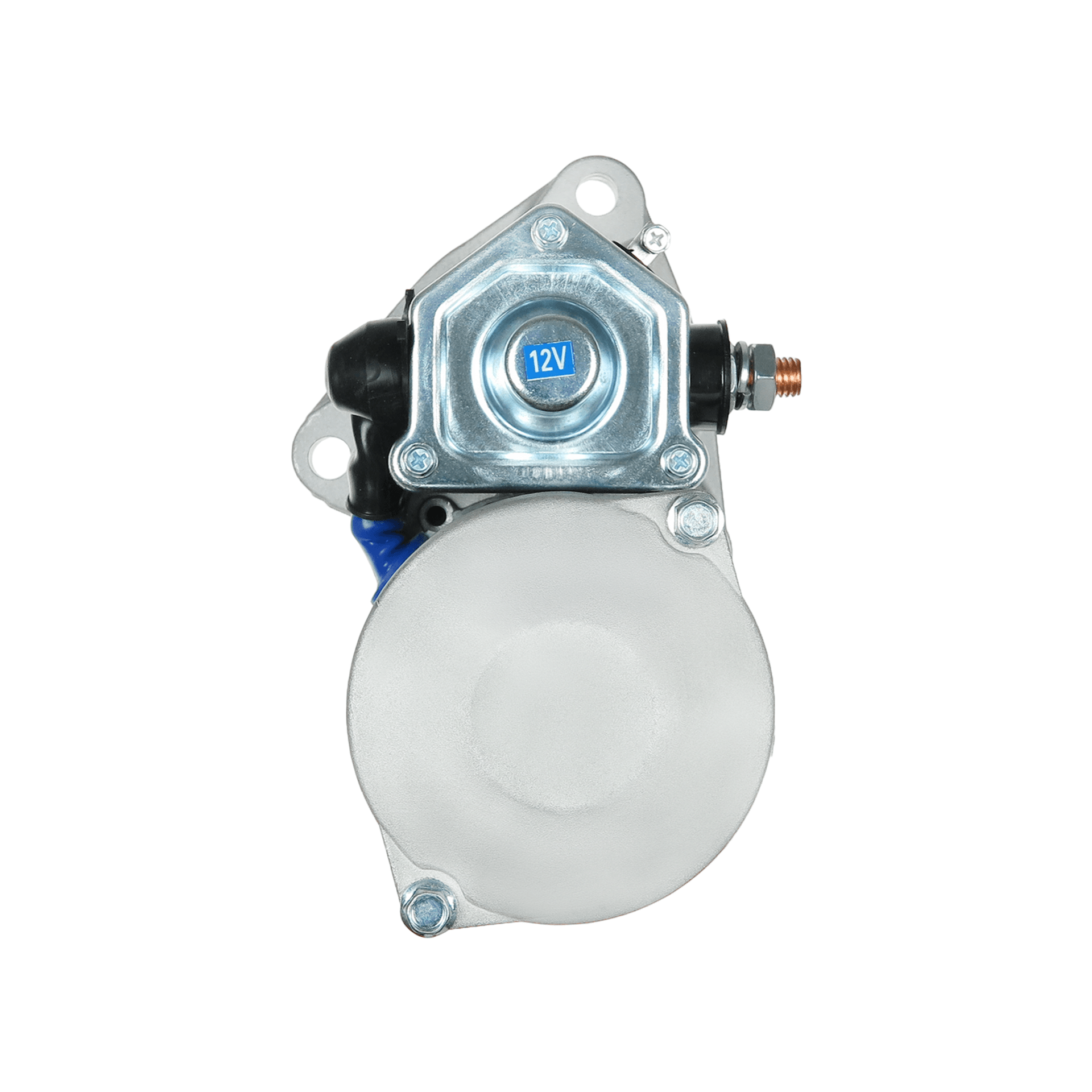

Starter XTLSTR2595
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47.5 mm
No./teeth
10 qty
Power
4 kW
O.3 [ mm ]
126 mm
Oil sealed
Yes
O.2 [ mm ]
126 mm
C.1 [ mm ]
14.00 mm
Voltage
12 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
View More
Starter XTLSTR2595
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
126 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
316 mm
Rotation
CW
Size A [ mm ]
92 mm
Size B [ mm ]
47.5 mm
No./teeth
10 qty
Power
4 kW
O.3 [ mm ]
126 mm
Oil sealed
Yes
O.2 [ mm ]
126 mm
C.1 [ mm ]
14.00 mm
Voltage
12 V
C.3 [ mm ]
14.00 mm
C.2 [ mm ]
14.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR2595
Original Code
18406
2-2356-ND-1
228000-5600
228000-8510
Equivalent Code (Vehicle Manufacturer)
18406N (WAI / TRANSPO)
18406R (WAI / TRANSPO)
190-30100 (ROBERT'S)
193432A1 (CASE)
193432A2 (CASE)
20432123BN (REAL)
20432123OE (REAL)
20432452BN (REAL)
20432452OE (REAL)
246-30118 (DIXIE)
S-8854 (DIXIE)
254667 (KUHNER)
3283813 (CUMMINS)
3283815 (CUMMINS)
3675245RX (CUMMINS)
3675246RX (CUMMINS)
3675288RX (CUMMINS)
3920328 (CUMMINS)
3957589 (CUMMINS)
3957590 (CUMMINS)
6040254.0 (SANDO)
6040254.1 (SANDO)
6040321.0 (SANDO)
6040321.1 (SANDO)
87413501 (NEW HOLLAND)
88213771 (POWERMAX)
91-29-5449 (WILSON)
91-29-5449N (WILSON)
CST40254AS (CASCO)
CST40254GS (CASCO)
CST40321.AS (CASCO)
CST40321.GS (CASCO)
SG9103 (GHIBAUDI)
STN8510 (KRAUF)
STR70340 (WOODAUTO)
S6333S (AS-PL)
UD16533S (AS-PL)
STR6429 (ELECTROLOG)
STX210082 (STARDAX)
Applications
Applications
ALL
INTERNATIONAL
Make
INTERNATIONAL
