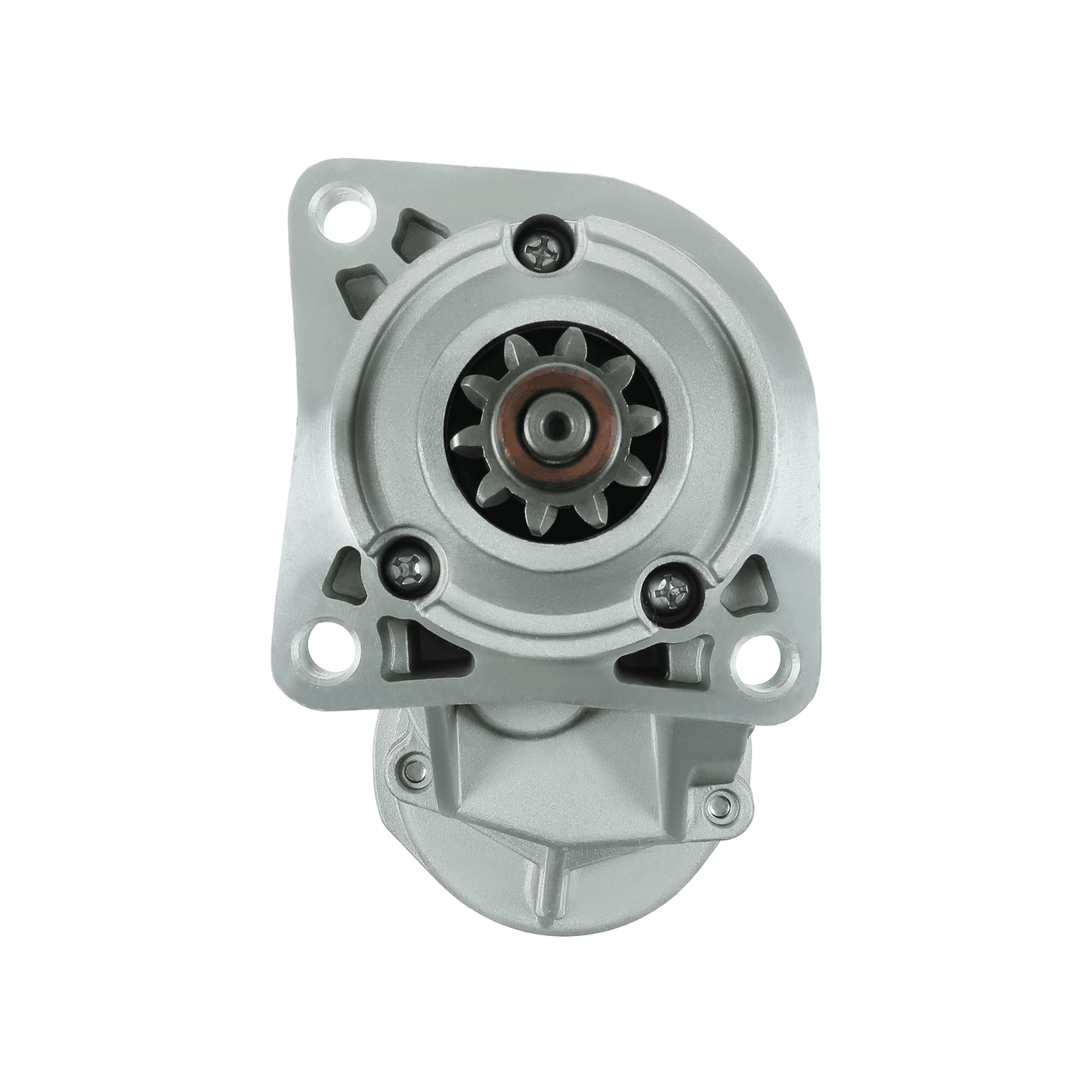

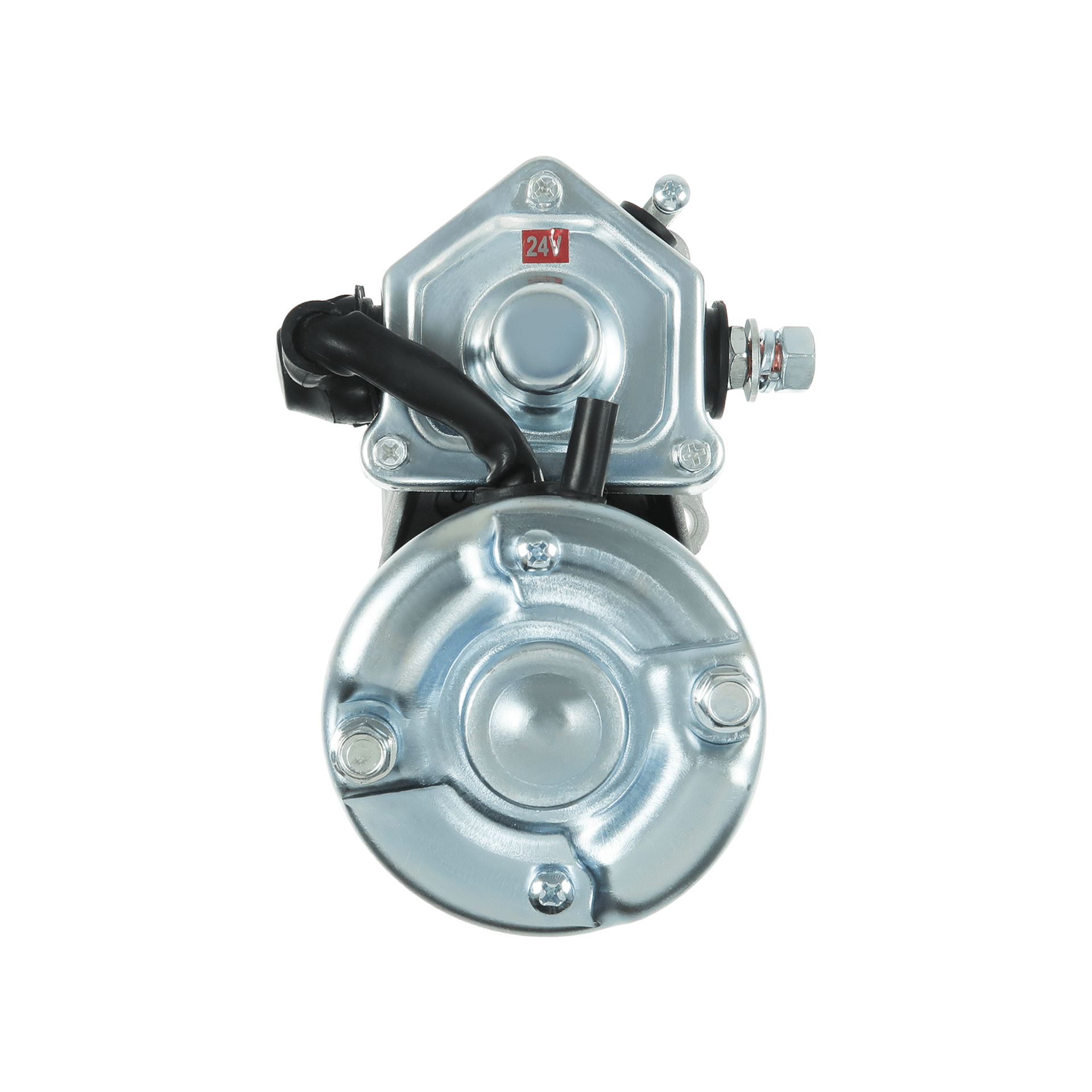

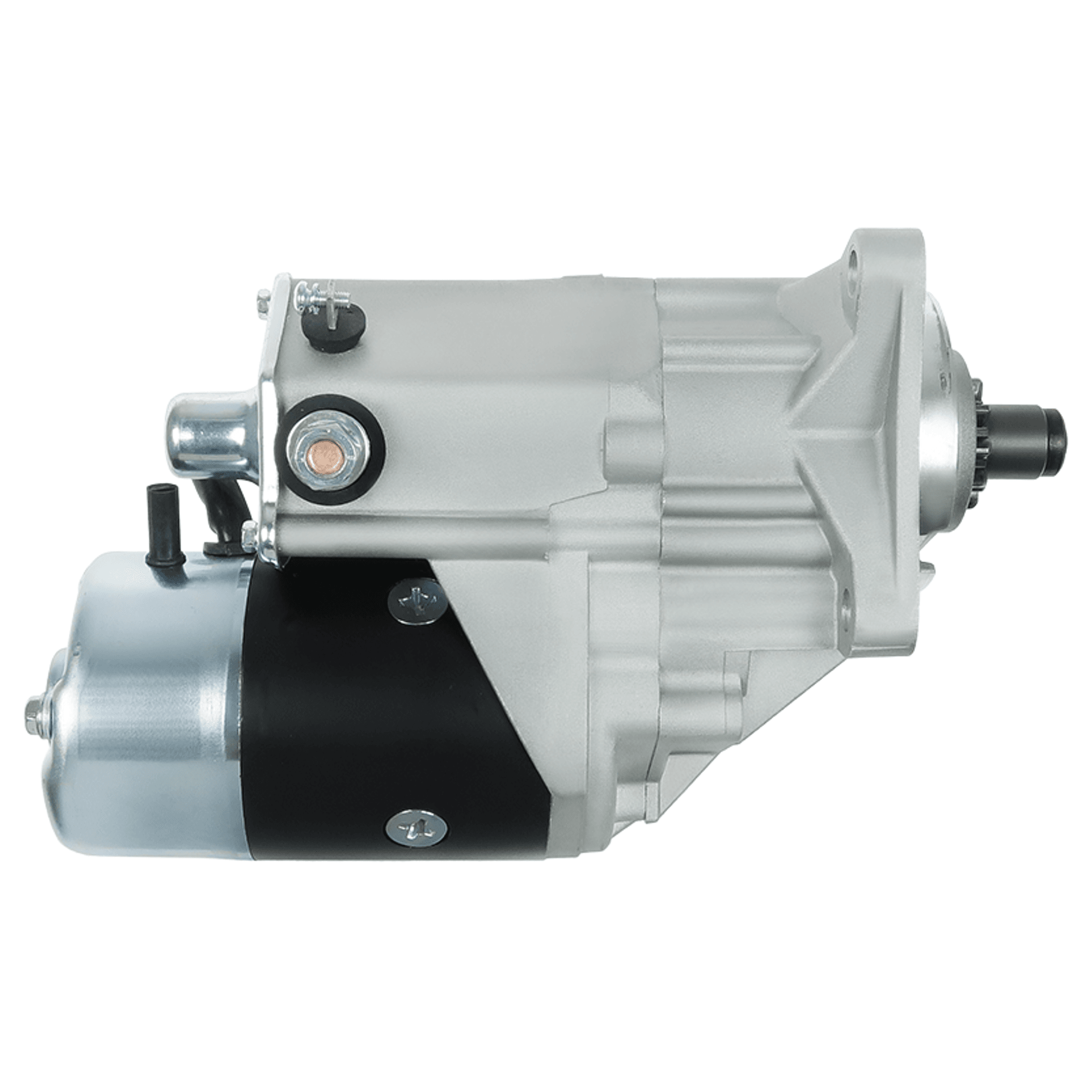

Starter XTLSTR2614
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
298 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
30 mm
No./teeth
10 qty
Power
4.5 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
View More
Starter XTLSTR2614
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
90 mm
No./mount. holes with thread [ qty. ]
0 qty
L.1 [ mm ]
298 mm
Rotation
CW
Size A [ mm ]
88.5 mm
Size B [ mm ]
30 mm
No./teeth
10 qty
Power
4.5 kW
O.3 [ mm ]
90 mm
O.2 [ mm ]
127 mm
C.1 [ mm ]
11.00 mm
Voltage
24 V
C.3 [ mm ]
11.00 mm
C.2 [ mm ]
11.00 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR2614
Original Code
1006929
18505
228000-1830
228000-1832
Equivalent Code (Vehicle Manufacturer)
0R4321 (CATERPILLAR)
1006929 (CATERPILLAR)
143-0541 (CATERPILLAR)
143-0543 (CATERPILLAR)
225-7304 (CATERPILLAR)
OR4321 (CATERPILLAR)
114268 (CARGO)
F032114268 (CARGO)
18505N (WAI / TRANSPO)
246-25242 (DIXIE)
S-8655 (DIXIE)
254258 (KUHNER)
254258L (KUHNER)
45-4267 (ELSTOCK)
8182 (CEVAM)
88214710 (POWERMAX)
91-26-5423 (WILSON)
CST40619AS (CASCO)
CST40619GS (CASCO)
DRS0206 (DELCO)
LRS02594 (LUCAS)
LRS2594 (LUCAS)
MAV426190 (SIOM)
S6282S (AS-PL)
STN4268 (KRAUF)
STR70125 (WOODAUTO)
PRSL170 (3EFFE)
STRL170 (3EFFE)
CGB-23162 (AINDE)
641.503.103.050 (PSH)
641.503.103.260 (PSH)
641.503.103.510 (PSH)
S134.991 (PSH)
S144.709 (PSH)
6040619.0 (SANDO)
6040619.1 (SANDO)
20432916BN (REAL)
20432916OE (REAL)
S24DE0093 (SIDAT)
S24DE0093A2 (SIDAT)
336543 (LOGISTIK)
5140095 (MEAT & DORIA)
STR6580 (ELECTROLOG)
2873K406 (PERKINS)
Applications
Applications
ALL
CATERPILLAR
Make
CATERPILLAR
