Starter XTLSTR3003 | SINTLY
Previous slide
Next slide

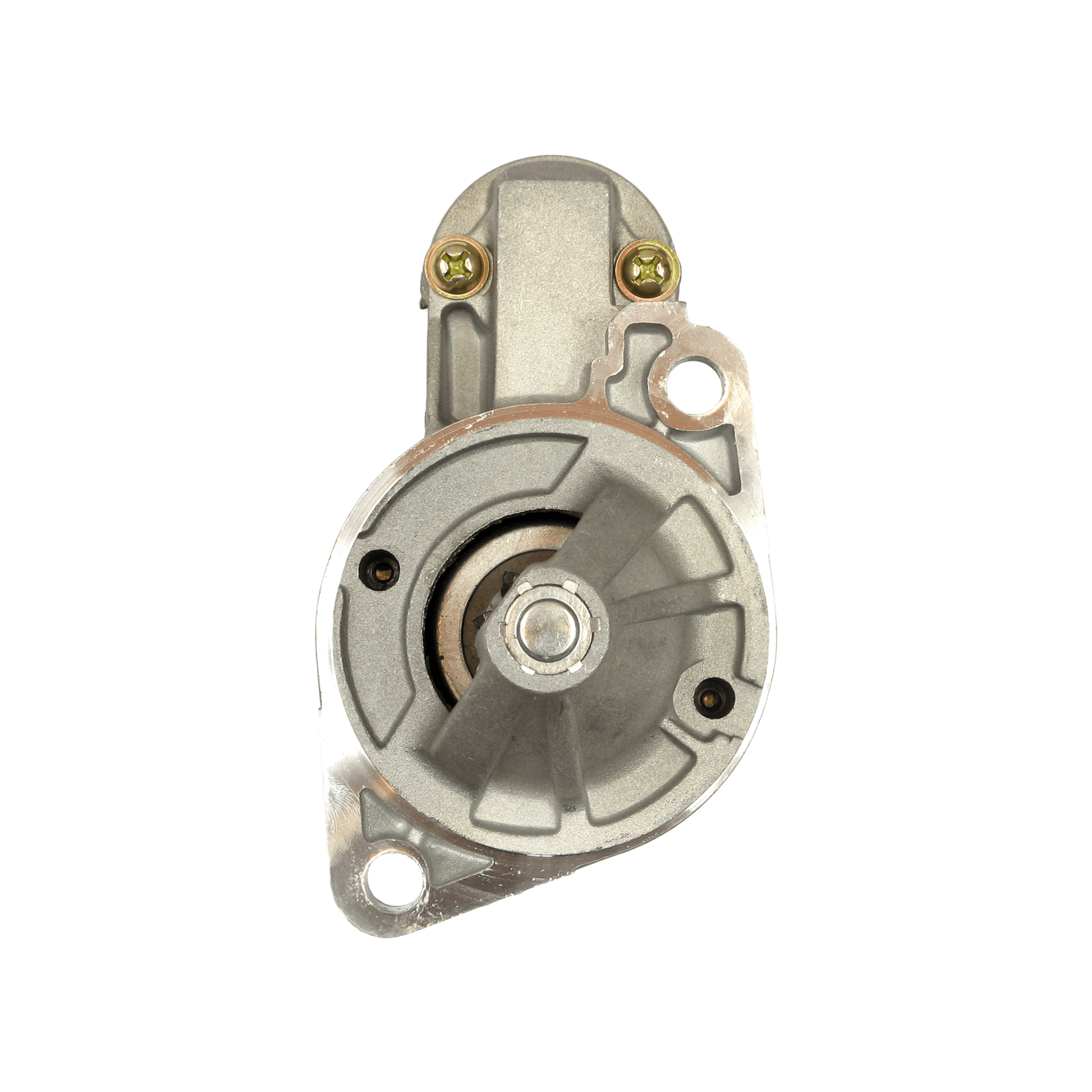

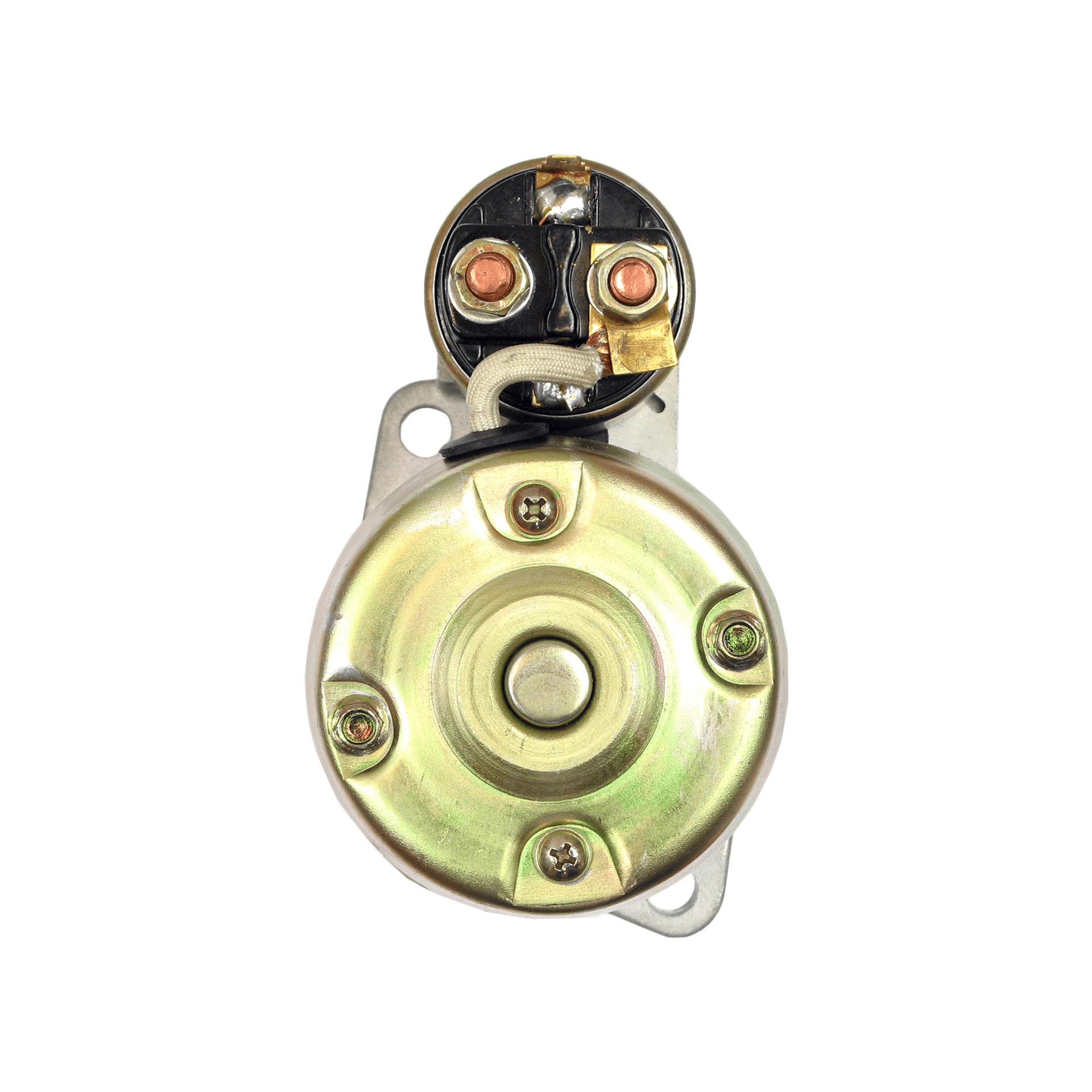

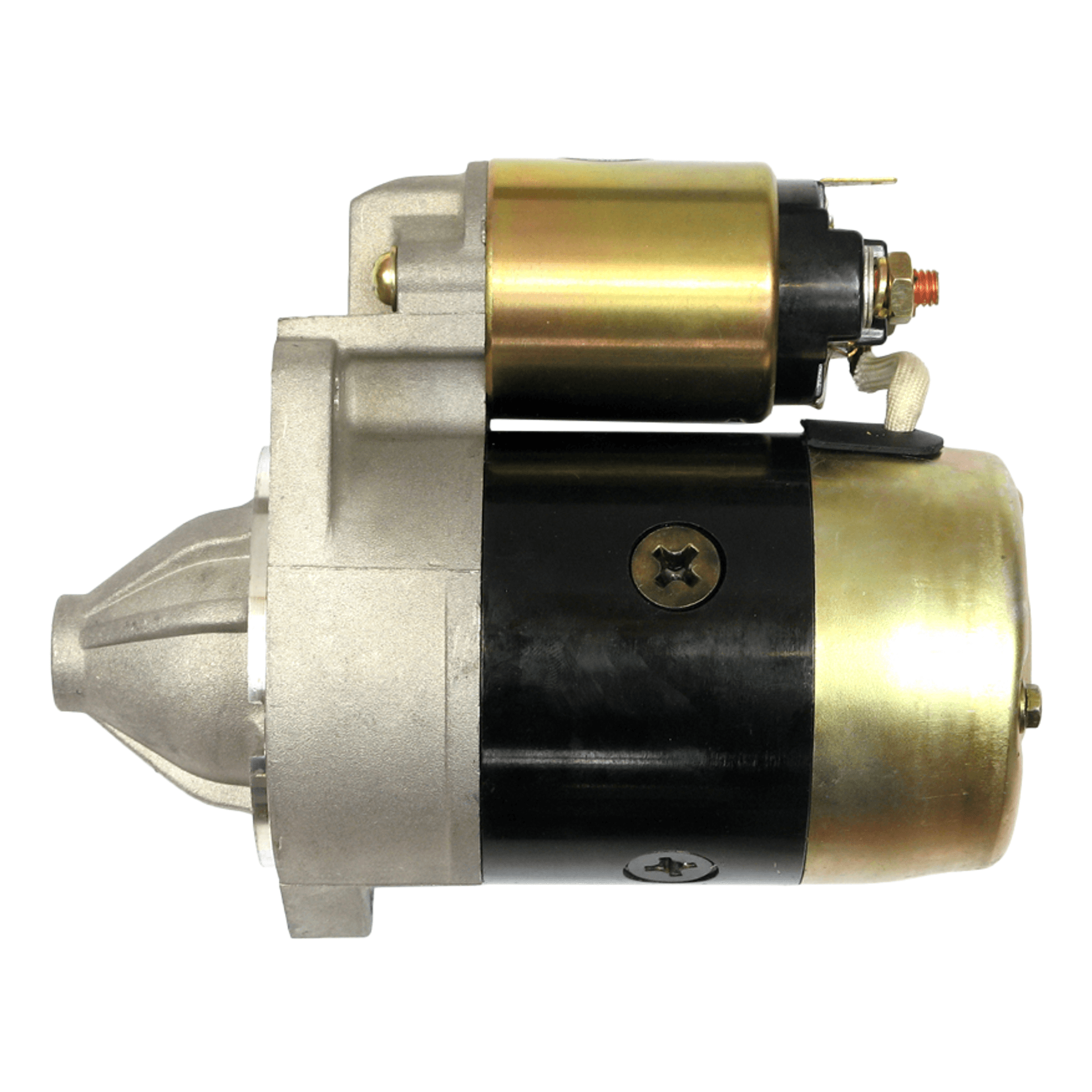

Starter XTLSTR3003
Download PDF
Send Inquiry
Voltage
12 V
Power
0.8 kW
Rotation
CW
Teeth
8
Mating Teeth
8
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
190 mm
Starter XTLSTR3003
Download PDF
Send Inquiry
Voltage
12 V
Power
0.8 kW
Rotation
CW
Teeth
8
Mating Teeth
8
Mounting Holes
2
Threaded Mounting Holes
0
Overall Length
190 mm
Reference Numbers
OE Numbers
WAI
16805
Equivalent Code
AS-PL
S5103
AUTOELECTRO
AES3122
CARGO
110144
110277
F032110144
F032110277
CASCO
CST20160AS
CST20160GS
CEVAM
9531
DELCO
DRS2071
DS3181
DIXIE
S-8362
EAI
11301
ELECTROLOG
STR5132
STR5324
ELSTOCK
25-0401
HC PARTS
JS302
JS303
HERTH+BUSS
J5211004
HITACHI
S114-121
S114-121N
S114-122
S114-172
S114-172A
S114-172D
S114-172E
S114-173
S114-173B
S114-173E
S114-173F
S114-174
S114-229
S114-229E
S114-229F
S114-348
S114-348A
S114-426
S114-526
S114-526A
S114-526B
S114-527
S114-527A
S114-527B
S114126
S114126M
S114306
S114309
KUHNER
20303
LUCAS
LRS00227
LRS227
MITSUBISHI
M002T20182
M003T13073
M003T15271
M003T21482
M003T23081
M003T25281
M003T25282
M003T27581
M003T27582
M003T29481
M003T29482
M003T29482D
M003T41681
M2T20182
M3T13073
M3T15271
M3T21482
M3T23081
M3T25281
M3T25282
M3T27581
M3T27582
M3T29481
M3T29482
M3T29482D
M3T38481
M3T41681
MEA95-0
MEC01-0
MEC01-1
MEC01-2
MEC04-2
MED04-2
NISSAN
23300-01N00
23300-01N01
23300-40500
23300-40501
23300-40510
23300-40511
23300-40512
23300-40513
23300-40700
23300-40710
23300-80W00
23300-E3000
23300-E3001
23300-E3010
23300-E3011
23300-E3100
23300-E3101
23300-G8400
23300-N3300
23300-N3301
23300-N3302
23300-N3303
23300-W0400
23300-W0401
23300-W0402
23300-W0403
23300-W0410
23300-W0411
23300-W0412
23300-W0413
23300-W0415
23300-W0417
23300-Y0500
23300-Y0501
23300-Y0510
23300-Y0511
23300-Y0512
23300-Y0513
23300-Y0700
23300-Y0701
23300-Y0710
23300-Y0711
23300-Y0712
23300-Y0713
23300-Y0714
23300-Y0715
2330001N01EP
REAL
20445061BN
20445061OE
SANDO
6020160.0
6020160.1
STARDAX
STX200892
STX201141
WAI
160.003.092
160.003.092.608
16805N
S130.664
WILSON
91-25-1029
91-25-1029N
Applications
NISSAN
LAUREL (JC31)
2.4
09/1983-12/1985
2.0
01/1981-01/1984
2.4
01/1981-01/1984
LAUREL (HLC230)
2.4
12/1977-05/1983
2.0
03/1977-05/1983
LAUREL (JC32)
2.4
01/1985-12/1987
2.4
01/1985-12/1987
URVAN Bus (E23)
2.0 (E23B)
12/1982-11/1988
CABSTAR (F22, H40)
2.0 (F22)
01/1982-06/1992
2.0 (F22)
01/1982-06/1992
PICK UP (D21)
2.4 4WD
03/1986-04/1992
Home
Starter
Starter XTLSTR3003
Related Products
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
17 mm
Clamp: Motor
M8x1.25 mm
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
19.3 mm
Clamp: Motor
M8x1.25 mm

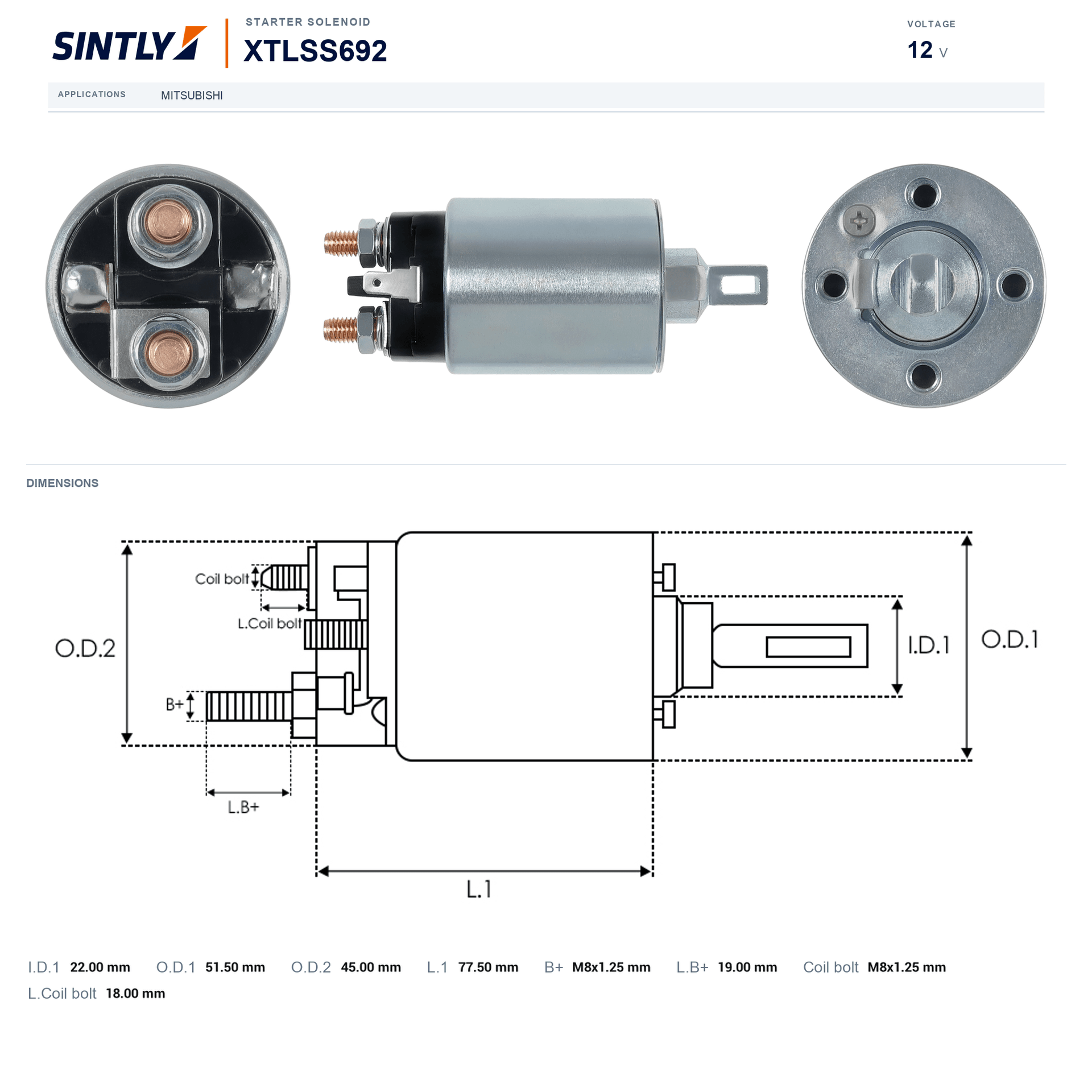

Starter Solenoid XTLSS692
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
19 mm
Clamp: Motor
M8x1.25 mm

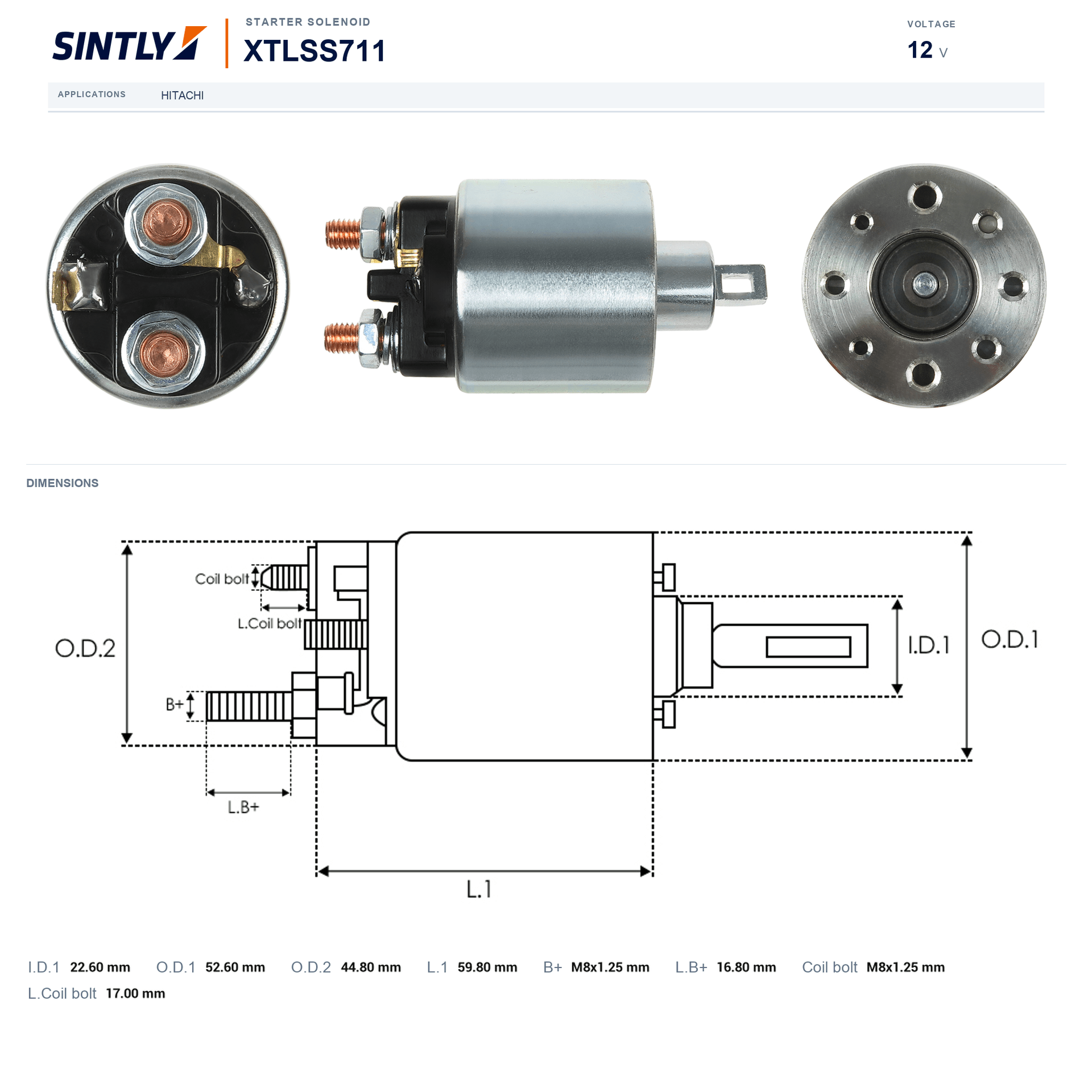

Starter Solenoid XTLSS711
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
16.8 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS713
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
16.5 mm
Clamp: Motor
M8x1.25 mm

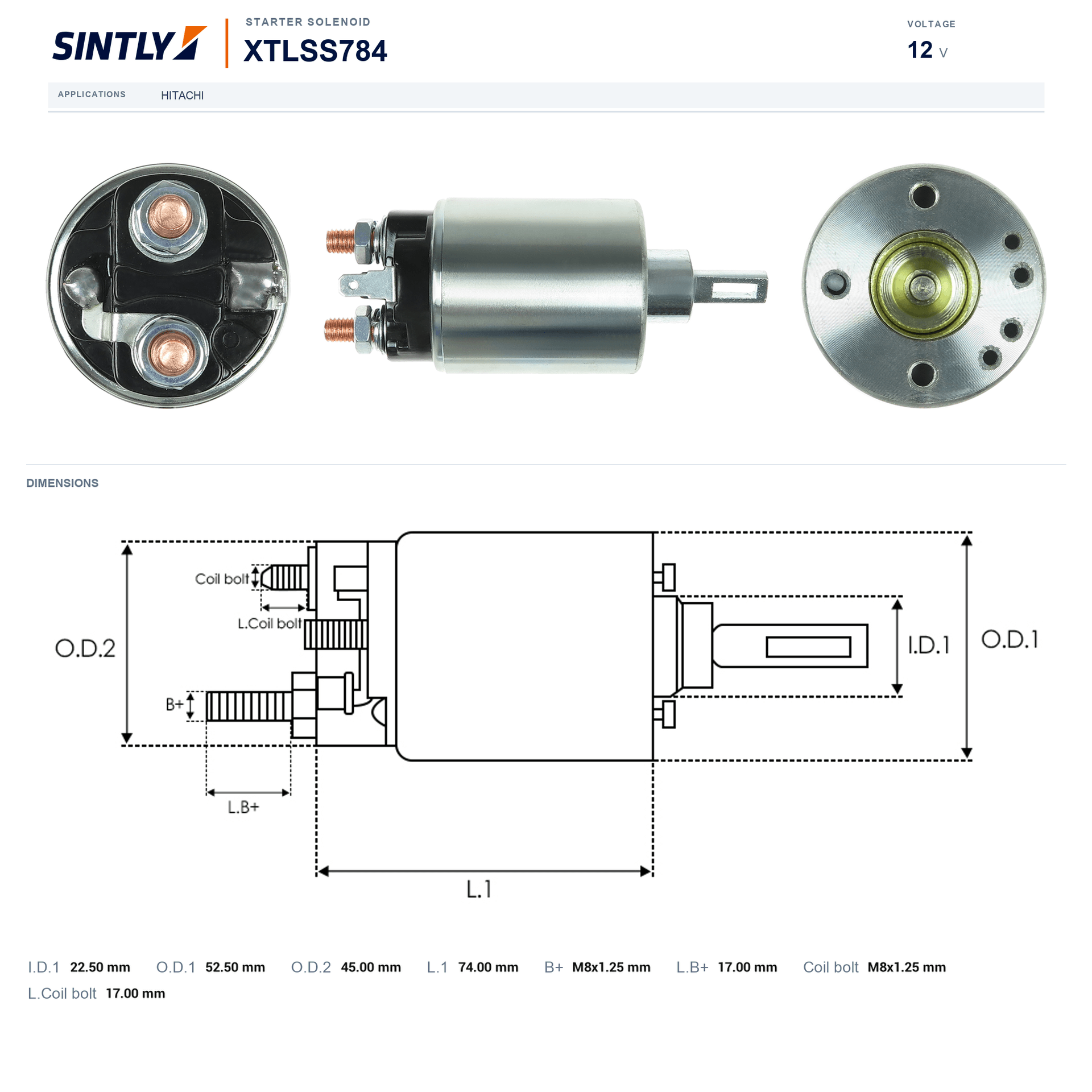

Starter Solenoid XTLSS784
Voltage
12 V
Clamp: B+
M8x1.25 mm
Length: B+
17 mm
Clamp: Motor
M8x1.25 mm
Starter Solenoid XTLSS1-784

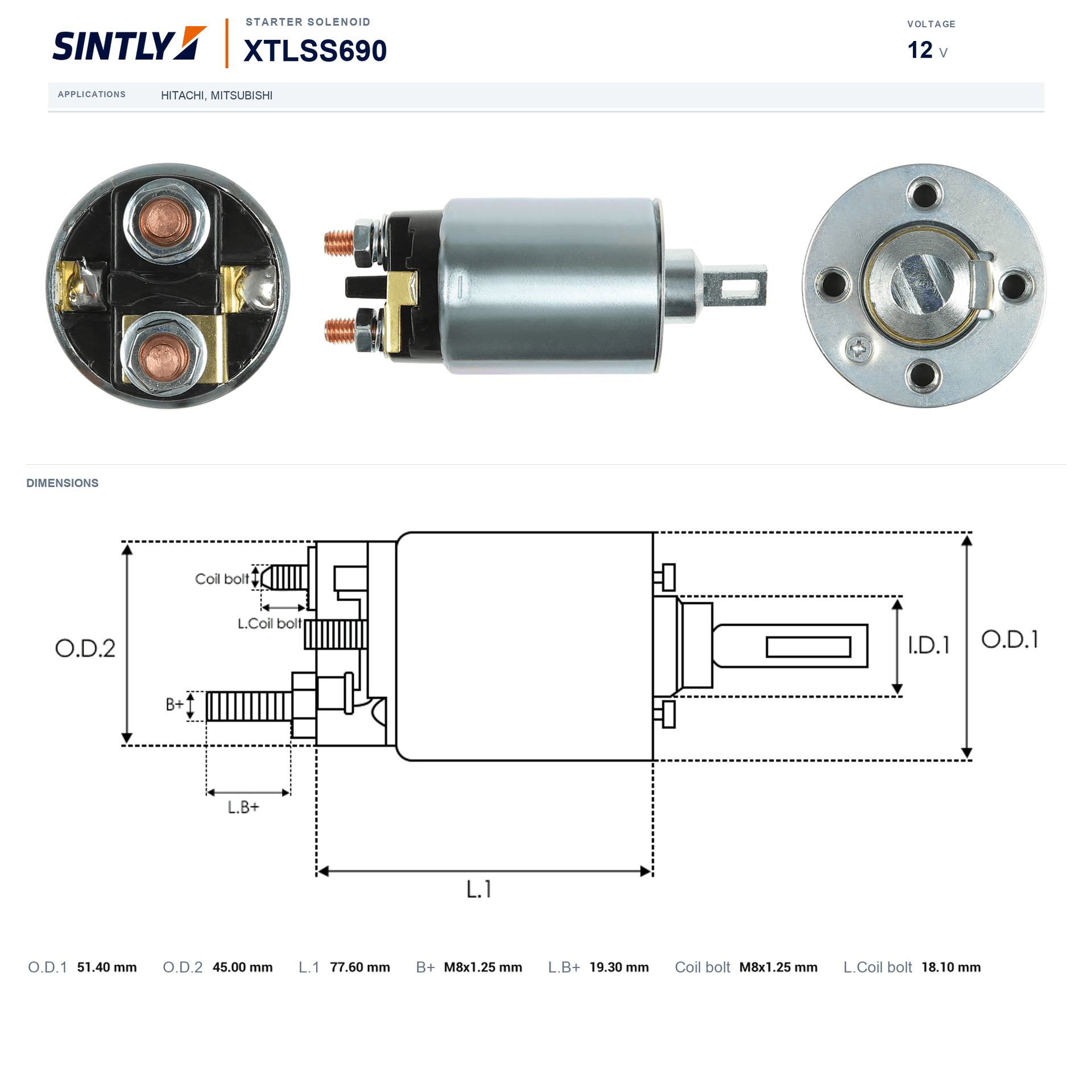

Starter Solenoid XTLSS690
