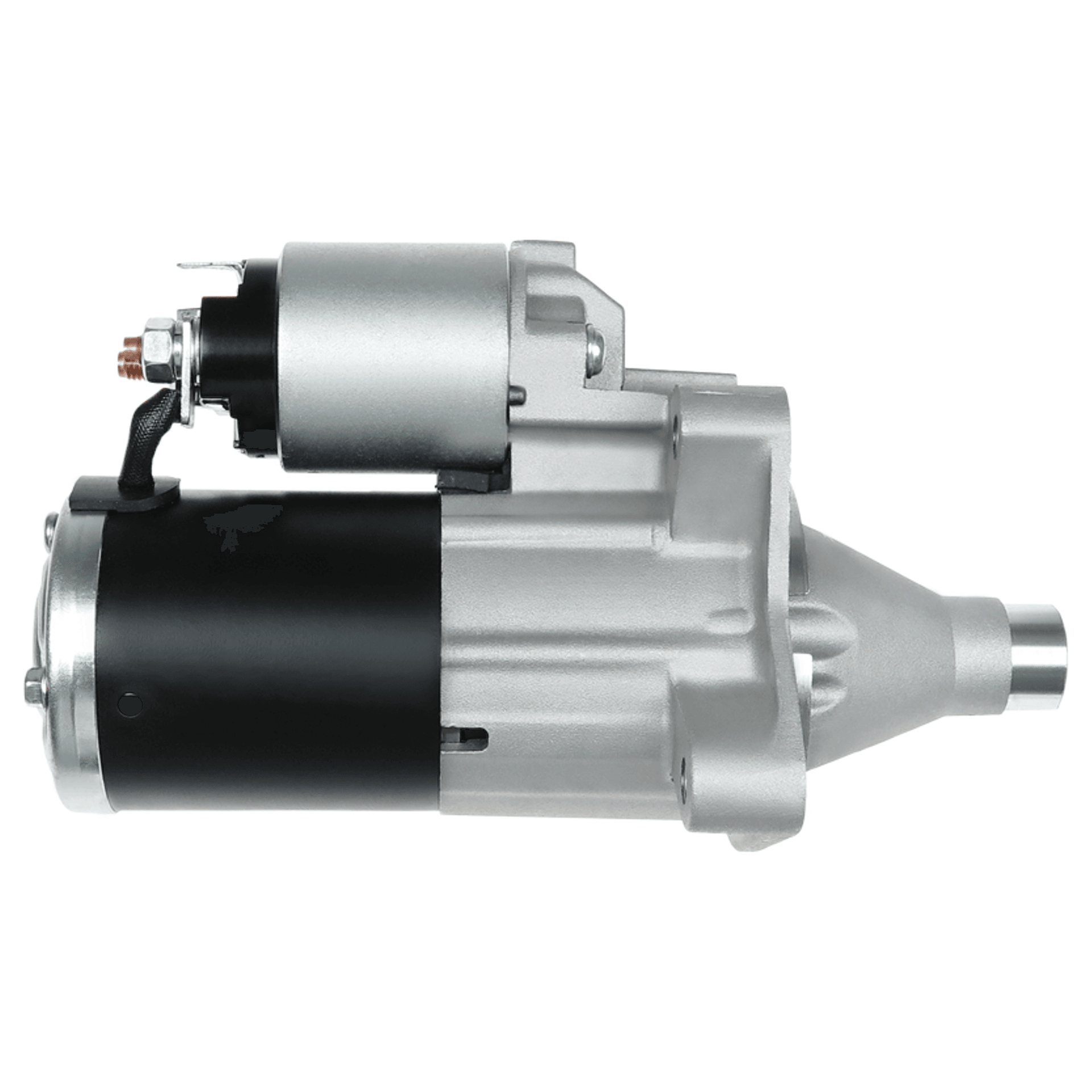

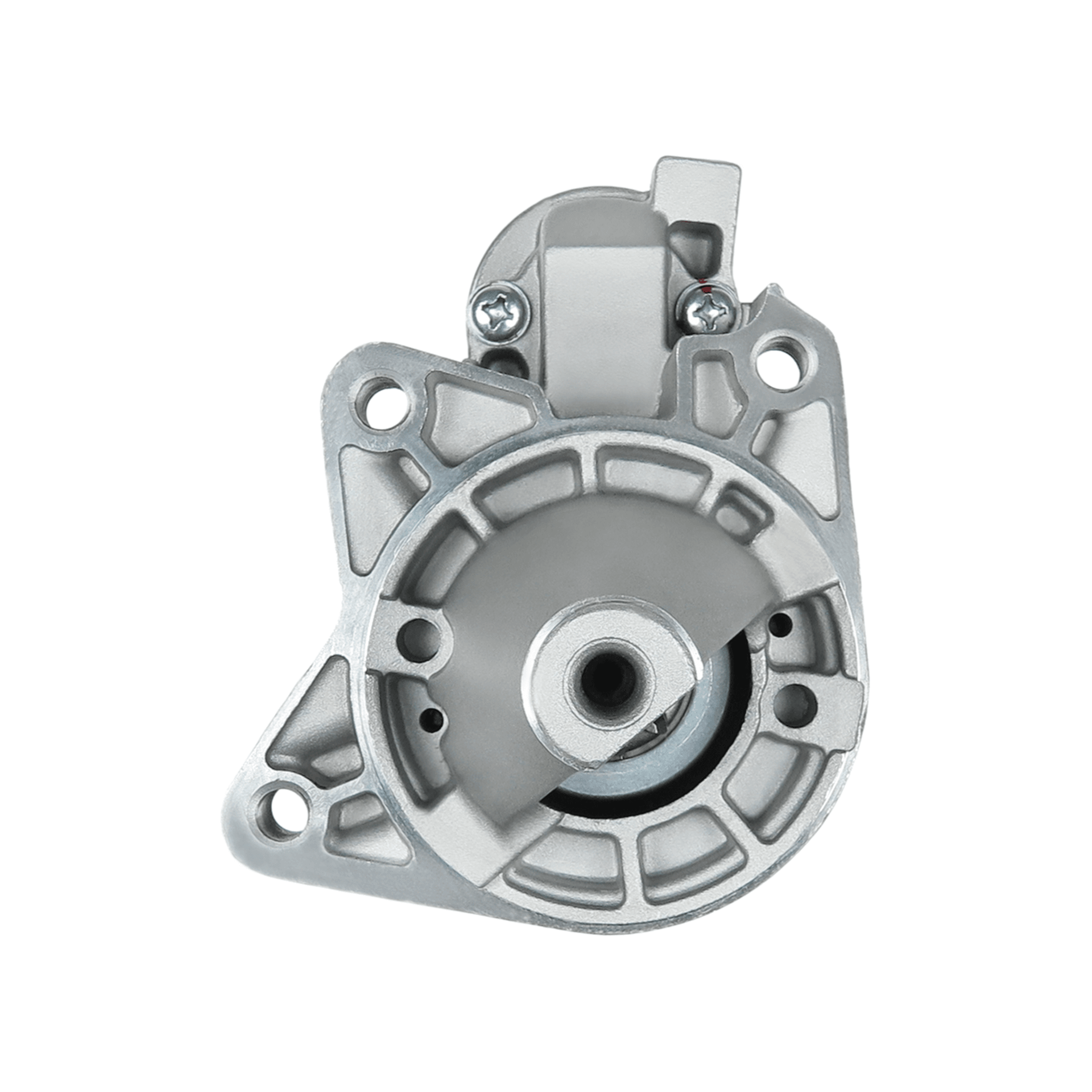

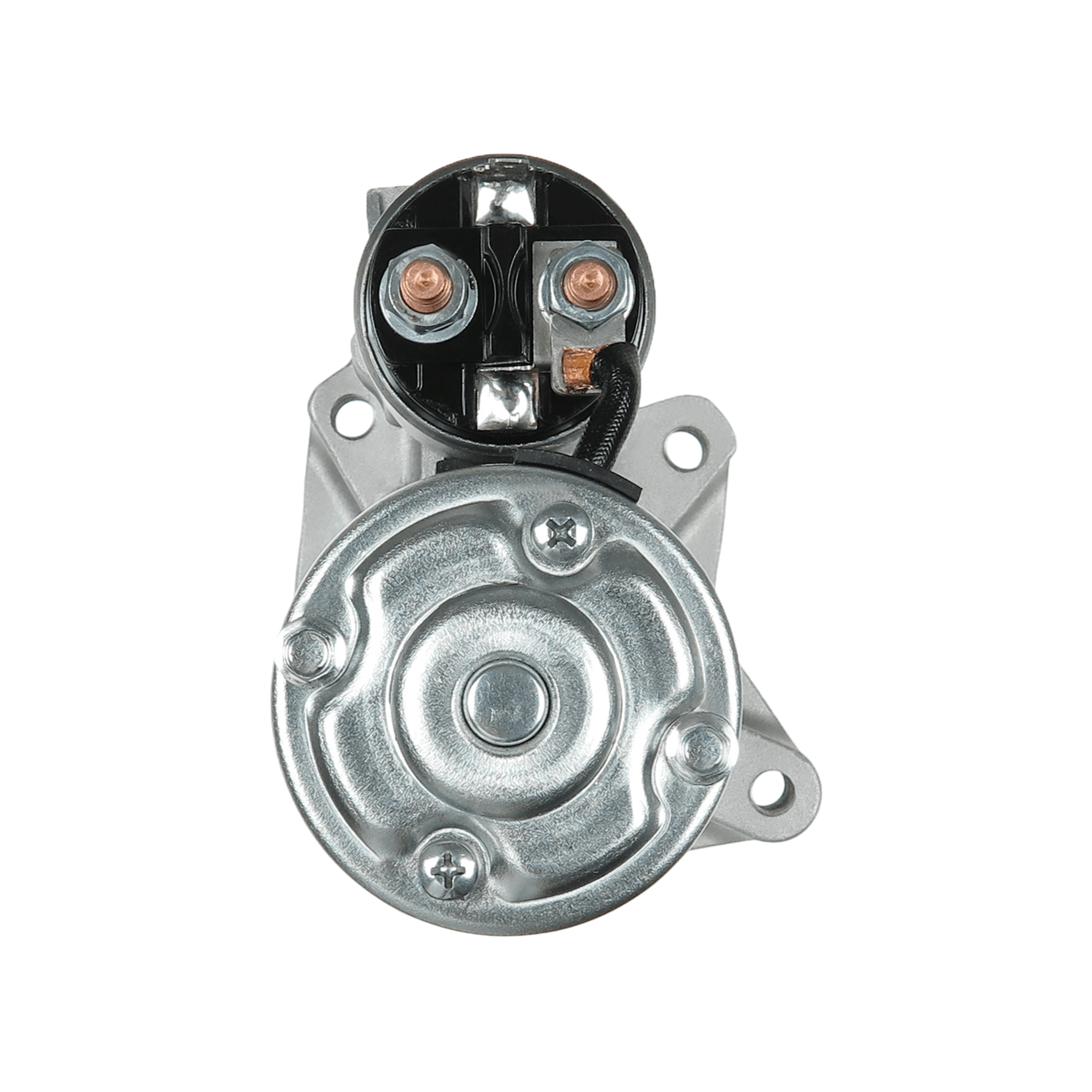

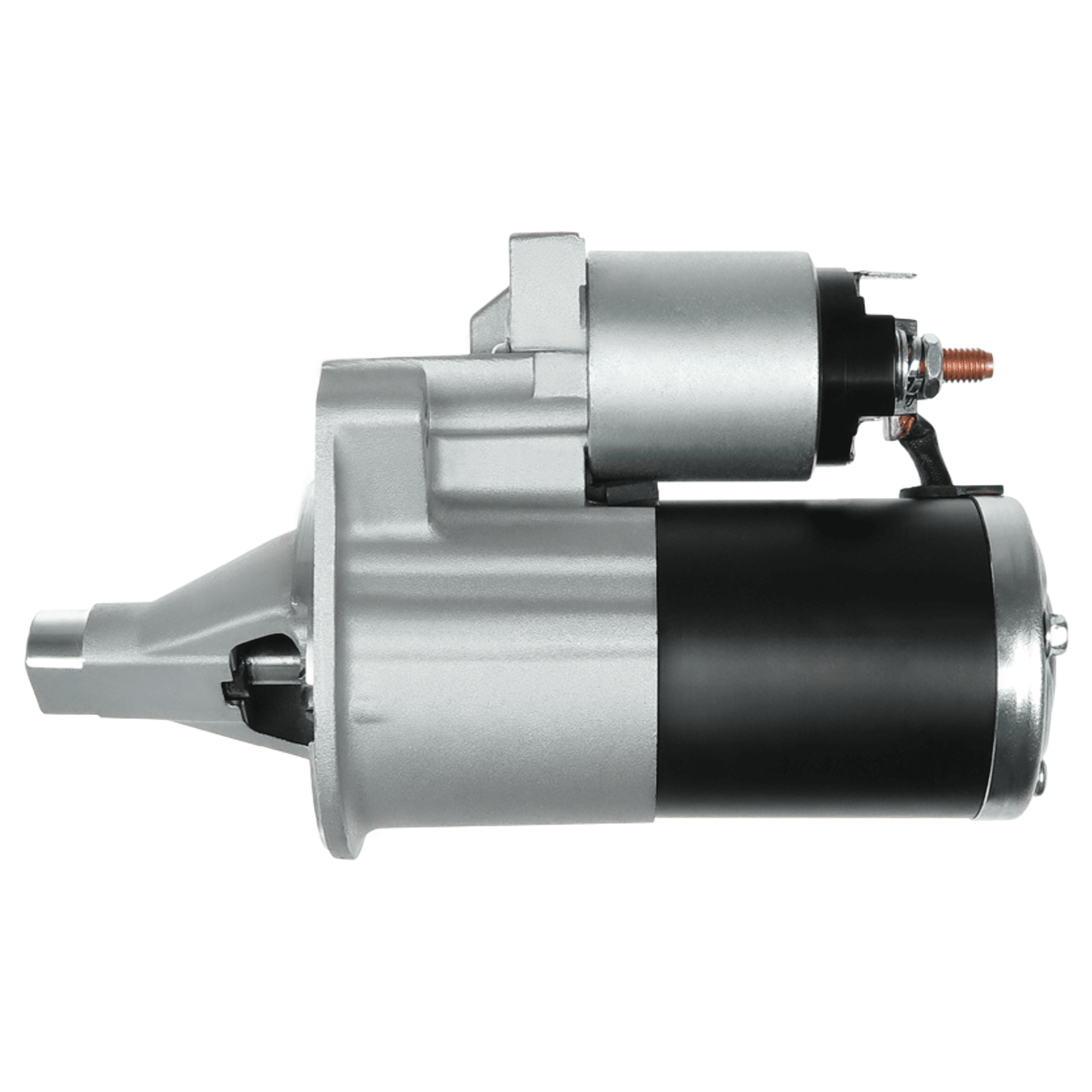

Starter XTLSTR3025
Download PDF
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
225.5 mm
Rotation
CW
Size A [ mm ]
82 mm
Size B [ mm ]
6 mm
No./teeth
10 qty
Power
1.2 kW
O.3 [ mm ]
67 mm
O.2 [ mm ]
71 mm
C.1 [ mm ]
M10x1.5 mm
Voltage
12 V
C.3 [ mm ]
M10x1.5 mm
C.2 [ mm ]
M10x1.5 mm
View More
Starter XTLSTR3025
Download PDF
Send Inquiry
No./mount. holes [ qty. ]
3 qty
O.1 [ mm ]
113 mm
No./mount. holes with thread [ qty. ]
3 qty
L.1 [ mm ]
225.5 mm
Rotation
CW
Size A [ mm ]
82 mm
Size B [ mm ]
6 mm
No./teeth
10 qty
Power
1.2 kW
O.3 [ mm ]
67 mm
O.2 [ mm ]
71 mm
C.1 [ mm ]
M10x1.5 mm
Voltage
12 V
C.3 [ mm ]
M10x1.5 mm
C.2 [ mm ]
M10x1.5 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3025
Original Code
19025
4608800AB
M008T88578
MOT21171
Equivalent Code (Vehicle Manufacturer)
04608800AA (CHRYSLER)
04608800AD (CHRYSLER)
04801651AA (CHRYSLER)
4608800AA (CHRYSLER)
4608800AB (CHRYSLER)
4608800AC (CHRYSLER)
19025N (WAI / TRANSPO)
20437902 (REAL)
25-4390 (ELSTOCK)
255079 (KUHNER)
3756 (CEVAM)
6035209 (SANDO)
830.906.103 (PSH)
S135.870 (PSH)
CST35209AS (CASCO)
LRS02717 (LUCAS)
LRS2717 (LUCAS)
S-80366 (DIXIE)
STM4011 (KRAUF)
STRS414 (3EFFE)
STRS452 (3EFFE)
S5341S (AS-PL)
UD20394S (AS-PL)
S12MH0746A2 (SIDAT)
STX210328 (STARDAX)
STX210328R (STARDAX)
STX210336 (STARDAX)
STX210336R (STARDAX)
Applications
Applications
ALL
CHRYSLER
Make
CHRYSLER
