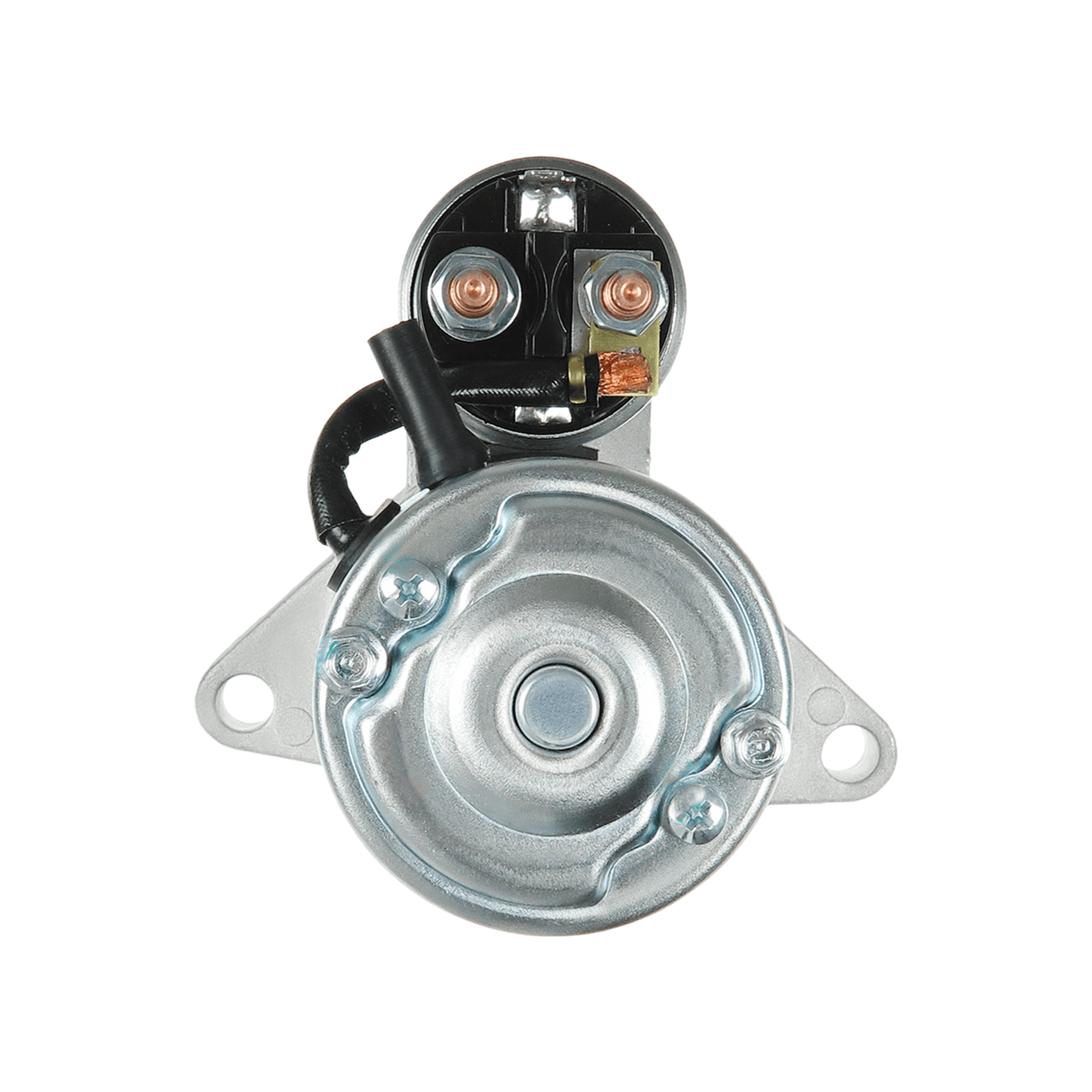

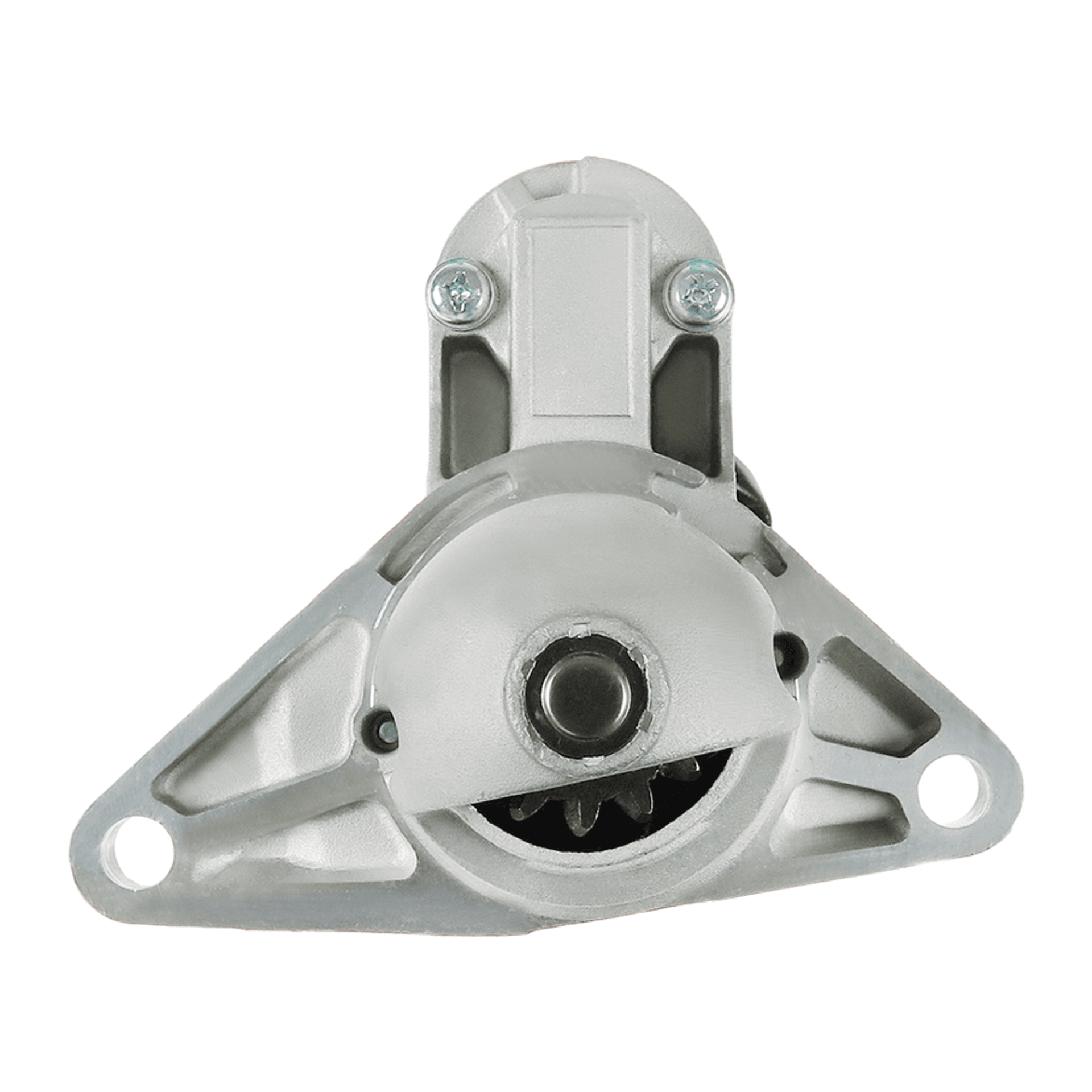

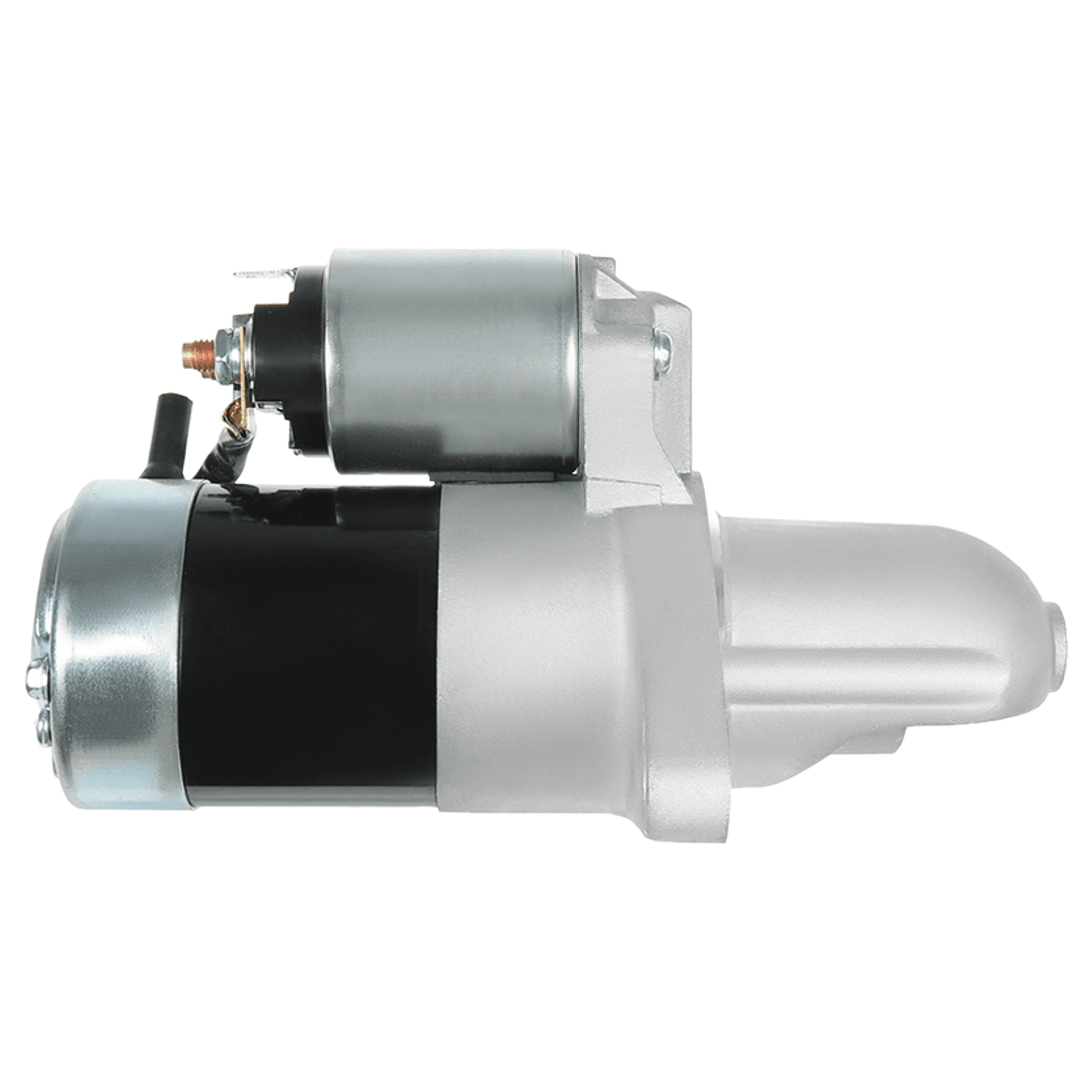

Starter XTLSTR3039
Download PDF
No./teeth
13 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
130 mm
No./mount. holes with thread [ qty. ]
0 qty
C.1 [ mm ]
11.50 mm
L.1 [ mm ]
232 mm
Voltage
12 V
Rotation
ACW
C.2 [ mm ]
11.50 mm
Size A [ mm ]
67 mm
Size B [ mm ]
47 mm
View More
Starter XTLSTR3039
Download PDF
Send Inquiry
No./teeth
13 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
130 mm
No./mount. holes with thread [ qty. ]
0 qty
C.1 [ mm ]
11.50 mm
L.1 [ mm ]
232 mm
Voltage
12 V
Rotation
ACW
C.2 [ mm ]
11.50 mm
Size A [ mm ]
67 mm
Size B [ mm ]
47 mm
Applications
Original Code (Vehicle Manufacturer)
003-M175
140.515.132
S130.173
16930N
16930R
25-1316
3M175
88212586
91-27-3057
91-27-3057N
9656
AEY1213
DRS0516
F042001050
WhatsApp inquiry
Email inquiry
Starter XTLSTR3039
LRS01213
LRS1213
M001T70881
M001T70881 (MITSUBISHI)
M1T70881
M1T70881 (MITSUBISHI)
MTM175
N318-18-4009R
N318-18-400A
N318-18-400B
N318-18-400B-9R
S-8231
STM3135
STR71146
S5282S
458604
STR5298
Equivalent Code (Vehicle Manufacturer)
003-M175 (ASHIKA)
140.515.132 (PSH)
S130.173 (PSH)
16930N (WAI / TRANSPO)
16930R (WAI / TRANSPO)
25-1316 (ELSTOCK)
3M175 (JAPKO)
88212586 (POWERMAX)
91-27-3057 (WILSON)
91-27-3057N (WILSON)
9656 (CEVAM)
AEY1213 (AUTOELECTRO)
DRS0516 (DELCO)
F042001050 (BOSCH)
LRS01213 (LUCAS)
LRS1213 (LUCAS)
MTM175 (JAPANPARTS)
N318-18-4009R (MAZDA)
N318-18-400A (MAZDA)
N318-18-400B (MAZDA)
N318-18-400B-9R (MAZDA)
S-8231 (DIXIE)
STM3135 (KRAUF)
STR71146 (WOODAUTO)
S5282S (AS-PL)
458604 (VALEO)
STR5298 (ELECTROLOG)
Home
Starter
Applications
ALL
MAZDA
Make
Vehicle
Model Types
From
To
MAZDA
RX-7 II Convertible 1.3 Turbo (FC1032)
13B-MSP
03/1989
12/1991
MAZDA
RX-7 II (FC) 1.3 Turbo (FC3S, FC1031)
RE13B
03/1989
12/1991
