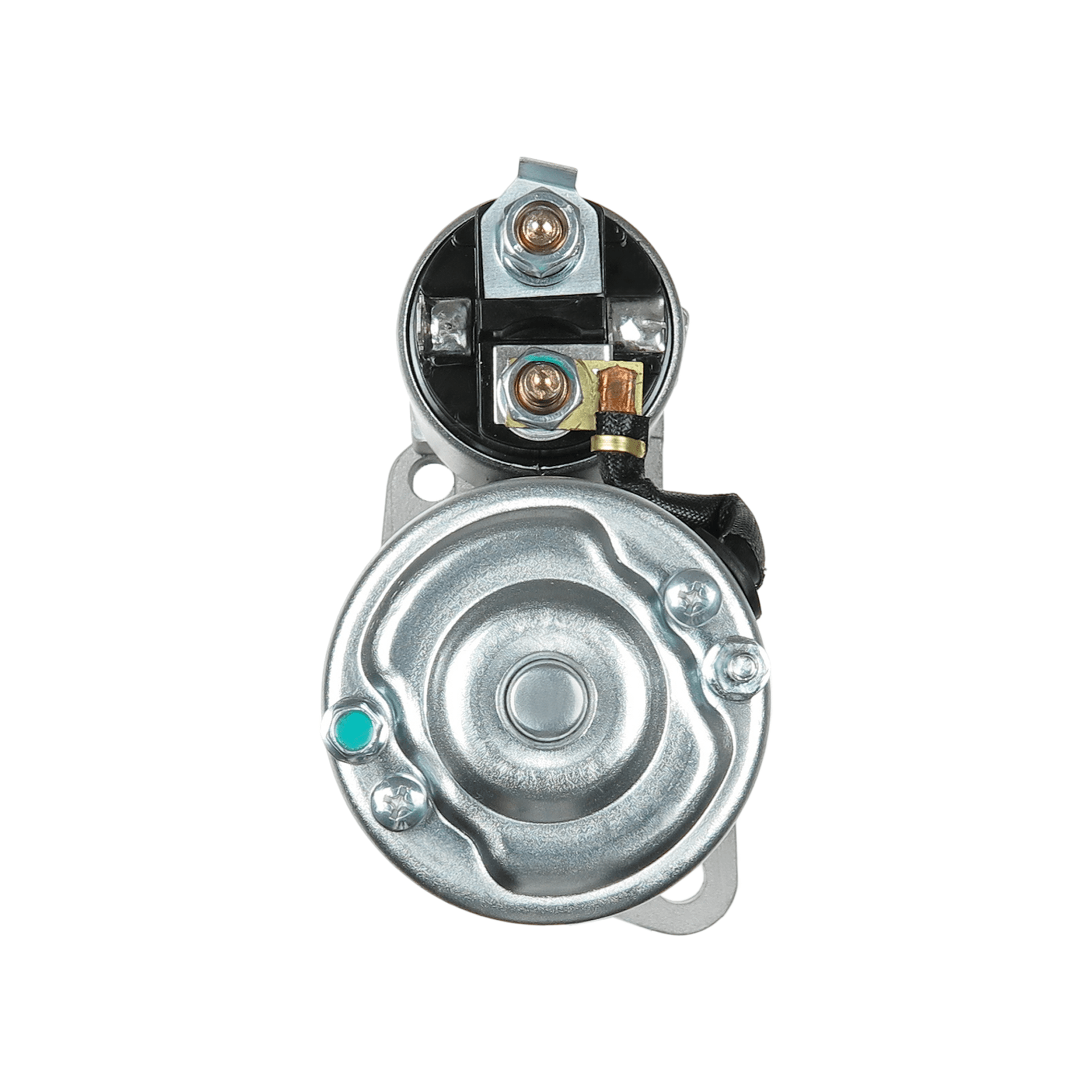

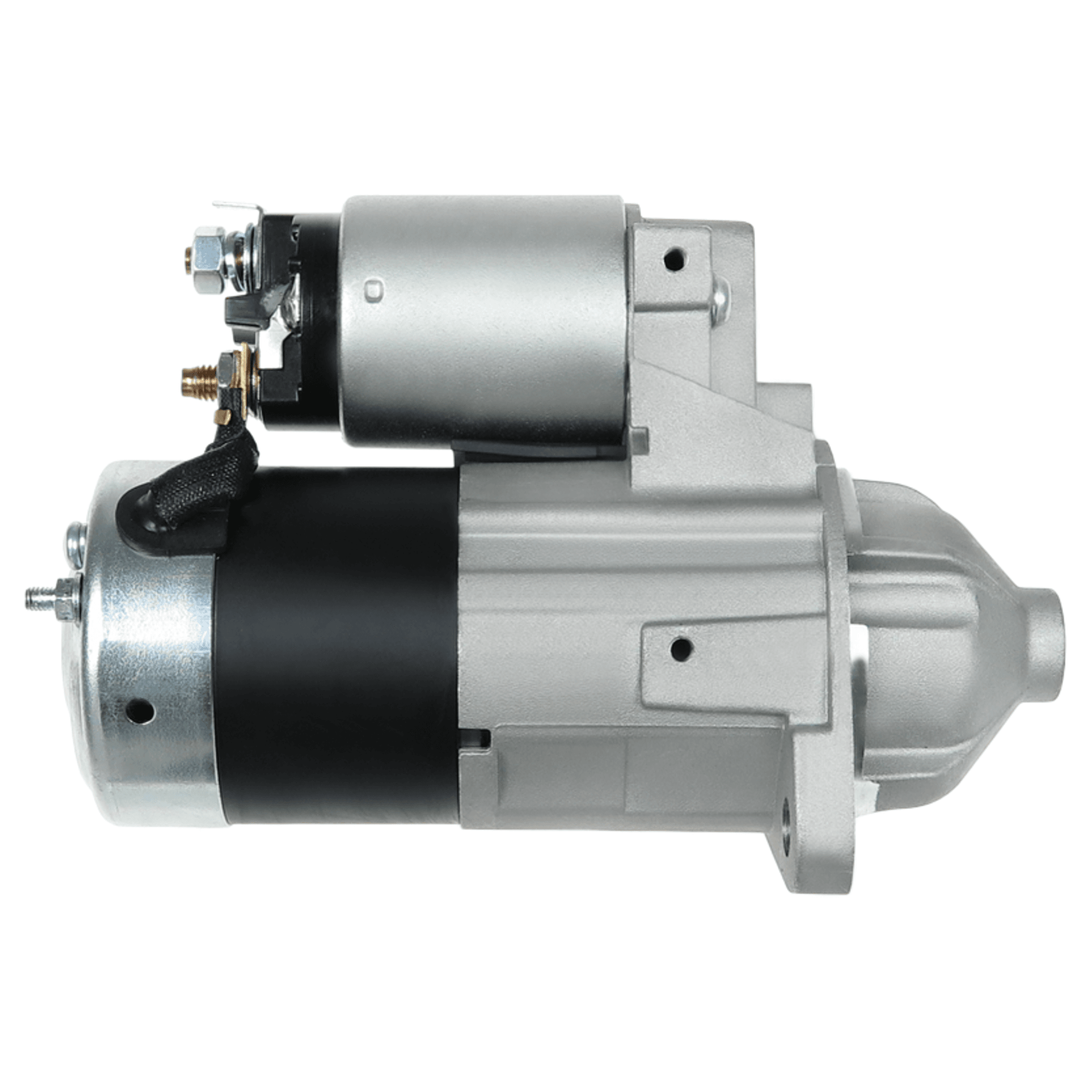

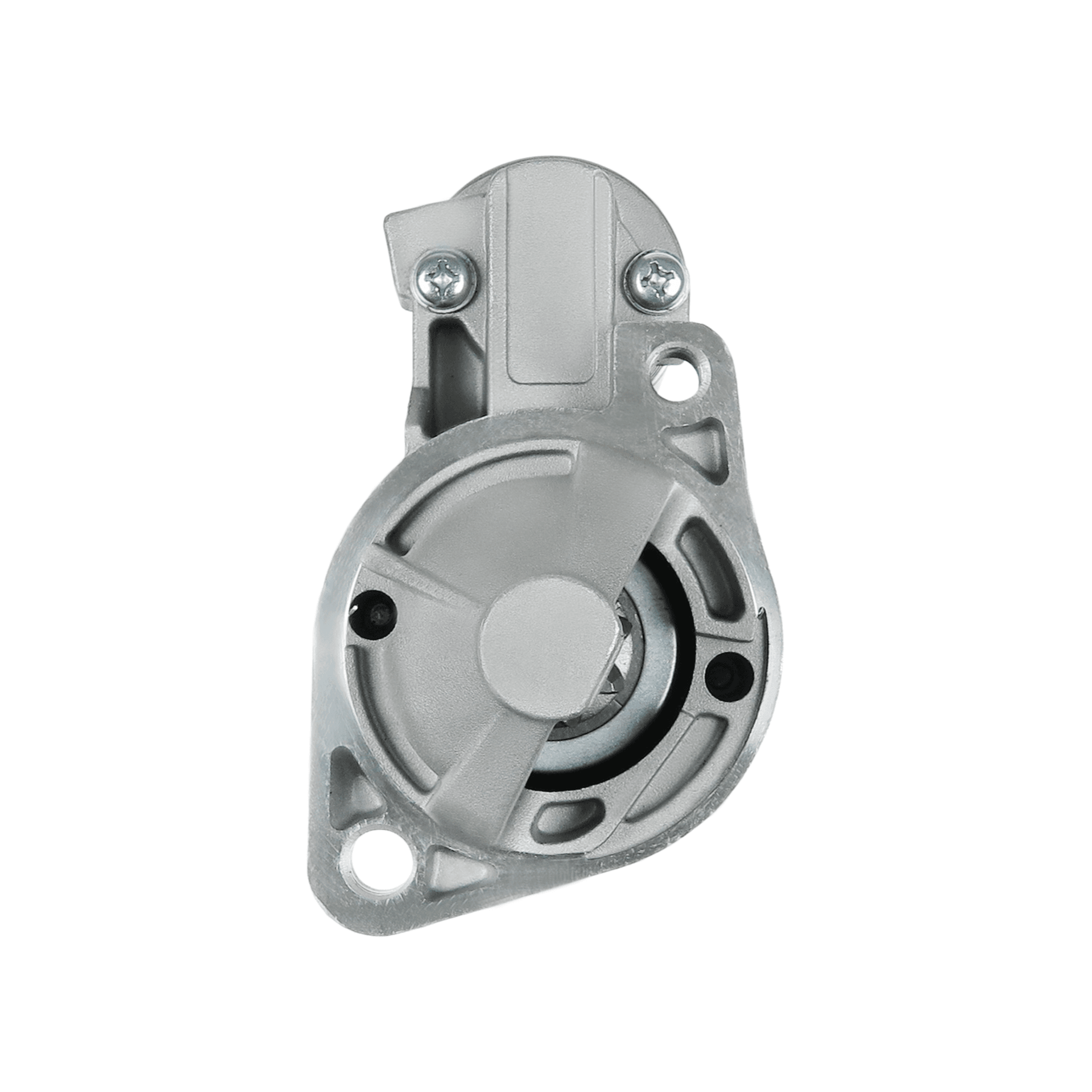

Starter XTLSTR3042
Download PDF
No./teeth
8 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
97.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
195 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
11.00 mm
Size A [ mm ]
70 mm
Size B [ mm ]
9 mm
View More
Starter XTLSTR3042
Download PDF
Send Inquiry
No./teeth
8 qty
Power
1.2 kW
No./mount. holes [ qty. ]
2 qty
O.1 [ mm ]
97.5 mm
No./mount. holes with thread [ qty. ]
1 qty
C.1 [ mm ]
M10x1.25 mm
L.1 [ mm ]
195 mm
Voltage
12 V
Rotation
CW
C.2 [ mm ]
11.00 mm
Size A [ mm ]
70 mm
Size B [ mm ]
9 mm
WhatsApp inquiry
Email inquiry
Home
Starter
Starter XTLSTR3042
Original Code
17795
MD351508
MOT80783
MOT80784
Equivalent Code (Vehicle Manufacturer)
150.528.082 (PSH)
150.528.082.462 (PSH)
S130.451 (PSH)
17795N (WAI / TRANSPO)
17795R (WAI / TRANSPO)
20437572 (REAL)
25-3459 (ELSTOCK)
254381 (KUHNER)
6035275 (SANDO)
88213388 (POWERMAX)
91-27-3280 (WILSON)
AEY2288 (AUTOELECTRO)
CST35275 (CASCO)
CST35275AS (CASCO)
CST35275ES (CASCO)
CST35275GS (CASCO)
CST35275OS (CASCO)
CST35275RS (CASCO)
DRS0287 (DELCO)
DS1397 (DELCO)
J5215033 (HERTH+BUSS)
LRS02288 (LUCAS)
LRS2288 (LUCAS)
S-8985 (DIXIE)
STM3046 (KRAUF)
STR71143 (WOODAUTO)
UD20373S (AS-PL)
ANM12507X (ANDEL)
STR5259 (ELECTROLOG)
Applications
Applications
ALL
MITSURISHI
Make
MITSURISHI
